EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB - Acrylic

With this combination, EK Water Blocks delivers a proven D5 pump and a generously sized reservoir with stylish RGB lighting for demanding water cooling fans.

An overview of the features of the EK-Quantum Kinetic TBE 200 D5 PWM D-RGB pump/reservoir combination:

• Combination of pump and reservoir
• Powerful D5 pump with PWM control by Xylem
• 3.9 m head height and 1,500 L/h flow rate
• Acrylic reservoir with 205 ml capacity
• Six G1/4 inch ports + pre-installed riser tube for high flexibility

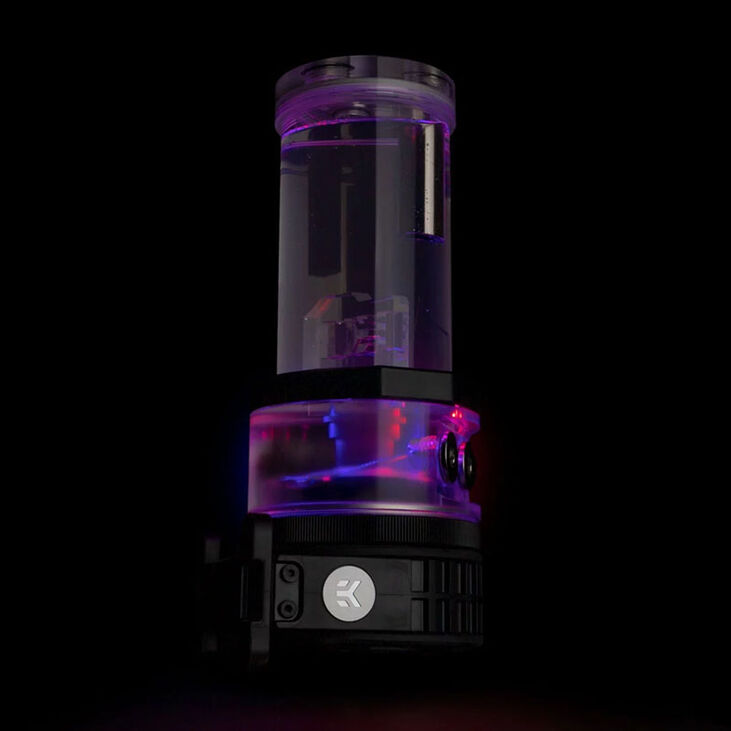

• Integrated and digitally addressable RGB lighting

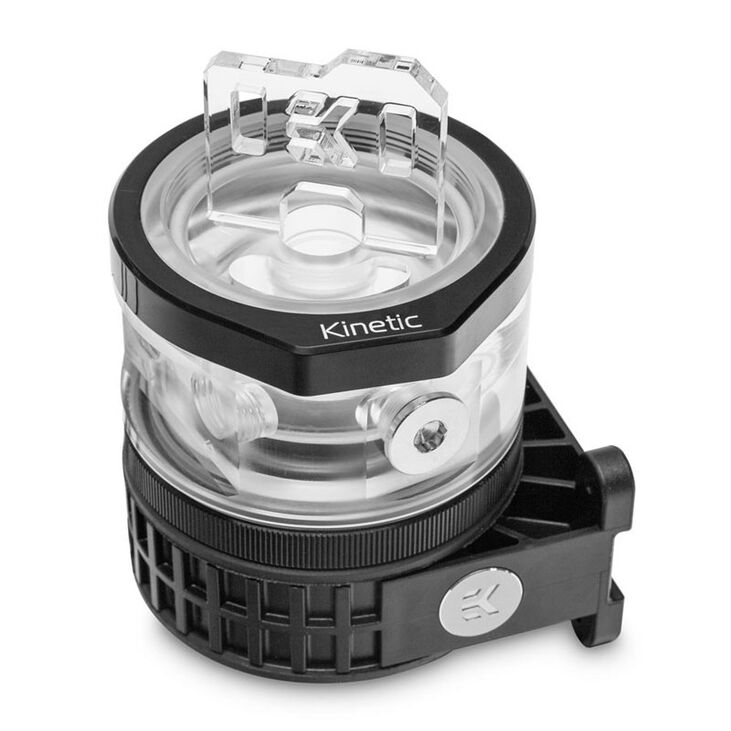

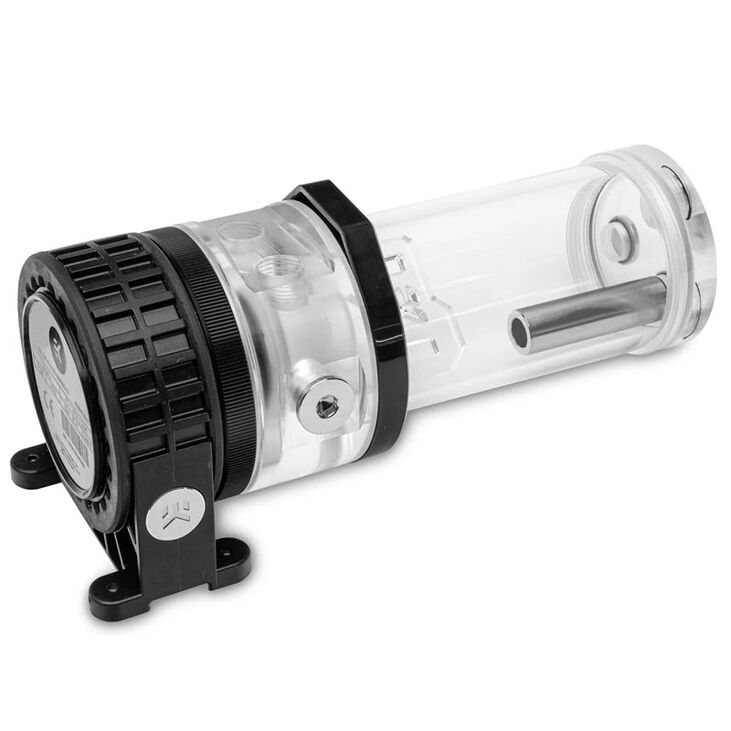

• Mounting system with pump decoupling + wall mount

Quiet pump and plenty of space for water

With the EK-Quantum Kinetic TBE 200 D5 PWM D-RGB, EK Water Blocks has developed a high-quality reservoir with an integrated D5 pump from Xylem. In addition to its performance, the combo features a chic and elegant design with RGB lighting. The pump achieves a maximum flow rate of 1,500 litres per hour and a head height of 3.9 metres.

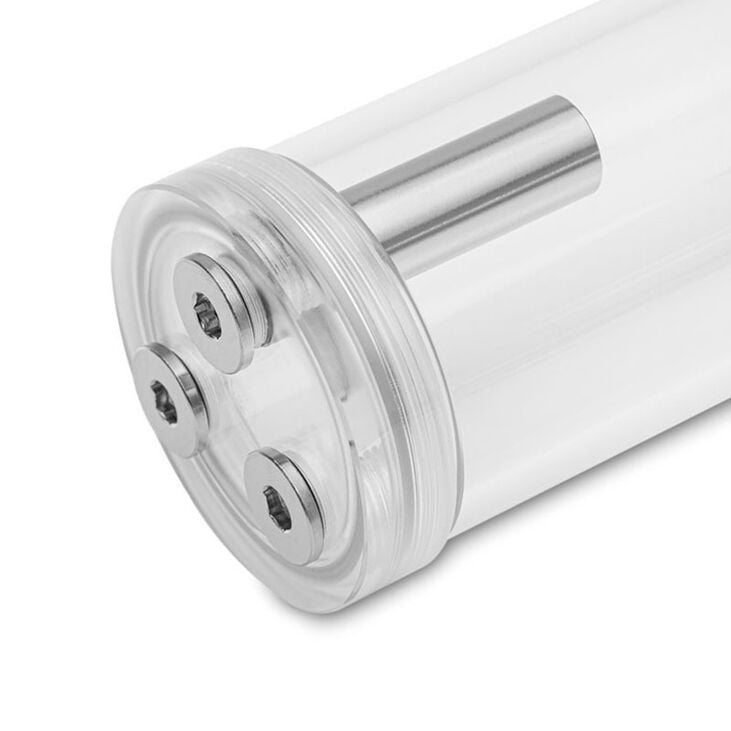

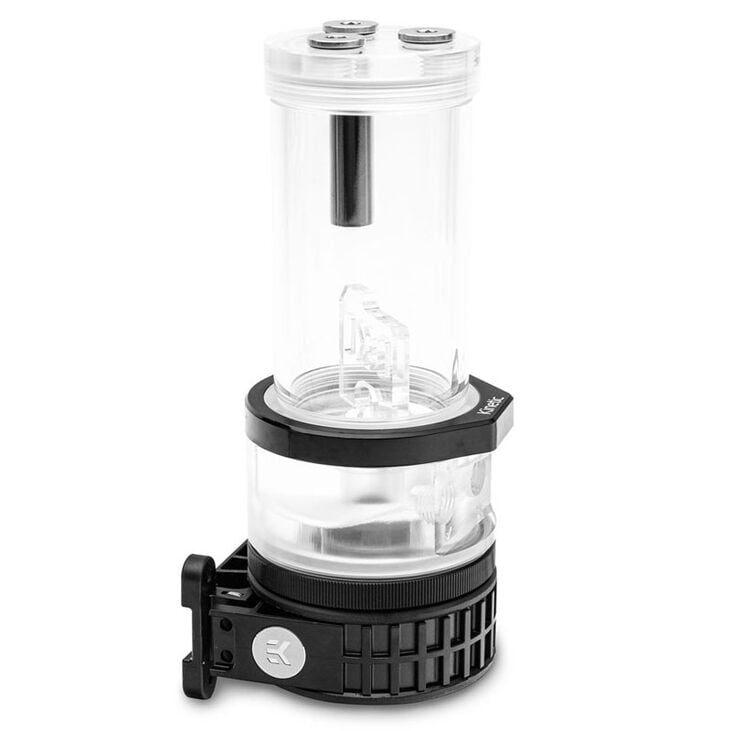

The 205 ml tank always ensures sufficient reserves for water cooling and is largely made of transparent acrylic. In total, there are six G1/4 inch ports available for integration into the water circuit - three each on the bottom and the top of the reservoir. One port is equipped with a pre-installed riser tube which prevents the intake of air bubbles.

The special mounting system of the EK-Quantum Kinetic TBE 200 D5 PWM D-RGB combo is both a wall mount and an effective decoupling system. The soft rubber damping prevents the transmission of pump vibrations to the case, thereby reducing the noise level during operation.

The EK-Quantum Kinetic TBE 200 D5 PWM D-RGB is connected via a SATA connector for power supply and a 4-pin PWM connector to the motherboard for speed control. The integrated RGB lighting is digitally addressable and can be easily synchronised with other RGB elements in the setup.
