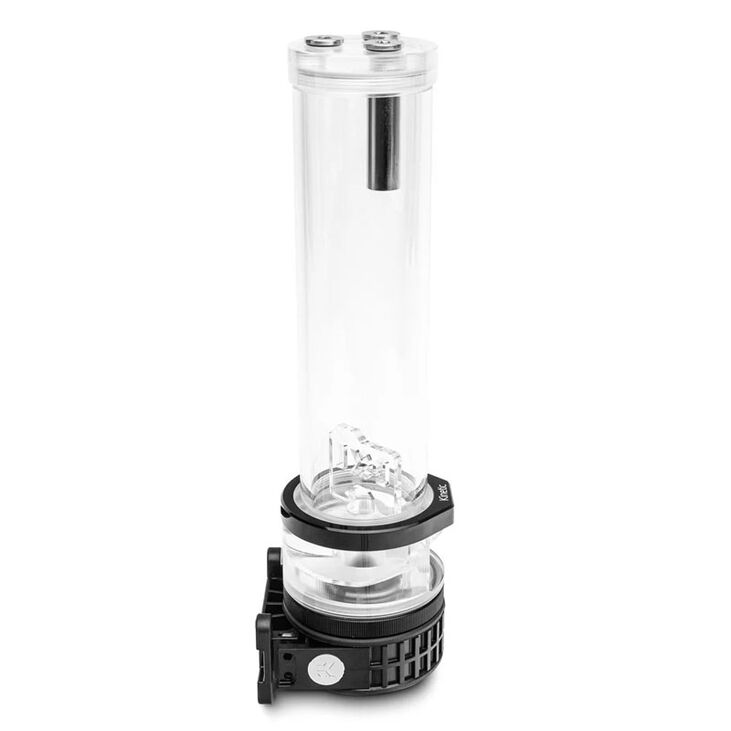

EK Water Blocks EK-Quantum Kinetic TBE 300 D5 PWM D-RGB - Acrylic

With this combination, EK Water Blocks delivers a proven D5 pump and a generously sized reservoir with stylish RGB lighting for demanding water cooling enthusiasts.

Features of the EK-Quantum Kinetic TBE 300 D5 PWM D-RGB Pump/Reservoir Combo at a Glance:

• Combination of pump and reservoir

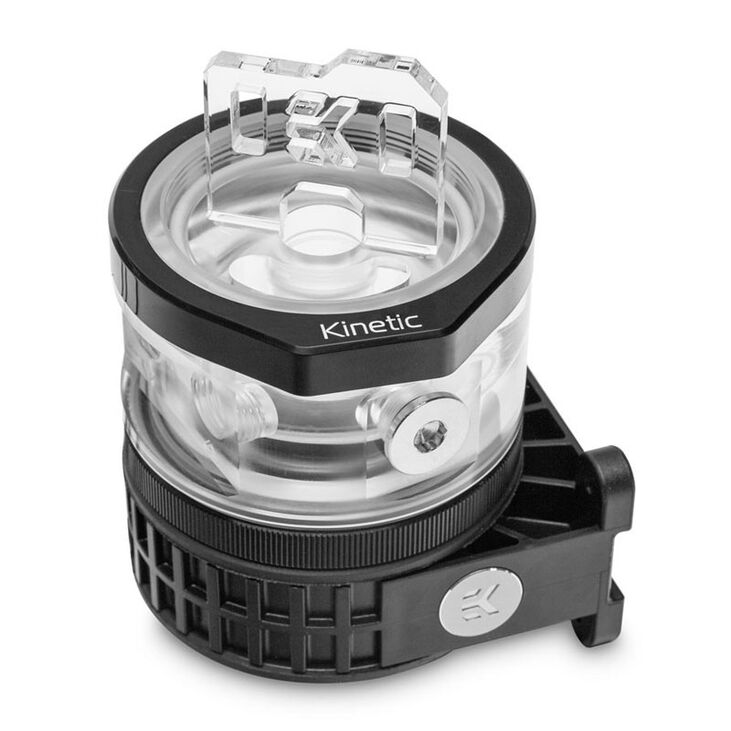

• High-performance D5 pump with PWM control by Xylem
• 3.9 m head and 1,500 L/h flow rate
• Reservoir made of acrylic with 405 ml capacity
• Six G1/4 inch ports + pre-installed riser tube for high flexibility

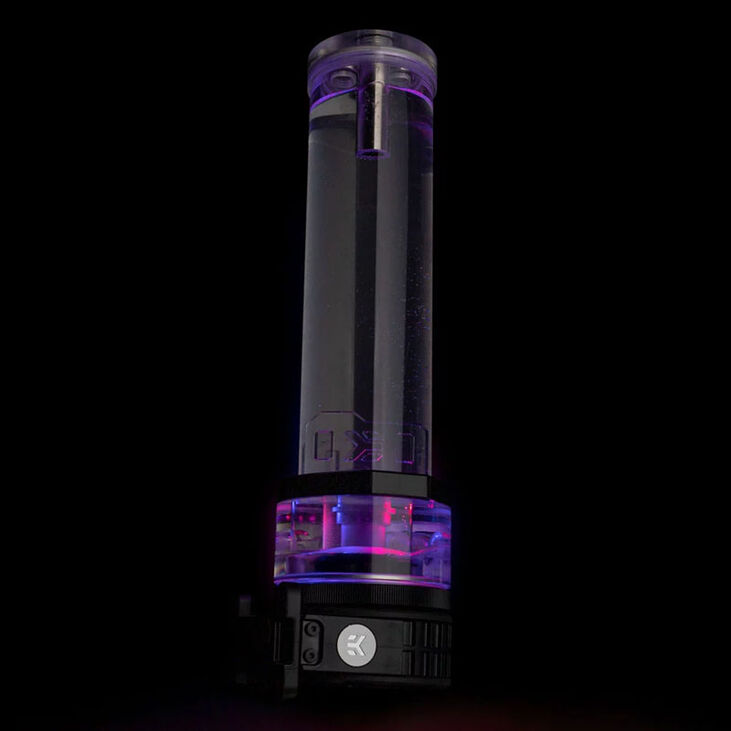

• Integrated and digitally addressable RGB lighting
• Mounting system with pump decoupling + wall bracket

Quiet Pump and Plenty of Water Capacity

With the EK-Quantum Kinetic TBE 300 D5 PWM D-RGB, EK Water Blocks has developed a high-quality reservoir with an integrated D5 pump from Xylem. Besides its performance, the combo features a sleek and elegant design with RGB lighting. The pump achieves a maximum flow rate of 1,500 litres per hour and a head of 3.9 meters.

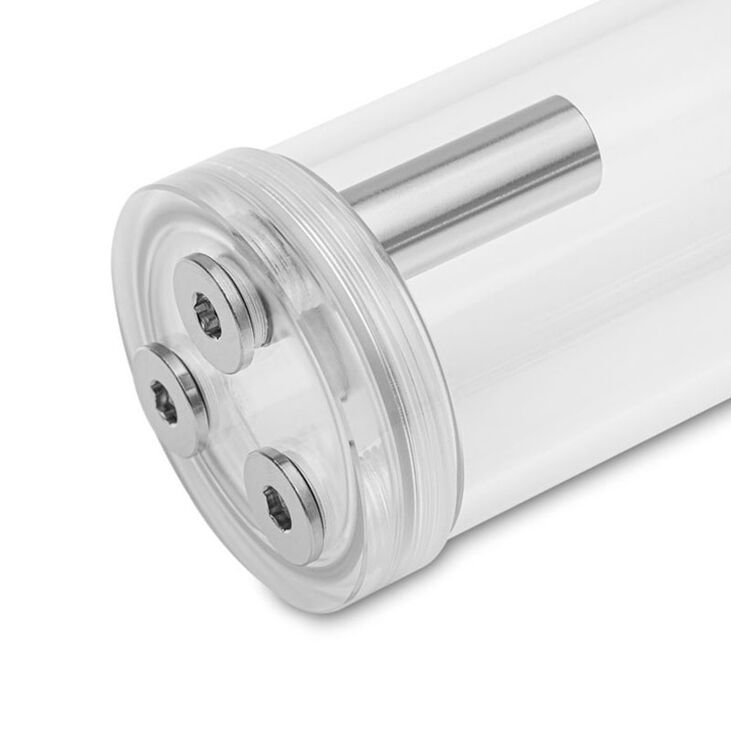

The 405 ml capacity tank ensures there are always sufficient reserves for the water cooling system and is largely made of transparent acrylic. There are a total of six G1/4 inch ports available for integration into the water loop - three each at the bottom and top of the reservoir. One port is equipped with a pre-installed riser tube to prevent the intake of air bubbles.

The special mounting system of the EK-Quantum Kinetic TBE 300 D5 PWM D-RGB combo serves as both a wall bracket and an effective decoupling system. The soft rubber damping prevents the transfer of pump vibrations to the case, thus reducing the noise level during operation.

The EK-Quantum Kinetic TBE 300 D5 PWM D-RGB is connected via a SATA connector for power and a 4-pin PWM connector to the motherboard for speed control. The integrated RGB lighting is digitally addressable and can be easily synchronised with other RGB elements in the setup.
