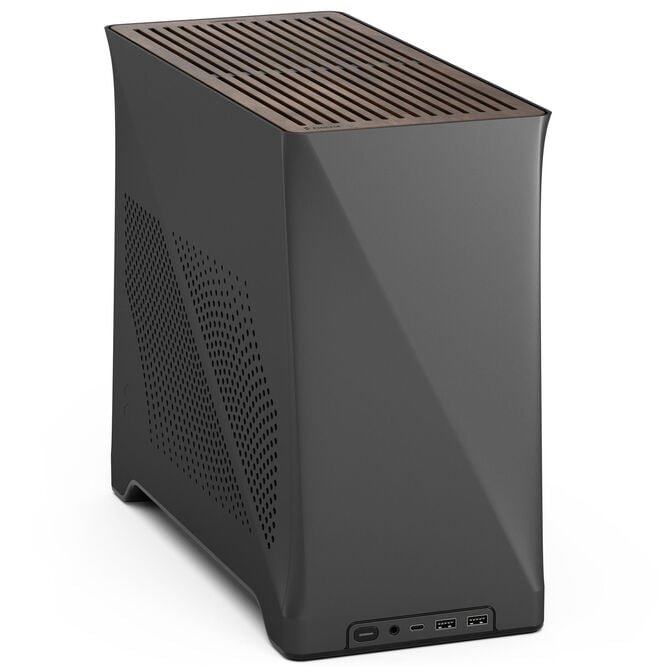

Fractal Design Era 2 Mini-ITX Case, Walnut Wood Panel – Grey

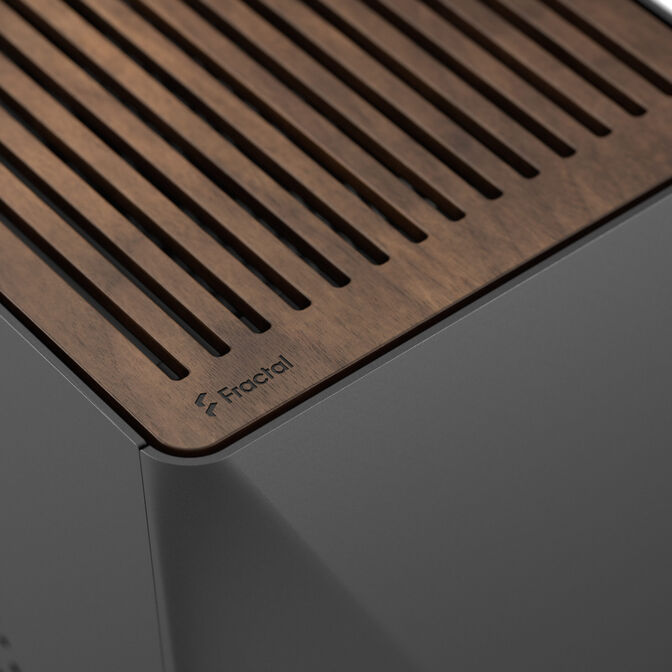

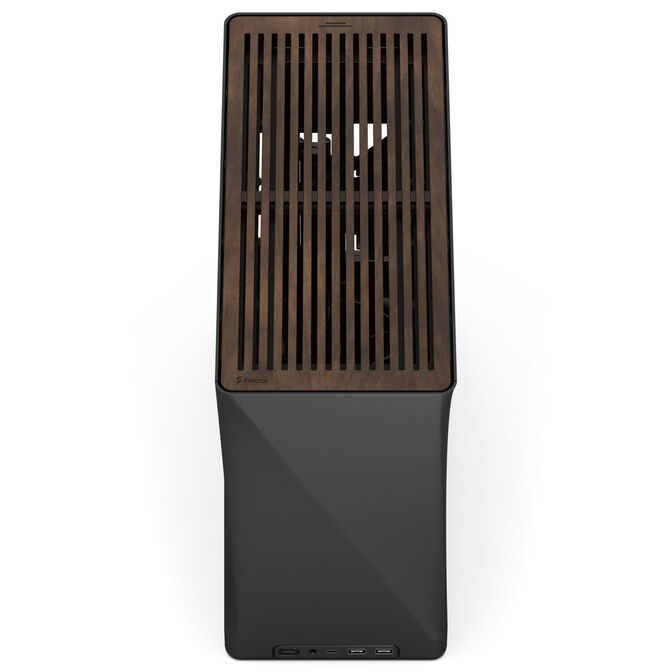

- Walnut wood panel on the top for an elegant look
- Two pre-installed Fractal Aspect 12 PWM fans
- Optimised for water cooling up to 280 mm
- Compatible with graphics cards up to three slots and 326 mm in length
- Tool-free removable outer shell made of aluminium
- Fast PCIe 4.0 riser cable pre-installed
- Up to four 2.5-inch drives possible
The Fractal Design Era 2: Timeless Elegance Meets Uncompromising Design

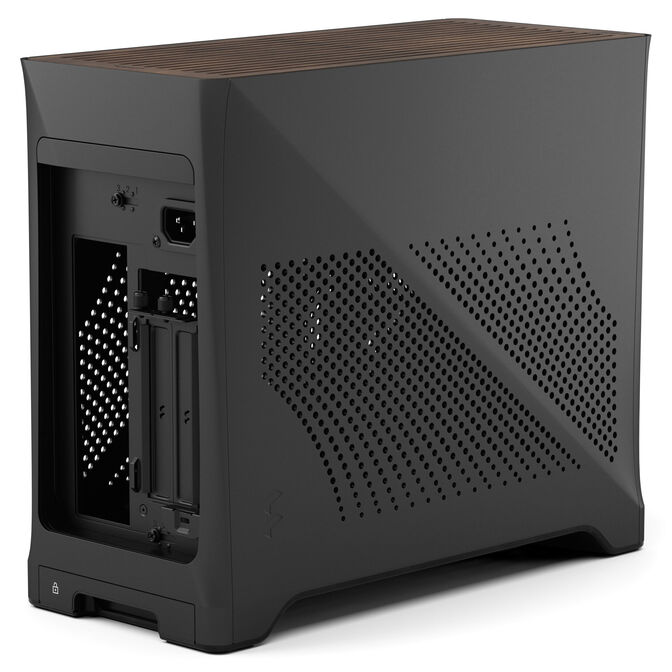

The Fractal Design Era 2 is a compact mini-ITX case that combines the desire for aesthetics and performance. The certified walnut wood panel on the top is a real eye-catcher and provides a look that is both minimalist and elegant. It also offers ample space and optimal airflow for your hardware.
Thoughtful Design with High Functionality

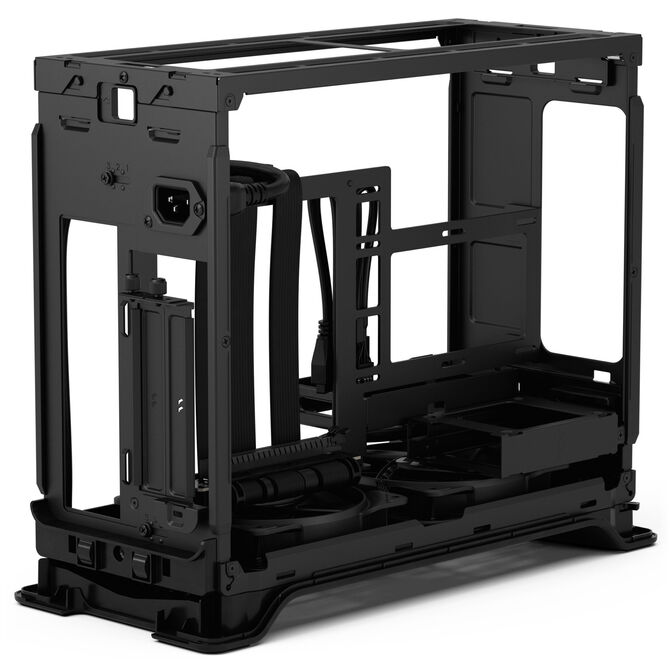

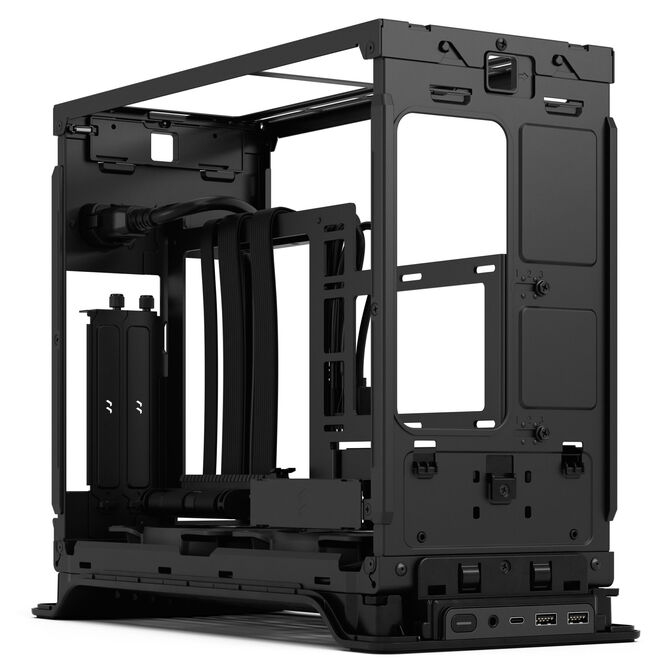

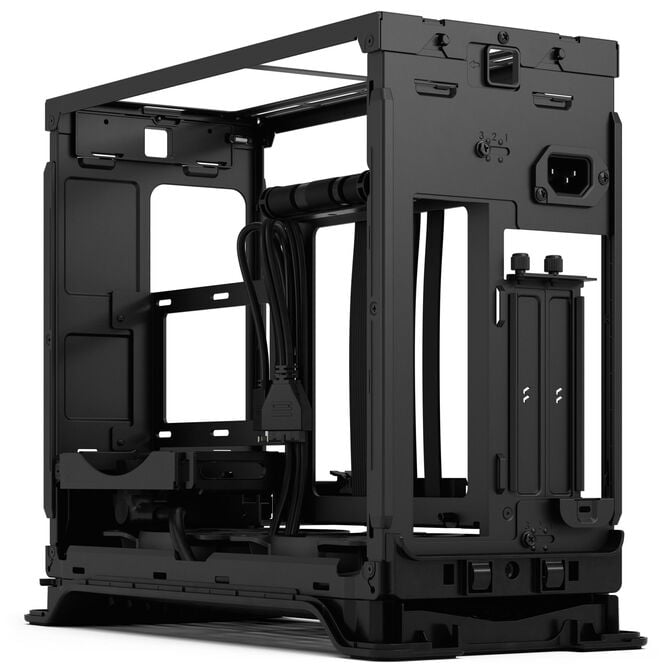

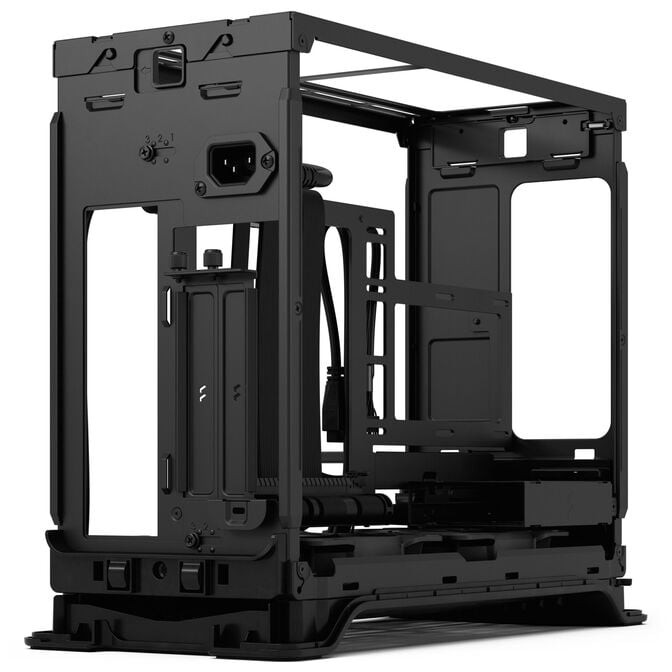

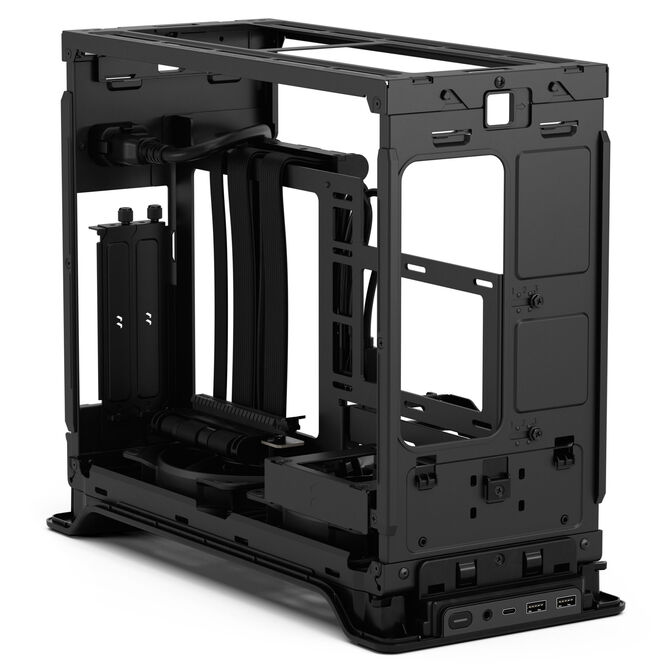

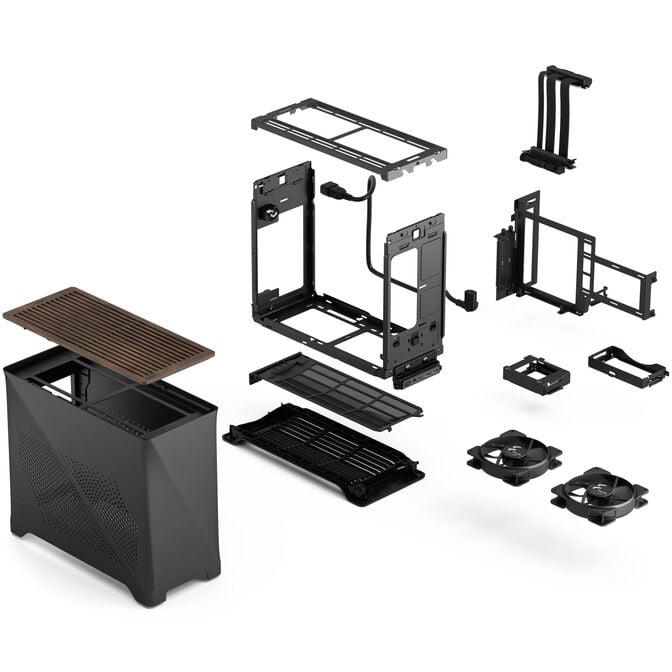

The magnetic top panel and the frame can be easily removed without tools, making the installation of your hardware significantly faster and more enjoyable. An already pre-installed PCIe 4.0 riser cable also makes cable management easier for you.
Inside the case, motherboards up to mini-ITX can be installed. It supports graphics cards up to a length of 326 mm. The CPU cooler must not exceed a height of 70 mm. The case also supports the installation of up to four 2.5-inch drives.

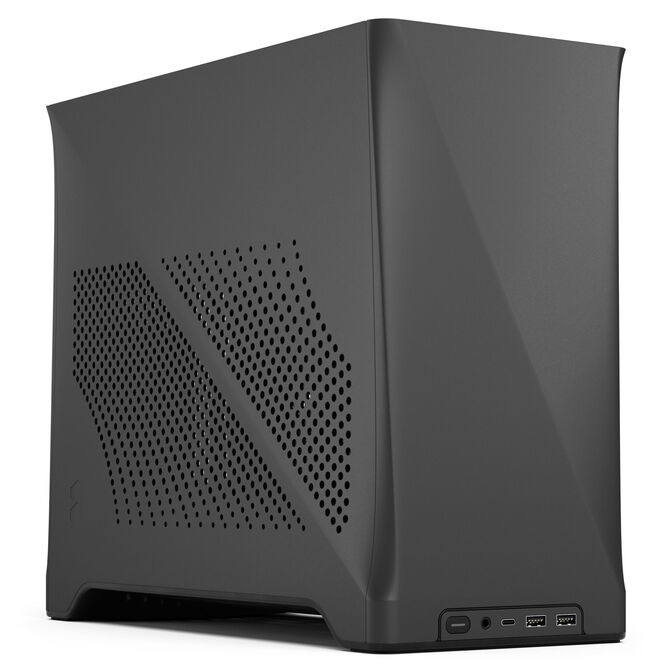

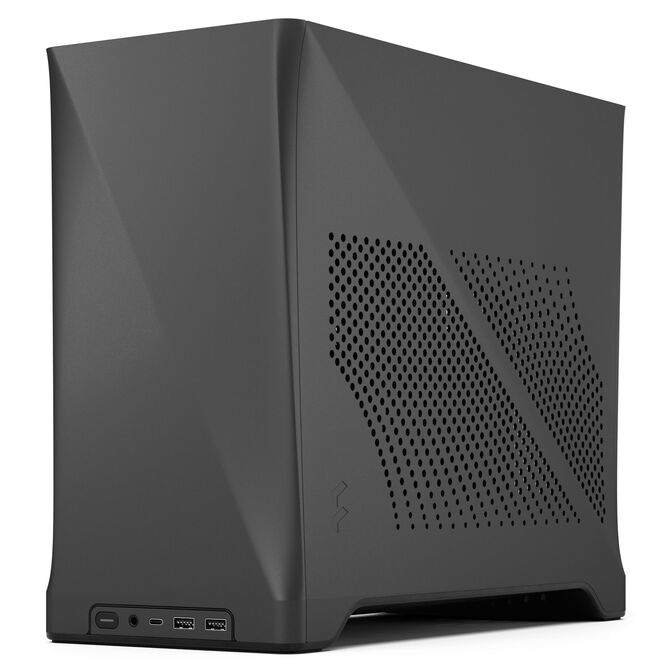

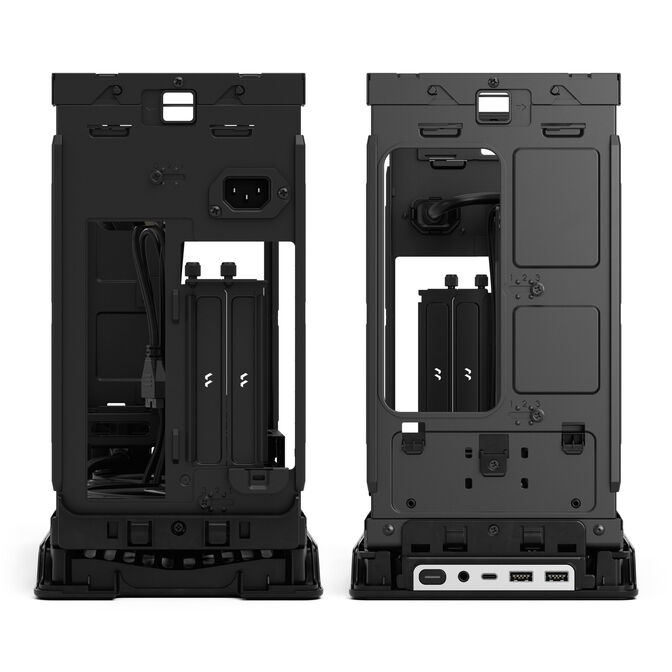

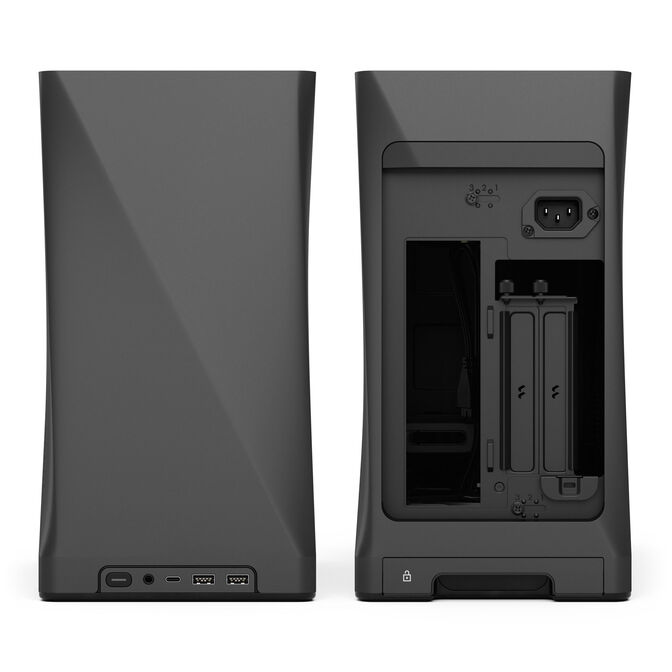

The I/O panel of the case offers sufficient connections for your peripherals. In addition to two USB-A ports and a 3.5 mm audio jack, the panel features a USB-C port that achieves a transfer speed of up to 20 Gbit/s.

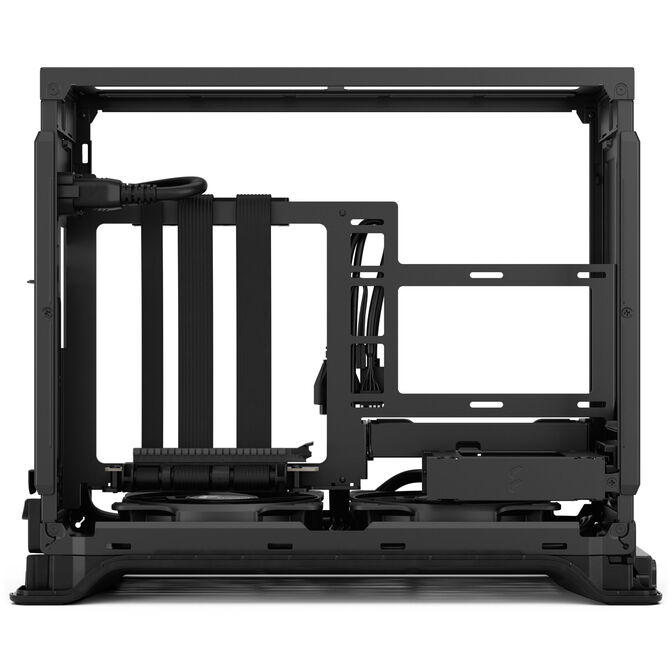

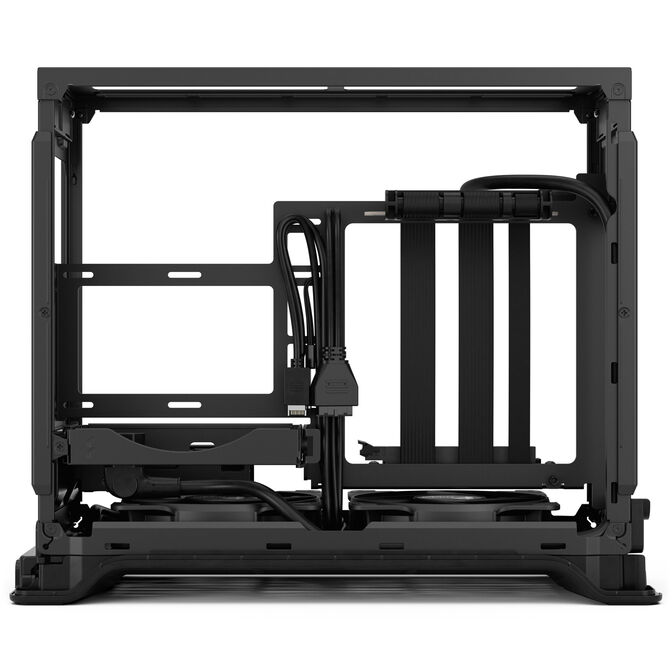

The position of the middle wall can be adjusted to achieve the optimal combination of maximum GPU width and CPU cooler height for your specific system. By shifting the middle wall, you can have a larger maximum GPU width. However, this may affect the height of the CPU cooler and vice versa.
Strong Cooling Performance in a Small Space
The Era 2 is optimised for excellent airflow and allows for direct airflow through the case thanks to the fan positioning. For cooling your CPU, the case supports radiators up to 280 mm in length.

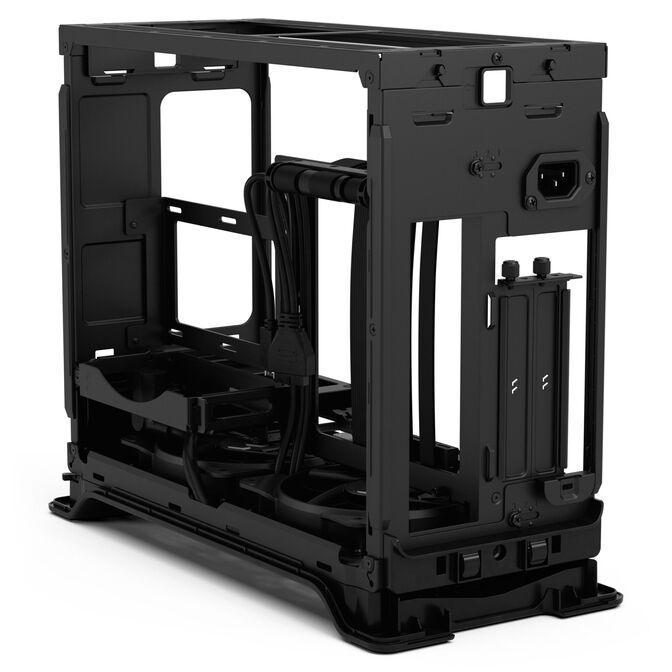

Two pre-installed Aspect 12 PWM fans ensure reliable airflow from the bottom. Two additional 120 mm fans can be mounted as exhaust at the top.
|
Colour
|
|
|
Primary Colour
|
Grey
|
|
Dimensions
|
|
|
Length / Depth
|
366 mm
|
|
Width
|
165 mm
|
|
Height
|
314 mm
|
|
Weight
|
4.64 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Mini-ITX
|
|
Max. Motherboard Format
|
Mini-ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
70 mm
|
|
Max. GPU Length
|
326 mm
|
|
Max. PSU Length / Depth
|
130 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
SFX, SFX-L
|
|
Power Supply Position
|
front
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
4
|
|
120 mm fans
|
4
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Dual (280 mm)
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
0
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
4
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
3
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm
|
