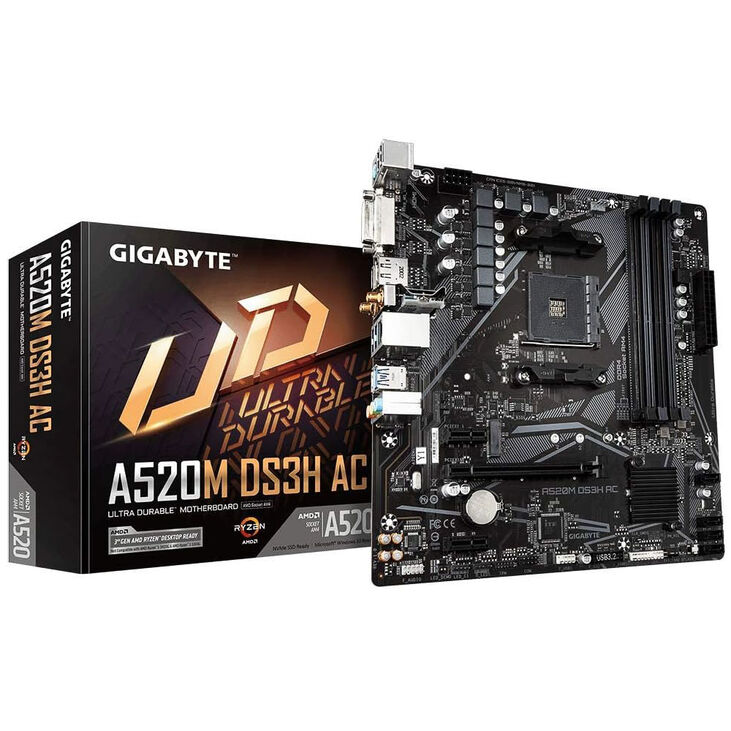

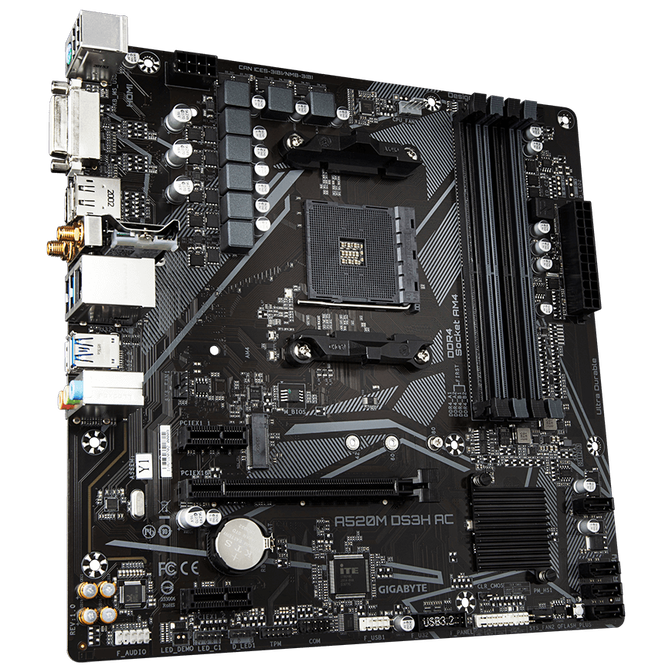

GIGABYTE A520M DS3H AC motherboard, socket AM4, AMD A520, Micro-ATX, DDR4
Micro-ATX motherboard with A520 chipset, featuring AMD AM4 socket, PCIe 3.0 for graphics card & SSDs, compatible with DDR4 RAM, 1x M.2 slots, Gbit LAN
76,97 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 3.0 x16 slot for the graphics card, 2x PCIe 3.0 x1
- DDR4 memory up to 3,200 MHz, overclockable to 4,400 MHz via RAM-OC
- 1x M.2 slot with PCIe 3.0 and 4x SATA

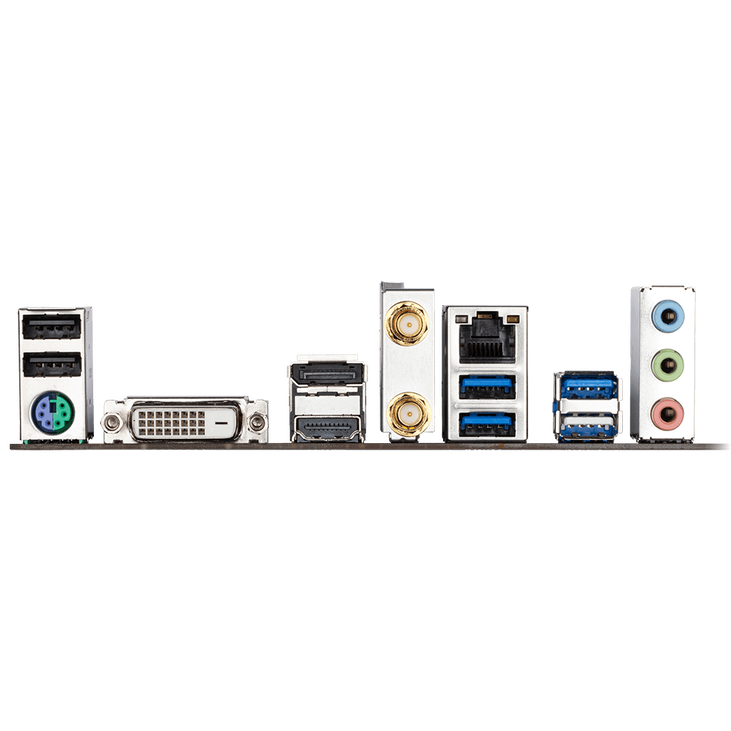

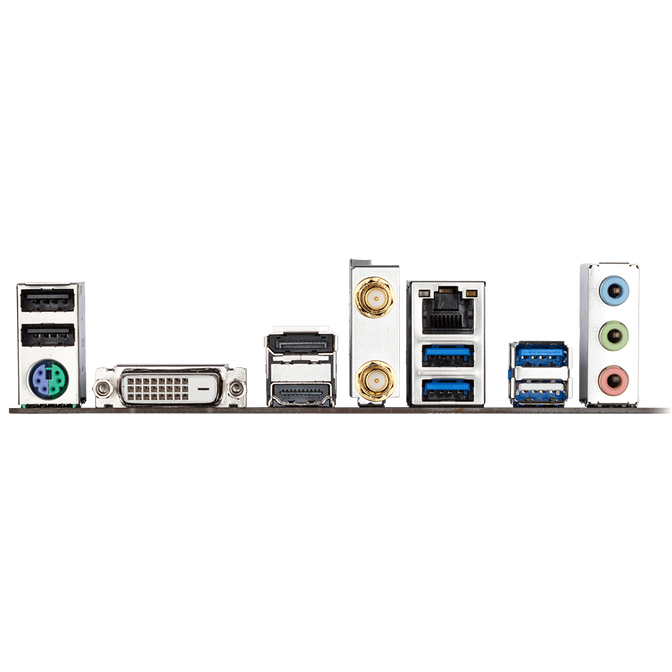

- USB on the I/O panel: 4x USB-A 3.0 / 2x USB 2.0
- A total of 3x 4-pin PWM headers for fans

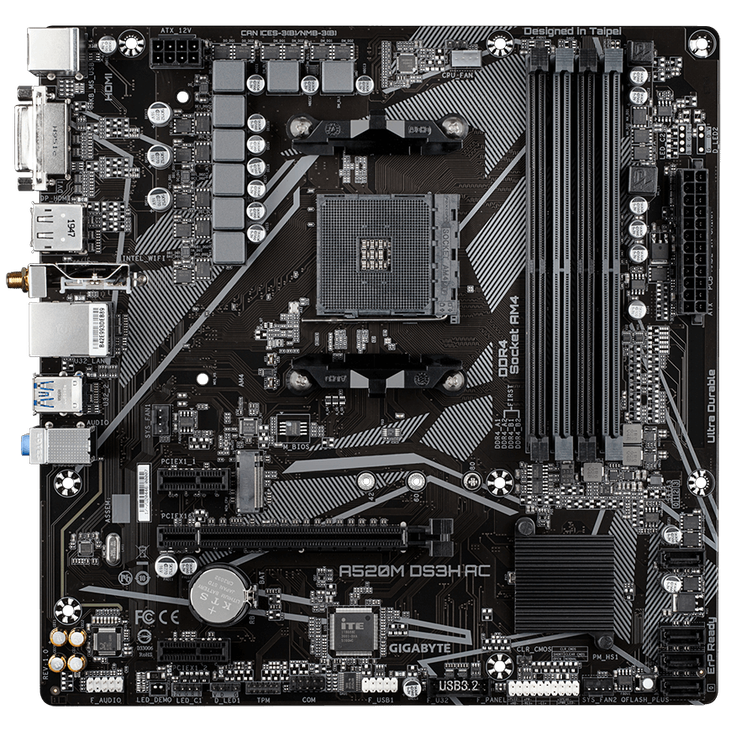

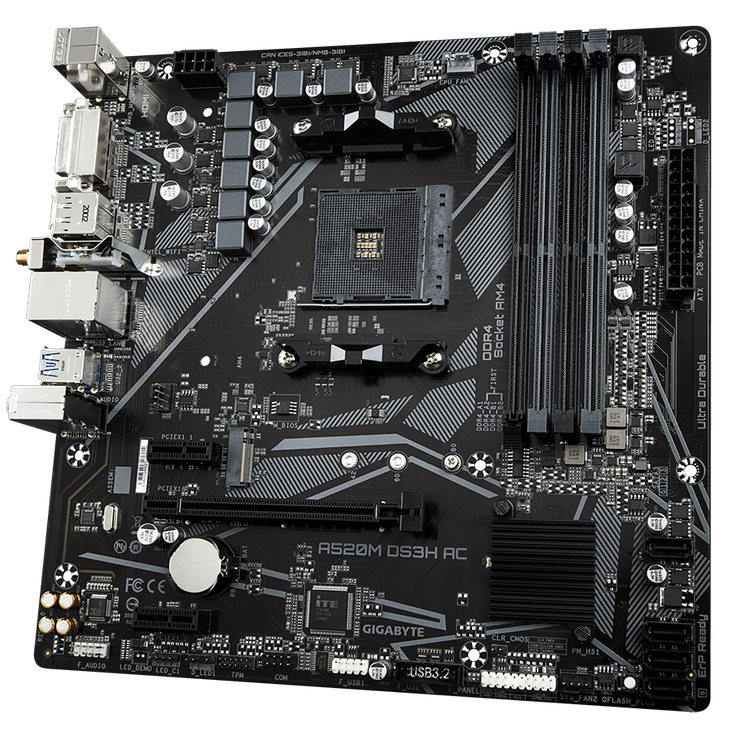

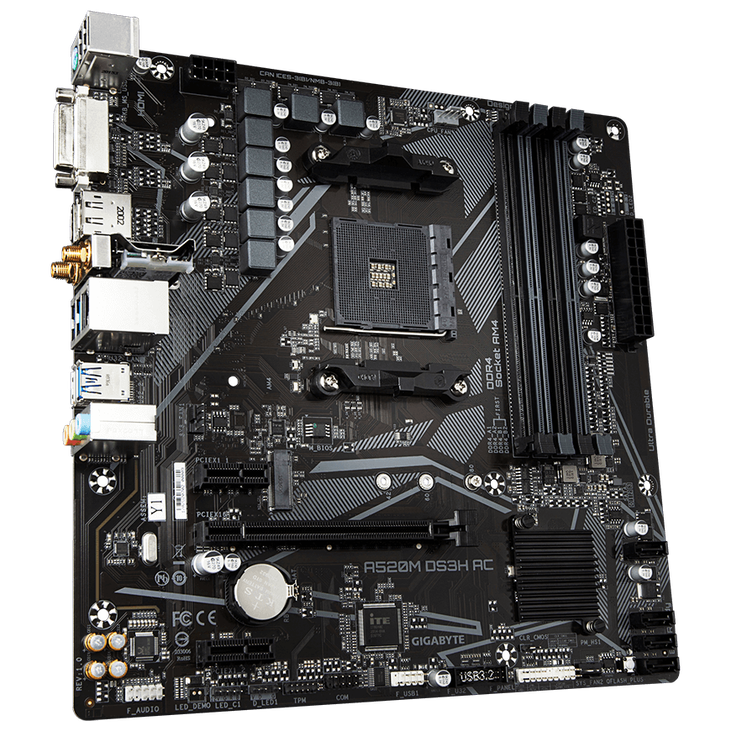

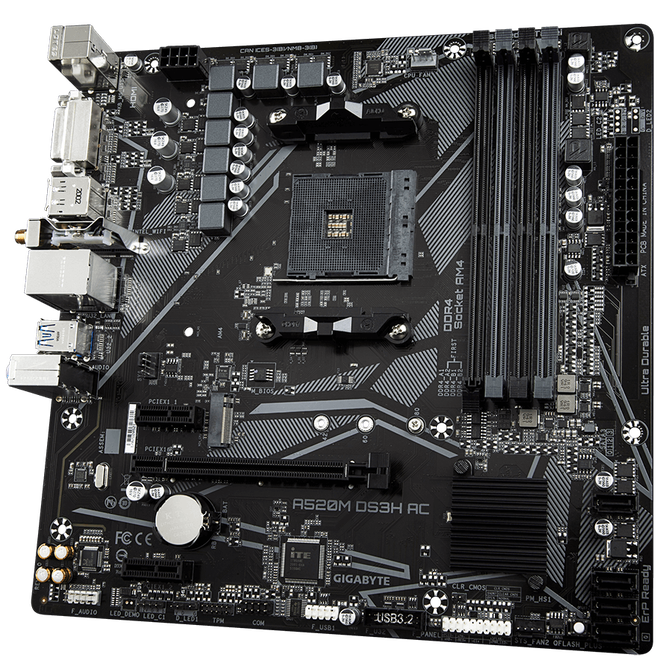

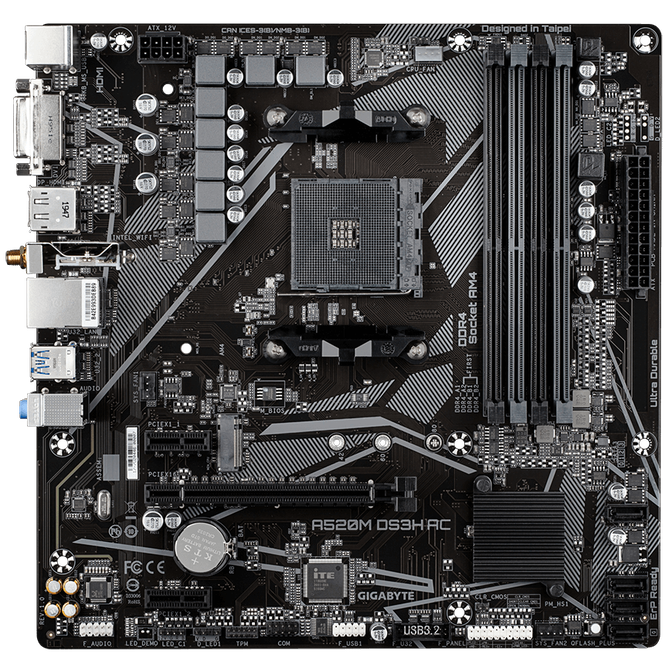

The GIGABYTE A520M DS3H AC Micro-ATX motherboard in detail:
The AMD A520 is an entry-level chipset and supports Ryzen 3000 to Ryzen 5000 processors based on the Zen 2 and Zen 3 architecture. Unlike the AMD chipsets B550 and X570, the A520 does not support PCIe 4.0 or overclocking. Motherboards with the A520 chipset, however, support PCIe 3.0 and provide a reliable foundation for office and home users for their PC.
The GIGABYTE A520M DS3H AC is an A520 motherboard in Micro-ATX format. For graphics cards, there is one PCIe 3.0 slot in x16 format, which is directly connected via a total of 16 PCIe 3.0 lanes to the Ryzen 3000 processor. Additionally, two PCIe x1 slots are provided for expansion cards.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM4
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD A520
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
3200 MT/s
|
|
Max. Memory Speed (OC)
|
4400 MT/s
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), DVI-D (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 3.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
