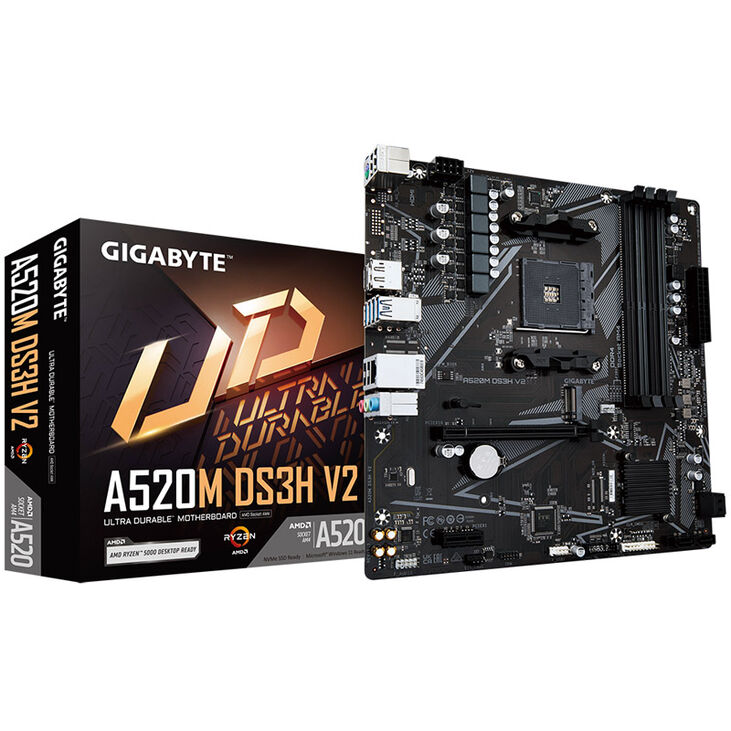

GIGABYTE A520M DS3H V2 motherboard, AM4 socket, AMD A520, Micro-ATX, DDR4
- 1x PCIe 3.0 x16 slot for the graphics card, 2x PCIe 3.0 x1
- DDR4 memory up to 3,200 MHz, via RAM-OC up to 4,733 MHz
- 1x M.2 slot with PCIe 3.0 and SATA

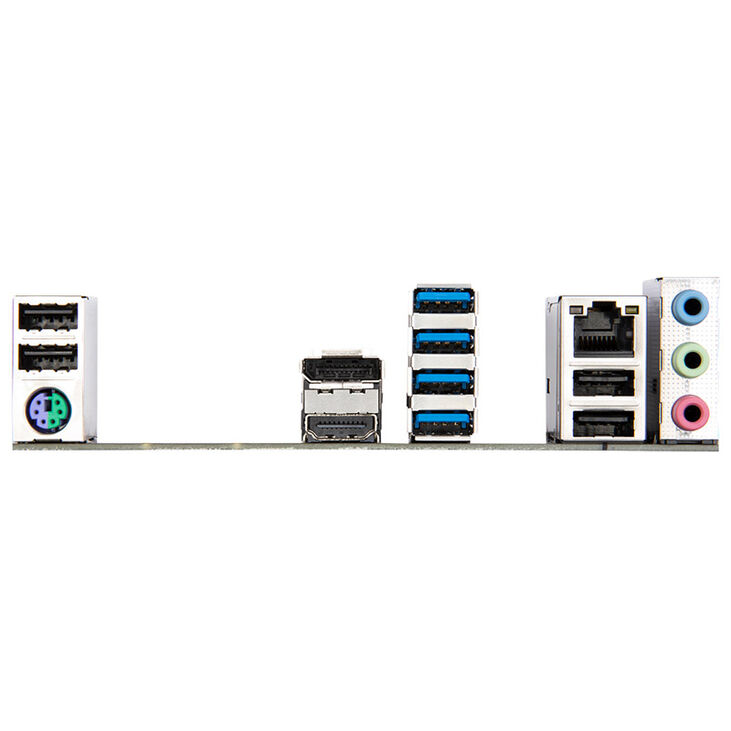

- USB on the I/O panel: 2x USB-A 2.0 / 4x USB-A 3.0
- A total of 2x 4-pin PWM headers for fans

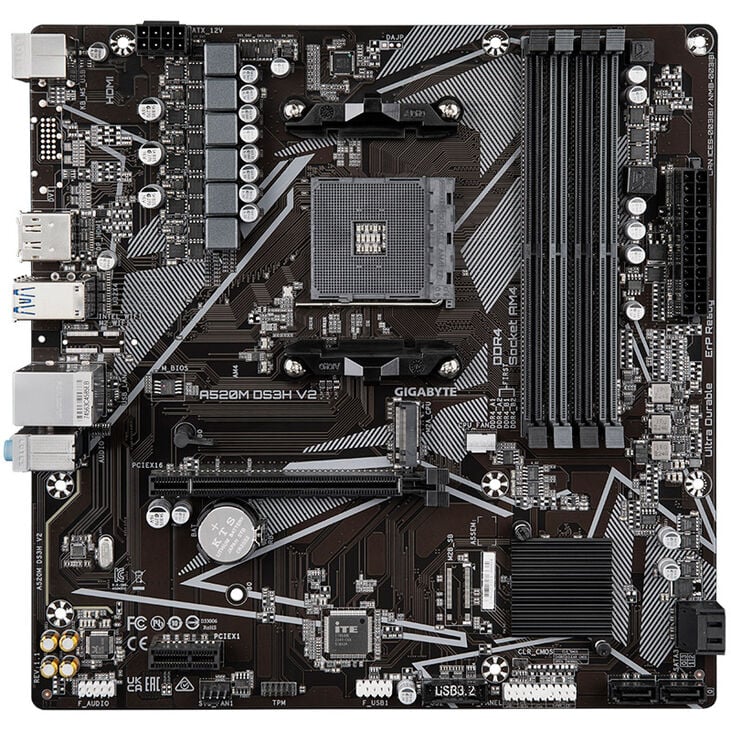

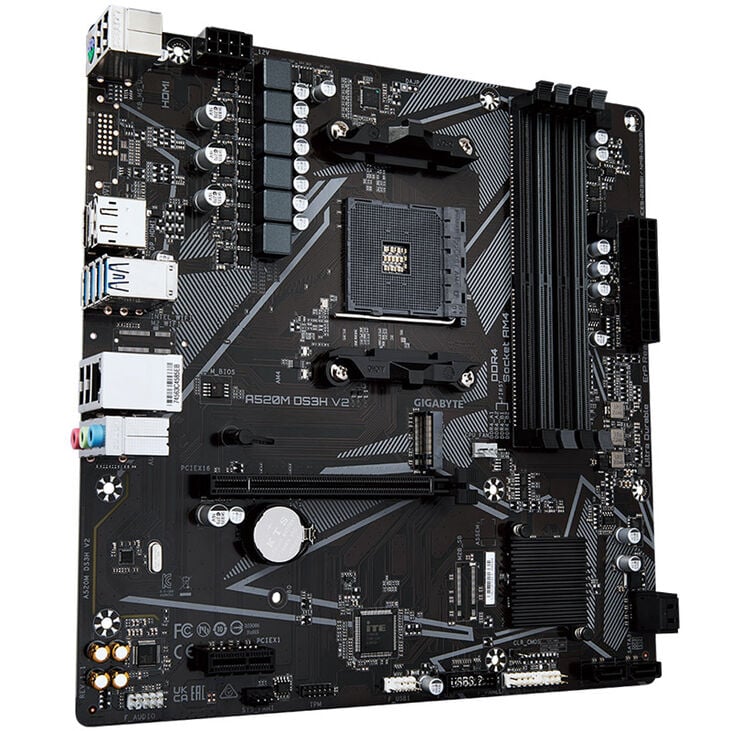

The GIGABYTE A520M DS3H V2 Micro-ATX motherboard in detail:
The AMD A520 is an entry-level chipset and supports Ryzen 3000 to Ryzen 5000 processors based on Zen 2 and Zen 3 architecture. Unlike the AMD B550 and X570 chipsets, the A520 does not support PCIe 4.0 or overclocking. Motherboards with the A520 chipset, however, support PCIe 3.0 and provide a reliable foundation for office and home users for their PCs.
The GIGABYTE A520M DS3H V2 is an A520 motherboard in Micro-ATX format. For graphics cards, there is one PCIe 3.0 slot in x16 format, which is directly connected via a total of 16 PCIe 3.0 lanes to the Ryzen 3000 processor. Additionally, two PCIe x1 slots are provided for plug-in and expansion cards.
BIOS updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed at the time of delivery of a motherboard. Updates may also bring fixes and optimisations.
Our King Mod Service is happy to carry out a BIOS update to the latest version in advance:Please note that this may delay shipping preparation by 1 to 4 working days!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
AM4
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD A520
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 3.0 x4
|
1
|
|
M.2 PCIe 3.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
2
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
