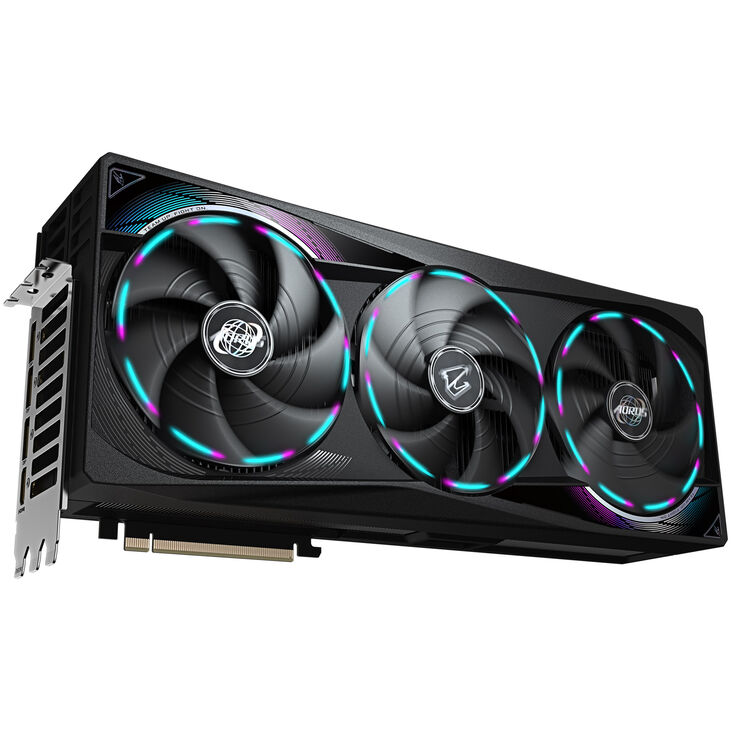

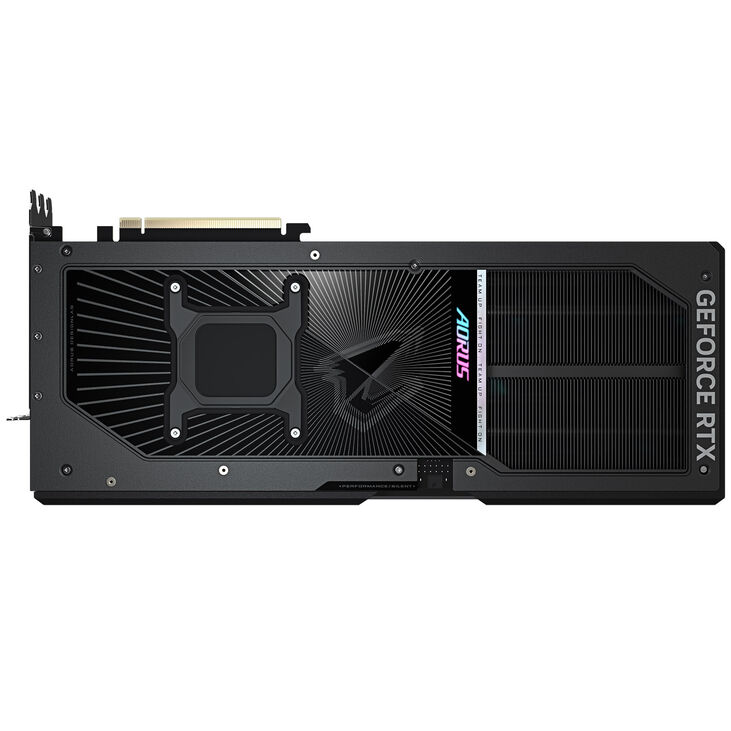

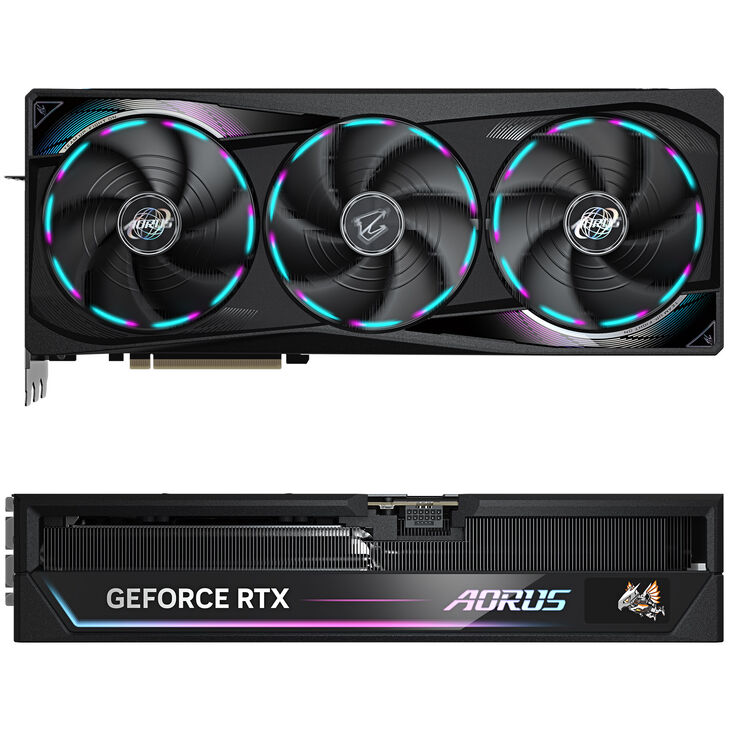

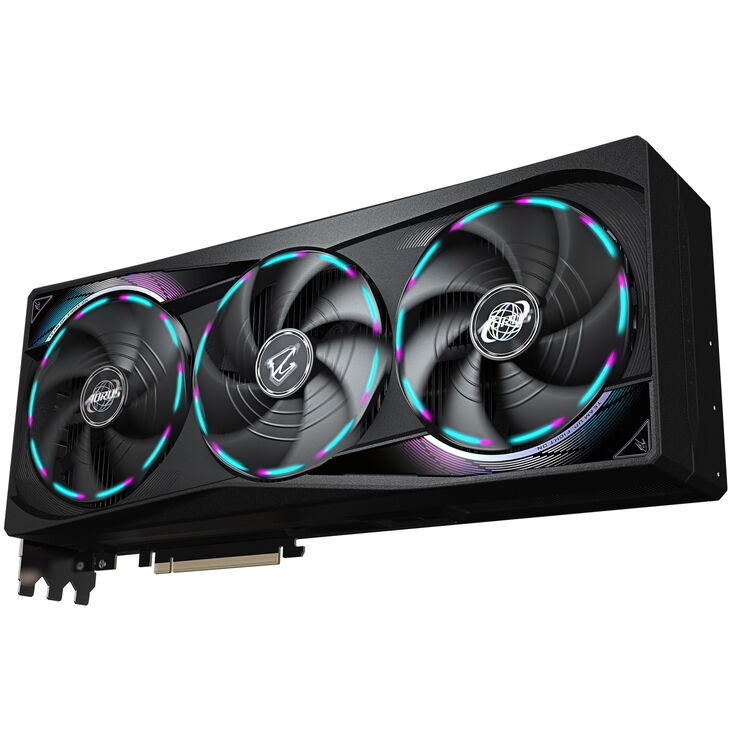

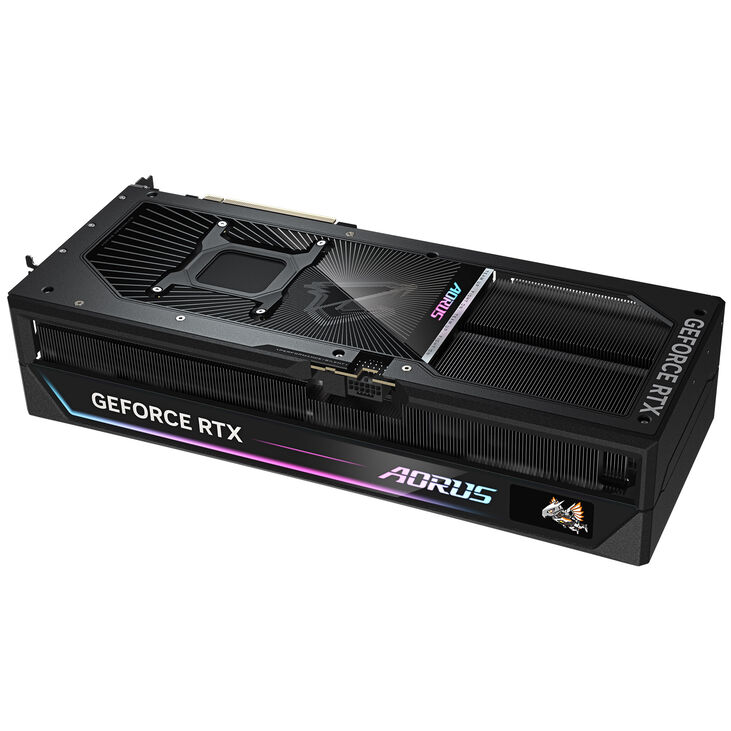

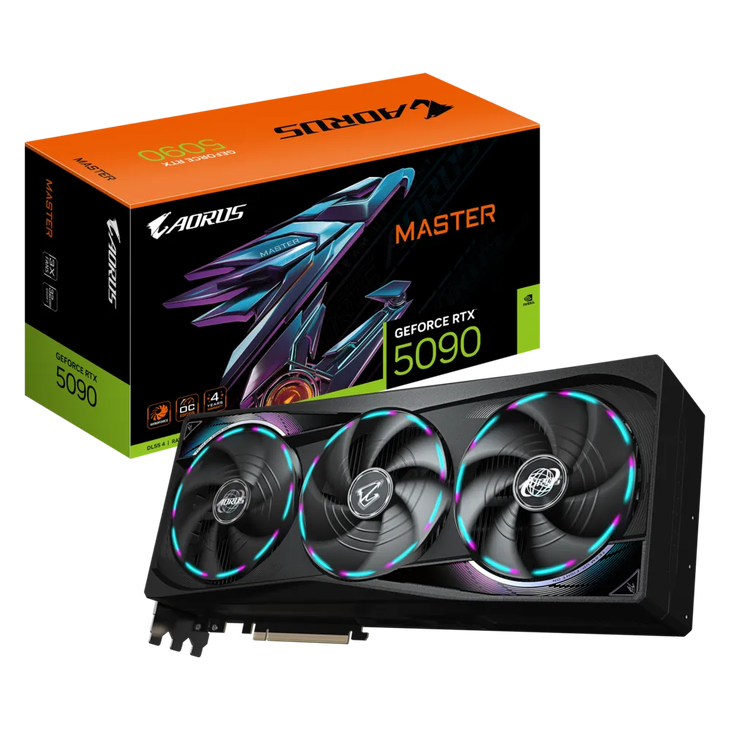

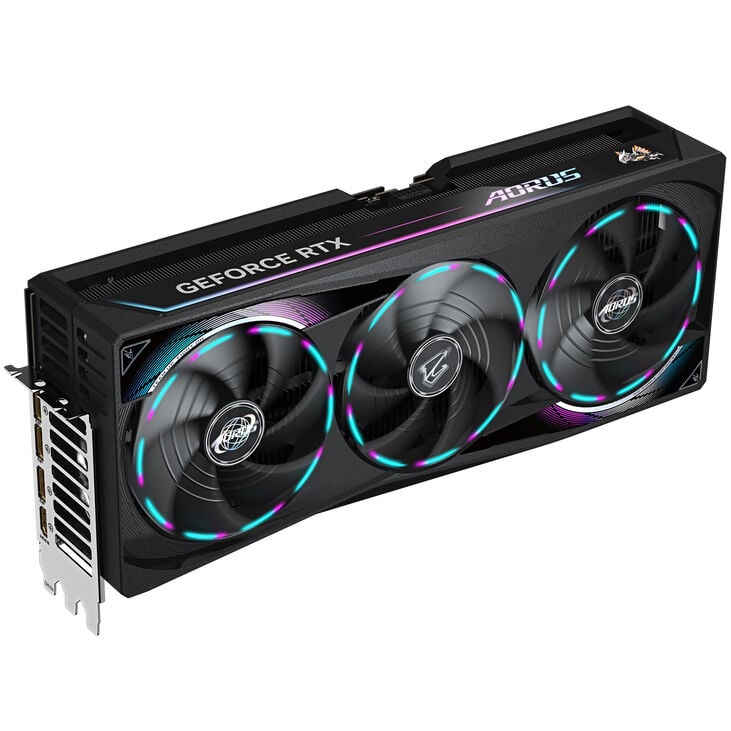

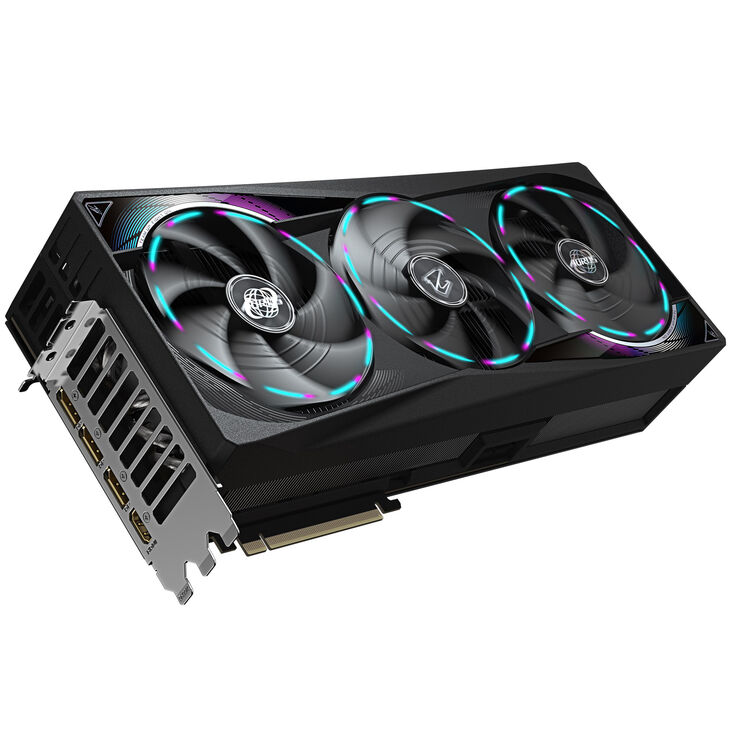

GIGABYTE Aorus GeForce RTX 5090 Master 32G, 32768 MB GDDR7
- Efficient triple-fan cooler design with semi-passive cooling
- Extensive RGB LED lighting
- Extremely high base clock of the GPU: 2,017 MHz
- Enormous boost clock of the GPU: 2,655 MHz
- Next-generation graphics memory: 32 GB GDDR7
- Extremely high memory clock: 2,209 MHz (effectively 28,000 MHz)
- Wide memory interface of 512 bits
- Very large memory bandwidth of 1,792 GB/s
- Pure computing power: 21,760 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR

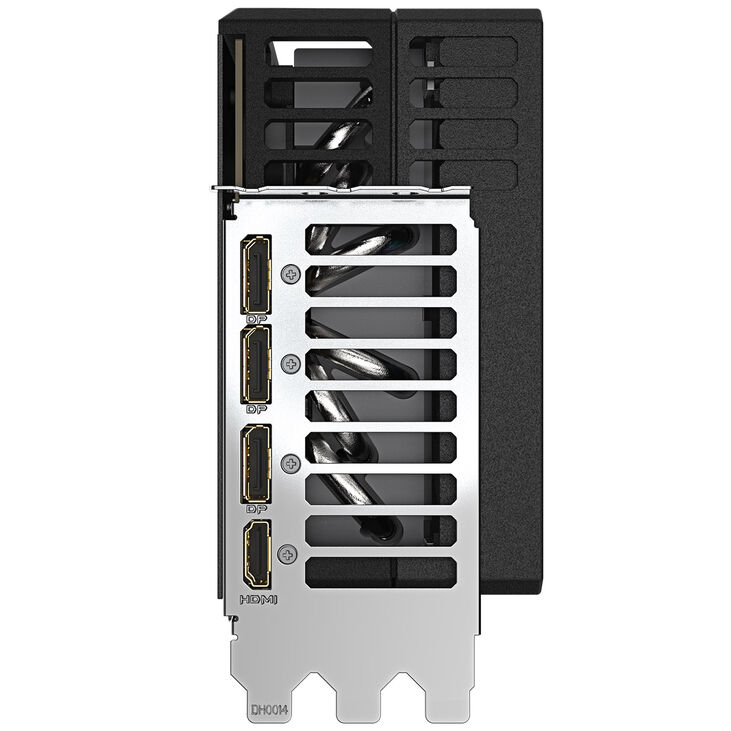

- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
The GIGABYTE Aorus GeForce RTX 5090 Master 32G in detail
The GeForce RTX 5090 is the ultimate choice for enthusiasts and high-end gamers who do not want to compromise. Equipped with an extremely powerful graphics processor and new GDDR7 graphics memory, it sets new standards in gaming performance. With its unparalleled computing power, the RTX 5090 delivers top performance even in the most demanding applications and games.
Compared to the RTX 4090 series, the rasterization and ray tracing performance have been significantly improved again, allowing realistic lighting, shadow, and reflection effects to be displayed in unprecedented quality. The new Blackwell generation also supports PCI Express 5.0, making the card optimally equipped for the next generation of motherboards and systems.
The RTX 5090 enables extremely high frame rates in 4K, offers impressively smooth gaming even in 8K, making it the perfect choice if you don't want to worry about graphics settings. Just set maximum graphics presets and start playing!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
360 mm
|
|
Width
|
150 mm
|
|
Height
|
75 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5090
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5090
|
|
Graphics Chip
|
GB202-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
21760
|
|
Tensor Cores
|
680
|
|
Raytracing Cores / Ray Acceleratorss
|
170
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
32
|
|
GPU Memory Interface (bit)
|
512
|
|
GPU Memory Bandwidth (GB/s)
|
1792
|
|
GPU Effective Memory Clock (MHz)
|
2209
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2017 MHz
|
|
Max. GPU Clock (Boost)
|
2407 MHz
|
|
Max. Memory Clock
|
28000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3.65 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Features
|
|
|
Virtual Reality Ready
|
Yes
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
