GIGABYTE B650 Eagle motherboard, Socket AM5, AMD B650, ATX, DDR5

• 1x PCIe 4.0 x16 and 3x PCIe 3.0 x16
• Supports up to 192 GB DDR5 RAM at 7,600 MHz (OC)
• 1 x M.2 with PCIe 5.0 and 2 x M.2 with PCIe 4.0, 4x SATA 6G

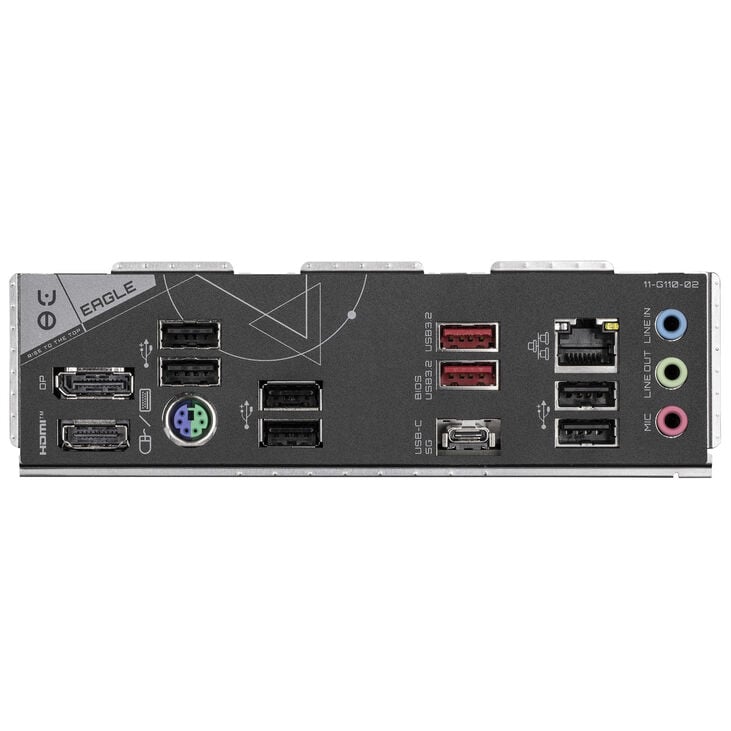

• 1x USB-C 3.0, 2x USB-A 3.1 and 6x USB-A 2.0 on the I/O panel
• Overall 5x 4-pin PWM fan connectors possible
• OC features: 14 virtual phase VRMs, BIOS Flashback, Clear CMOS

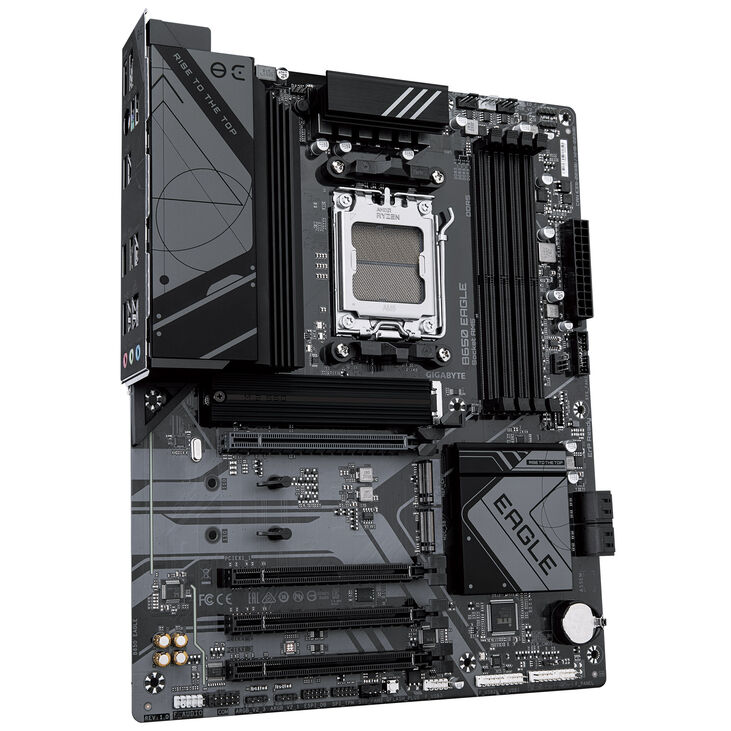

GIGABYTE B650 Eagle: ATX motherboard with AMD AM5

The GIGABYTE B650 Eagle is equipped with the B650 chipset for AMD's Ryzen processors from the 7000, 8000, and 9000 series, and comes with numerous features for overclockers and gamers. Since the Ryzen processors require a new socket due to support for PCIe 5.0 and enhanced power supply, the Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for Socket AM4 to be mounted on the motherboard.

The motherboard is designed for overclocking, so you can enjoy demanding games. The voltage regulators with 14 virtual phases provide stable power to the CPU to ensure high clock rates over an extended period. Additionally, features like BIOS Flashback and Clear CMOS allow you to use the PC again if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock rates.
