GIGABYTE B760 DS3H motherboard, socket 1700, Intel B760, ATX, DDR5
ATX motherboard with B760 chipset, with Intel socket 1700, PCIe 4.0 for graphics card, suitable for DDR5 RAM, 2x M.2 PCIe 4.0 slots, Gbit LAN
128,20 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16), 4x PCIe 3.0 x16 (x1)
- DDR5 memory up to 4,800 MHz, overclockable to 7,600 MHz
- 2x M.2 slots with PCIe 4.0 for fast NVMe SSDs

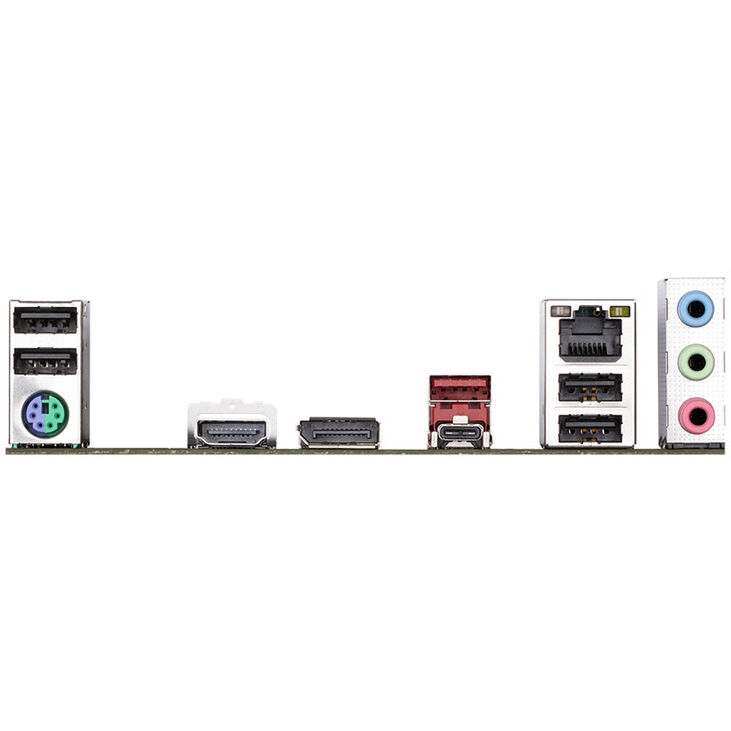

- USB on the I/O panel: 1x USB-C 3.2, 1x USB 3.1, 4x USB 2.0
- Overclocking features: 8+2 phase VRMs, Dr.MOS, heat spreader
- A total of 6 connections for fans and pumps

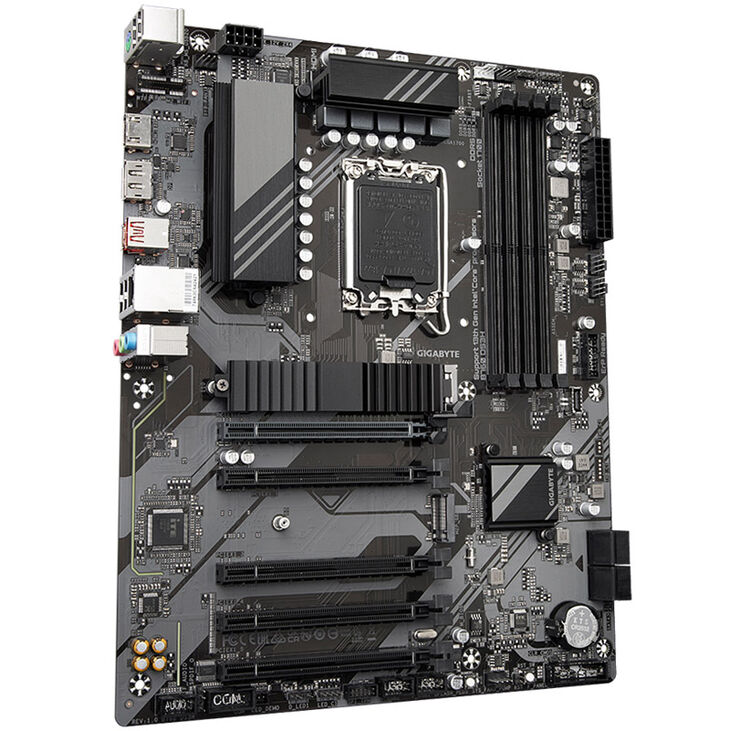

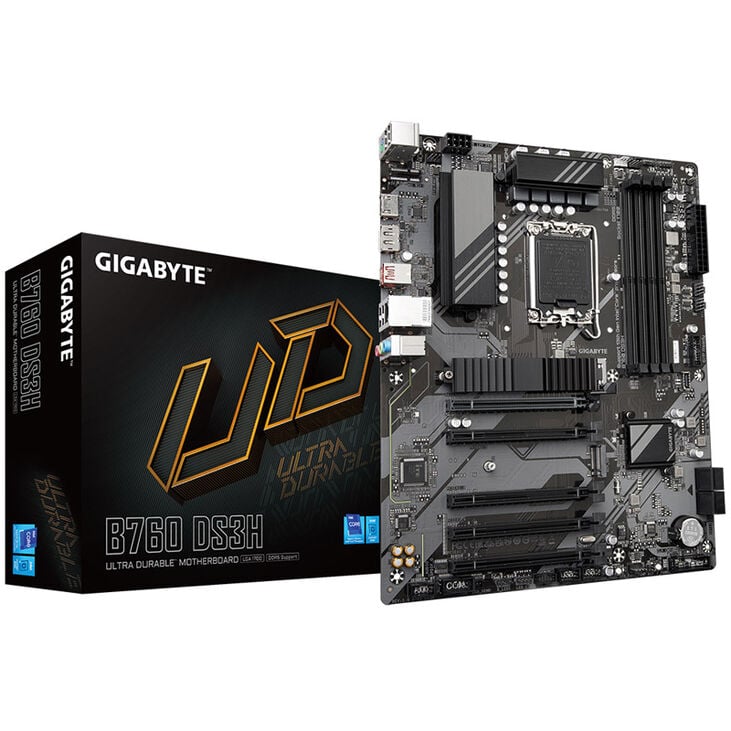

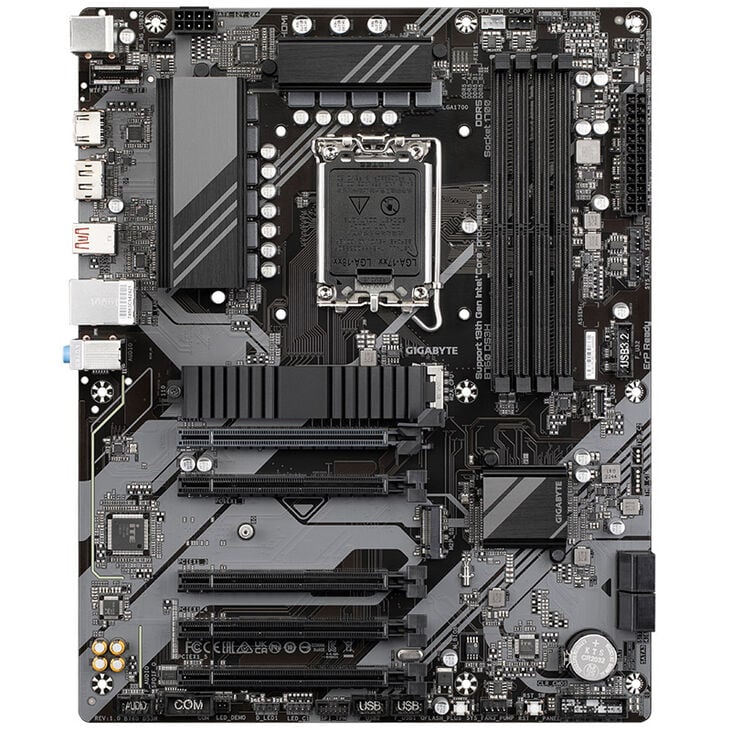

The ATX motherboard Gigabyte B760 DS3H with Intel B760M chipset in detail
The Gigabyte B760 DS3H is an ATX motherboard featuring the Intel B760M chipset and LGA 1700 socket. This motherboard is particularly suitable for Intel Core CPUs from the Alder Lake and Raptor Lake series. It supports DDR5 memory with speeds up to 7,600 MHz and additionally offers useful features such as heat spreaders for VRMs and the chipset, as well as Dr.MOS for automatic voltage regulation.
Note: This motherboard supports memory with the DDR5 standard. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially important for motherboards that may have been shipped by the manufacturer with an early BIOS version.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
More information on Intel Alder Lake, Meteor Lake, and the Core processors of the 12th, 13th, and 14th generation can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG), 2x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
5
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
4
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
