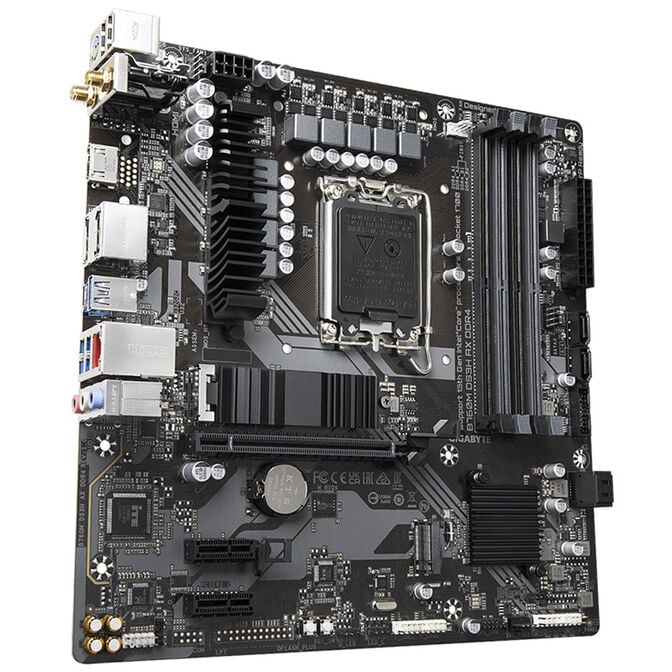

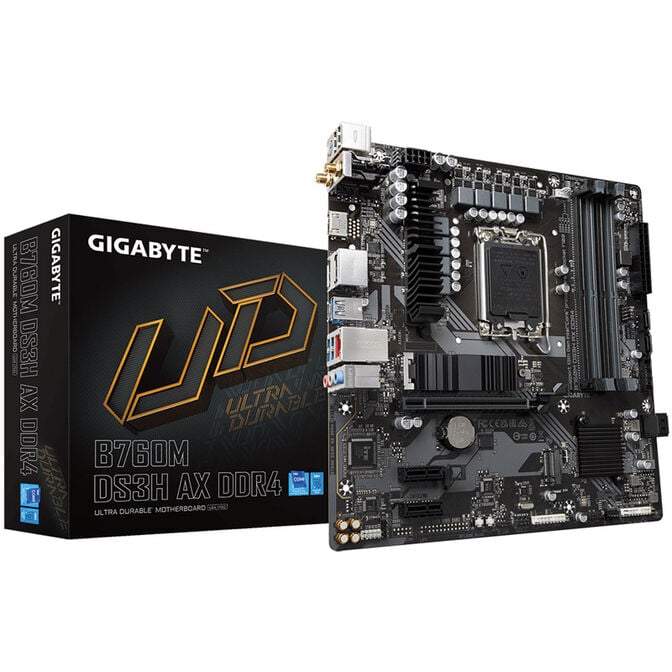

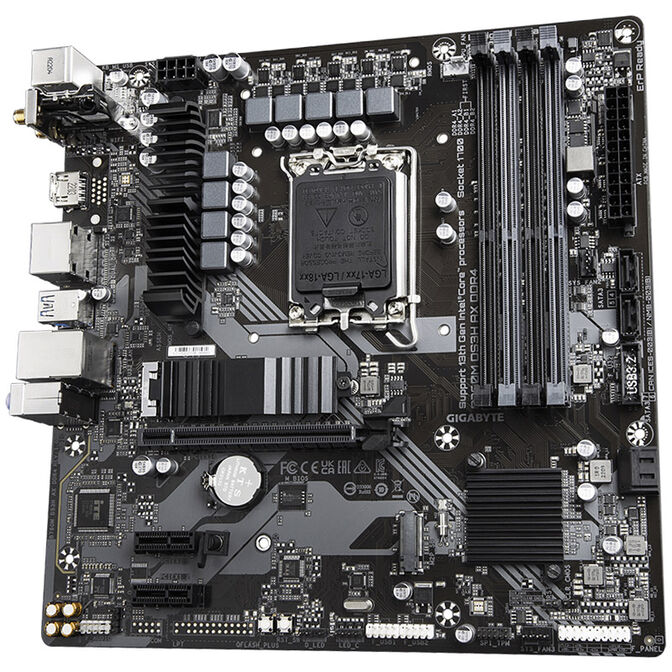

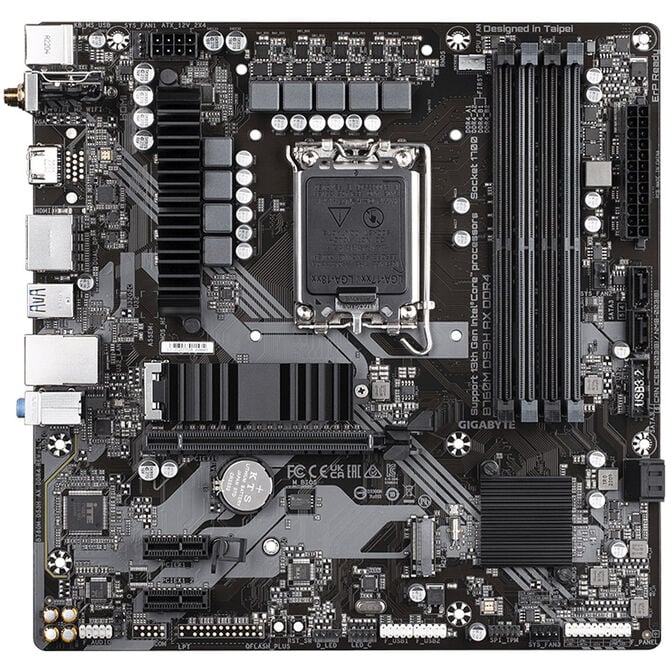

GIGABYTE B760M DS3H AX DDR4, Socket LGA 1700, Intel B760, Micro-ATX - DDR4

GIGABYTE B760M DS3H AX DDR4, Socket LGA 1700, Intel B760, Micro-ATX - DDR4

Micro-ATX motherboard with B760 chipset, 1x PCIe 4.0 x16 / 2x PCIe 3.0 x1, 1x USB-C 3.1 / 2x USB 3.0 / 2x USB 3.0, 2x M.2 (2x PCIe 4.0) / 4x SATA 6G, 4x 4-pin PWM connectors, for DDR4 RAM
132,22 €
incl. VAT , add. delivery costs starting from 4.99€
SKU MBGB-540 |
EAN 4719331850869 |
MPN B760M DS3H AX DDR4 |
Manufacturer Gigabyte
  • 1x PCIe 4.0 x16 (x16), 2x PCIe 3.0 x1
  • DDR4 memory up to 3,200 MHz, via RAM-OC up to 5,333 MHz
  • 2x M.2 slots, of which 2x PCIe 4.0
  • USB on the I/O panel: 1x USB-C 3.1, 2x USB 3.0 and 2x USB 2.0
  • A total of 4 connections for fans and pumps

The Micro-ATX motherboard GIGABYTE B760M Gaming X DDR4 with Intel B670 chipset in detail

The GIGABYTE B760M Gaming X DDR4 is a Micro-ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. The mainboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Code name: Alder Lake and Raptor Lake. It supports DDR4 memory with speeds of up to 5,333 MHz and is excellent for RAM overclocking due to its outstanding power supply.



Note: This motherboard supports memory with the DDR4 standard. LGA 1700 motherboards with DDR5 compatibility can be found at the following link: For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially important for motherboards that may have been shipped with an early BIOS version by the manufacturer.

Our King Mod Service is happy to perform a BIOS update to the latest version in advance:

Please note that this may delay shipping preparation by 1 to 4 working days!

More information about Intel Alder Lake and Raptor Lake, as well as the Core processors of the 12th, 13th, and 14th generation, can be found at the following link:

Technical details:

  • Format:
    ATX (305 x 244 mm)
  • Chipset:
    Intel B760
  • Socket:
    LGA 1700 (for Intel CPUs of the 12th, 13th, and 14th Core generation)
  • RAM:
    4x DDR4 (3,200 MHz, up to 5,333 MHz via OC)
    Dual-Channel
    Max. 128 GB
  • Slots (physical):
    1x PCIe 4.0 x16 (electrical x16, CPU)
    2x PCIe 3.0 x1 (chipset)
  • Internal connections:
    4x SATA 6G
    1x M.2 (PCIe 4.0 x4, 2280-22110, CPU)
    2x M.2 (PCIe 4.0 x4, 2280-22110, chipset)
    1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
    2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
    4x USB 2.0 (2 headers, max. 480 Mbit/s)
    1x Front Panel Audio Header (AAFP)
    1x System Panel Header
    1x Trusted Platform Module Header (only GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module)
    1x S/PDIF Out Header
    1x Serial (COM) Port Header
    1x Q-Flash Plus Button
    1x Reset Jumper
    1x Reset Button
    1x Clear CMOS Jumper
  • Fan headers:
    1x CPU Fan (4-Pin)
    1x CPU Fan/Pump (4-Pin)
    1x Fan/Pump (4-Pin)
    3x Case Fans (4-Pin)
  • RGB headers:
    2x RGB Header (4-Pin, 12 V)
    2x ARGB (3-Pin, 5 V)

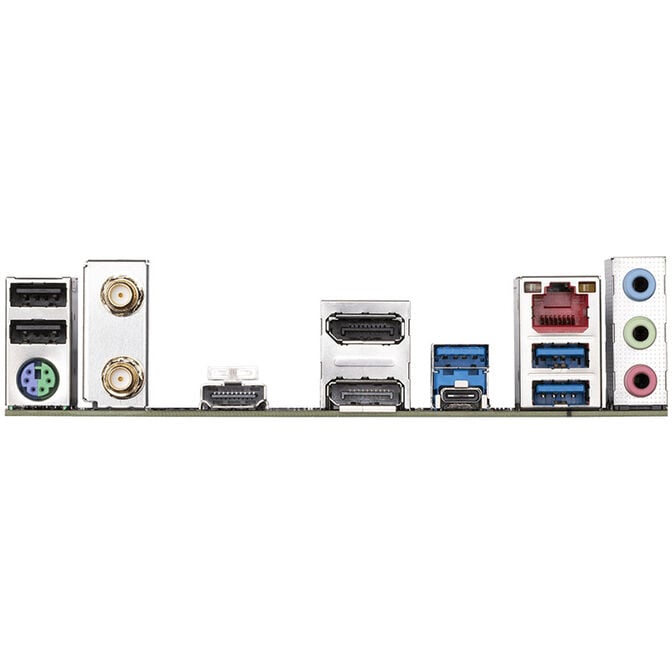

  • External connections:
    1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
    2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
    5x USB 2.0 (Type A, max. 480 Mbit/s)
    1x HDMI 2.0
    1x DisplayPort 1.2
    1x RJ-45 (max. 2.5 Gbit/s, Realtek)
    6x 3.5 mm jack (Realtek 7.1)
  • Power supply:
    1x 24-Pin ATX
    1x 8-Pin ATX/EPS 12V
Colour
Primary Colour
Black
Secondary Colour
Grey, Silver
Dimensions
Length / Depth
24.4 cm
Width
24.4 cm
Form Factor
Motherboard formfactor
Micro-ATX
CPU
CPU Manufacturer
Intel
CPU Socket
1700
Motherboard
Motherboard Chipset
Intel B760
Memory
Max. Memory
128 GB
Memory Type
DDR4
Memory slots
4x
Wi-Fi & LAN
LAN Ports
1x 2.5 Gbit/s
Wi-Fi / Bluetooth
Yes
Internal Ports
CPU Power Supply
1x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
1
USB 3.0 (internal) Possible Ports
2
USB 2.0 (internal) Possible Ports
2
RGB / LED connectors
2x Digital RGB (3-Pin 5VDG), 2x RGB (4-Pin 5050 12VGRB)
External Ports
USB 3.2 (external) Type C
1
USB 3.1 (external) Type A
1
USB 3.0 (external) Type A
2
USB 2.0 (external) Type A
2
Display Connectors
Display Port (1x), HDMI (1x)
Storage Ports
M.2 PCIe 4.0 x4
2
SATA 6G (internal)
4
Expansion Slots
PCIe x16 slots (total)
1
PCIe x1 slots (total)
1
PCIe 4.0 x16 mechanical slot
1
PCIe 3.0 x1 mechanical slot
1
Fan Header
4 Pin Fan Connectors
4
Lighting
Lighting / RGB
Yes
Lighting Colour
RGB
