GIGABYTE B760M Gaming DDR4 Motherboard, Socket 1700, Intel B760, Micro-ATX, DDR4
Micro-ATX motherboard with B760 chipset, 1x PCIe 4.0 x16 / 1x PCIe 3.0 x1, 1x USB-C 3.0 / 5x USB 3.0, 2x M.2 (2x PCIe 4.0) / 4x SATA 6G, 4x 4-pin PWM connectors, for DDR4 RAM
107,10 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x1
- DDR4 memory up to 3,200 MHz, via RAM-OC up to 5,333 MHz
- 2x M.2 slots, of which 2x PCIe 4.0

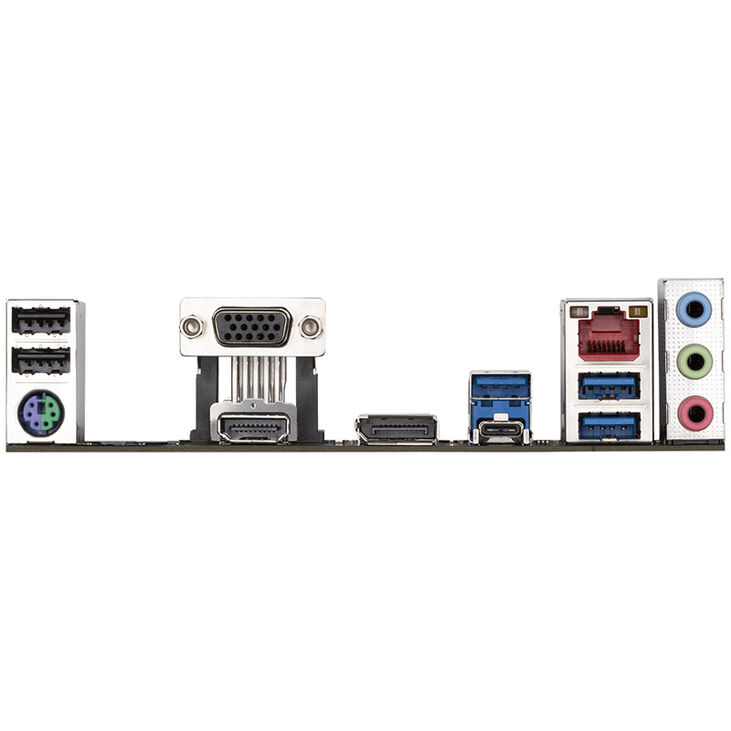

- USB on the I/O panel: 1x USB-C 3.0, 3x USB 3.0 and 2x USB 2.0
- A total of 4 connectors for fans and pumps

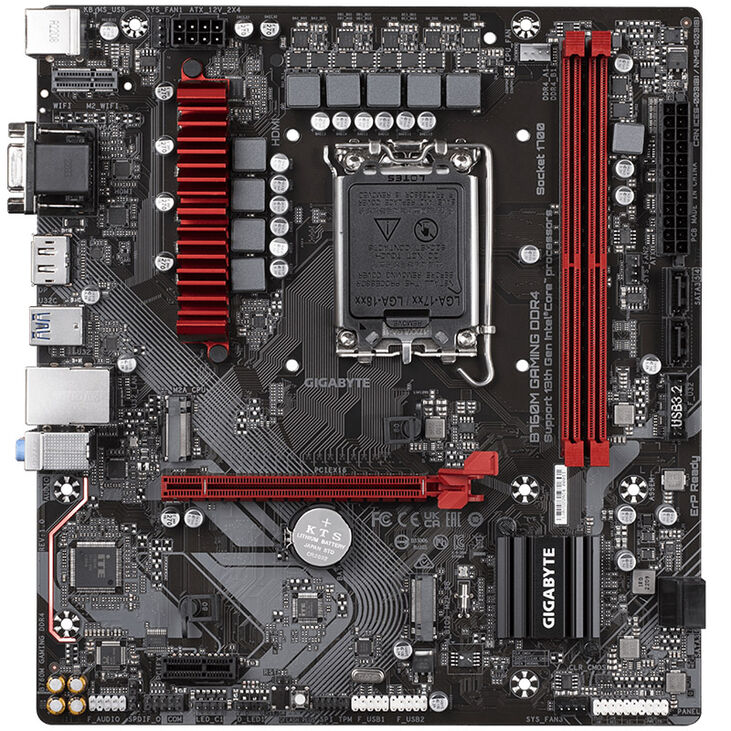

The Micro-ATX Motherboard GIGABYTE B760M Gaming DDR4 with Intel B760 Chipset in Detail
The GIGABYTE B760M Gaming DDR4 is a Micro-ATX motherboard with the Intel B760 chipset and LGA 1700 socket. The motherboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Codename: Alder Lake and Raptor Lake. It supports DDR4 memory up to 5,333 MHz and is particularly well-suited for RAM overclocking due to its outstanding power supply.
Note: This motherboard supports memory with the DDR4 standard. LGA 1700 motherboards with DDR5 compatibility can be found at the following link:
For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially true for motherboards that may have been delivered by the manufacturer with an early BIOS version.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay the shipping preparation by 1 to 4 working days!
More information on Intel Alder Lake and Raptor Lake as well as the Core processors of the 12th, 13th, and 14th generations can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Red, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
64 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
2x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.0 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
