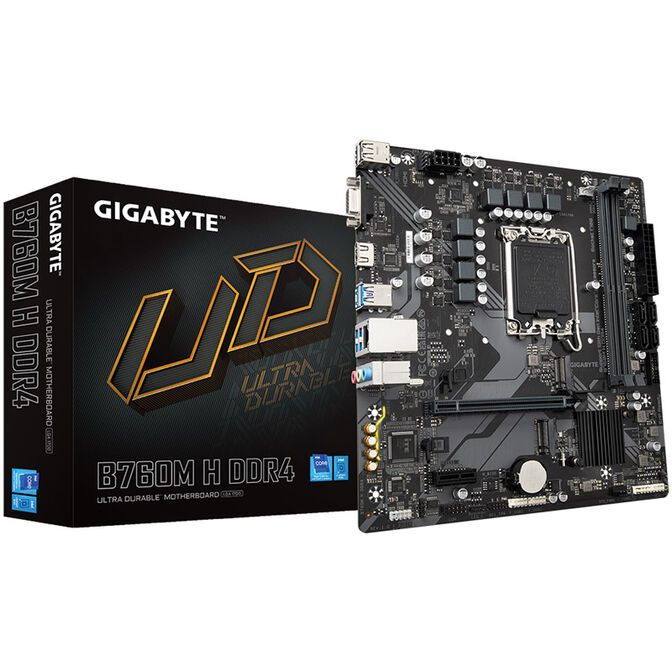

GIGABYTE B760M H DDR4 motherboard, socket 1700, Intel B760, Micro-ATX, DDR4
Micro-ATX motherboard with B760 chipset, with Intel Socket 1700, PCIe 4.0 for graphics card, suitable for DDR4 RAM, 2x M.2 PCIe 4.0 slots, Gbit LAN
94,52 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x16 (x1)
- DDR4 memory up to 3,200 MHz
- 2x M.2 slots with PCIe 4.0 for fast NVMe SSDs

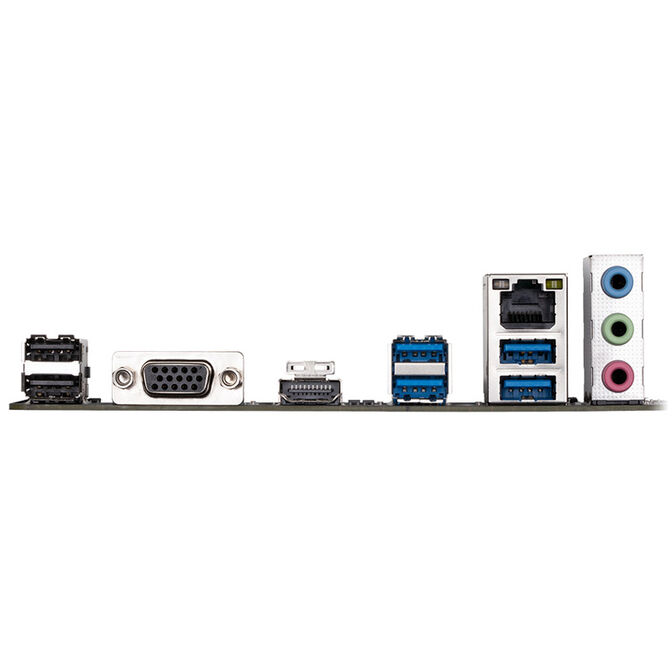

- USB on the I/O panel: 4x USB 3.0, 2x USB 2.0
- OC features: 6+1 phase VRMs, Dr.MOS, heat spreader
- A total of 3 connectors for fans and pumps

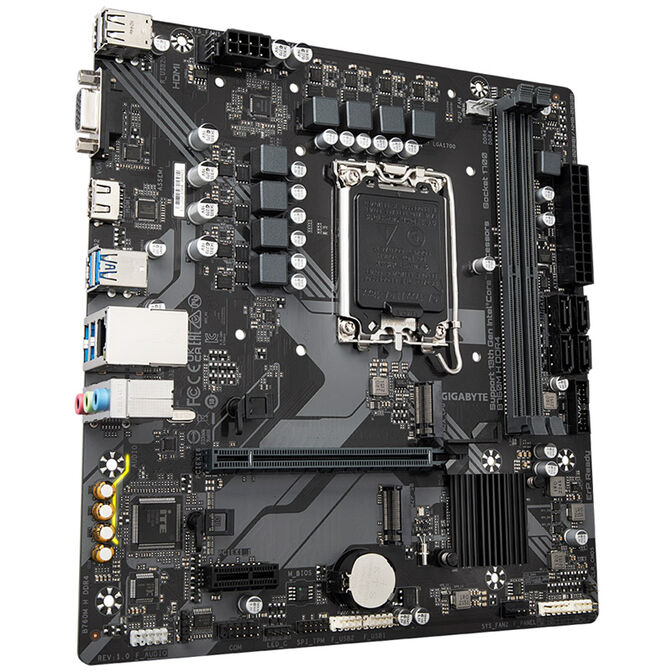

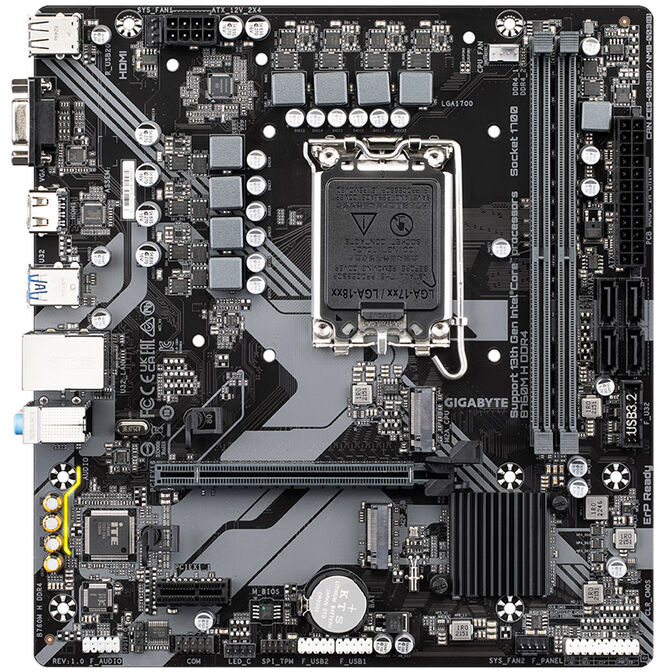

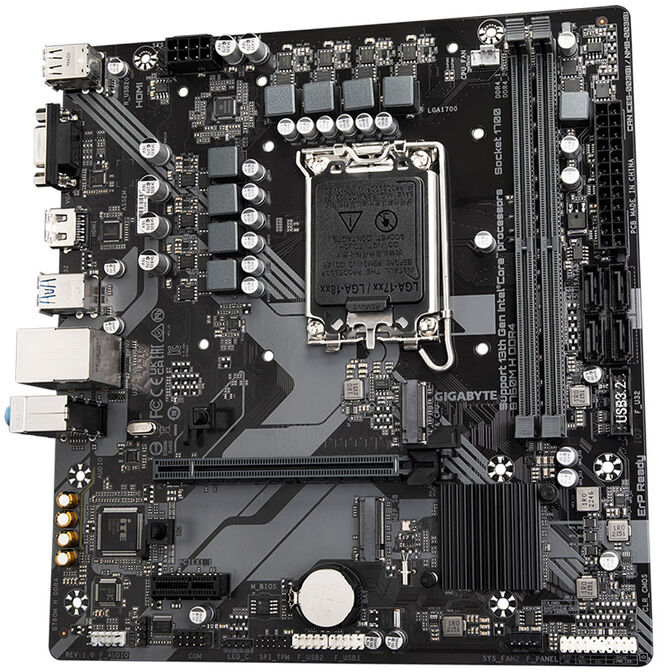

The Micro-ATX motherboard Gigabyte B760 H with Intel B760M chipset in detail
The Gigabyte B760 H is a Micro-ATX motherboard featuring the Intel B760M chipset and LGA 1700 socket. This motherboard is particularly suitable for Intel Core CPUs from the Alder Lake and Raptor Lake series. It supports DDR4 memory with speeds of up to 3,200 MHz and additionally offers useful features such as heat spreaders for VRMs and the chipset, or Dr.MOS for automatic voltage modulation.
Note: This motherboard supports memory with the DDR4 standard. LGA 1700 motherboards with DDR5 compatibility can be found at the following link:
For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially true for motherboards that may have been shipped by the manufacturer with an early BIOS version.
Our King Mod Service is happy to carry out a BIOS update to the latest version in advance:
Our King Mod Service is happy to carry out a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
More information on Intel Alder Lake, Meteor Lake, as well as the Core processors of the 12th, 13th, and 14th generations can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
64 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
2x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x), VGA (D-Sub) (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
