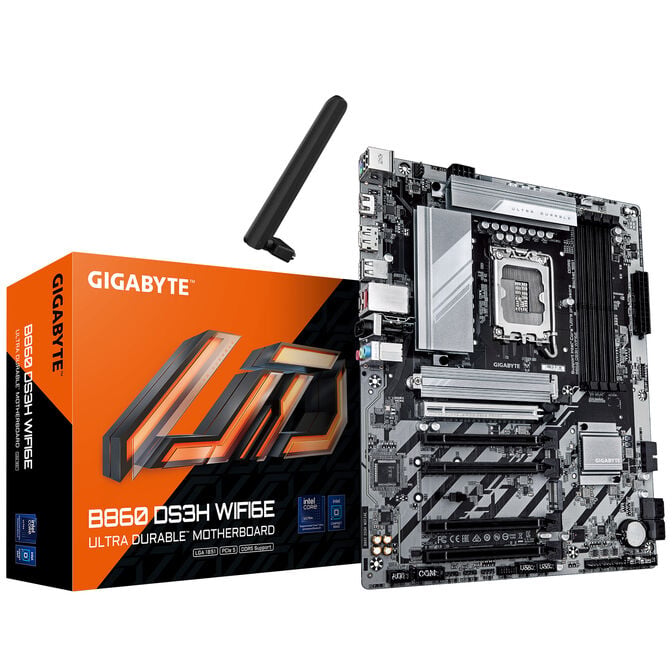

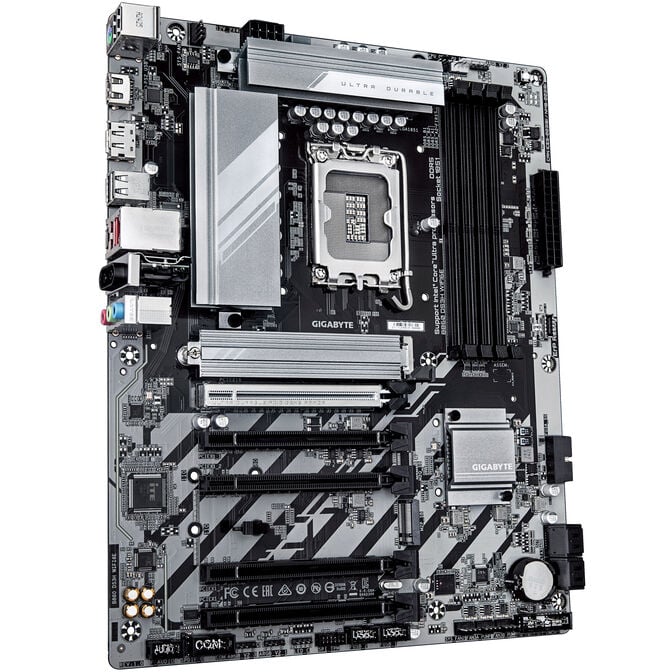

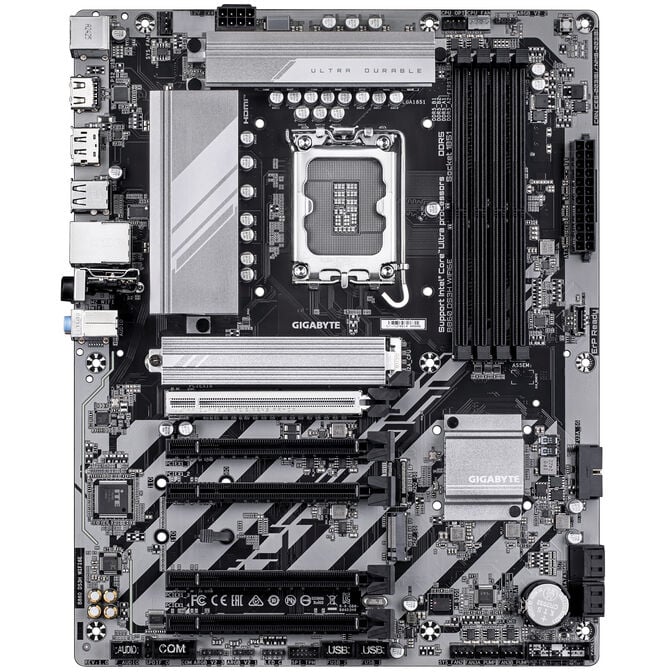

GIGABYTE B860 DS3H WiFi6E Motherboard, sockel LGA 1851, Intel B860, ATX, DDR5
ATX motherboard with Intel B860 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
166,38 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16) and 4x PCIe 4.0 x16 (x1)
- RAM: 4x DIMM slots supporting up to 256 GB DDR5 RAM at up to 9,066 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 1x USB 3.1, and 4x USB 2.0
- Cooling: 6x 4-pin PWM headers for fans and radiators

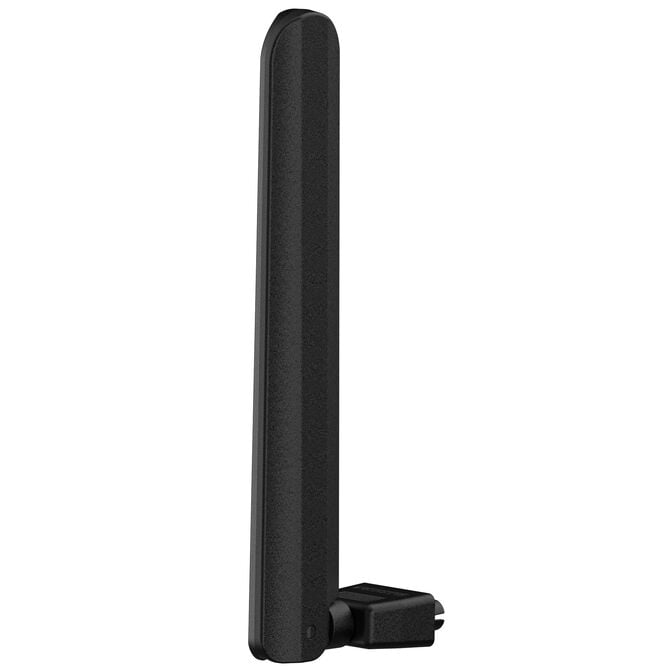

- Connectivity: Wi-Fi 6E and Bluetooth 5.3
GIGABYTE B860 DS3H WiFi6E: ATX Motherboard with Intel LGA 1851 Socket and B860 Chipset
The GIGABYTE B860 DS3H WiFi6E is an ATX motherboard featuring the mid-range Intel B860 chipset and LGA 1851 socket. It supports Intel processors from the Arrow Lake generation and is perfect for gamers who do not require CPU overclocking.
The GIGABYTE B860 DS3H WiFi6E also includes PCIe 5.0 support for graphics cards and M.2 SSDs. Additionally, DDR5 memory can be overclocked to maximize performance, ensuring you get the most out of your RAM.
|
Colour
|
|
|
Primary Colour
|
Silver
|
|
Secondary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
305 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B860
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
Max. Memory Speed (OC)
|
9033 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Wi-Fi Chip
|
Intel AX211
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

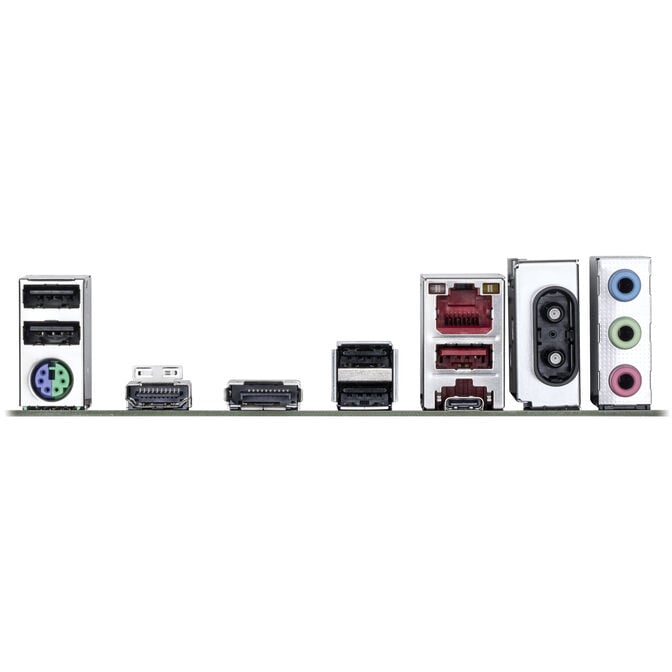

External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
4
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
4
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
