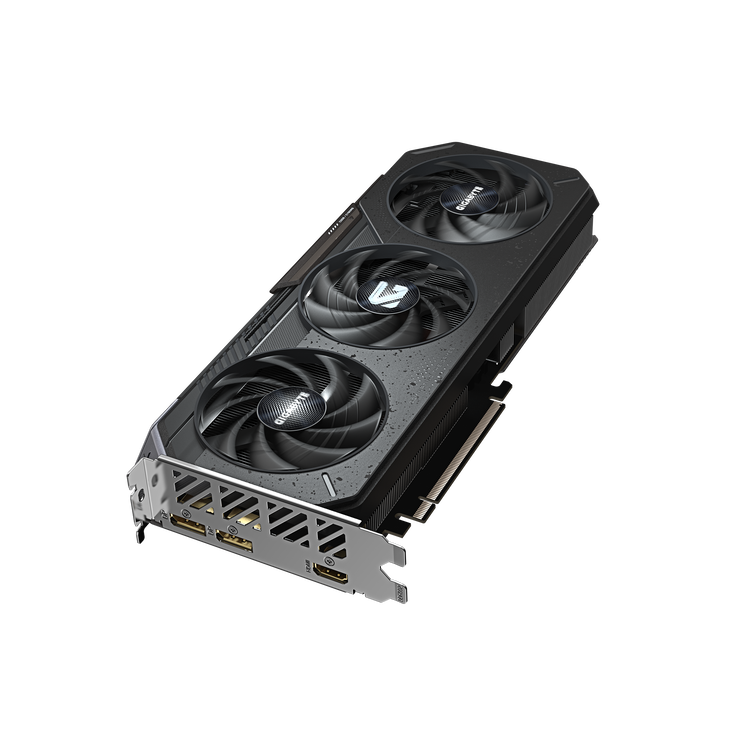

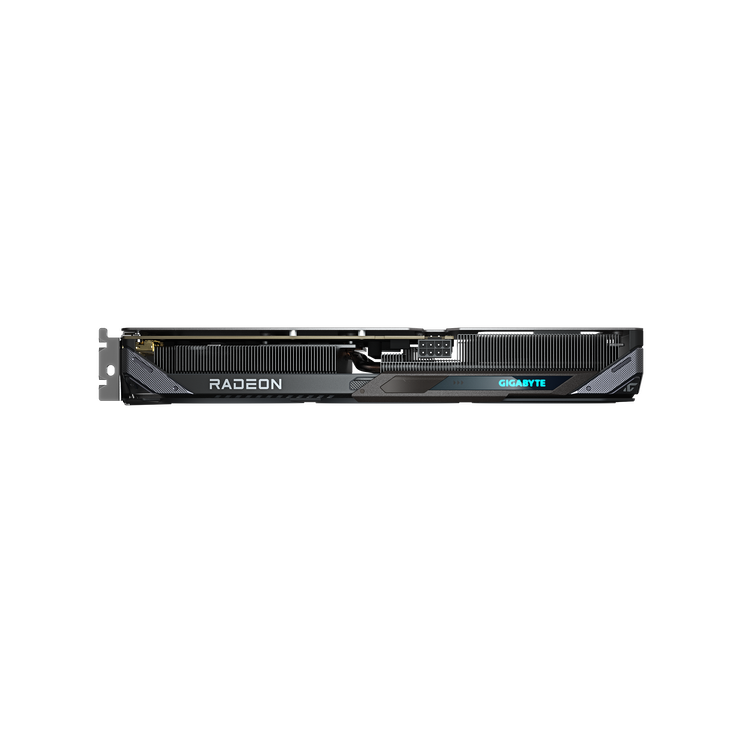

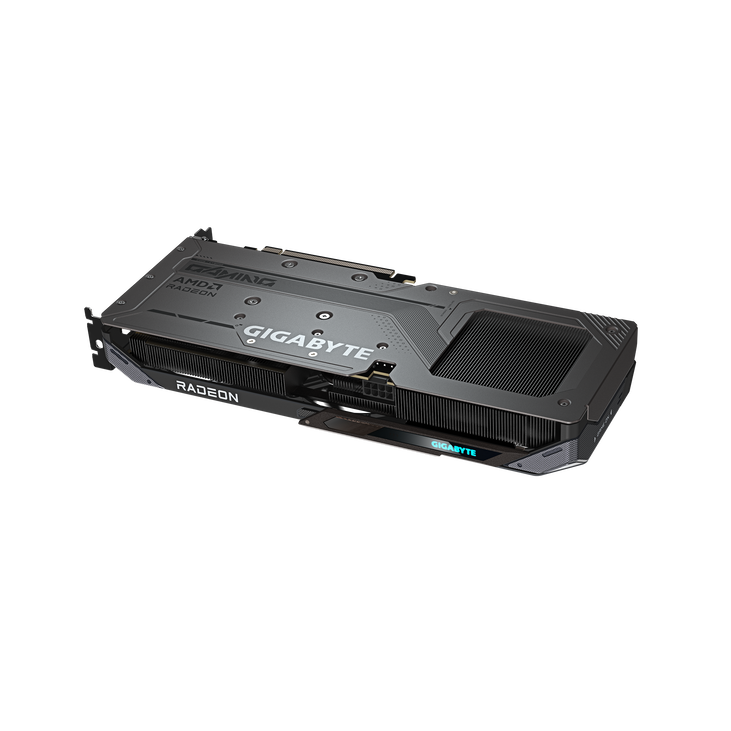

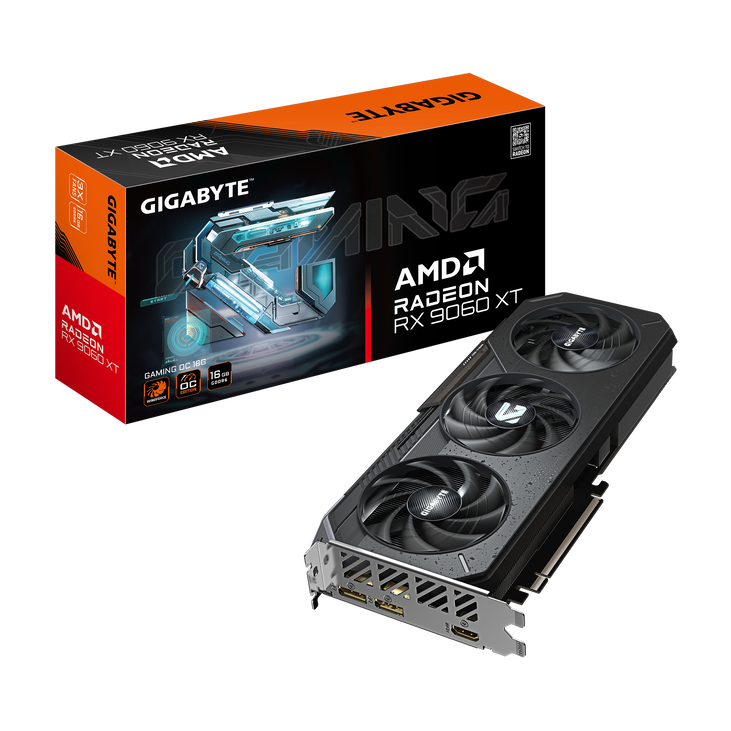

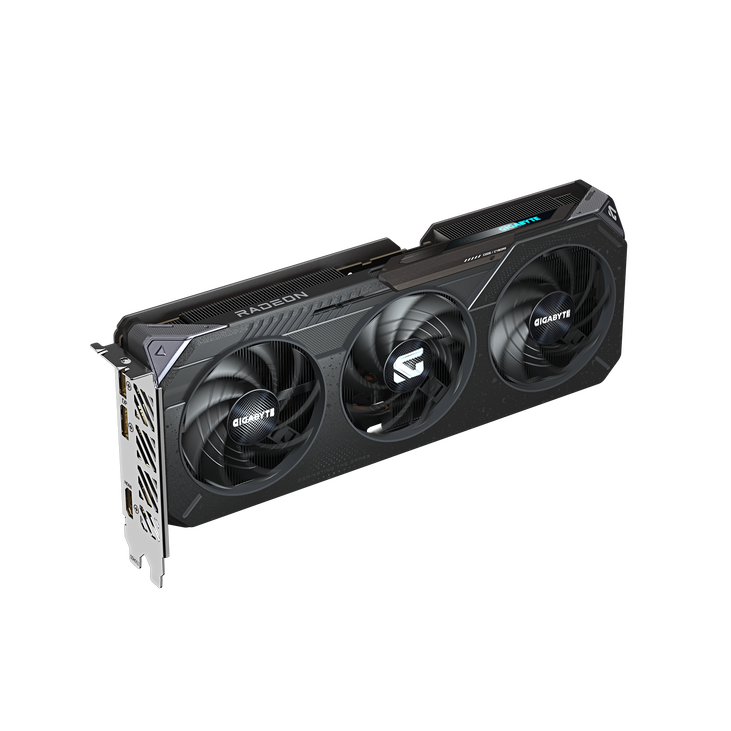

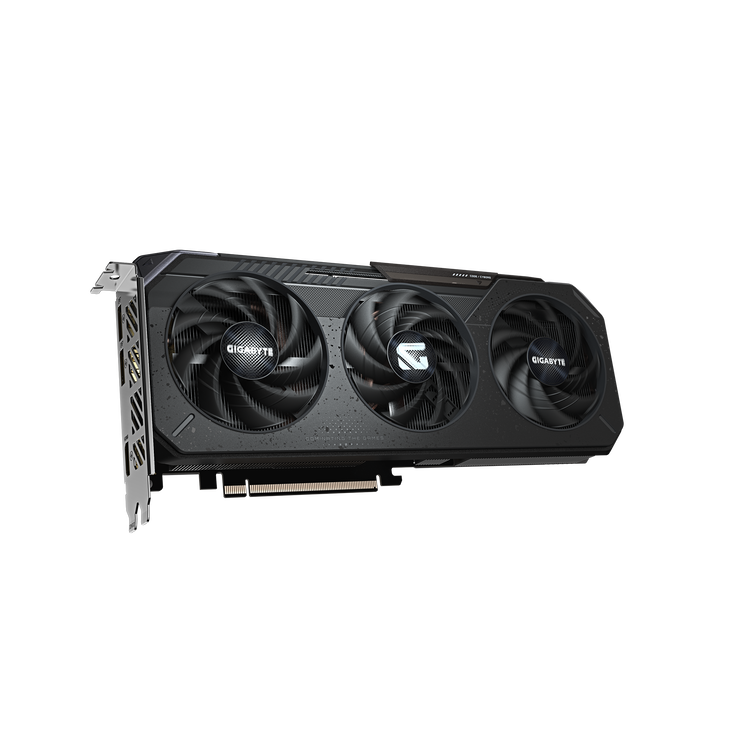

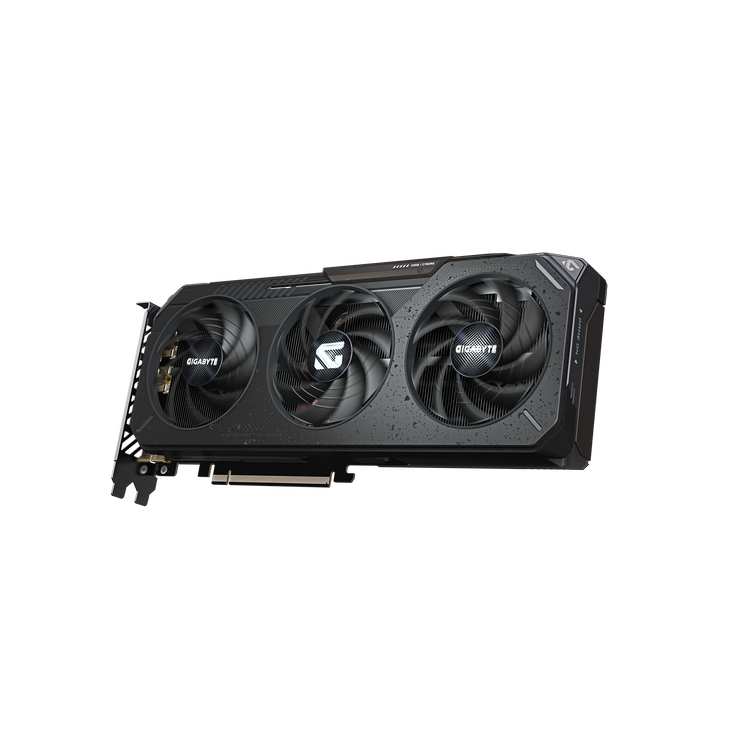

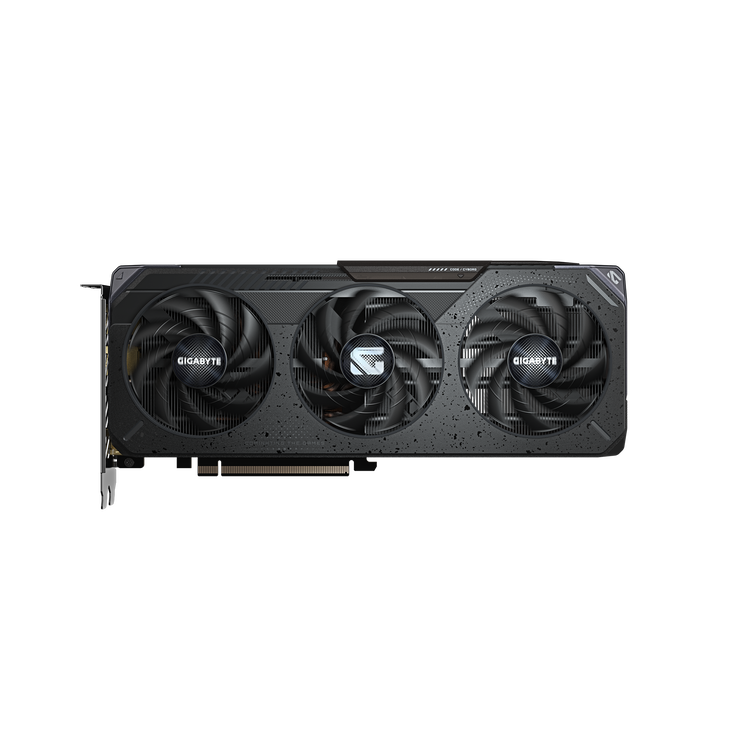

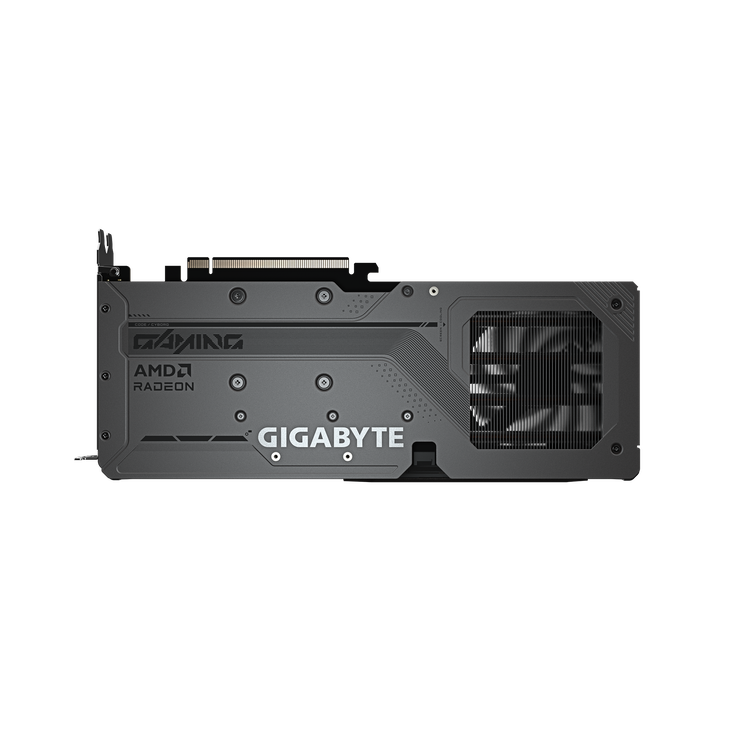

Gigabyte Radeon RX 9060 XT Gaming OC 16G Graphics Card, 16384 MB GDDR6
Radeon RX 9060 XT 16 GB Graphics Card, With TBA MHz Game/Boost Clock, 16 GB GDDR6 With 32 MB AMD Infinity Cache, Triple-Fan Cooler Design
414,96 €
Incl. VAT, add. delivery costs starting from 4.99€
- Efficient Triple-Fan Cooler Design With Semi-Passive Cooling
- High Game and Boost Clock: TBA MHz
- 16 GB GDDR6 Graphics Memory With 32 MB Infinity Cache
- High Memory Clock: 20,000 MHz
- 128-Bit Memory Interface
- Large Memory Bandwidth of 320 GB/s
- Video Outputs: 2x DisplayPort and 1x HDMI
- Power Connectors: 1x 8-Pin
The Radeon RX 9060 XT 16 GB Graphics Card in Detail
Thanks to its powerful graphics processor, high boost clock, and advanced technologies, the Radeon RX 9060 XT 16 GB is the ideal choice for gamers looking for a strong balance between performance and efficiency. With the Gigabyte Radeon RX 9060 XT Gaming OC 16G, you’ll enjoy smooth gaming in Full HD and WQHD resolutions.
AMD’s RDNA 4 Architecture: Ray Tracing and FSR 4
The latest RDNA 4 architecture with the Navi 44 chip enables a maximum boost clock of TBA MHz. Third-generation ray tracing accelerators deliver breathtakingly realistic visual effects. In addition, AMD FSR 4 ensures smooth visuals and high frame rates—even in demanding AAA titles.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
281 mm
|
|
Width
|
118 mm
|
|
Height
|
40 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 9000 Series
|
|
GPU Model
|
AMD Radeon RX 9060 XT 16GB
|
|
GPU Series Name
|
AMD Radeon RX 9060 XT 16GB
|
|
Graphics Chip
|
Navi 44 XT
|
|
Manufacturing Process
|
4 nm
|
|
Shader Units
|
2048
|
|
Raytracing Cores / Ray Acceleratorss
|
32
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 5.0
|
|
Compute Units
|
32
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
322.3
|
|
GPU Memory Clock (MHz)
|
2518
|
|
GPU Memory Clock Effective (Gbps)
|
20.1
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1900 MHz
|
|
Max. GPU Clock (Game)
|
2780 MHz
|
|
Max. GPU Clock (Boost)
|
3320 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|

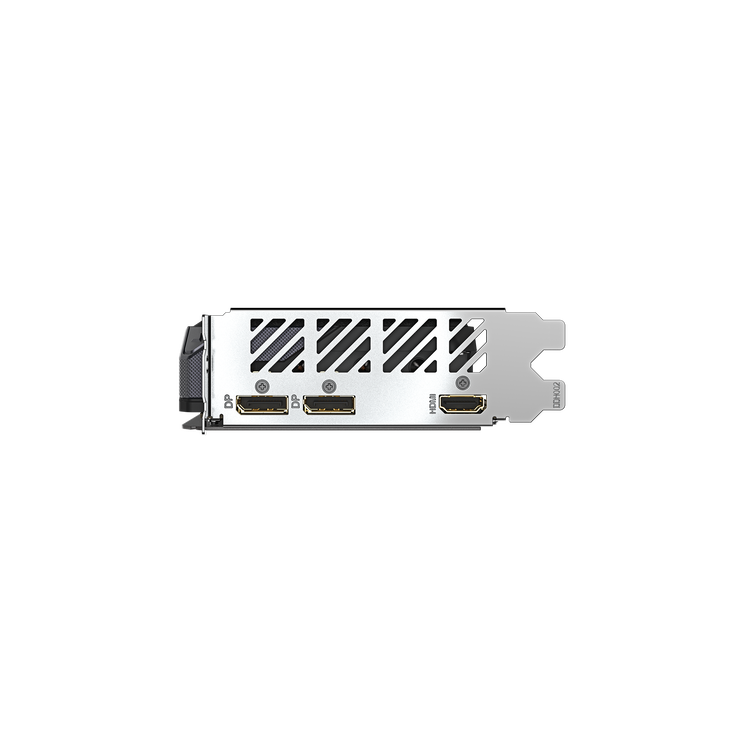

Display Connectors
|
Display Port (2x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
AMD AI-Accelerator
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
