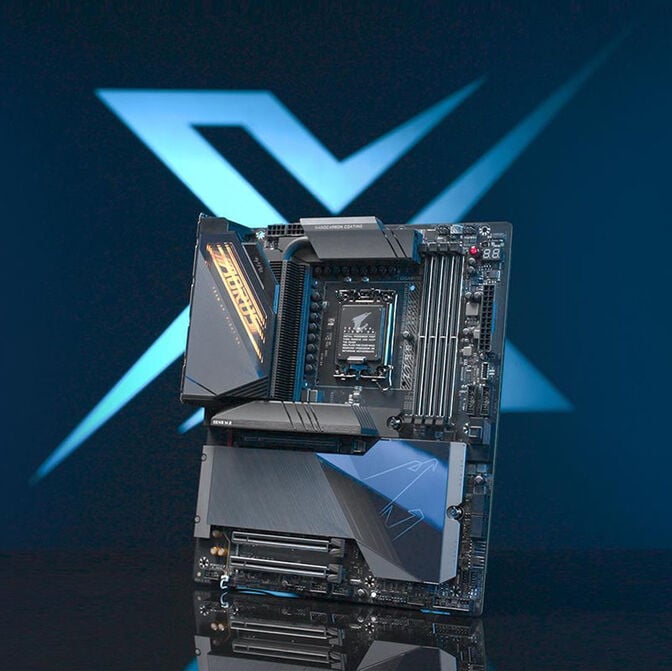

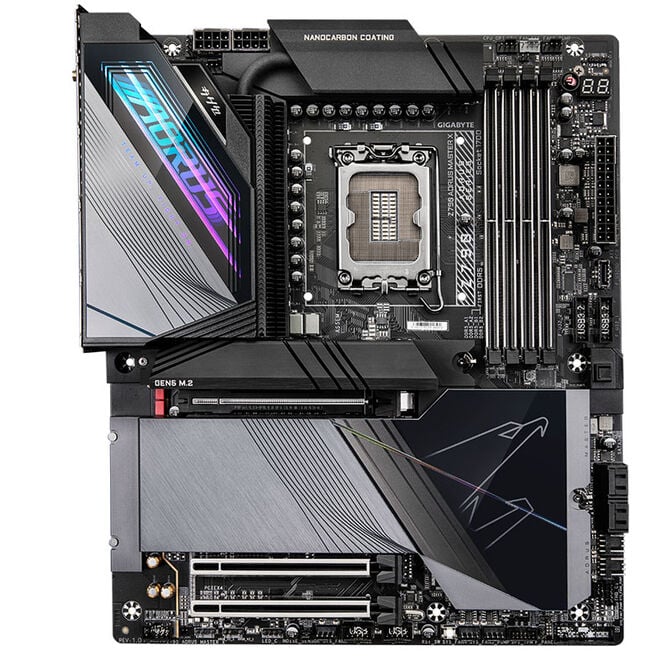

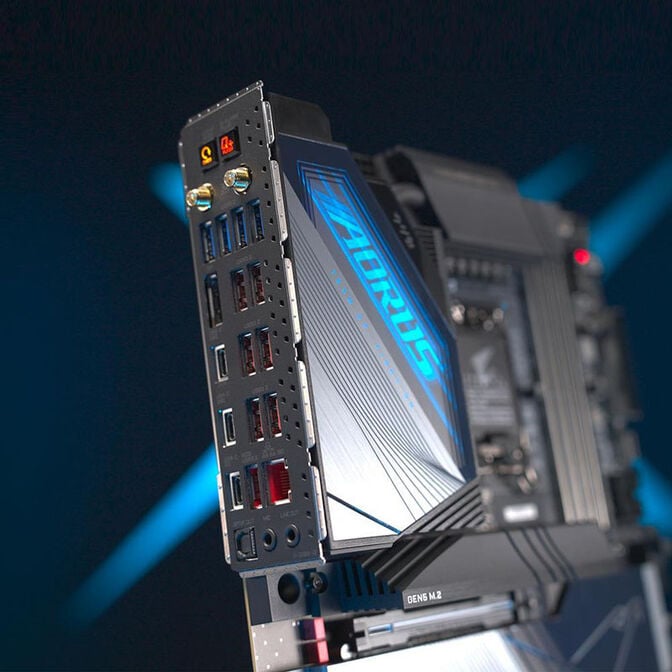

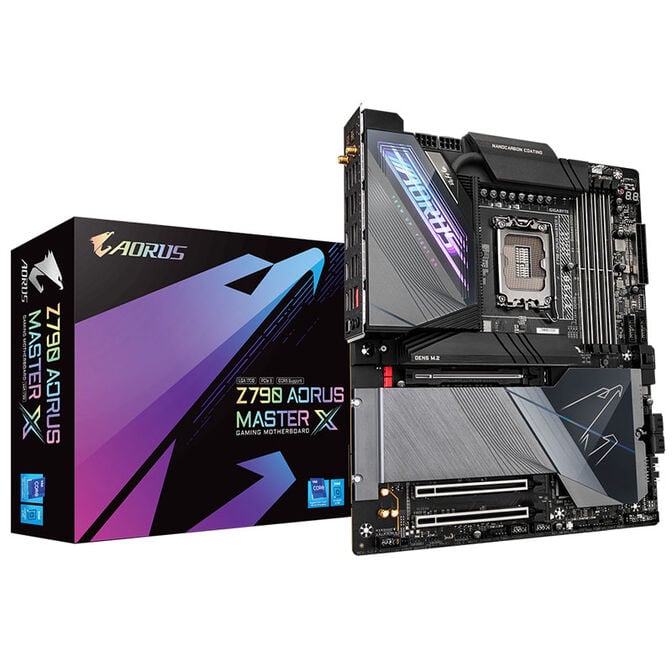

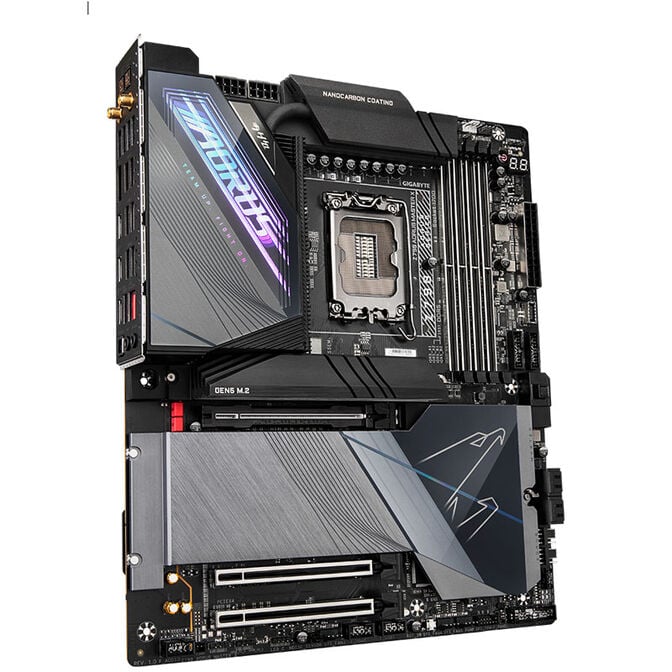

GIGABYTE Z790 Aorus Master X motherboard, Socket 1700, Intel Z790, E-ATX, DDR5
- Intel LGA 1700 Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
- PC Extended ATX Intel Z790 Express Realtek ALC1220-VB 5.1 Channels
- DDR5 SDRAM 4 DIMM ECC Non-ECC RAM maximum: 192 GB
- HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of supported storage drives: 9
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear-CMOS button
- 10 Gigabit Ethernet Wi-Fi Bluetooth 5.3
Superior Performance, Innovative Technology: The Gigabyte Z790 Aorus Master X
The Gigabyte Z790 Aorus Master X is not just a motherboard, but a powerhouse for enthusiasts and professionals demanding top performance and absolute control over their system. With groundbreaking technology and an innovative design, it sets new standards in performance, expandability, and stability.
Powerful Features for Peak Performance
12th Generation Intel Core: Supports the latest Intel processors for maximum computing power.
DDR5 Memory Support: Faster memory for smooth multitasking and extremely fast data transfer.
PCIe 5.0 Technology: Twice the data transfer speed compared to PCIe 4.0 for lightning-fast gaming and loading times.
Innovative Cooling Design: Keeps your system pleasantly cool even under intense load, allowing you to work and play without interruptions.
RGB Lighting and Customisation: Personalise your setup with stunning RGB lighting and a customisable design that matches your style.
Comprehensive Control, Endless Possibilities
The Gigabyte Z790 Aorus Master X not only offers exceptional performance but also comprehensive control over every detail of your system. From advanced BIOS settings to intuitive software tools – you maintain full control. Unleash the full potential of your hardware and experience gaming and content creation at an entirely new level.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey
|
|
Form Factor
|
|
|
Motherboard formfactor
|
E-ATX
|
|
CPU
|
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z790
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 10 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|

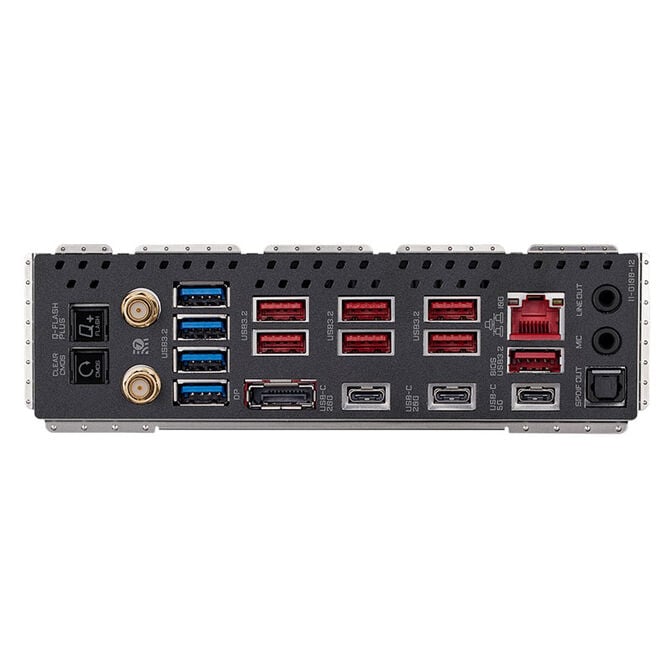

External Ports
|
|
|
USB 3.2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
7
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
4
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
10
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
