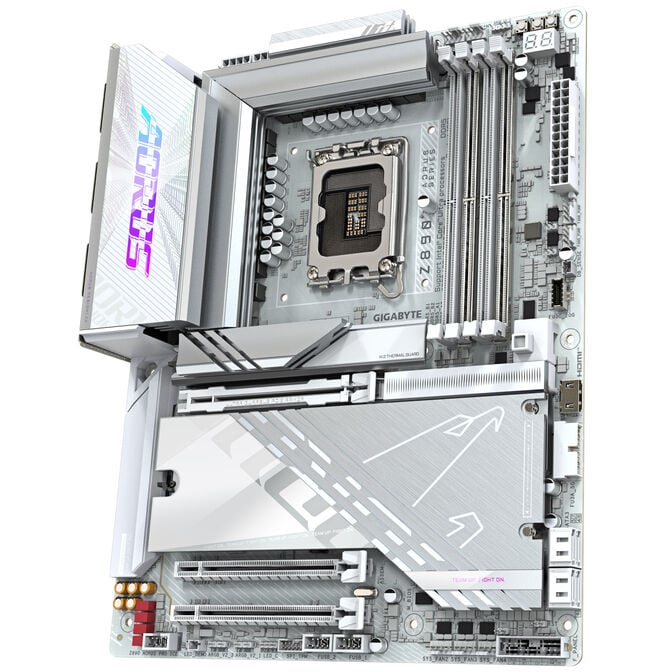

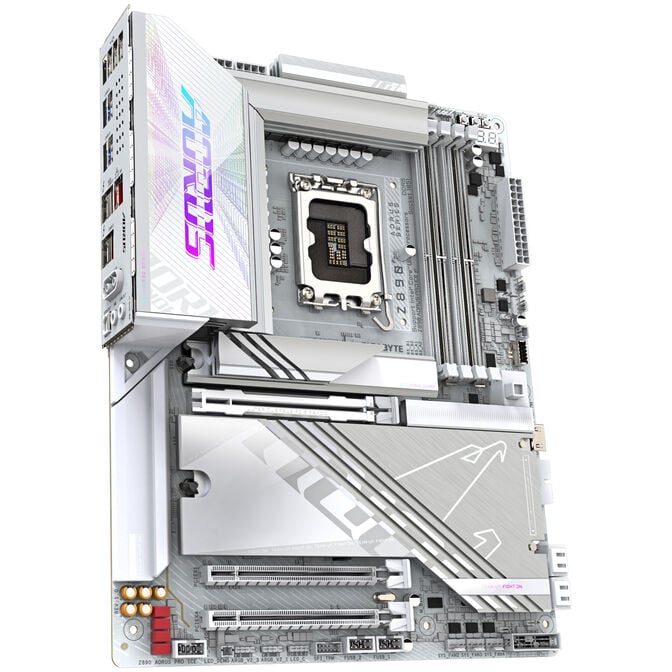

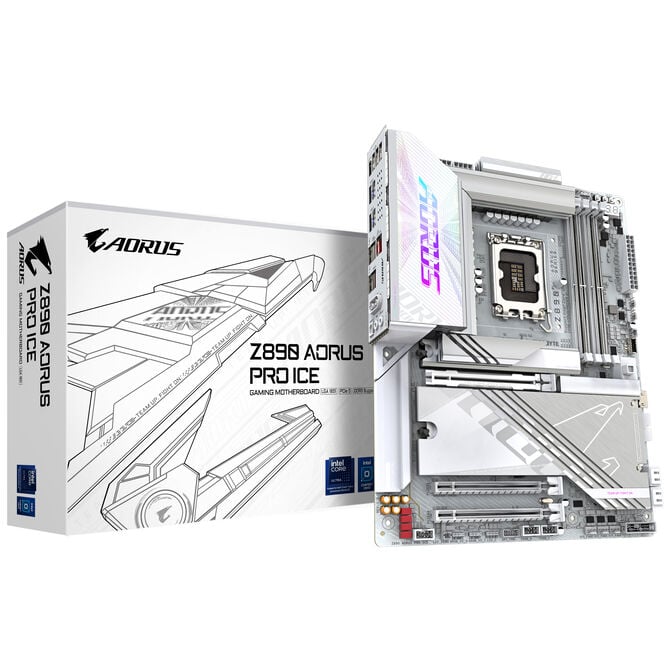

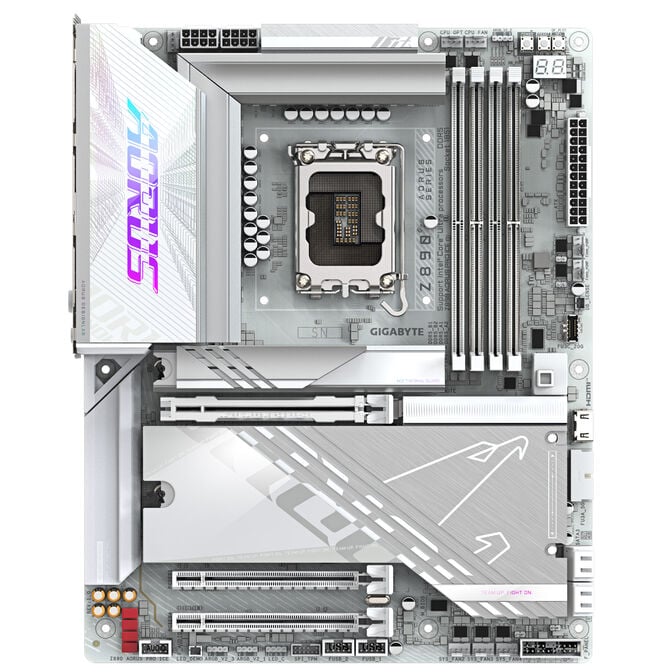

GIGABYTE Z890 AORUS Pro ICE motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
This motherboard is excellent for gaming enthusiasts and overclockers.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x16 (x1)
- 4x DIMM slots for max. 256GB DDR5 RAM up to 9,500MHz
- 5x M.2 (including 1x PCIe 5.0 and 4x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 2x USB4, 2x USB 3.1, 4x USB 3.0 and 4x USB 2.0
- A total of 8x 4-pin connectors for fans & pumps
GIGABYTE Z890 AORUS Pro ICE: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890 AORUS Pro ICE is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40 Gbit/s. Furthermore, the GIGABYTE Z890 AORUS Pro ICE impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for demanding gaming
The GIGABYTE Z890 AORUS Pro ICE has been specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruptions. The premium voltage regulators ensure a stable power supply to the CPU, guaranteeing reliable performance even at high clock rates over extended periods. Additionally, DDR5 RAM can also be overclocked to higher clock rates.
- Form Factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (6,400 MHz, up to 9,500 MHz via OC)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
1x PCIe 4.0 x16 (electrical x4, chipset)
1x PCIe 4.0 x16 (electrical x1, chipset) - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
1x M.2 (PCIe 4.0 x4/x2; 2280 / 22110, CPU)
1x M.2 (PCIe 4.0 x4/x2; 2280 / 22110, chipset)
1x M.2 (PCIe 4.0 x4/x2; 2280, chipset)
1x M.2 (PCIe 4.0 x4/x2 & SATA; 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Header, max. 480 Mbit/s)
2x Thunderbolt Header
1x Front Panel Audio Header
1x Front Panel
1x Noise Detection header
1x Q-Flash Button
1x Power Button
1x Reset Button
1x Reset Jumper
1x Clear CMOS Button - Fan headers:
1x CPU Fan (4-Pin)
1x CPU Fan / Pump (4-Pin)
4x Case Fans (4-Pin)
2x Case Fans / Pump (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)
1x RGB Header - External connections:

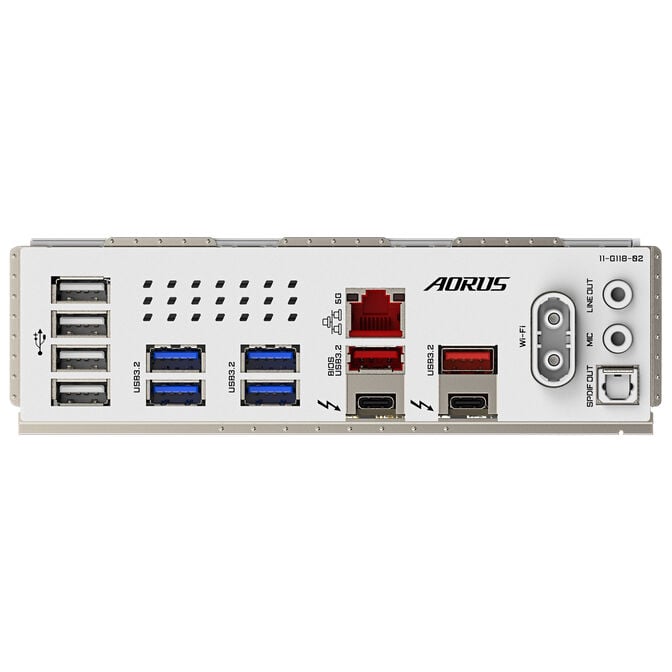

2x USB4 (Type C, USB 3.2 Gen 3x2, max. 40 Gbit/s)
2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI
1x 5 Gigabit LAN
2x 3.5 mm Jack (Realtek ALC 1220)
1x WiFi/Bluetooth module
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX
2x 8-Pin +12V CPU
|
Colour
|
|
|
Primary Colour
|
White
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Power Specifications
|
|
|
Power Stages (VRMs)
|
16+1+2
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
Max. Memory Speed (OC)
|
9500 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC1220
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
