GIGABYTE Z890 EAGLE Motherboard, Socket LGA 1851, Intel Z890, ATX, DDR5

GIGABYTE Z890 EAGLE Motherboard, Socket LGA 1851, Intel Z890, ATX, DDR5

(0 Ratings)
ATX-Mainboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x4, 1x USB4 / 2x USB-C 3.2 / 2x USB 3.1 / 5x USB 3.0 / 8x USB 2.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors
Intel Motherboard Bundle - Unlock one game
Intel® Motherboard Bundle
More details

Unlock one game with purchase of a qualifying Intel® Z890 or B860 chipset motherboard – choose one of three titles.

OFFER ENDS31.12.2026
REDEEM BY31.01.2027
*You will receive your Master Key together with the redemption instructions after purchase. Redeem at softwareoffer.intel.com.
205,57 €
In Stock
Incl. VAT, add. delivery costs starting from 4.99€
In Stock
SKU MBGB-637 |
EAN 4719331865214 |
MPN Z890 EAGLE |
Gigabyte

This motherboard is ideal for content creators and gamers.

  • 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4)
  • 4x DIMM slots for up to 256 GB DDR5 RAM at 8,800 MHz (XMP 3.0 support)
  • 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
  • USB on I/O panel: 1x USB4, 1x USB Type-C 3.2, 3x USB 3.1, 3x USB 3.0
  • OC features: Support for Q-Flash, 14+1+2 power phases
  • In total, 6x 4-pin connectors for fans & pumps

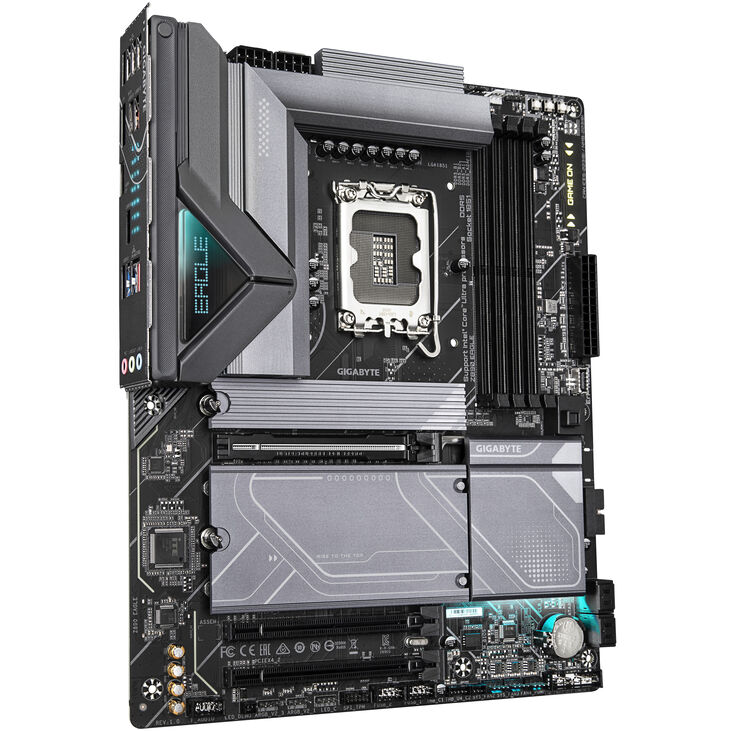

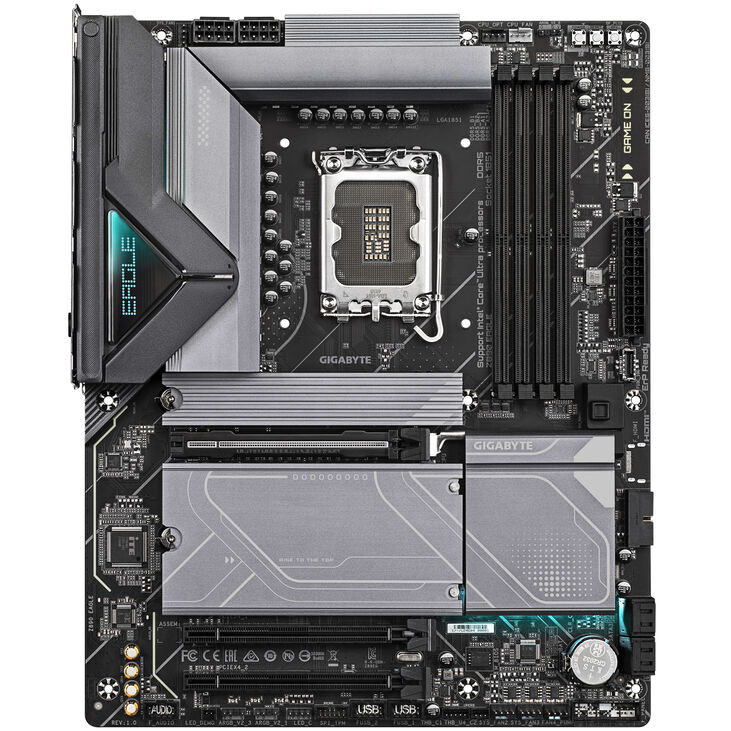

GIGABYTE Z890 EAGLE: ATX-Mainboard with Intel LGA 1851 socket and Z890 chipset

The GIGABYTE Z890 EAGLE is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports 2nd generation Intel Core Ultra processors with the Arrow Lake code name. The Intel Z890 motherboard natively supports USB4, offering data transfer speeds of up to 40 Gbit/s. Additionally, the GIGABYTE Z890 EAGLE features full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

  • Form factor:
    ATX (305 x 244 mm)
  • Chipset:
    Intel Z890
  • Socket:
    LGA 1851 (for 2nd generation Intel Core Ultra CPUs)
  • RAM:
    4x DDR5 DIMM (up to 8,800 MHz via XMP)
    Dual-Channel
    Max. 256 GB
  • Slots (physical):
    1x PCIe 5.0 x16 (electrical x16 or x8/x8)
    2x PCIe 4.0 x16 (electrical x4)
  • Total usable PCIe lanes: 44
  • Internal connectors:
    4x SATA 6G (max.)
    1x M.2 (PCIe 5.0 x4, CPU)
    1x M.2 (PCIe 4.0 x4, CPU)
    1x M.2 (PCIe 4.0 x4, chipset)
    1x M.2 (PCIe 4.0 x4, chipset)
    1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
    1x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
    2x USB 2.0 (1 header, max. 480 Mbit/s)
    1x power button
    1x Q-Flash Plus button
    1x reset button
    1x reset jumper
    1x Clear CMOS jumper
  • Fan headers:
    1x 4-pin CPU fan header
    1x 4-pin CPU OPT fan header
    1x 4-pin AIO pump header
    3x case fans (4-pin)

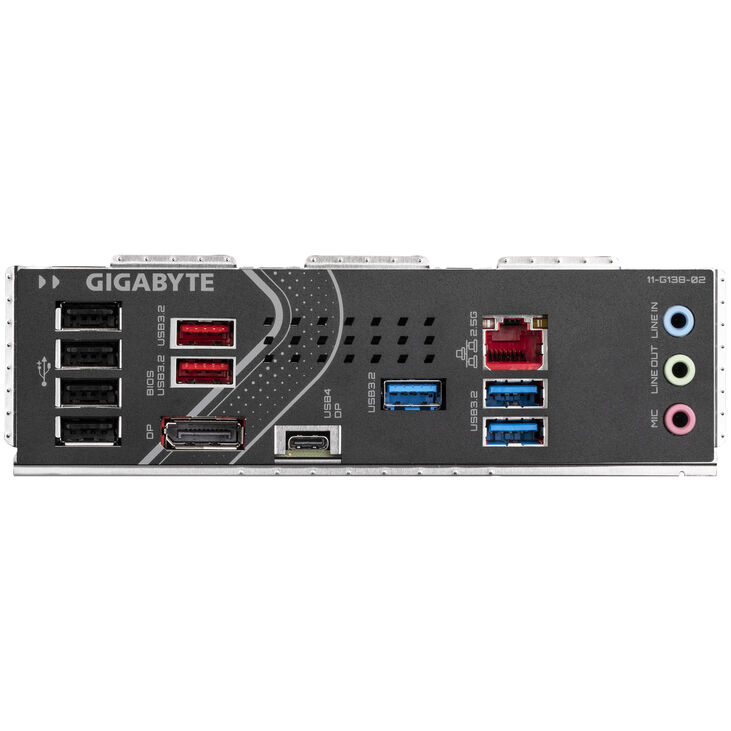

  • External connectors:
    1x USB4 (Type-C, USB4 Gen 2x2, max. 20 Gbit/s)
    2x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbit/s)
    3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbit/s)
    4x USB 2.0 (Type-A, max. 480 Mbit/s)
    1x DisplayPort
    1x 2.5 Gigabit LAN
    3x 3.5 mm jack
  • Power supply:
    1x 24-pin ATX
    2x 8-pin ATX12V
Colour
Primary Colour
Black
Dimensions
Length / Depth
305 mm
Width
244 mm
Form Factor
Motherboard Form Factor
ATX
CPU
CPU Manufacturer
Intel
CPU Socket
1851
Motherboard
Motherboard Chipset
Intel Z890
Built-In I/O Shield
Yes
Memory
Max. Memory
256 GB
Memory Type
DDR5
Memory Form Factor
DIMM
Max. Memory Speed (OC)
8800 MT/s
Memory slots
4x
Wi-Fi & LAN
LAN
Yes
LAN Ports
1x (in total)
Wi-Fi / Bluetooth
No
Cooling
Backplate
No
M.2 Heatsinks
Yes
VRM Heatsinks
Yes
Internal Ports
CPU Power Supply
2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
1
USB 3.0 (internal) Header
1
USB 2.0 (internal) Header
2
Front Panel Audio Header
Yes
External Ports
USB4 Gen 2x2 (external) Type C
1
USB 3.1 (external) Type A
2
USB 3.0 (external) Type A
3
USB 2.0 (external) Type A
4
Display Connectors
Display Port (1x)
Storage Ports
M.2 PCIe 4.0 x4
3
M.2 PCIe 5.0 x4
1
SATA 6G (internal)
4
Back Connect
Back Connect
No
Expansion Slots
PCIe x16 slots (total)
3
PCIe 5.0 x16 mechanical slot
1
PCIe 4.0 x16 mechanical slot
2
Fan Header
4 Pin Fan Connectors
6
Lighting
Lighting / RGB
Yes
