ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 3x PCIe 4.0 x16, 1x USB4 / 1x USB 3.1 / 4x USB 3.0 / 4x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors
218,12 €
incl. VAT , add. delivery costs starting from 4.99€
SKU MBGB-638 |
EAN 4719331865313 |
MPN Z890 UD WIFI6E |
Manufacturer Gigabyte

This motherboard is excellent for your high-end build.

  • 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x16 (x1)
  • 4x DIMM slots for max. 256GB DDR5 RAM up to 8,800MHz)
  • 33x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
  • USB on the I/O panel: 1x USB4, 1x USB 3.1, 4x USB 3.0 and 4x USB 2.0
  • A total of 6x 4-pin connectors for fans & pumps

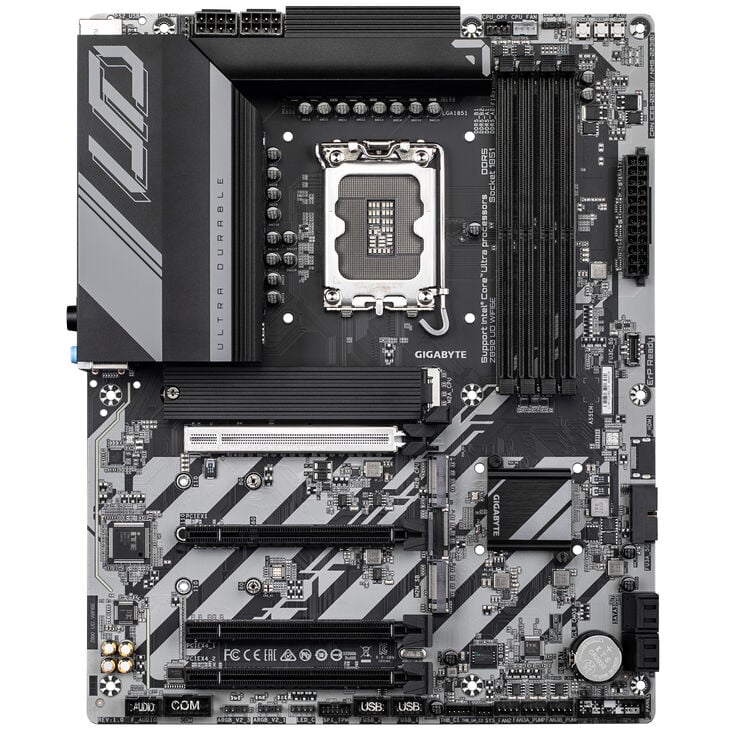

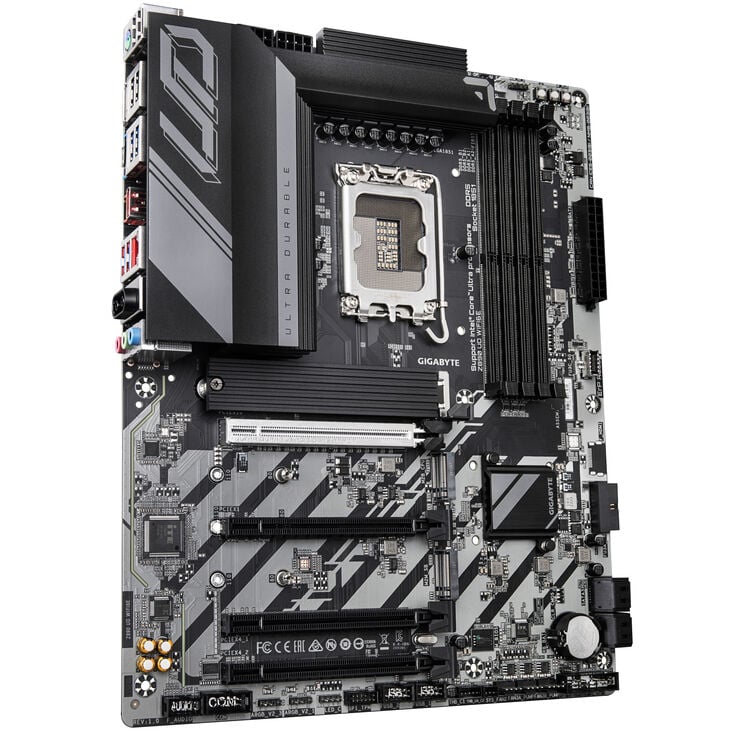

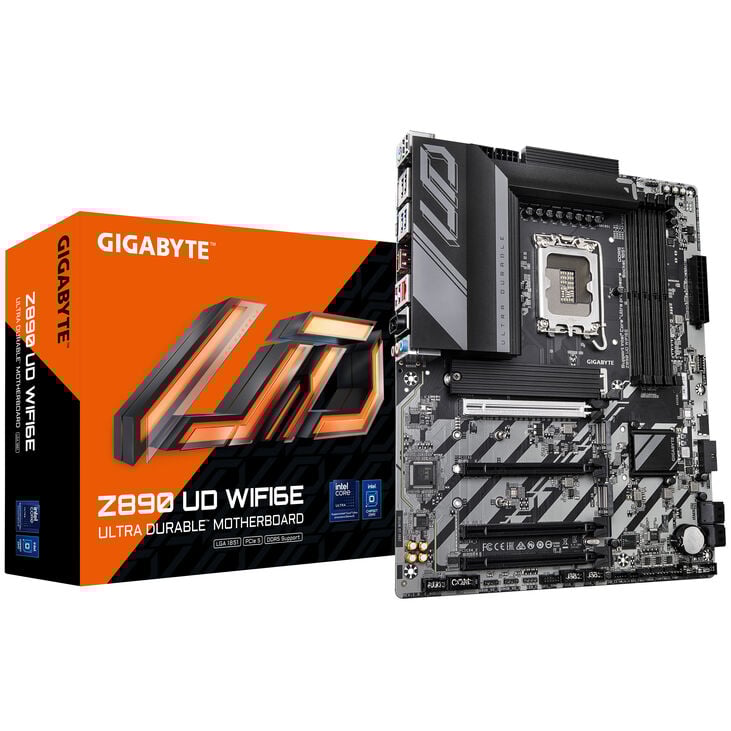

GIGABYTE Z890 UD WiFi6E: ATX motherboard with Intel LGA 1851 socket and Z890 chipset

The GIGABYTE Z890 UD WiFi6E is an ATX motherboard with the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. In addition, the GIGABYTE Z890 UD WiFi6E impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

  • Form Factor:
    ATX (305 x 244 mm)
  • Chipset:
    Intel Z890
  • Socket:
    LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation)
  • RAM:
    4x DDR5 DIMM (6,400 MHz, up to 8,800 MHz via OC)
    Dual-Channel
    Max. 256 GB
  • Slots (physical):
    1x PCIe 5.0 x16 (electrical x16, CPU)
    2x PCIe 4.0 x16 (electrical x4, Chipset)
    1x PCIe 4.0 x16 (electrical x1, Chipset)
  • Total maximum usable PCIe lanes: 44
  • Internal connections:
    4x SATA 6G (max.)
    1x M.2 (PCIe 5.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
    1x M.2 (PCIe 4.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
    1x M.2 (PCIe 4.0 x4/x2 & SATA; 2280 / 2580 / 22110 / 25110, Chipset)
    1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
    2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
    4x USB 2.0 (2 Header, max. 480 Mbit/s)
    2x Thunderbolt Header
    1x Front Panel Audio Header
    1x Front Panel
    1x Serial Port Header
    1x Q-Flash Button
    1x Power Button
    1x Reset Button
    1x Reset Jumper
    1x Trusted Platform Module Header
    1x Clear CMOS Button
  • Fan headers:
    1x CPU-Fan (4-Pin)
    1x CPU-Fan / Pump (4-Pin)
    2x Case Fans (4-Pin)
    2x Case Fans / Pump (4-Pin)
  • RGB headers:
    3x 3-Pin ARGB (5 V)
    1x RGB Header

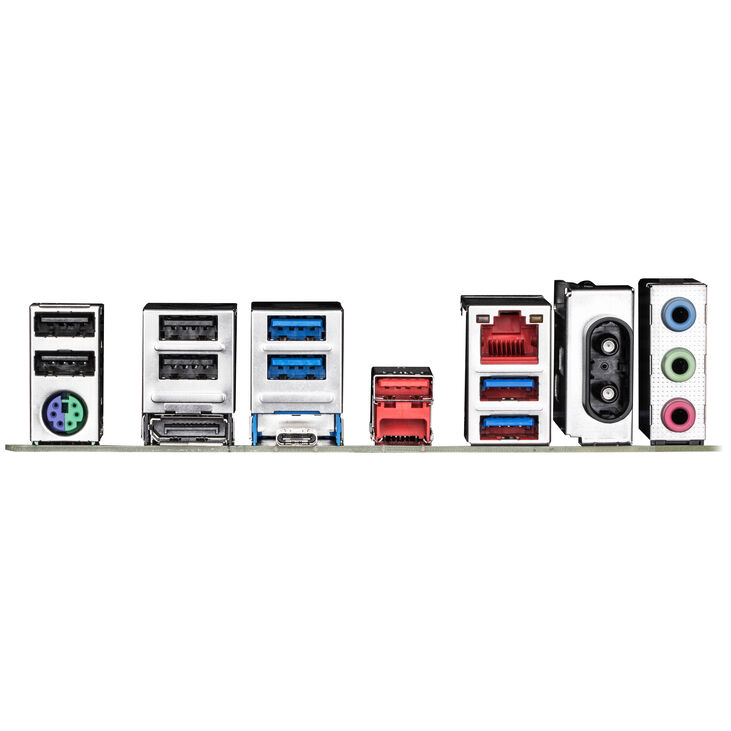

  • External connections:
    1x USB4 (Type C, USB 3.2 Gen 3x2, max. 40 Gbit/s)
    1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
    4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
    4x USB 2.0 (Type A, max. 480 Mbit/s)
    1x DisplayPort
    1x 2.5 Gigabit LAN (Intel I219V)
    2x 3.5 mm Jack (Realtek ALC 1220)
    1x WiFi/Bluetooth Module (RTL8852CE)
    1x S/PDIF Audio
  • Power Supply:
    1x 24-Pin ATX
    2x 8-Pin +12V CPU
Colour
Primary Colour
Black
Form Factor
Motherboard formfactor
ATX
CPU
CPU Manufacturer
Intel
CPU Socket
1851
Motherboard
Motherboard Chipset
Intel Z890
Memory
Max. Memory
256 GB
Memory Type
DDR5
Memory Form Factor
DIMM
Max. Memory Speed (Standard)
6400 MT/s
Max. Memory Speed (OC)
8000 MT/s
EEC Support
Yes
Memory slots
4x
Wi-Fi & LAN
LAN
Yes
LAN Ports
1x 2.5 Gbit/s
Wi-Fi / Bluetooth
Yes
Cooling
M.2 Heatsinks
No
VRM Heatsinks
Yes
Internal Ports
CPU Power Supply
2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
1
USB 3.0 (internal) Header
1
USB 3.0 (internal) Possible Ports
2
USB 2.0 (internal) Header
2
USB 2.0 (internal) Possible Ports
4
RGB / LED connectors
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
Front Panel Audio Header
Yes
External Ports
USB4 Gen 3x2 (external) Type C
1
USB 3.1 (external) Type A
1
USB 3.0 (external) Type A
4
USB 2.0 (external) Type A
4
Display Connectors
Display Port (1x)
Storage Ports
M.2 PCIe 4.0 x4
1
M.2 PCIe 4.0 x4 & SATA 6G
1
M.2 PCIe 5.0 x4
1
Expansion Slots
PCIe x16 slots (total)
3
Fan Header
4 Pin Fan Connectors
6
Audio
Soundchip
Realtek ALC897
Lighting
Lighting / RGB
Yes
