GIGABYTE Z890M Aorus Elite WIFI7 ICE motherboard, socket LGA 1851, Intel Z890, mATX, DDR5
This motherboard is excellent for compact high-end builds and gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4
- 4x DIMM slots for max. 256 GB DDR5 RAM up to 8,800 MHz (XMP 3.0)
- 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 1x USB4, 1x USB 3.1, 4x USB 3.0 and 4x USB 2.0
- OC features: 12+1+2 phase VRMs, CMOS reset, Q-Flash Plus button and power button
- A total of 6x connections for fans & pumps
- Supports WiFi 7 and Bluetooth 5.4

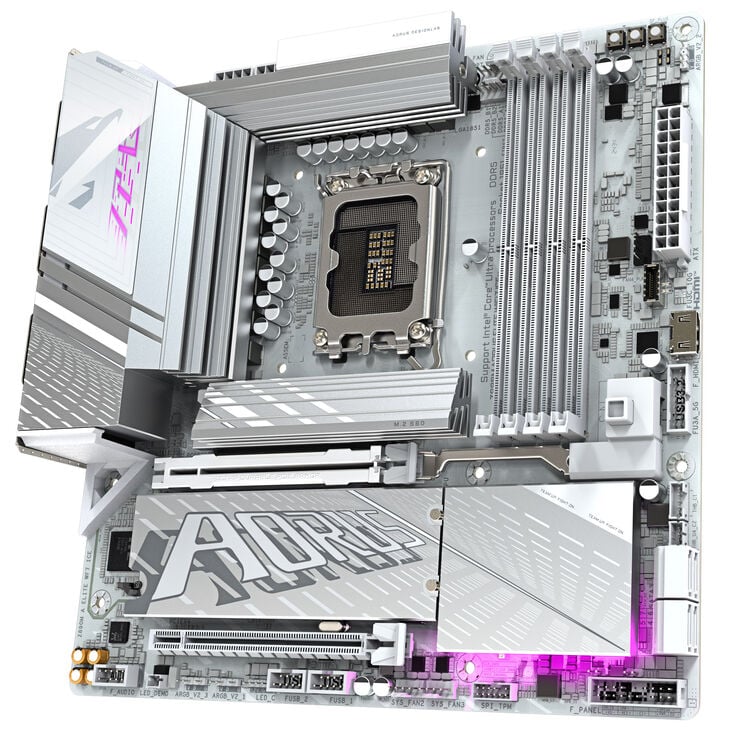

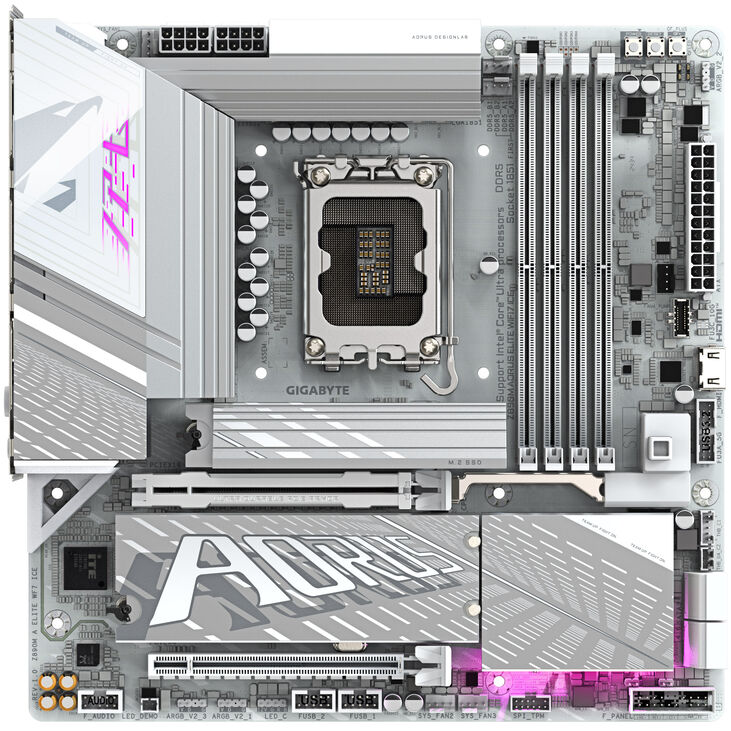

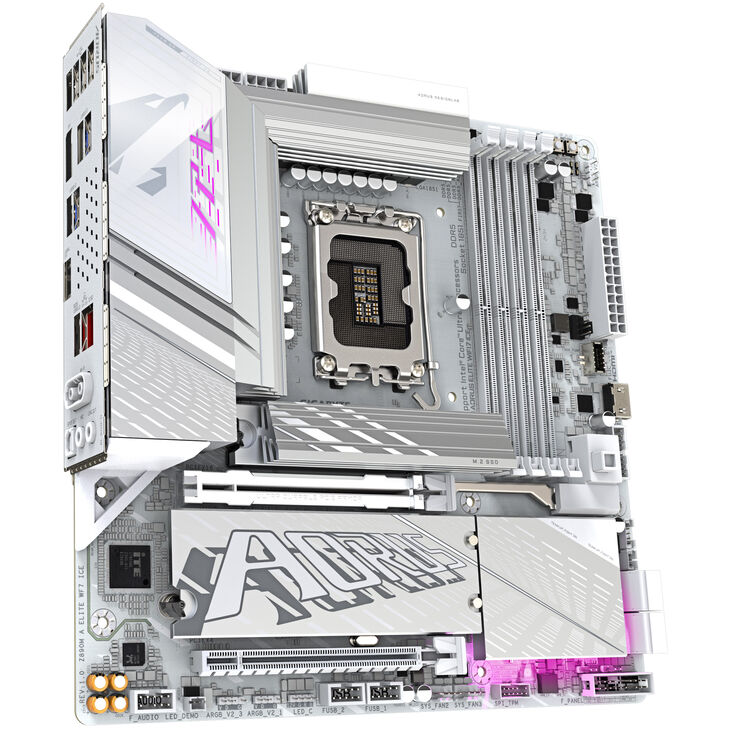

GIGABYTE Z890M Aorus Elite WIFI7 ICE: mATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890M Aorus Elite WIFI7 ICE is an mATX motherboard with the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. In addition, the GIGABYTE Z890M Aorus Elite WIFI7 ICE motherboard impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
The GIGABYTE Z890M Aorus Elite WIFI7 ICE offers a compact yet powerful design, ideal for DIY enthusiasts who prefer the Micro-ATX form factor. It features a robust 12+1+2 digital VRM design with 60A power stages, ensuring stable power delivery and supporting user-friendly overclocking. Thanks to advanced cooling management and easy M.2 installation with EZ-Latch, the building process is particularly user-friendly.
- Form factor:
mATX (244 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (5,600 MHz, up to 8,800 MHz via XMP / OC / CUDIMM)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 or x8/x8)
1x PCIe 4.0 x4 - Maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G
1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (1 header, USB 3.2 Gen 2, max. 5 Gbit/s)
4x USB 2.0 (2 headers, max. 480 Mbit/s)
1x HDMI (Sensor Panel Link)
1x Front Panel Audio Header
1x 10-1-Pin System Panel Header
1x Start Button
1x Reset Button + Jumper
1x Q-Flash Plus Button
1x Clear CMOS Jumper - Fan headers:
1x CPU Fan (4-Pin)
1x CPU OPT Fan (4-Pin)
1x W_PUMP+ Header
3x Case fans (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)

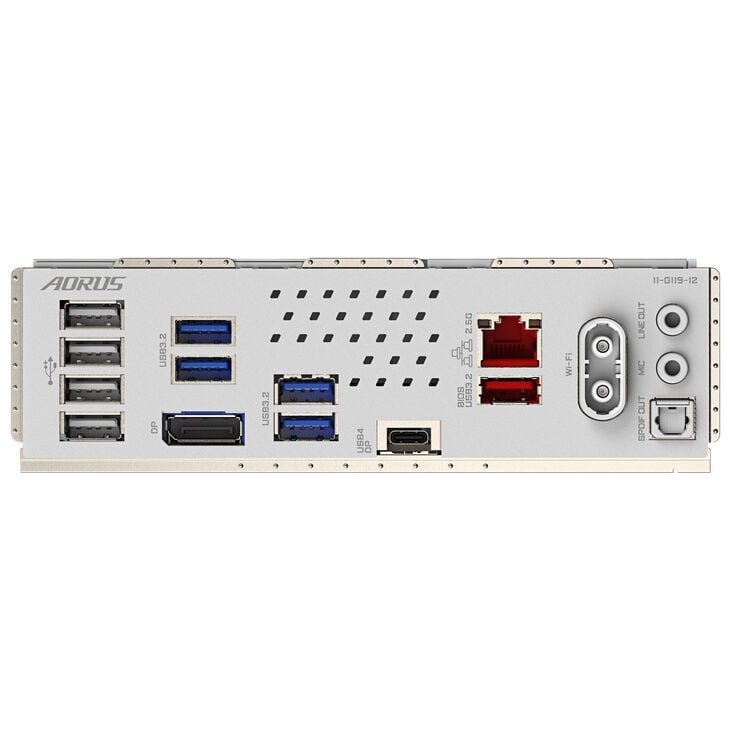

1x 4-Pin RGB (12 V) - External connections:
1x Thunderbolt 4 (USB-C)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x DisplayPort
1x 2.5 Gigabit LAN
1x WiFi/Bluetooth module (RTL8922AE)
2x 3.5 mm jack (Realtek ALC 1220)
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX

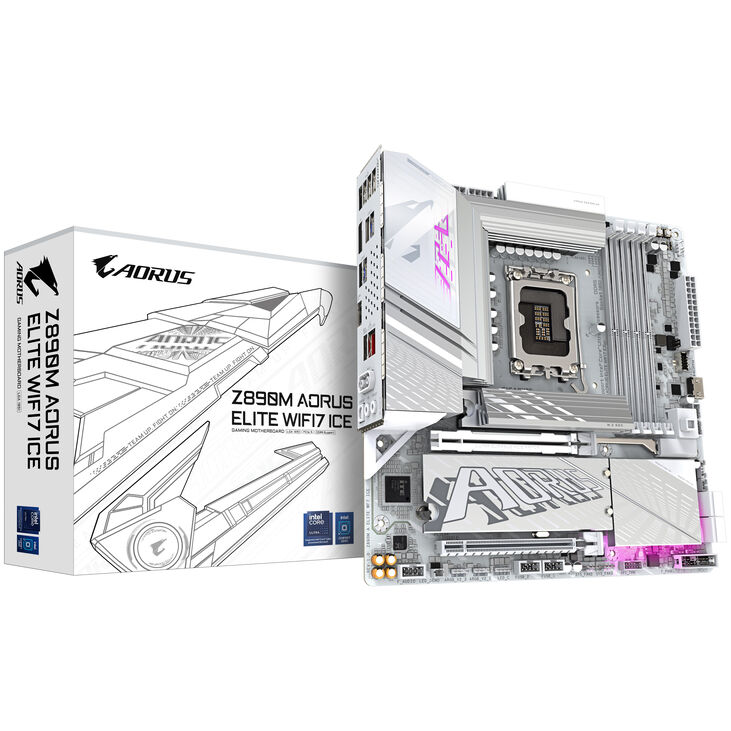

2x 8-Pin ATX12V - Accessories:
1x Wi-Fi 7 antenna
2x M.2 screws
2x SATA cables
1x G-Connector for easy connection of front panel cables
1x User manual and installation guide
|
Colour
|
|
|
Primary Colour
|
White
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Power Specifications
|
|
|
Power Stages (VRMs)
|
12+1+2
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
5600 MT/s
|
|
Max. Memory Speed (OC)
|
8800 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
GIGABYTE RGB Fusion
|
