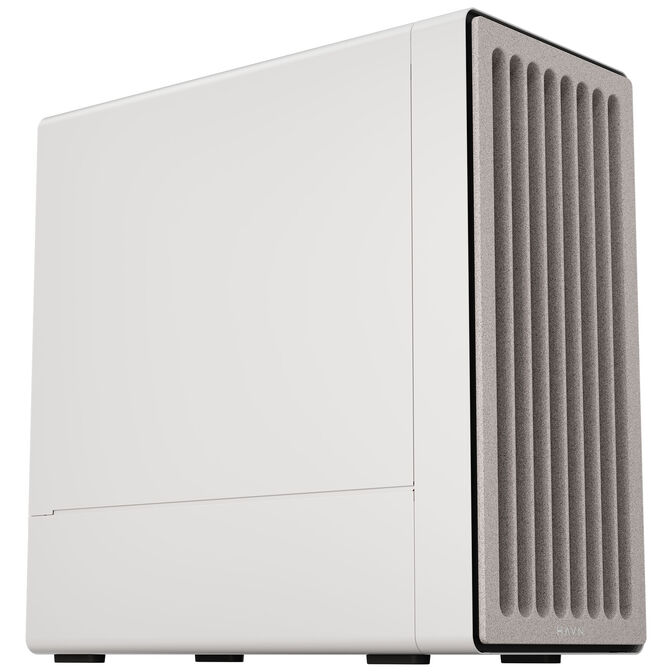

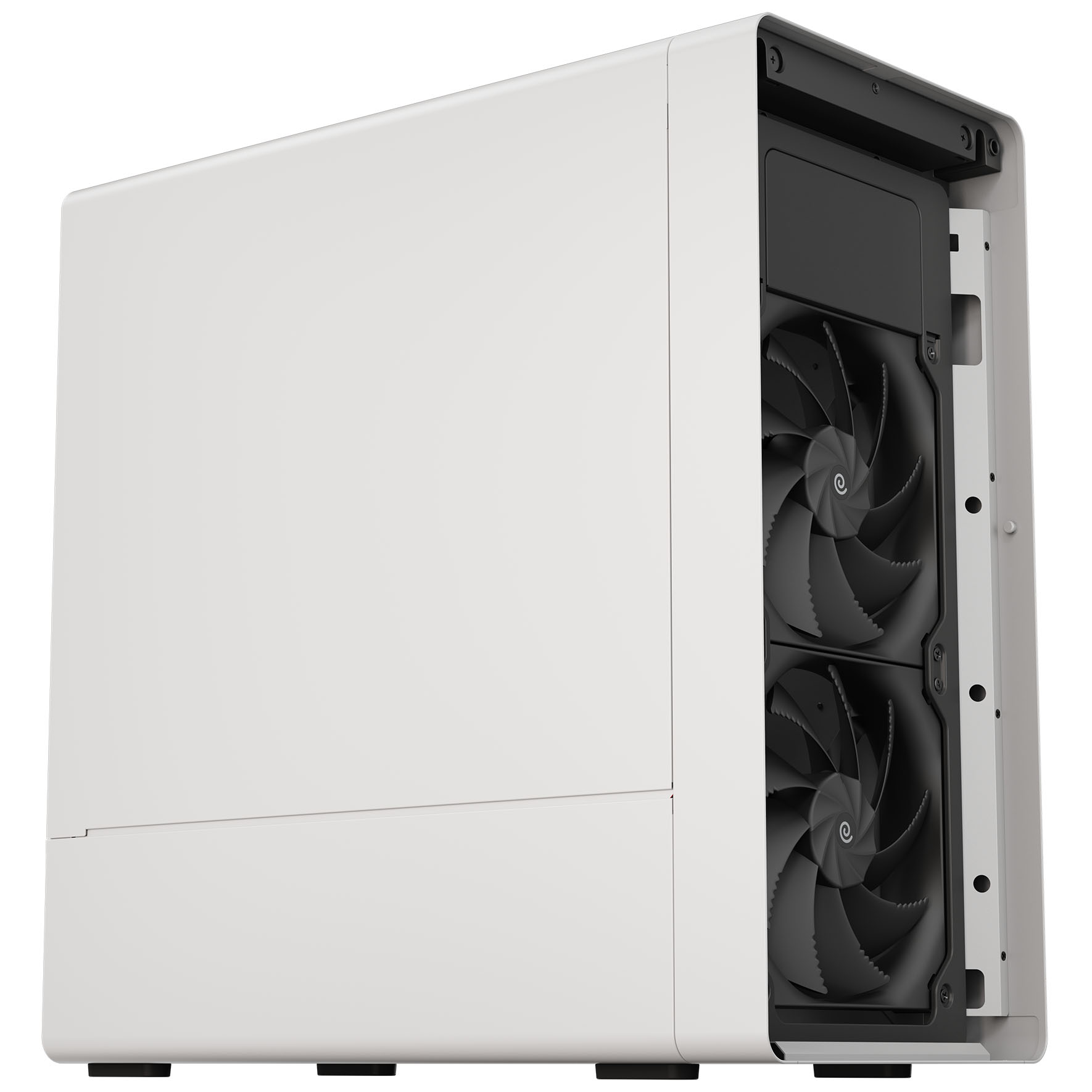

The HAVN BF 360 Flow Solid is aimed at gamers and hardware enthusiasts who value targeted cooling, plenty of space, and a closed-off look. The airflow guide directs fresh air straight to the graphics card and CPU, while three pre-installed fans already provide your hardware with airflow right out of the box. The closed side panel replaces the glass window of the regular BF-360-Flow version, giving the case a discreet appearance.
- Targeted airflow: Airflow directs fresh air directly to the graphics card and CPU
- Three pre-installed fans: Includes two 180mm H18 fans and one 140mm H14 fan
- Space for large hardware: Supports E-ATX motherboards up to 277 mm wide and graphics cards up to 410 mm long
- For air and water cooling: CPU coolers up to 195 mm and radiators up to 420 mm
- Easy cable management: SimpliCable routing and integrated 6-channel PWM repeater
HAVN BF 360 Flow Solid: Targeted airflow for your gaming hardware
The front of the HAVN BF 360 Flow Solid features the characteristic structure of the BF-360 series and allows plenty of fresh air into the case. An integrated airflow guide directs the airflow specifically towards the graphics card and CPU. This ensures that cool air reaches exactly the components that generate the most heat during gaming.

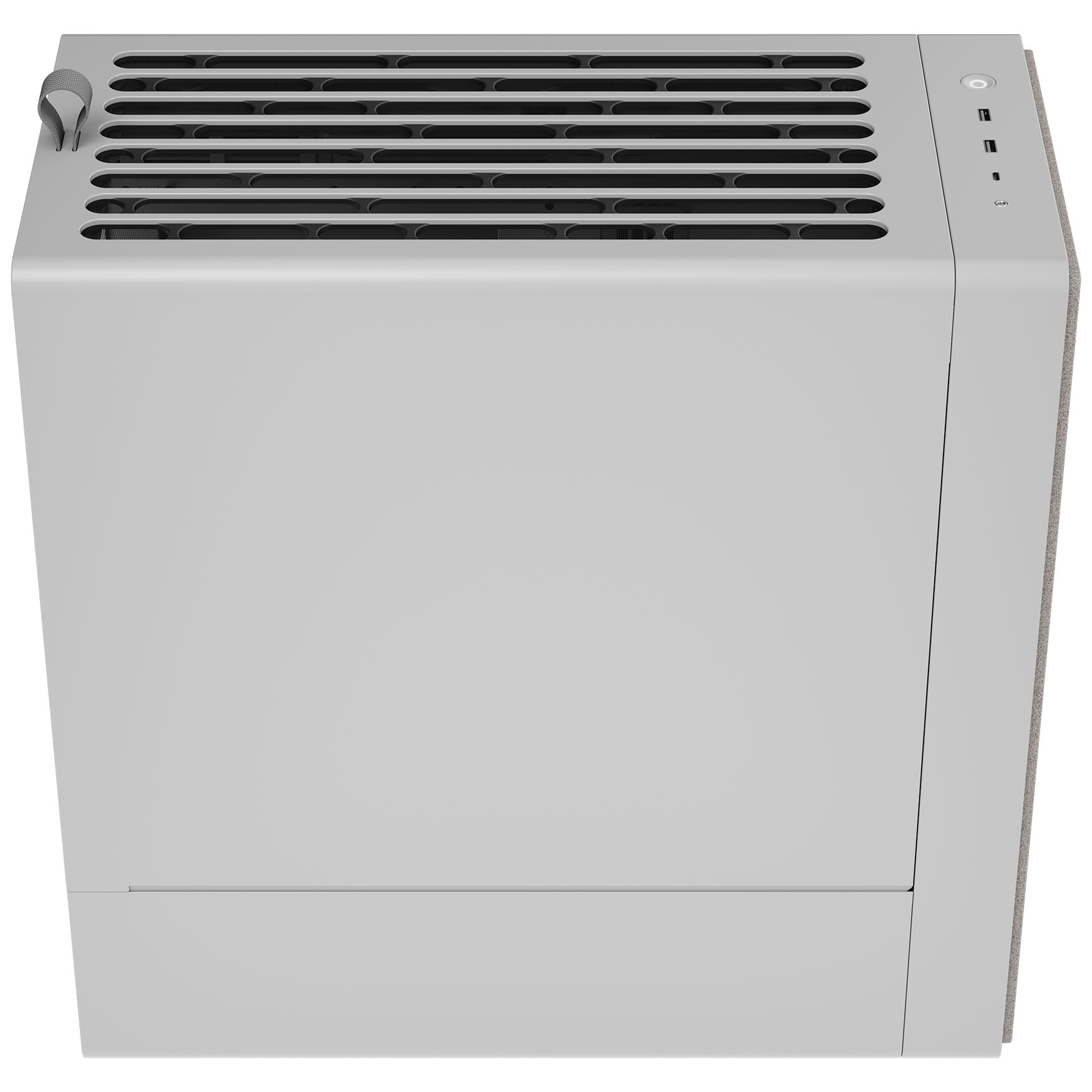

Plenty of fresh air right from the factory
HAVN equips the case with two 180mm H18 fans and one 140mm H14 fan from the start. In total, the BF 360 Flow Solid can accommodate up to six fans. There is also plenty of space for water cooling: the front supports radiators up to 420 mm, and HAVN also provides support for two 360 mm radiators.
Large air coolers also fit without any problems. Your CPU cooler can be up to 195 mm tall. Vibration-dampened mounting options help reduce annoying vibrations from fans and other hardware.
Closed side panel for a simple look
The Solid version deliberately forgoes the side glass window. Instead, HAVN uses a closed side panel. This keeps the hardware inside discreetly hidden and gives the case a particularly streamlined appearance from the outside. The airflow concept and generous interior space of the BF-360 series remain intact.Ready for large graphics cards and E-ATX motherboards
- Graphics cards up to 410 mm in length
- CPU coolers up to 195 mm in height
- ATX power supplies up to 200 mm in length
- E-ATX motherboards up to 277 mm wide
- Also supports ATX, Micro-ATX, and Mini-ITX
There is plenty of space inside for powerful gaming hardware. Graphics cards can be up to 410 mm long. An adjustable GPU bracket additionally supports heavy graphics cards. HAVN accommodates ATX power supplies up to 200 mm in length.

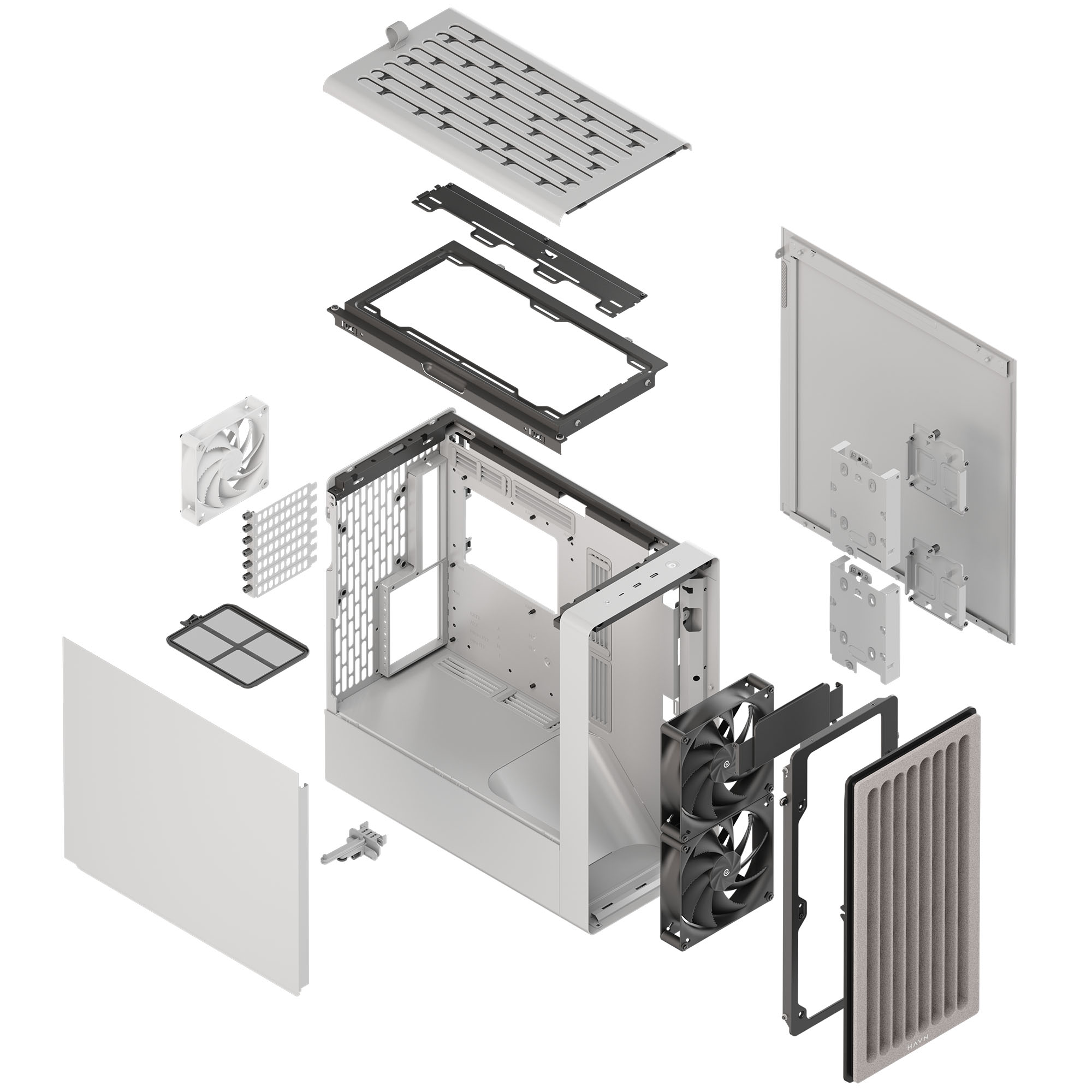

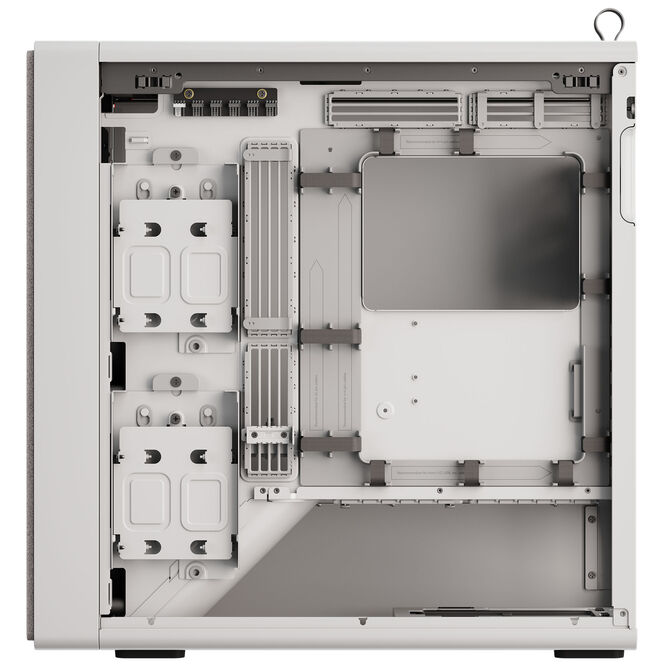

SimpliCable keeps things tidy behind the motherboard
With the SimpliCable routing system, HAVN guides your cables along designated paths through the case. Wide cable channels and fastening options help you neatly route power and data cables behind the motherboard. An integrated 6-channel PWM repeater also makes it easier to connect multiple fans.
The front and top panels are magnetically attached and can be quickly removed for maintenance or upgrades. This makes it easier to access fans, radiators, and other components when cleaning your system or swapping hardware.
Connections directly on the case
The I/O panel offers you one USB 3.2 Gen 2 Type-C port and two USB 3.2 Gen 1 Type-A ports. This provides fast connections for external drives, controllers, and other USB devices directly on the case.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
515 mm
|
|
Width
|
254 mm
|
|
Height
|
522.6 mm
|
|
Weight
|
14.39 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
195 mm
|
|
Max. GPU Length
|
410 mm
|
|
Max. PSU Length / Depth
|
200 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
180mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x), 180mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
4
|
|
140 mm fans
|
3
|
|
180 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Triple (360 mm)
|
|
Radiator/AIO Support (Top)
|
280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
4 Pin Fan Connectors
|
6
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Silicon, ABS, Nylon, SGCC (Steel), Zinc alloy
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Product Series
|
|
|
Product Series/Family
|
BF 360
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 140 mm, 2x 180 mm
|
