With the HYTE Y50, you can skillfully showcase your gaming hardware. Three tempered glass panels provide a clear view of the interior. At the same time, the spacious mid-tower offers plenty of room for high-performance components. The dual-chamber design separates visible hardware from cables, drives, and the power supply.
- Panorama design: Three tempered glass panels offer an unobstructed view of your hardware
- Ample space for hardware: Graphics cards up to 410 mm and CPU coolers up to 160 mm
- Flexible motherboard options: Supports Mini-ITX, Micro-ATX, ATX, and E-ATX, as well as back-connect motherboards
- Extensive cooling: Space for up to nine fans and multiple 360 mm radiators
- Clean cable management: Dual-chamber design hides cables, drives, and power supply
The HYTE Y50: Panorama case for high-performance gaming hardware
The HYTE Y50 combines striking looks with plenty of room for PC hardware. The three-part tempered glass glazing does without wide, obstructive corner braces. This keeps your hardware visible from multiple angles. The colour scheme in Snow White completes the design.
Plenty of space for PC components

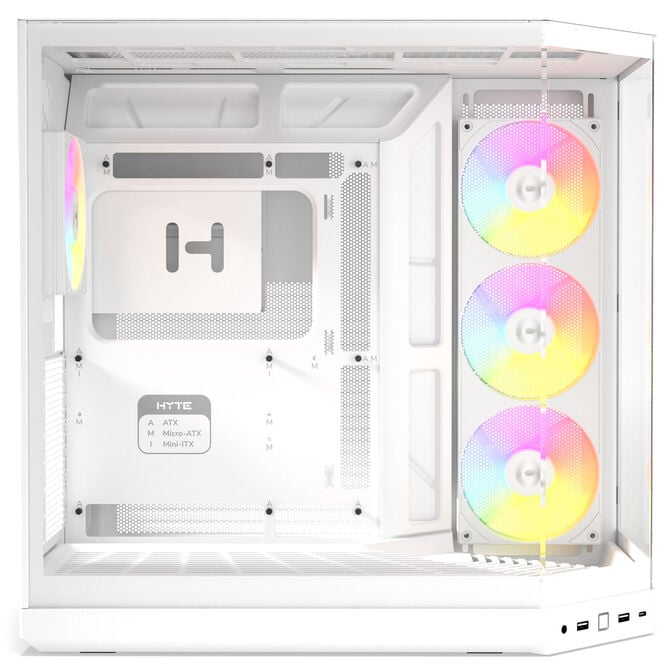

Inside the spacious interior, you can install motherboards from Mini-ITX to E-ATX. Models with rear connections in the back-connect design are also supported. Graphics cards can be up to 410 mm long. CPU coolers up to 160 mm in height can be accommodated.
This makes the HYTE Y50 suitable for gaming PCs and workstations. The generous interior also provides enough room for future hardware upgrades.
Clean cable management thanks to dual-chamber design
The dual-chamber design separates visible hardware from cables, drives, and the power supply. Behind the motherboard tray, there are dedicated areas for cable routing. This keeps the interior tidy and airflow unobstructed.Cooling for your gaming hardware
- Space for up to nine fans
- Pre-installed RGB fans
- Support for air and water cooling
- Space for 360 mm radiators at the top and side

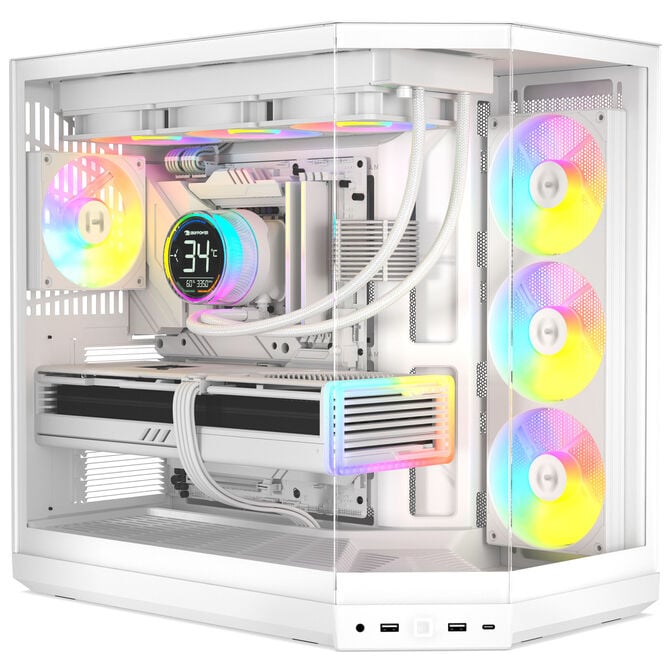

The HYTE Y50 is designed to cool high-performance hardware. Up to nine fans ensure targeted airflow through the case. For water cooling, large radiators up to 360 mm can be mounted at the top and side.

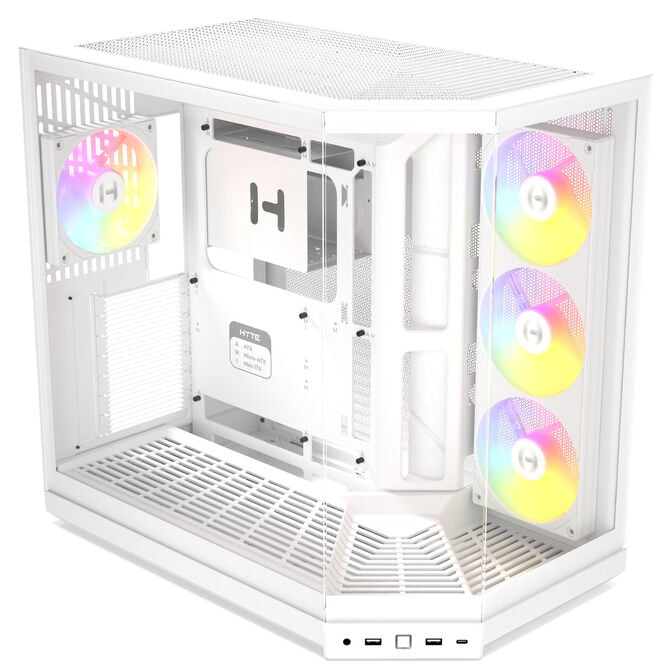

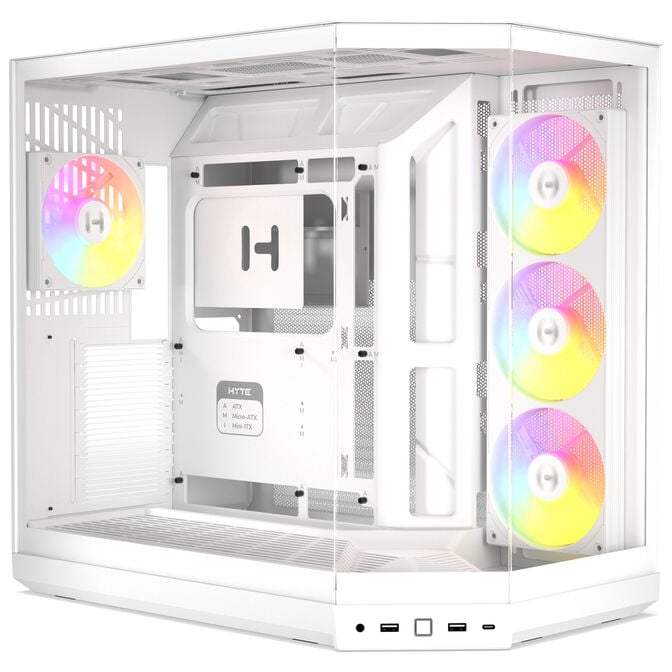

Panorama design with a clear view of your hardware
The three tempered glass panels make your components the centrepiece of your setup. The almost unobstructed view of the interior showcases hardware and RGB lighting effectively. The sturdy steel chassis forms the foundation for your gaming system.

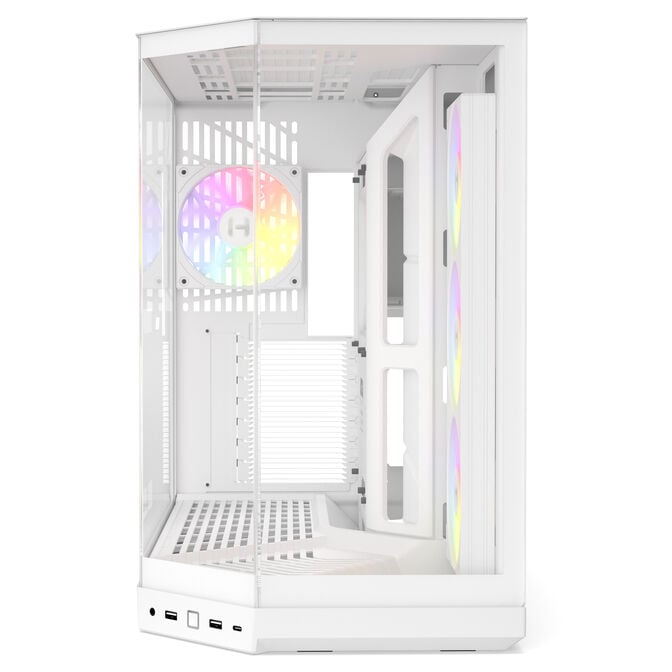

At the front, you have two USB 3.2 Gen 1 Type-A ports, a USB 3.2 Gen 2 Type-C port, and a combined audio jack. This gives you easy access to essential connections for headsets, storage, and other devices from the outside.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
473 mm
|
|
Width
|
288 mm
|
|
Height
|
461 mm
|
|
Weight
|
9.55 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
360 mm
|
|
Max. PSU Length / Depth
|
250 mm
|
|
Inner Volume
|
63.8 l
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side / bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
9
|
|
120 mm fans
|
9
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 2x Triple (360 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Side)
|
360mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Side
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 120 mm, 3x 120 mm Unified
|
