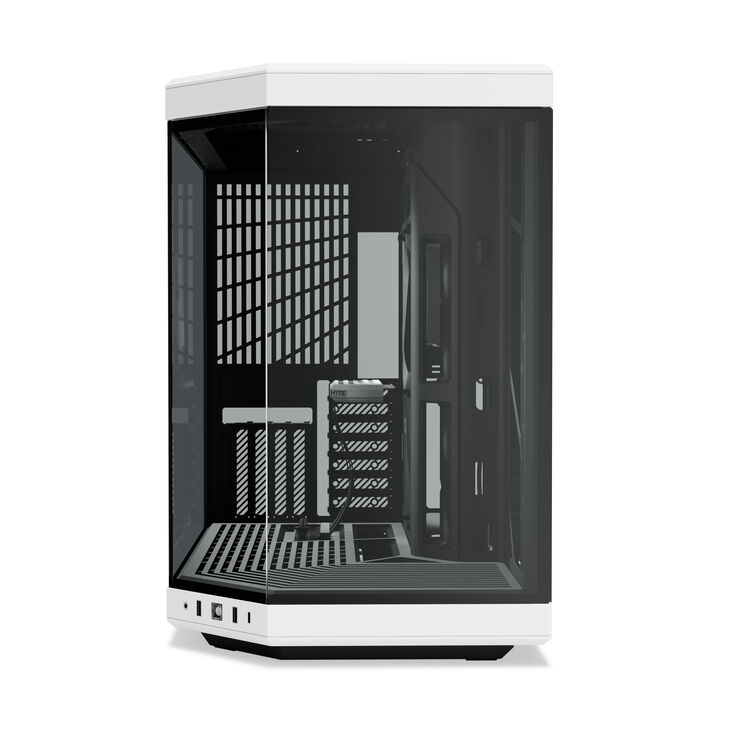

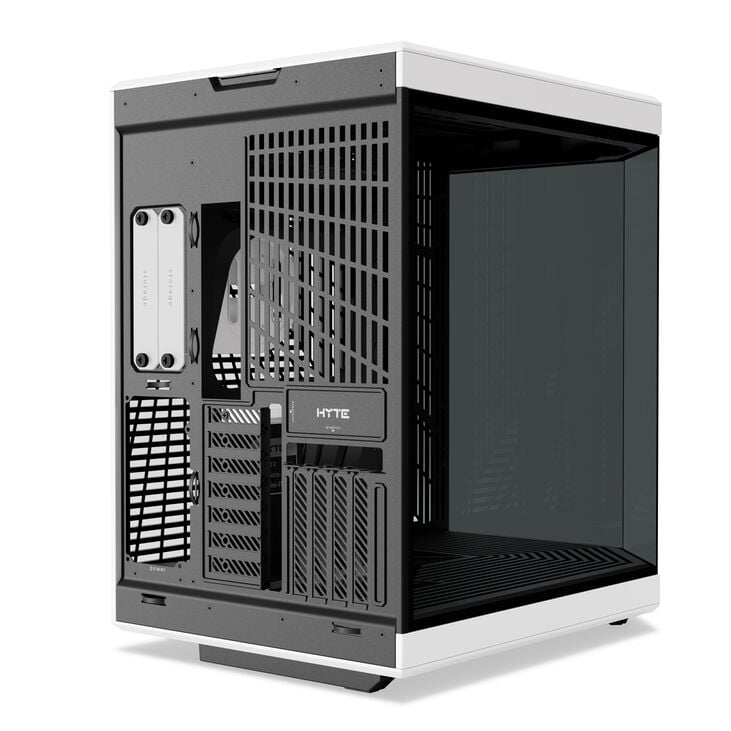

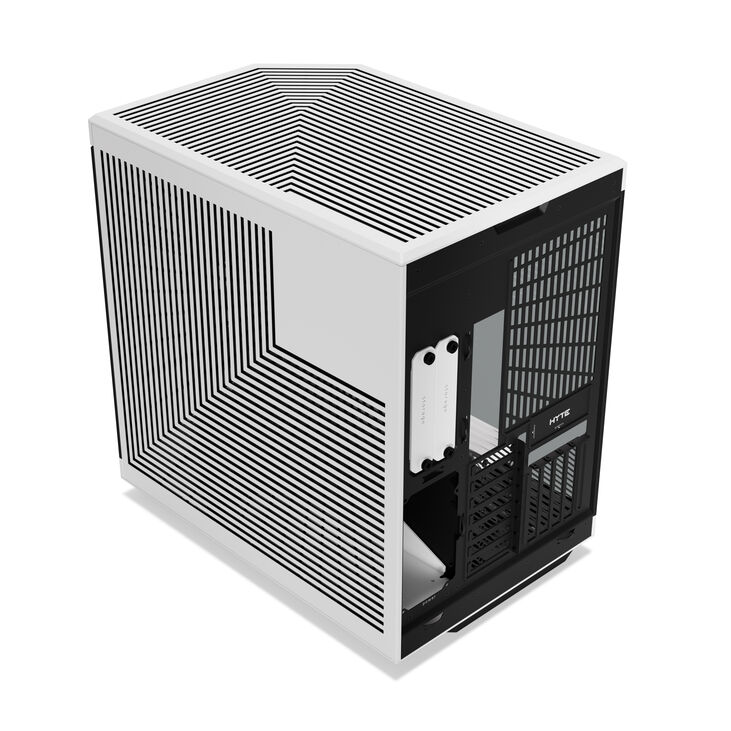

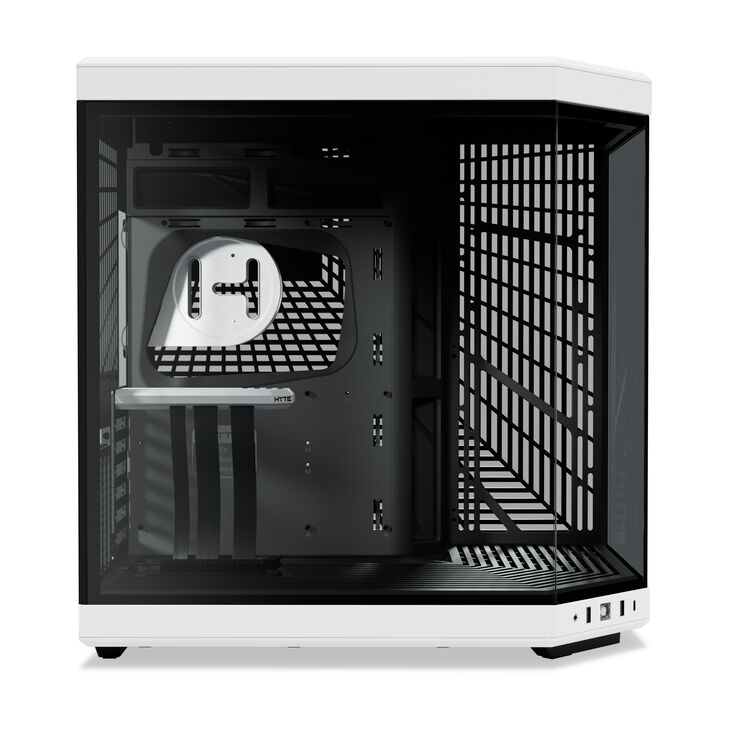

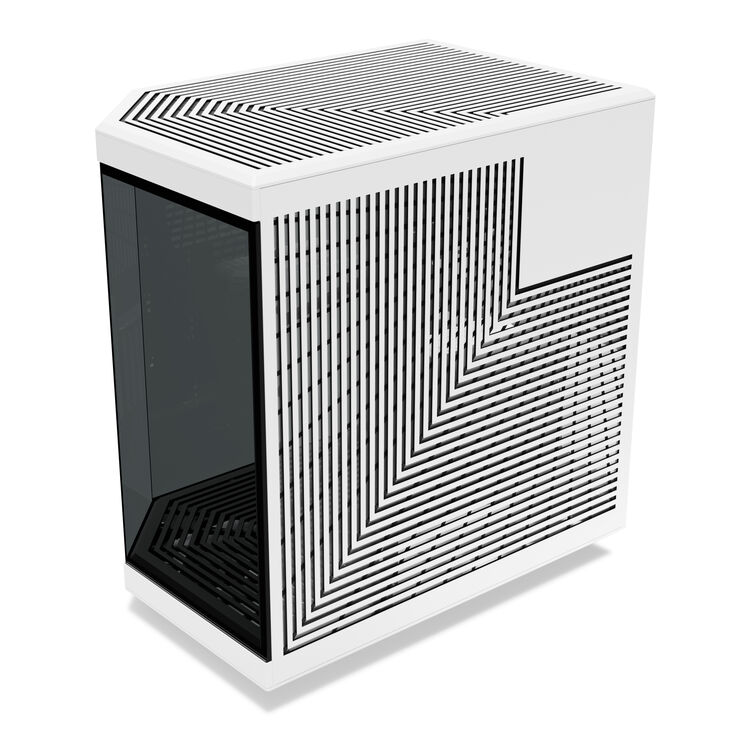

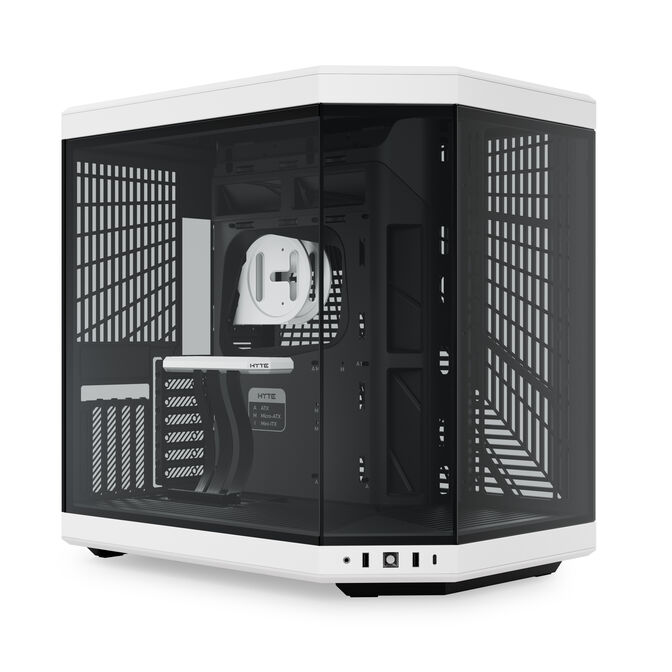

Hyte Y70  PC Case, Mid Tower, ATX, Tempered Glass - Black / White

Hyte Y70 PC Case, Mid Tower, ATX, Tempered Glass - Black / White

(0 Ratings)
Eye-catching Mid Tower, for motherboards up to E-ATX, side panel and front made of Tempered Glass, graphics card length up to 422 mm / CPU height up to 180 mm, radiators up to 360 mm, ten fans possible
209,90 €
In Stock
Incl. VAT, add. delivery costs starting from 4.99€
In Stock
SKU GEHY-032 |
EAN 1220000350571 |
MPN CS-HYTE-Y70-BW |
Enhanced In Every Dimension
Y70 Touch enables meaningful digital interaction with an integrated 4K 10-point multi-touch capacitive LCD panel, delivers next-generation gaming experiences with massive 4-slot vertical graphics, and unlocks maximum performance with ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.

Massive 4 Slot Vertical Graphics
Y70 Touch grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.

Included Luxury PCIE 4.0 Riser Cable
Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.

Ginormous Cooling Capacity
A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 Touch has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.

Unified Modern Aesthetic
With 4 unique colorways, Y70 Touch puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.
Colour
Primary Colour
White
Secondary Colour
Black
Dimensions
Length / Depth
470 mm
Width
320 mm
Height
470 mm
Weight
11.05 kg
Case
Case Type
Mid Tower
Motherboard Support
Compatible Motherboard Formats
ATX, E-ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format
E-ATX
Internal Dimensions
Max. CPU Cooler Height
180 mm
Max. GPU Length
422 mm
Max. GPU Width
105 mm
Max. PSU Length / Depth
235 mm
Inner Volume
70.7 l
Display
Display Included
No
Power Supply
PSU included
No
PSU Format
ATX
Power Supply Position
rear side / bottom
Cable Specifications
Riser Cable Included
Yes
Riser Cable Generation
PCIe 4.0
Fan Support
Case Fan Support (Bottom)
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support (Rear)
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Side)
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support (Top)
120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans
10
120 mm fans
10
140 mm fans
7
Radiator Support
Max. Radiator Compatibility
360
Radiator/AIO Support (Rear)
120mm Radiator, 140mm Radiator
Radiator/AIO Support (Side)
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator/AIO Support (Top)
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Drive Bays
Max. 2.5 Inch Drives
4
Max. 3.5 Inch Drives
2
Max. 5.25 Inch Drives
0
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
4
Hot swap drive bays
No
External Ports
Front I/O – USB Type C Ports Total
1
Front I/O – USB Type A Ports Total
2
USB 3.2 (external) Type C
1
USB 3.0 (external) Type A
2
Audio outputs & inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position
Front
Side panel
with window
Vertical GPU Mount
Yes
Adjustable Vertical GPU Bracket
No
Front door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom, Side, Top
Noise dampening
No
Mainboard slide / tray
No
Transport System
No
Back Connect
Back Connect
No
Expansion Slots
Expansion slots / PCI slots
11
PCI slot allocation
4 + 7
Features
Housing Feedthrough
No
Connectivity
Card reader
No
Fan Header
Fan Controller / Fan Hub
No
Mounting
Case VESA Mountable
No
Internal Monitor Mount
No
Materials
Materials
ABS, Steel, Tempered Glass
Lighting
Lighting / RGB
No
Product Series
Product Series/Family
Y70
Additional Contents
Fans Included
No
Included fans
None
