InLine Gigabit Network Switch 5-Port, 1GBit/s, Fanless
Fanless 5-port switch, for 10/100/1,000 Mbps networks, possible network cable length of 100 m, 4K memory for MAC addresses
25,90 €
Incl. VAT, add. delivery costs starting from 4.99€
The switch has pre-punched holes on the underside so that it can be hung on the wallSpecification:
Standards and protocols:
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
CSMA/CD
TCP/IP
Basic functions:
5x 10/100/1000 Mb/s Auto-Negotiation ports
MAC Address Auto-Learning and Auto-Updating
IEEE802.3x flow control for Full Duplex mode and Backpressure for Half Duplex mode
Backbone bandwidth: 1 Gb/s
MAC Address Table: 4K
Forwarding rate: 1000Base-T: 1488000pps/Port
Transmission method: Store-and-forward

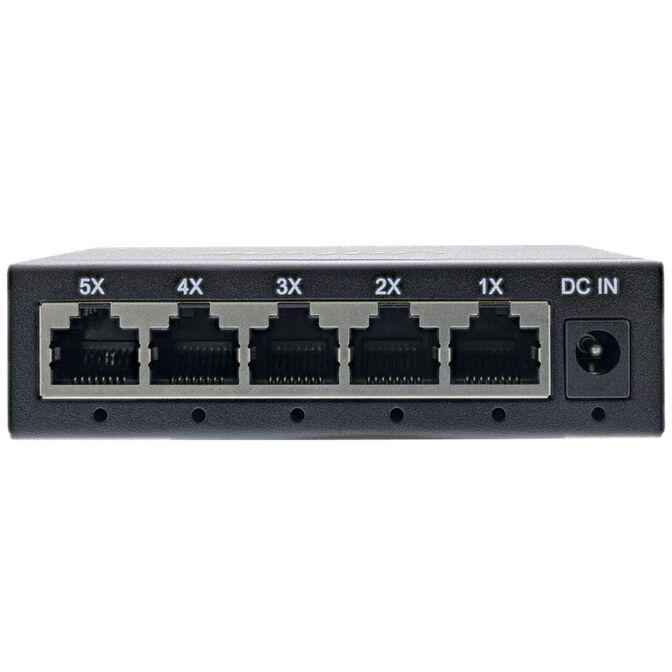

Ports: 5x 10/100/1000Mb/s Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

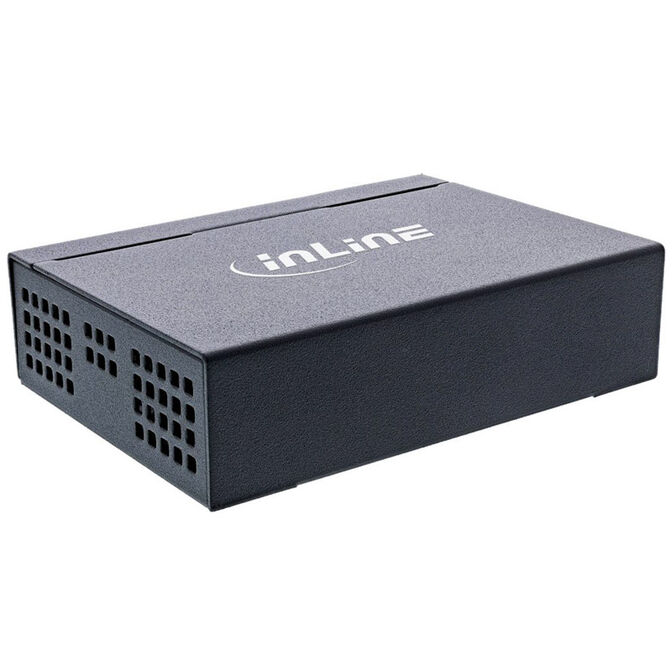

Metal housing
Cables to be used
10Base-T: UTP cable Cat. 3, 4, 5 (max. 100 meter)
100Base-TX: UTP cable Cat. 5, 5e or higher (max. 100 Meter)
1000Base-T: UTP cable Cat. 5, 5e or higher (max. 100 Meter)
Environmental conditions:
Operating temperature: 0°C ~ 60°C
Storage temperature: -10°C ~ 70°C
Humidity in operation: 10% ~ 90% non-condensing
Storage humidity 5% ~ 90% non-condensing
LED indicators:
Power (red)
Link/Act
1000M (blue)
Dimensions: 92x68x25mm (WxDxH)Weight: approx. 154gContent of delivery:
1x switch
1x user manual GE/EN
1x external power supply 5.0V / 1.0A
4x rubber feet
Standards and protocols:
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
CSMA/CD
TCP/IP
Basic functions:
5x 10/100/1000 Mb/s Auto-Negotiation ports
MAC Address Auto-Learning and Auto-Updating
IEEE802.3x flow control for Full Duplex mode and Backpressure for Half Duplex mode
Backbone bandwidth: 1 Gb/s
MAC Address Table: 4K
Forwarding rate: 1000Base-T: 1488000pps/Port
Transmission method: Store-and-forward
Ports: 5x 10/100/1000Mb/s Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Metal housing
Cables to be used
10Base-T: UTP cable Cat. 3, 4, 5 (max. 100 meter)
100Base-TX: UTP cable Cat. 5, 5e or higher (max. 100 Meter)
1000Base-T: UTP cable Cat. 5, 5e or higher (max. 100 Meter)
Environmental conditions:
Operating temperature: 0°C ~ 60°C
Storage temperature: -10°C ~ 70°C
Humidity in operation: 10% ~ 90% non-condensing
Storage humidity 5% ~ 90% non-condensing
LED indicators:
Power (red)
Link/Act
1000M (blue)
Dimensions: 92x68x25mm (WxDxH)Weight: approx. 154gContent of delivery:
1x switch
1x user manual GE/EN
1x external power supply 5.0V / 1.0A
4x rubber feet
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
