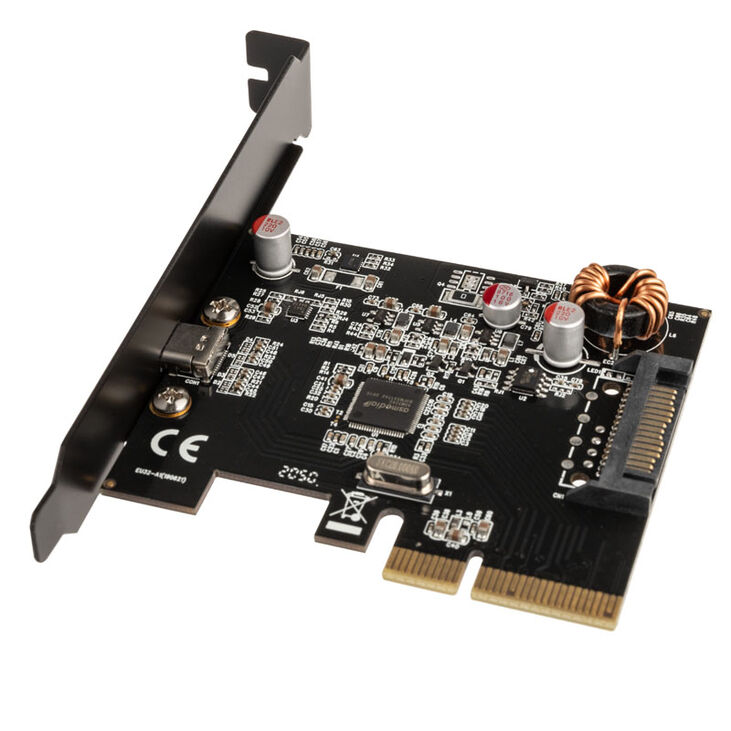

InLine interface card, PCIe x4, USB 3.2 Gen.2x2, 1x USB Type-C

Note:We refer to the website ‘Drivers-Download’ in the operating instructions included in the contents of delivery; this website has no connection with our company and is now being misused for phishing purposes.
We therefore strongly advise against using this website!

Based on the Asmedia ASM3242 USB 3.2 Gen.2x2 host controller chipset
Complies with Intel eXtensible Host Controller Interface Specification Revision 1.1
Supports standard and low-profile desktop computers
Supports drivers on Windows 8/8.1/10 32-/64-bit operating systems
Complies with the PCI Express Base 3.1a specification
PCI Express 4-Lane(x4) interface
Supports PCI bus power management interface specification revision 1.2
Supports one port of USB3.2 Gen.2x2
Complies with the specification Universal Serial Bus 3.2 Revision 1.0
USB 3.2 Gen.2x2 (20Gb/s) host ports, backward compatible with the USB 3.2 Gen.1 (10Gb/s), USB3.0 Super-Speed (5Gb/s), USB 2.0 High-Speed (480Mb/s), Full-Speed (12Mb/s) and Low-Speed (1.5Mb/s) interface
Supports all USB-compatible data transfer modes (Control / Bulk / Interrupt / Isochronous)
Internal HDD power connector to supply the USB ports with +5V
Max. Power output USB-C port: 15W (5V/3A)

Package contents:

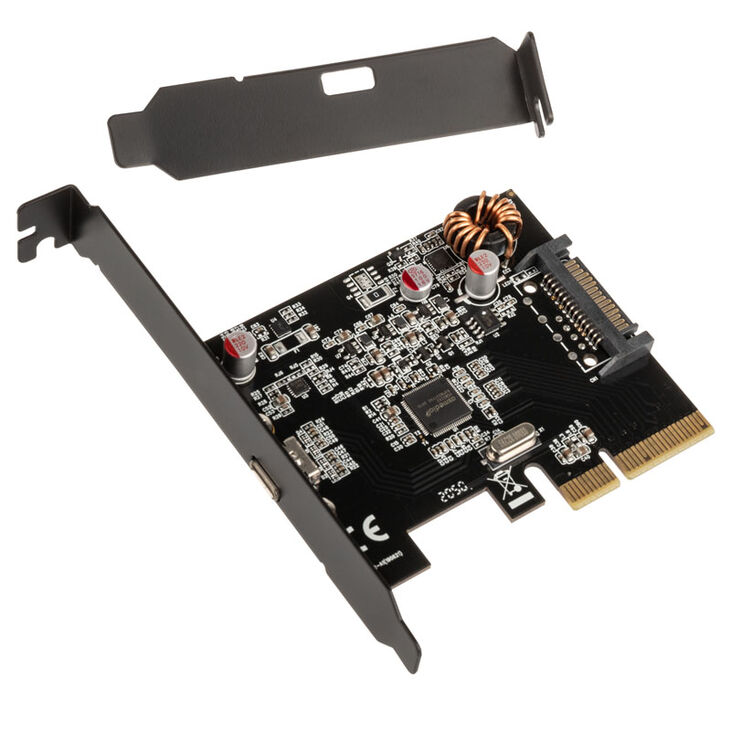

PCI-Express USB 3.2 host controller card
Low profile slot bracket
User manual

Note: The card does not support DP Alt Mode or USB Power Delivery.
