Inter-Tech IPC 4U-40255 Server Case, Rackmount, E-ATX – black
The Inter-Tech IPC 4U-40255 is a versatile 4U rackmount case for cost-effective server solutions. It offers flexible drive configurations, effective cooling, and supports a wide range of motherboard form factors.
- Up to 3x 5.25-inch external drives as standard, expandable to 9x
- Internal space for up to 11x 3.5-inch hard drives, depending on configuration
- Front-facing 2x USB 3.0 ports and snap-in cover
- Includes 2x 120mm front fans and 2x 80mm rear fans
- Supports motherboards up to SSI EEB for maximum compatibility
Flexible Design and Drive Options
The rackmount server case IPC 4U-40255 provides maximum performance in minimal space. Thanks to its standardised 19-inch format, it fits seamlessly into any server rack and allows for efficient space utilisation in your data centre. Perfect for anyone looking for a powerful system in a space-saving format.

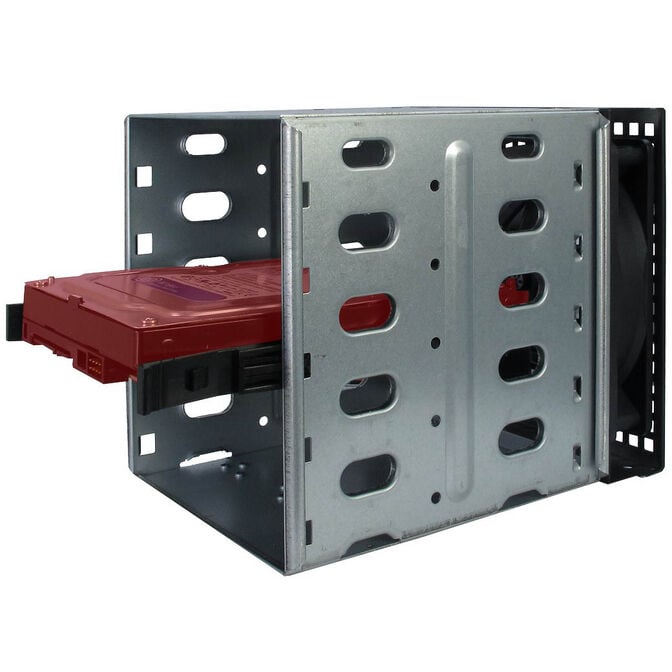

The case comes standard with three 5.25-inch bays, which can be expanded to up to nine by removing the mounting frames. Internally, up to eleven 3.5-inch or four 2.5-inch hard drives can be installed, allowing for high storage capacity.
Efficient Cooling
With two pre-installed 120mm fans at the front and two 80mm fans at the back, the case ensures effective cooling of the components. Additionally, up to six 40mm fans can be installed in the 5.25-inch bays.
Robust Construction and Easy Handling
The case is made of 1mm thick steel for high stability. The lid features snap-in closures for quick access, and the front offers two easily accessible USB 3.0 ports.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
595 mm
|
|
Width
|
485 mm
|
|
Height
|
177 mm
|
|
Weight
|
11.4 kg
|
|
Case
|
|
|
Case Type
|
Server Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ATX, Mini-ITX, SSI-CEB, SSI-EEB
|
|
Max. Motherboard Format
|
E-ATX, SSI-EEB
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
150 mm
|
|
Max. GPU Length
|
330 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX, redundant PSU
|
|
Power Supply Position
|
rear side
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
10
|
|
40 mm fans
|
6
|
|
80 mm fans
|
2
|
|
120 mm fans
|
2
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
11
|
|
Max. 5.25 Inch Drives
|
3
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
2
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
Yes
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Plastic
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm, 2x 80 mm
|
