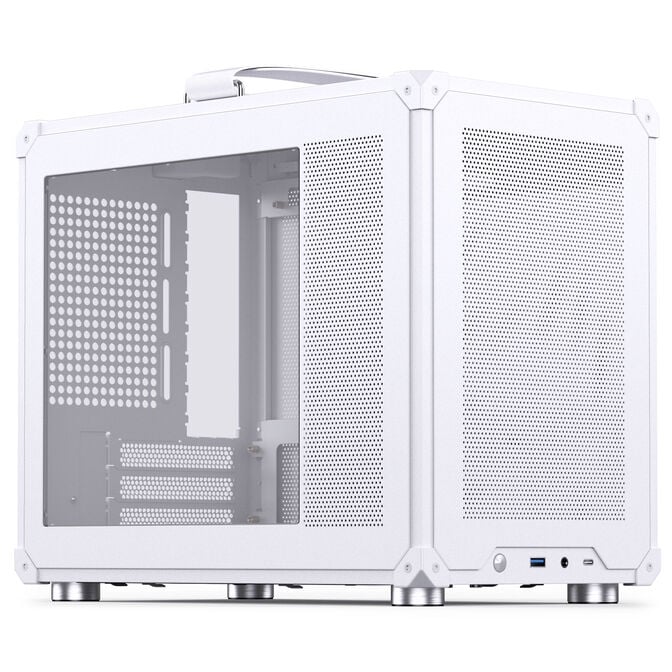

Jonsbo C6 MAX PC case, mini case, Micro-ATX, Tempered Glass - white
- Compact white mini case
- Up to five fans and breathable mesh ensure efficient airflow
- Support for motherboards up to Micro-ATX
- Space for graphics cards up to 335mm and CPU coolers with a height of up to 170mm
- Practical carrying handle for transport
The Jonsbo C6 MAX: Portable mini case with surprisingly ample space
The Jonsbo C6 MAX is a mini case that provides enough space to install high-end components despite its small size. Fans and the breathable mesh on several sides ensure very good airflow, which keeps your hardware efficiently cooled. Additionally, the tower is easy to transport with the practical carrying handle. If you've always wanted to take your gaming PC anywhere, the C6 MAX is worth a look!
Efficiently cooled with fans and radiators
A good airflow is particularly important in a small tower. Therefore, the C6 MAX can accommodate up to five fans. Either two 120mm fans or one 140mm fan can be installed at the top, while two additional 120mm fans can be mounted at the bottom. The rear also supports a 120mm fan. Together with the mesh at the top and front, this ensures that your hardware remains cool even in demanding games.

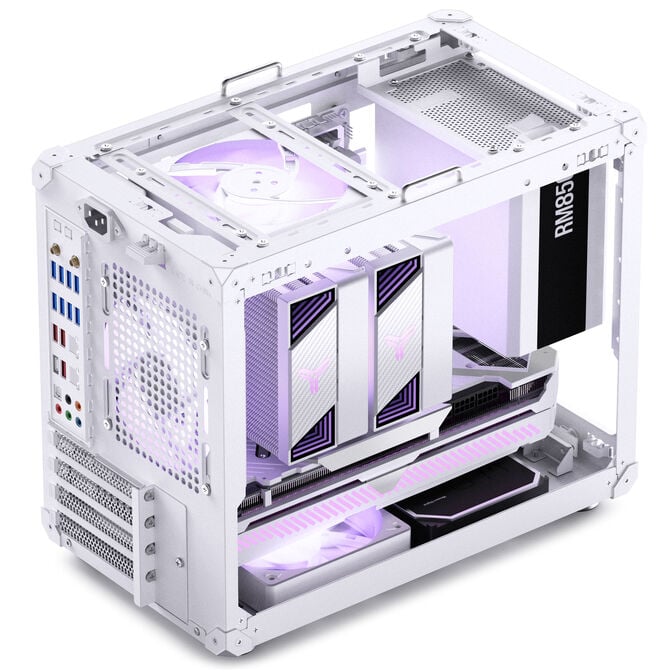

Space for your high-end hardware
The mini tower supports the installation of graphics cards up to 335mm in size. Motherboards up to Micro-ATX format are feasible.
The CPU cooler should not exceed a height of 170mm, while the power supply can be up to 220mm in size. For storing programs and games, a 2.5-inch or 3.5-inch drive can be installed. Note that the fans at the bottom are not possible if you opt for the 3.5-inch drive.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
349 mm
|
|
Width
|
202 mm
|
|
Height
|
295 mm
|
|
Weight
|
3.45 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ITX, Micro-ATX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
335 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
top
|
|
Fan Support
|
|
|
120 mm fans
|
5
|
|
140 mm fans
|
1
|
|
Drive Bays
|
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Filters Included
|
Yes
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Materials
|
|
|
Materials
|
Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
None
|
