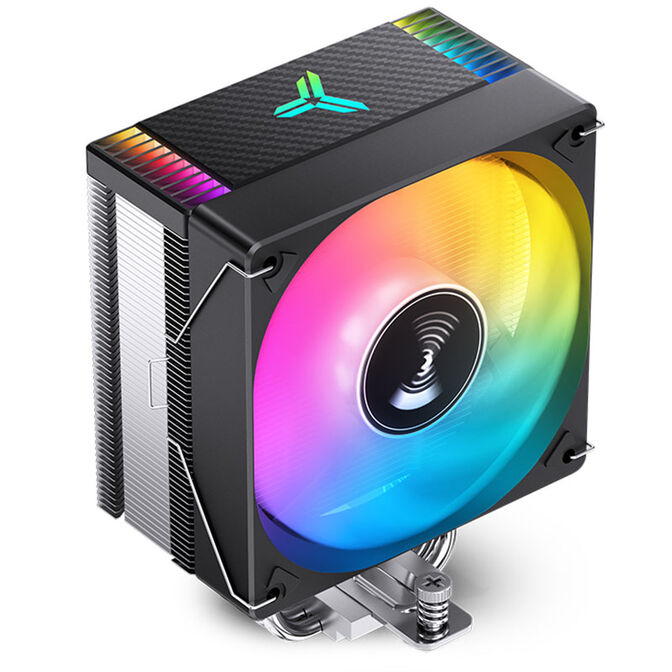

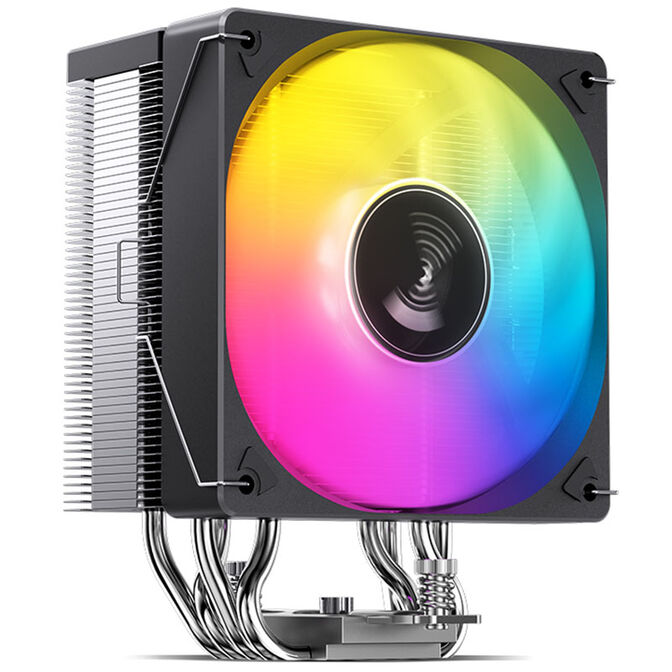

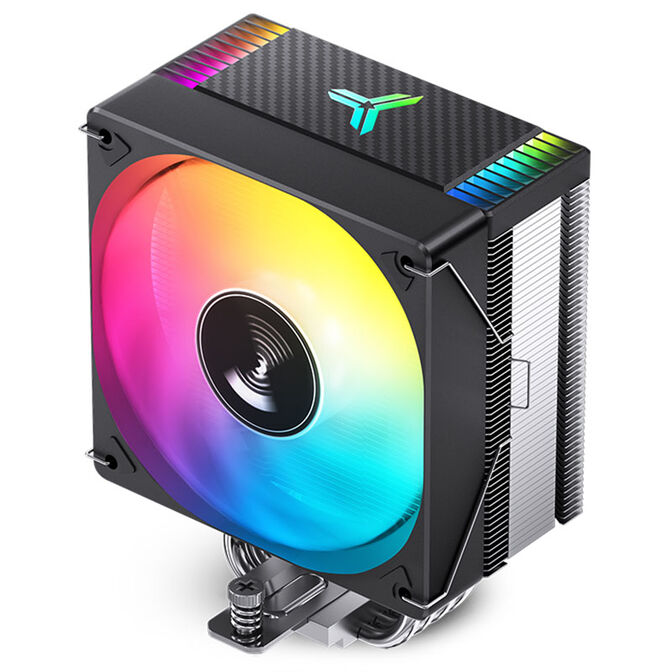

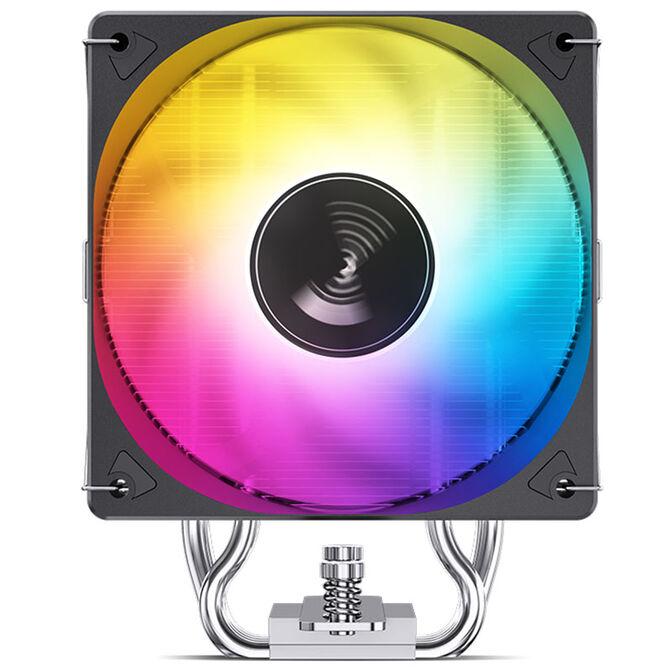

Jonsbo CR-1000 EVO ARGB CPU Cooler, 120mm - black
- Extremely powerful single tower cooler with 220 W TDP
- Four 6 mm heat pipes
- 1x 120 mm PWM fan
- High compatibility with AMD and Intel
- Mounting bracket for easy installation
- Integrated controllable ARGB lighting
The Jonsbo CR-1000 EVO CPU Cooler:
The Jonsbo CR-1000 EVO CPU cooler offers extremely high cooling performance thanks to its four heat pipes and PWM fan. This very quiet cooler has immense cooling reserves of 220 W TDP for overclocked CPUs and can be installed even with the motherboard in place, despite its size.
Sleek design with strong cooling performance
The CR-1000 EVO is a powerful single tower cooler that allows for very efficient and quiet cooling thanks to the fan. The quiet fan motor reduces vibrations and, in combination with the bearing, ensures a very long lifespan.

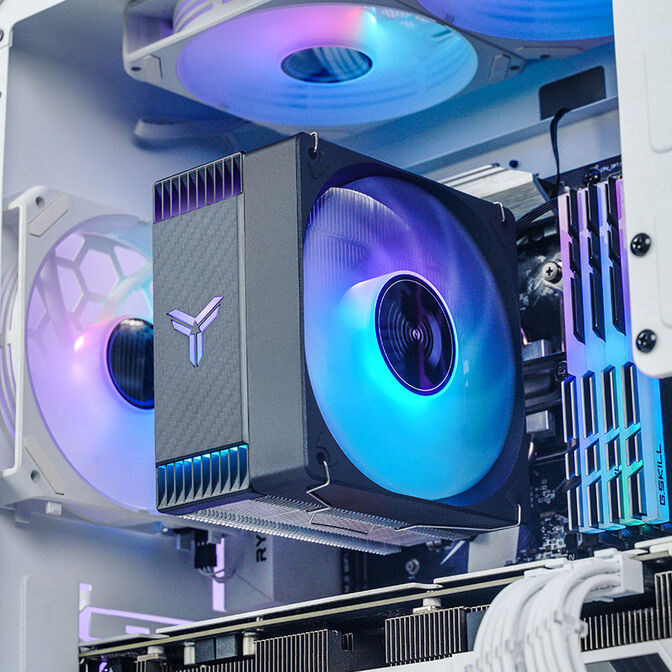

With the controllable ARGB lighting, you can add a glow to your build and give it a unique touch.
Perfect cooling for your CPU

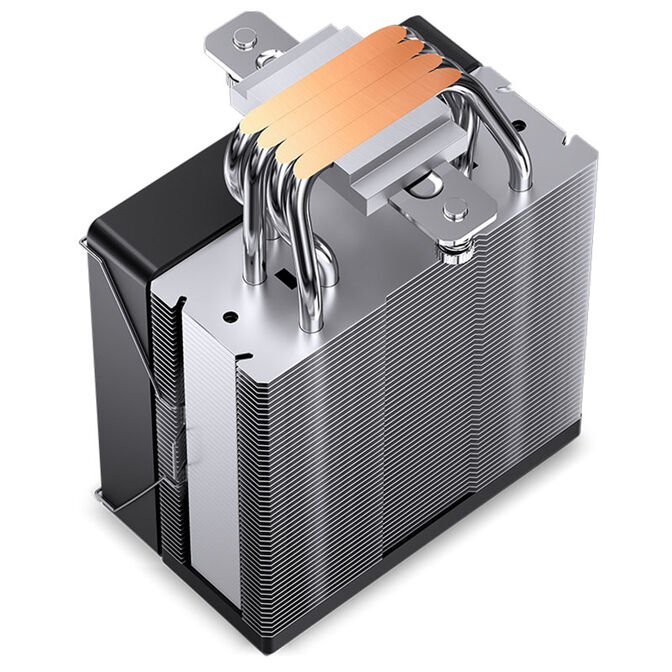

Thanks to four high-performance heat pipes, the heatsink ensures excellent heat dissipation. The fin area of the cooler is very large due to the single tower design, allowing for particularly high heat transfer to the airflow.
Technical details:
- Dimensions: 71 × 154 × 120 mm (W x H x D)
- Material: Copper (heat pipes, base plate), Aluminium (fins, top plate)
- Weight: 554 g
- Colour: Black, Silver
- Heat pipes: 4x Ø 6 mm
- Cooling performance: 220 W TDP
- Fan:
1x 92 mm PWM (max. 1,500 RPM)
Connection: 4-Pin PWM
Total noise level: max. 32 dB(A) - Compatibility:
Intel Socket LGA 1700, 1200, 1151, 115x
AMD Socket AM5, AM4 - Scope of delivery:
1x cooler including 1x fan

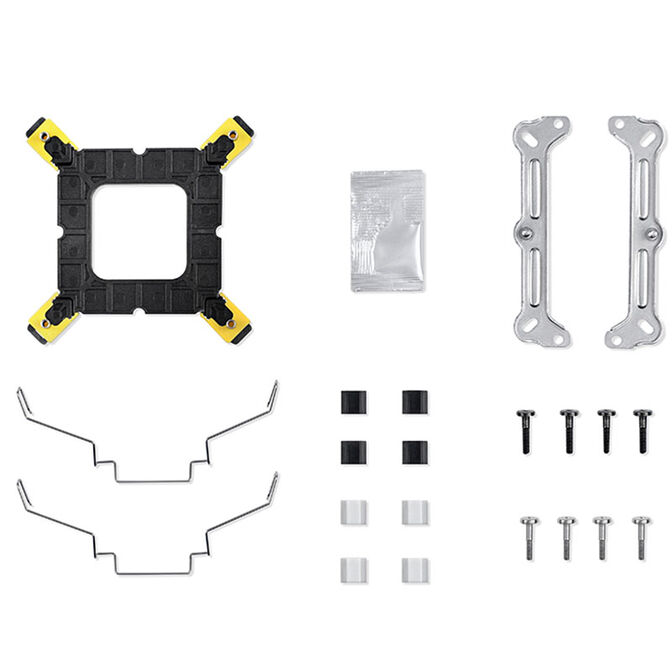

1x installation kit and accessories for Intel & AMD
1x manual
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
71 mm
|
|
Height
|
154 mm
|
|
Weight
|
554 g
|
|
Cooler Specifications
|
|
|
Additional fans possible
|
No
|
|
Heatpipe diameter
|
6 mm
|
|
Number of heatpipes
|
4
|
|
Ventilation type
|
active
|
|
Type
|
|
|
CPU Cooler Type
|
Single Tower
|
|
CPU
|
|
|
CPU Socket
|
115X, 1200, 1700, AM4, AM5
|
|
Fan Specifications
|
|
|
Min. Fan RPM
|
600 rpm
|
|
Max. Fan RPM
|
1500 rpm
|
|
Min. Single Fan Airflow
|
47 m³/h
|
|
Max. Single Fan Airflow
|
101 m³/h
|
|
Min. Static Pressure
|
0.26 mmH2O
|
|
Max. Static Pressure
|
1.81 mmH2O
|
|
Noise
|
|
|
Min. Single Fan Noise
|
22 dB(A)
|
|
Max. Single Fan Noise
|
32 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. TDP
|
220 W
|
|
Materials
|
|
|
Materials
|
Aluminium, Plastic
|
|
Heat Sink Material
|
Aluminium
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Included fans
|
1x 120 mm
|
