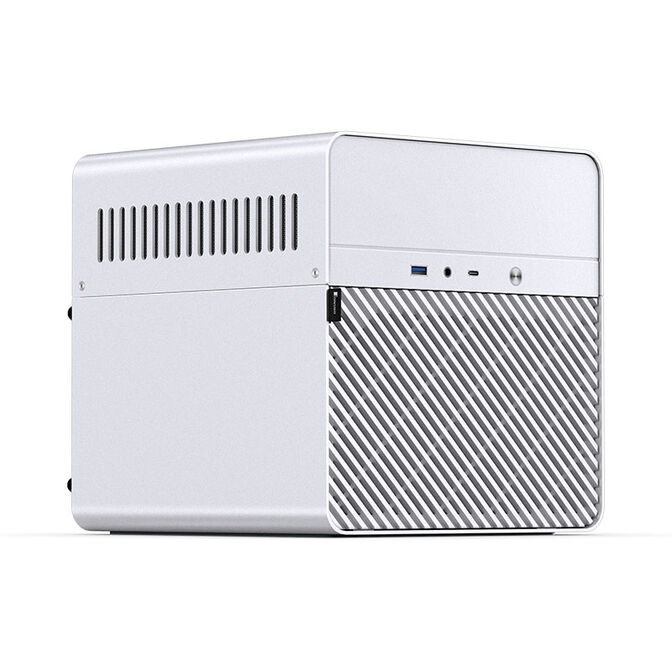

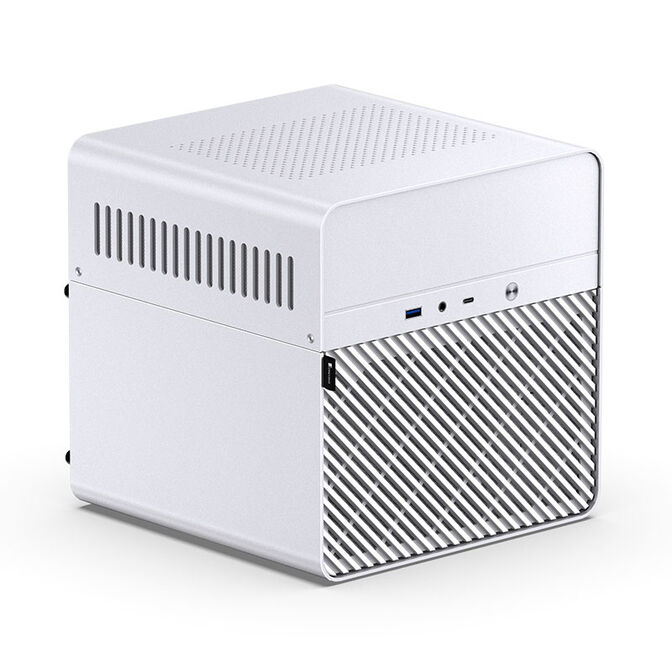

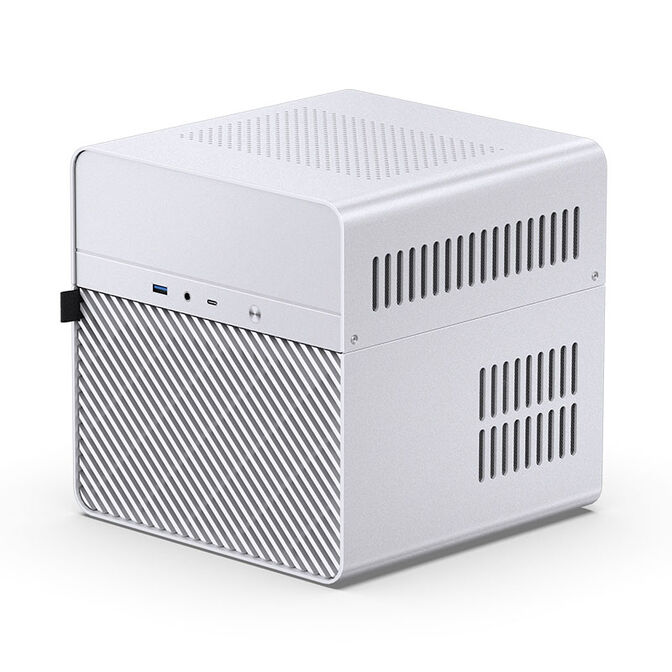

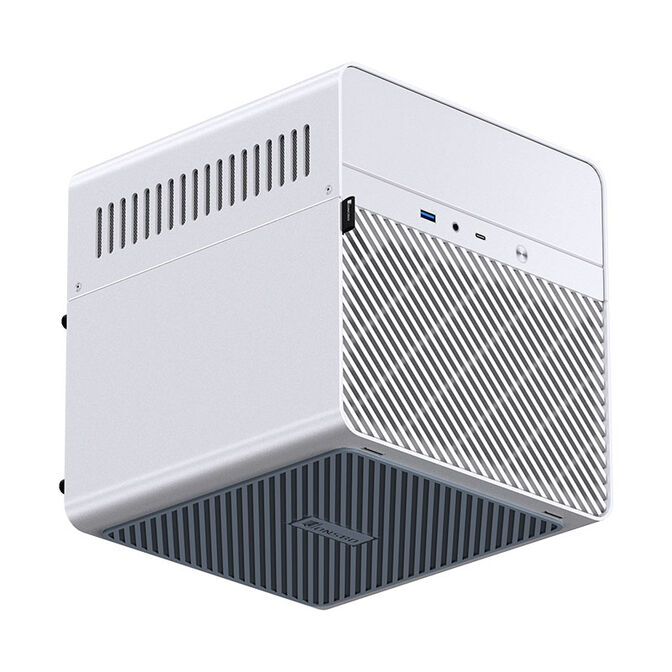

Jonsbo N2 Mini-ITX NAS case - white
- Elegant and compact Mini-ITX aluminium case from Jonsbo
- Graphics cards up to a maximum length of 197 mm
- Power supply via SFX power supply unit
- CPU cooler up to 65 mm in height
- One 120 mm fan pre-installed at the front
- Hard drive cage for 5x 3.5" HDDs
- With board for 5x SATA slots, hot-swap capable
- I/O panel: 1x USB-C 3.1, 1x USB 3.0 Type A, 1x 3.5 mm jack (audio + mic)
The Jonsbo N2 Mini-ITX Case in Detail

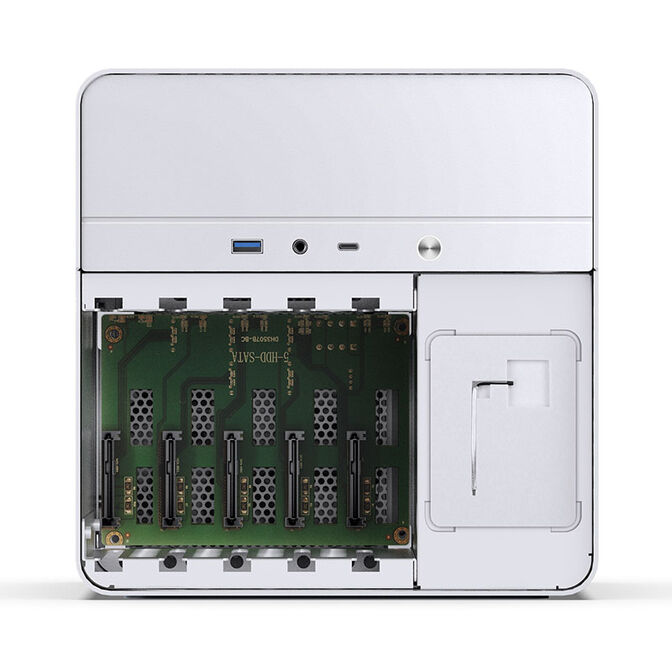

A compact PC for cloud storage or home office systems. The Jonsbo N2 is the small but refined solution for purpose-built systems. It accommodates a 2.5-inch SSD and five 3.5-inch HDDs. A hot-swap capable SATA/SAS board for five HDD drives is already installed. It is versatile and space-saving, as it can be placed horizontally or vertically.
Organisation and Hardware

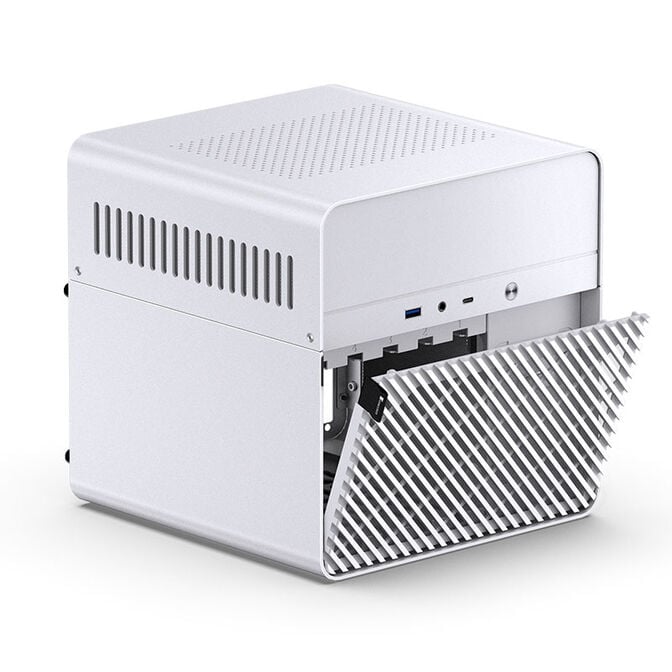

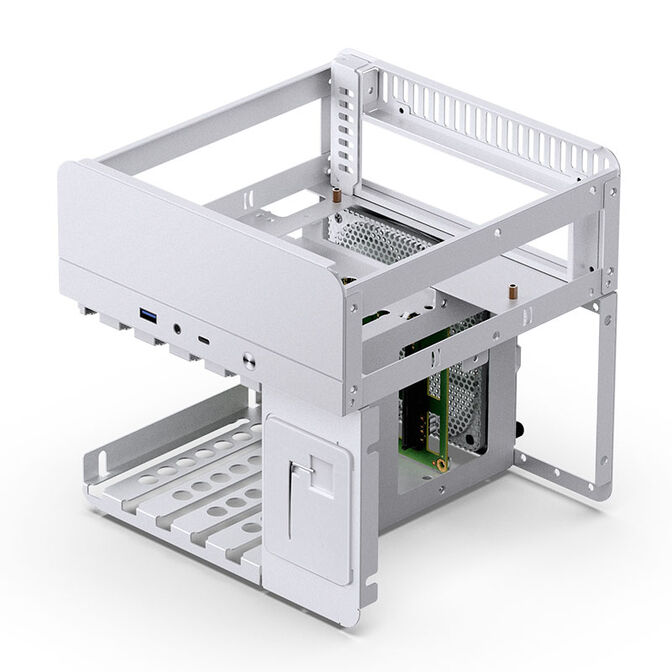

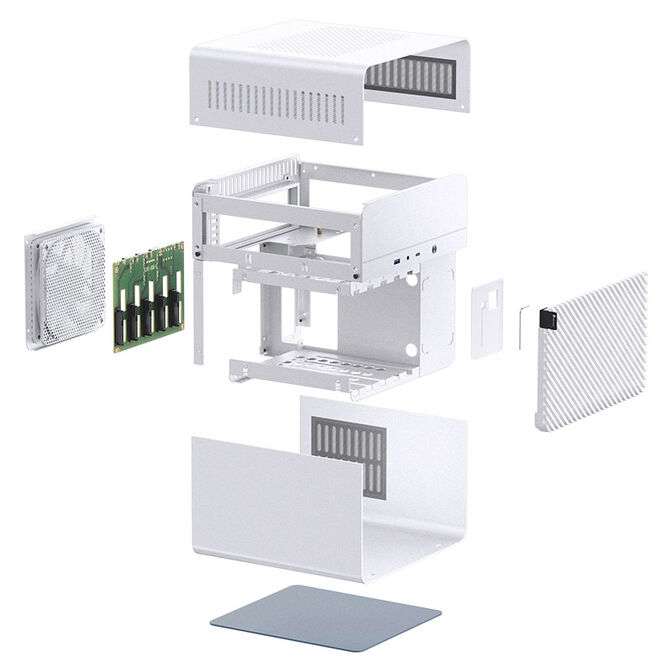

The Jonsbo N2 is a Mini-ITX case compatible only with this motherboard form factor size. Only small single-slot graphics cards up to 197 mm in length fit inside. The case can be fully removed to facilitate installation. For quick access to optional hot-swap HDDs, the left side panel can be quickly removed.
Important! There is not much space inside. Graphics cards fit only with a low-profile bracket. It is recommended to choose a CPU chipset with integrated graphics instead.The power supply of the mini system is ensured by a compact SFX standard power supply unit. The CPU cooler may be a maximum of 65 mm high. For air circulation, a 120 mm fan is installed at the front and is included in the scope of delivery.
Compact Design for Home Use

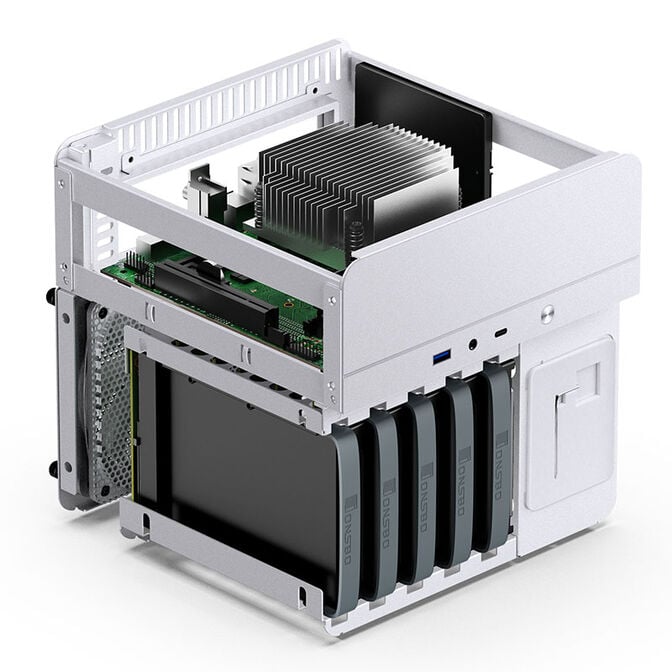

Those looking for a small PC for basic tasks such as office programmes or to secure their own local cloud storage will find a practical solution with the Jonsbo N2. The design is space-saving, clever, and offers capacity for five 3.5-inch HDDs in a hard drive cage. A 2.5-inch drive can be mounted above the power supply.

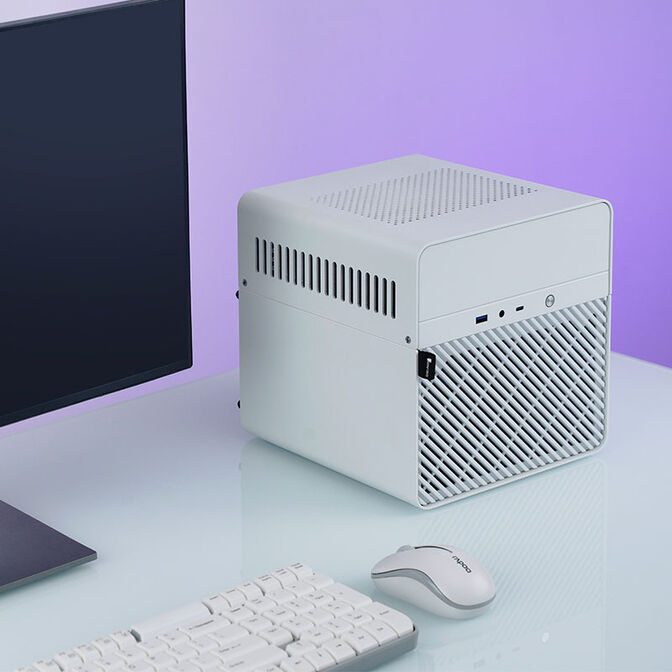

Functionality is paramount with the Jonsbo N2. Its compact dimensions of 222.5 mm x 222.5 mm x 224 mm (W x H x D) fit into any home and blend quietly into any setup or look with its high-quality aluminium case. If you still can’t find a good place to lay it down, stand it up. No matter how, the I/O panel with USB-C 3.1, USB 3.0 Type A and 3.5 mm audio jack remains freely accessible in every position.
Technical Details:
- Dimensions: 222.5 mm x 222.5 mm x 224 mm (W x H x D)
- Material: Aluminium, steel
- Weight: 3.8 kg
- Colour: White
- Motherboard form factor: Mini-ITX
- Fan support:
Front: 120 mm (pre-installed) - Drive bays:
1x 2.5 inch
5x 3.5 inch - Power supply: SFX, max. 150 mm
- Graphics card: max. 197 mm length (low profile)
- Expansion slots: 1 (single-slot, low profile)
- I/O panel:
1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 5 Gbit/s)
1x 3.5 mm jack (mic and headphones)
1x power switch
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
224 mm
|
|
Width
|
222.5 mm
|
|
Height
|
222.5 mm
|
|
Weight
|
2.9 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Mini-ITX
|
|
Max. Motherboard Format
|
Mini-ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
65 mm
|
|
Max. GPU Length
|
197 mm
|
|
Max. PSU Length / Depth
|
150 mm
|
|
Inner Volume
|
11 l
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
SFX
|
|
Power Supply Position
|
Internal
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Max. Number of Fans
|
1
|
|
120 mm fans
|
1
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
no
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
1
|
|
Max. 3.5 Inch Drives
|
5
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
1
|
|
3.5 inch internal drive bay
|
5
|
|
Hot swap drive bays
|
Yes
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
Yes
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
1
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 120 mm
|
