Jonsbo N5 NAS case, E-ATX - black
- E-ATX case with space for up to 16 hard drives for NAS purposes
- Eight expansion slots also allow use as a workstation
- CPU coolers up to 160 mm in height provide optimal cooling for high-performance CPUs
- Practical status LEDs show the condition of your hard drives
- Mesh design enables high airflow and prevents heat build-up

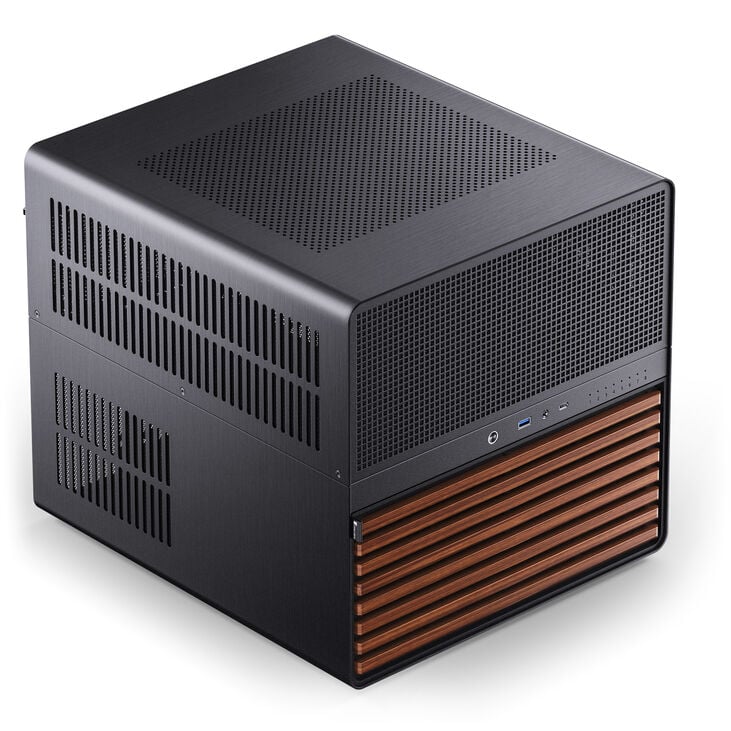

The Jonsbo N5: E-ATX NAS Case with Wooden Accents

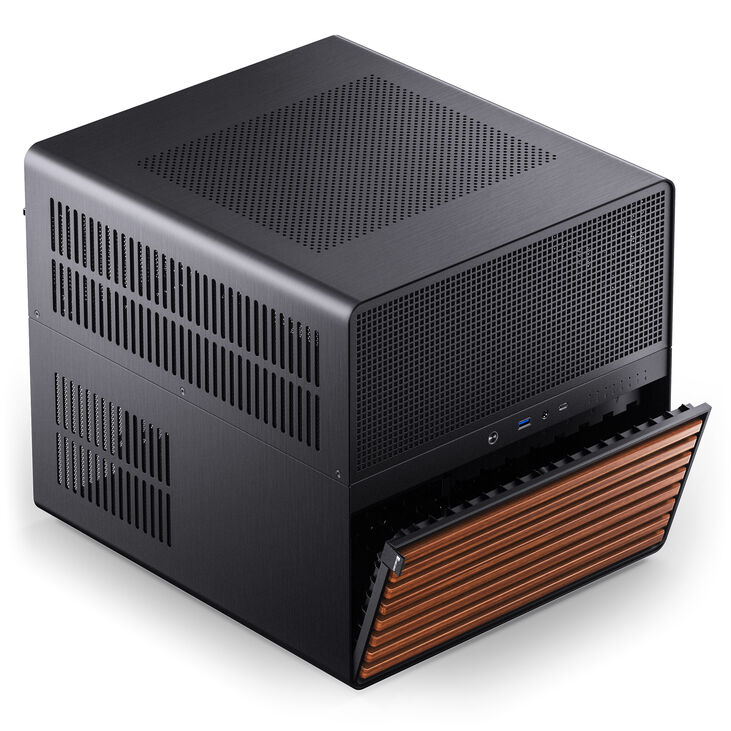

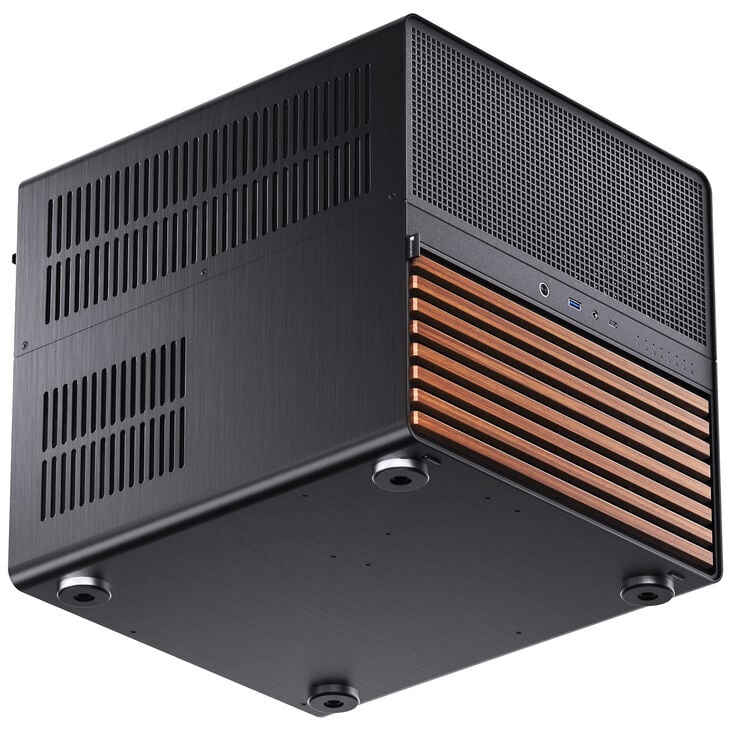

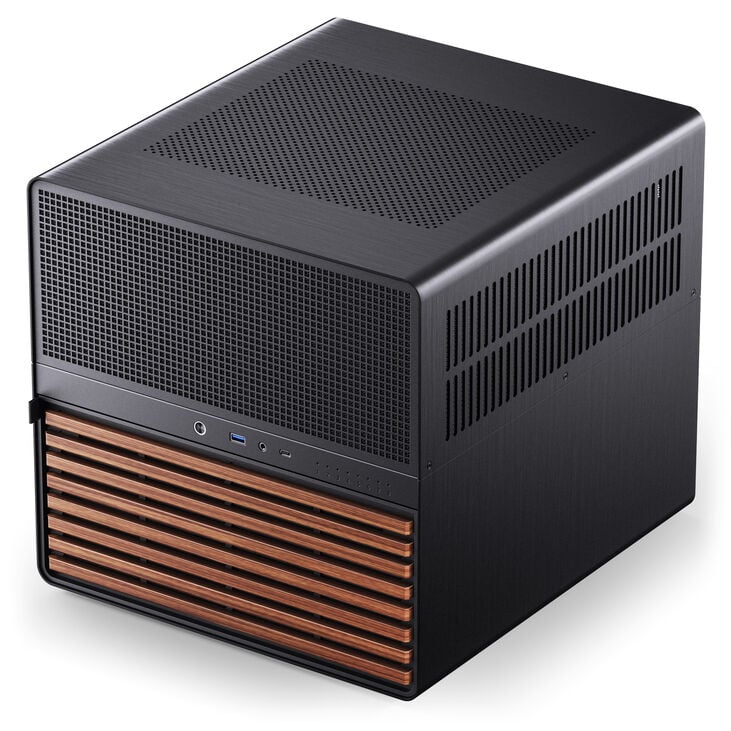

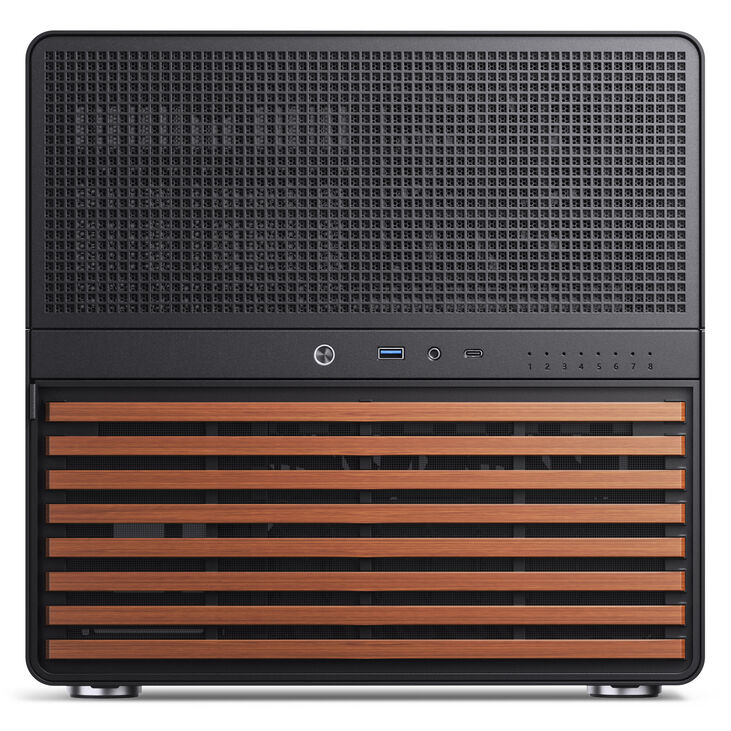

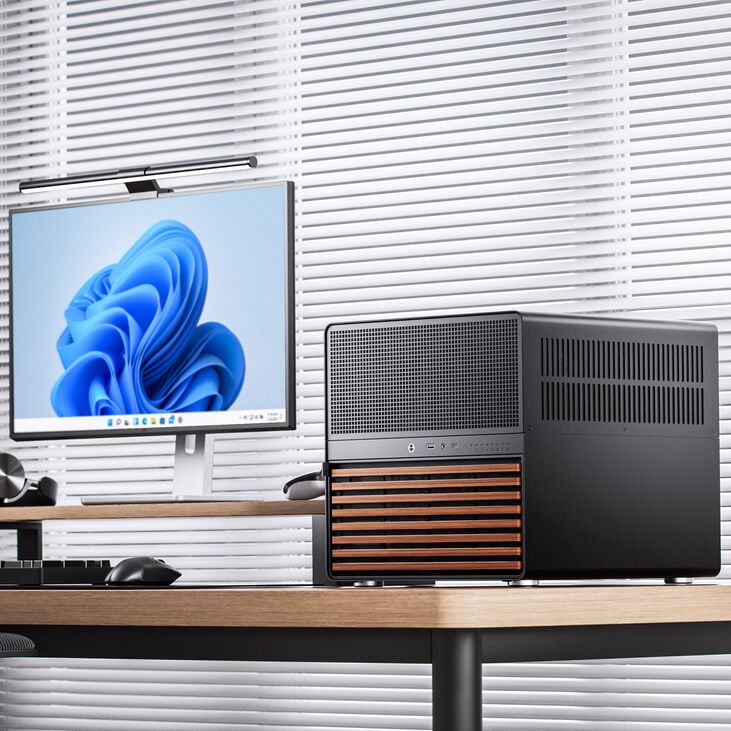

With the Jonsbo N5, Jonsbo offers a large, cube-shaped case designed for NAS purposes. A ventilation grille made from dark brown wood and a minimalist design in black aluminium ensure that the case does not draw attention, no matter where it is placed.
From Home Server to Deep Learning Workstation

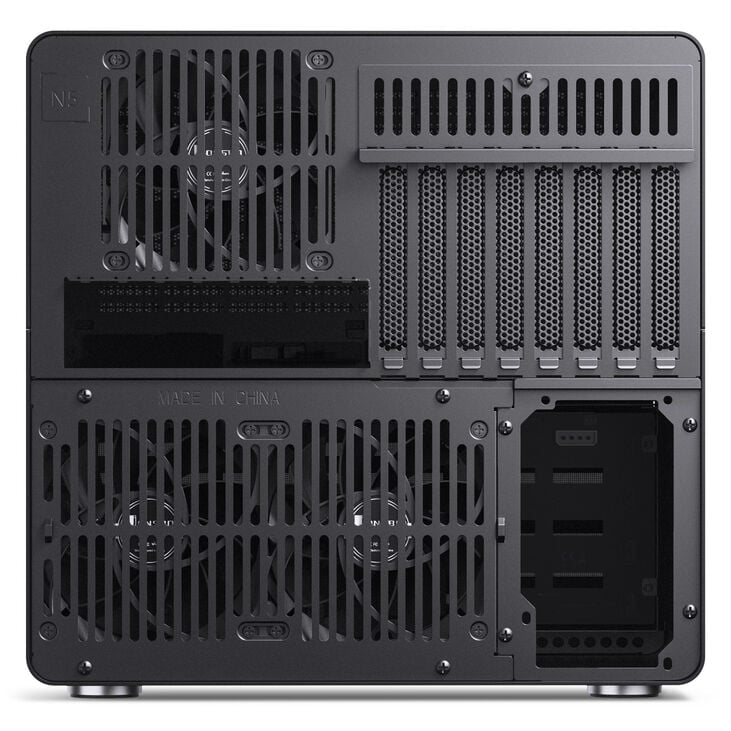

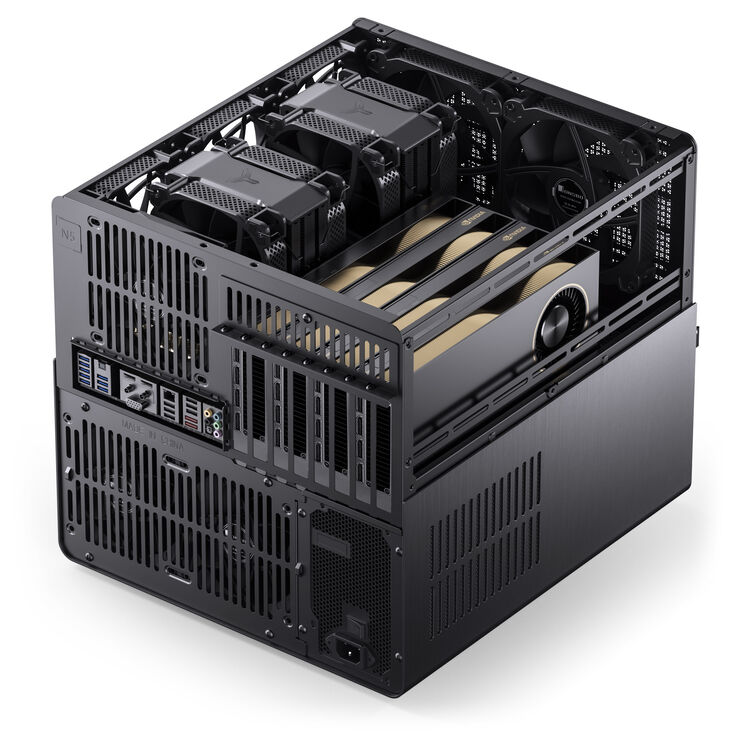

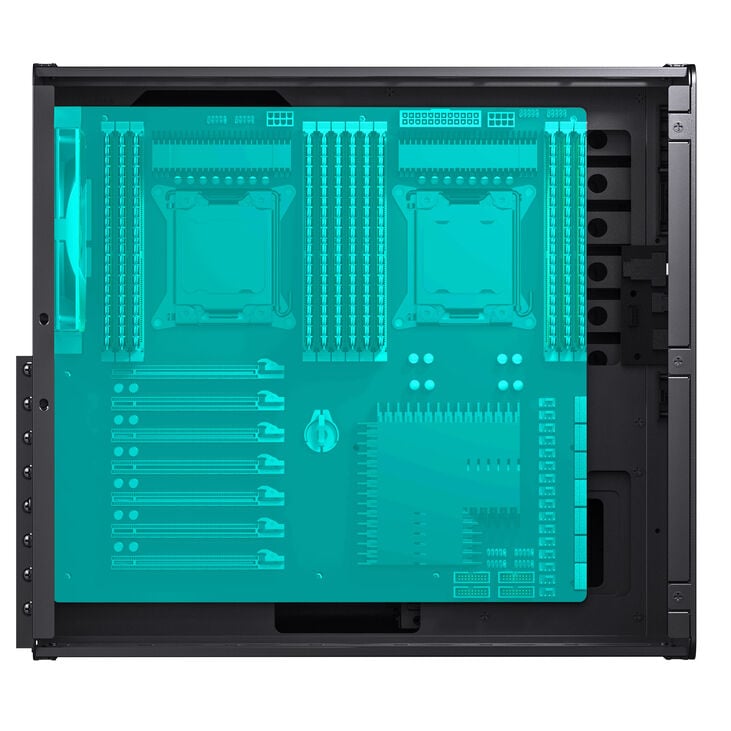

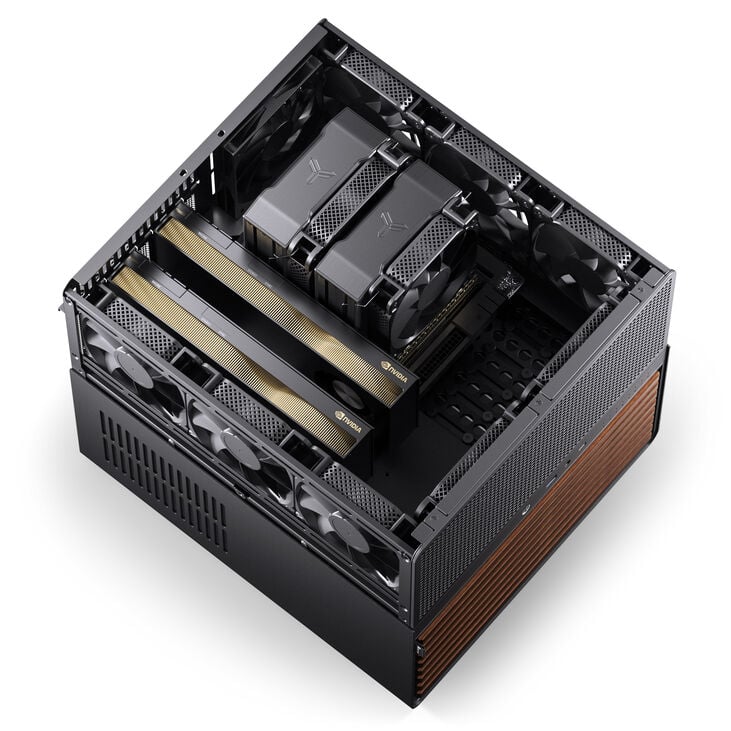

With a full eight expansion slots and space for motherboards in the E-ATX form factor, this case is suitable for high-performance hardware. Whether it's a simple NAS server or a large workstation, both are possible with the Jonsbo case. Even high-end graphics cards with a length of up to 350 mm can fit in this case.

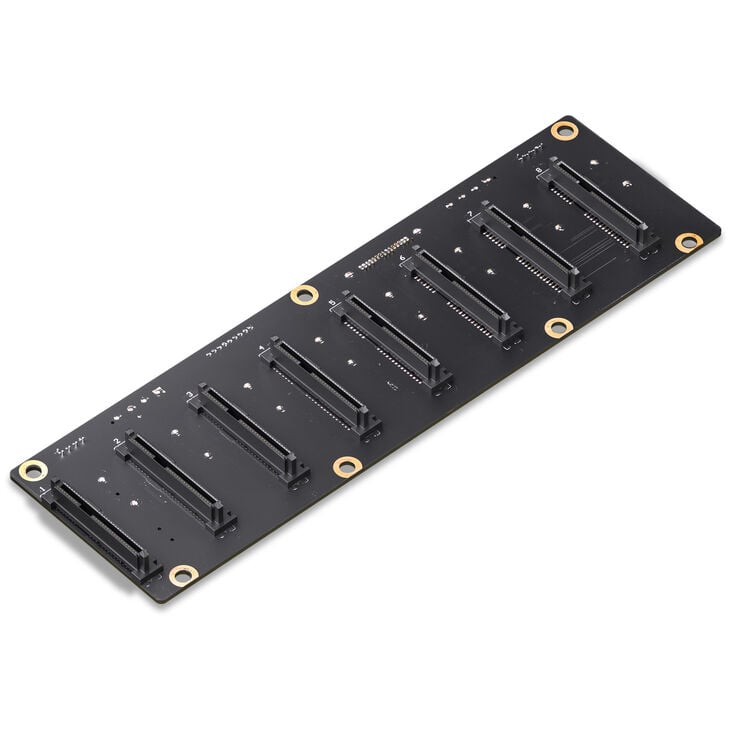

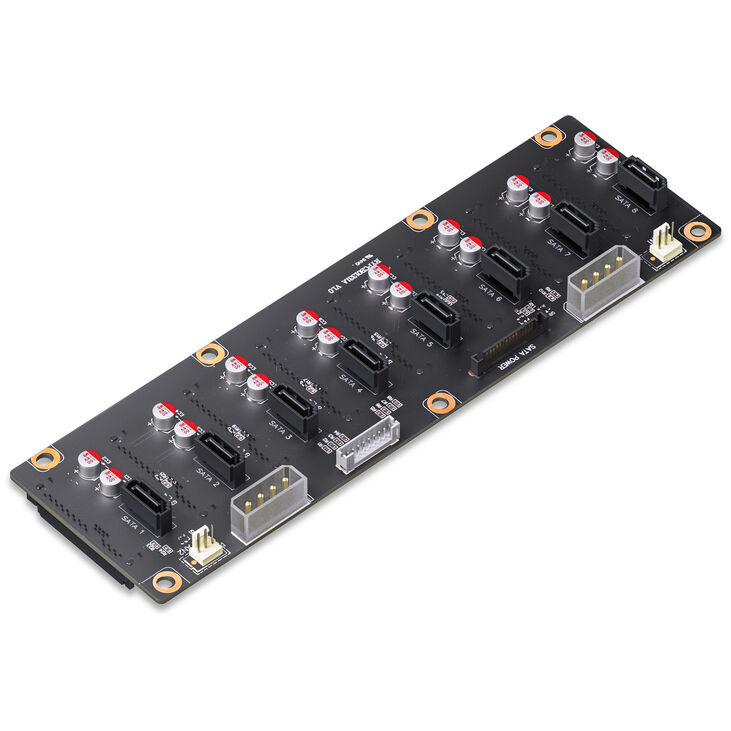

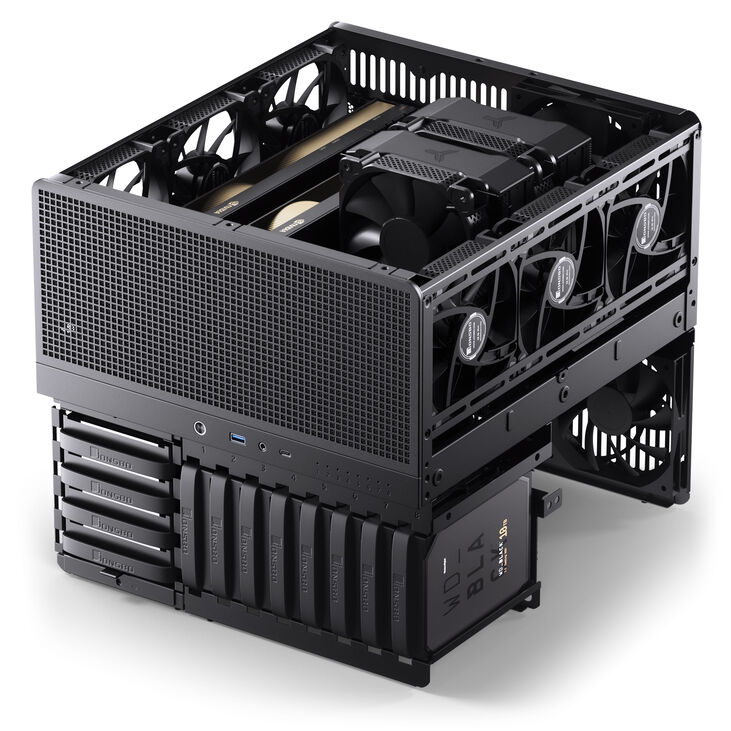

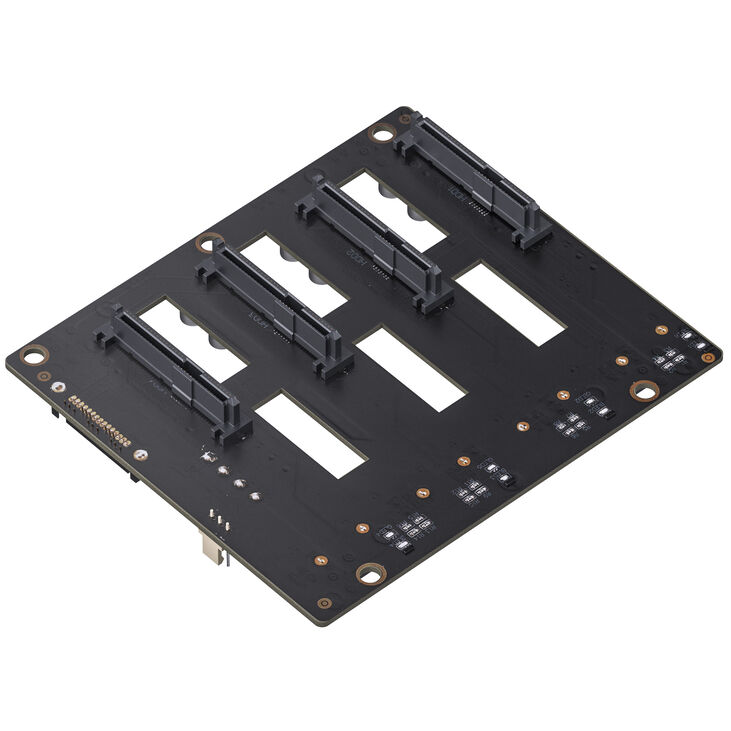

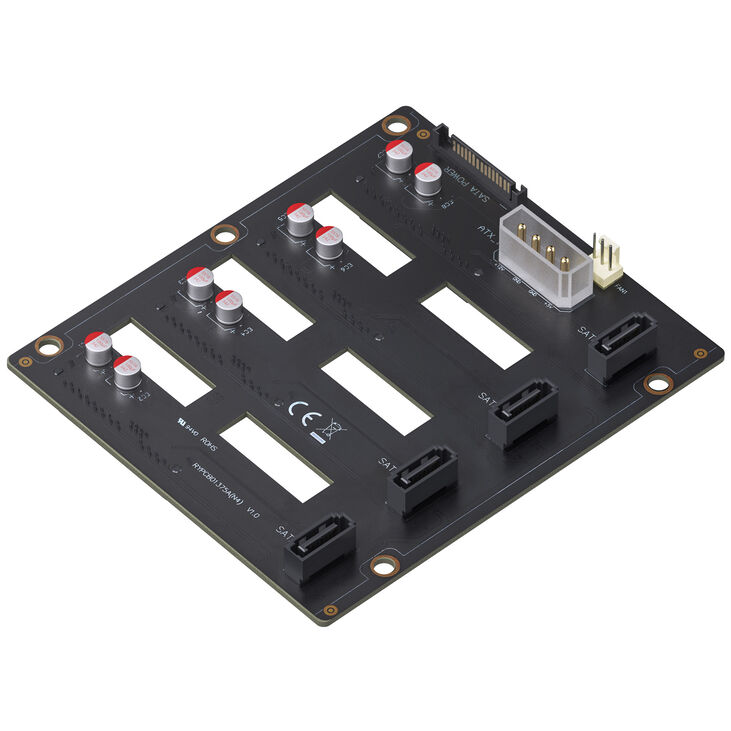

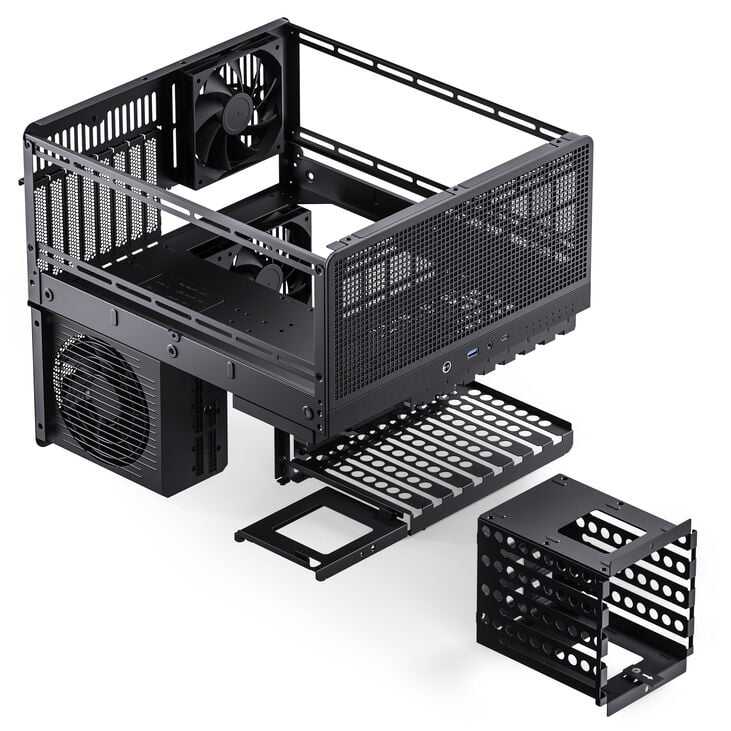

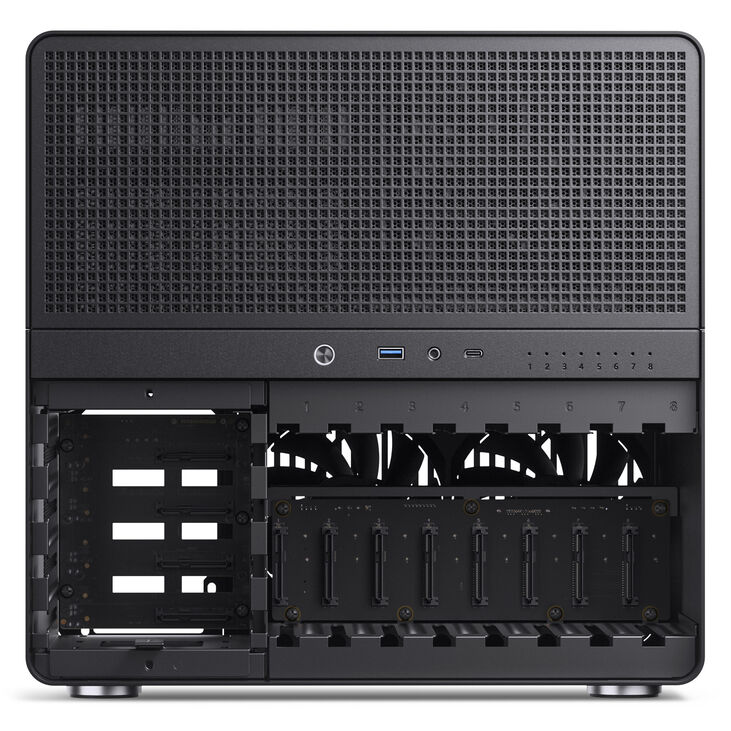

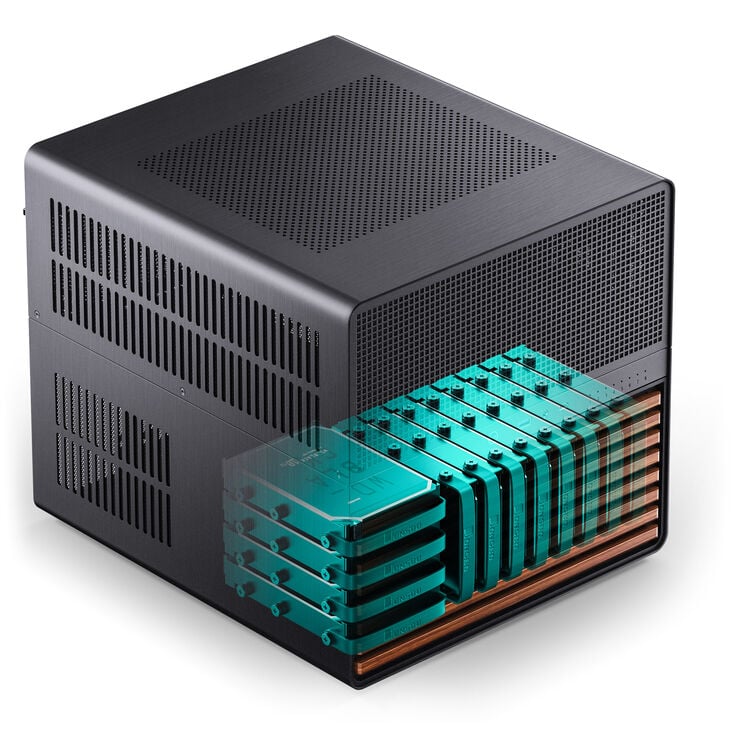

With space for up to 16 drives, the Jonsbo N5 offers enormous storage capacity for a wide range of applications. The pre-installed backplanes allow up to twelve 3.5-inch hard drives to be quickly and easily installed. An additional four 2.5-inch SSDs can also be accommodated in the case.
Optimal Cooling with Mesh Design

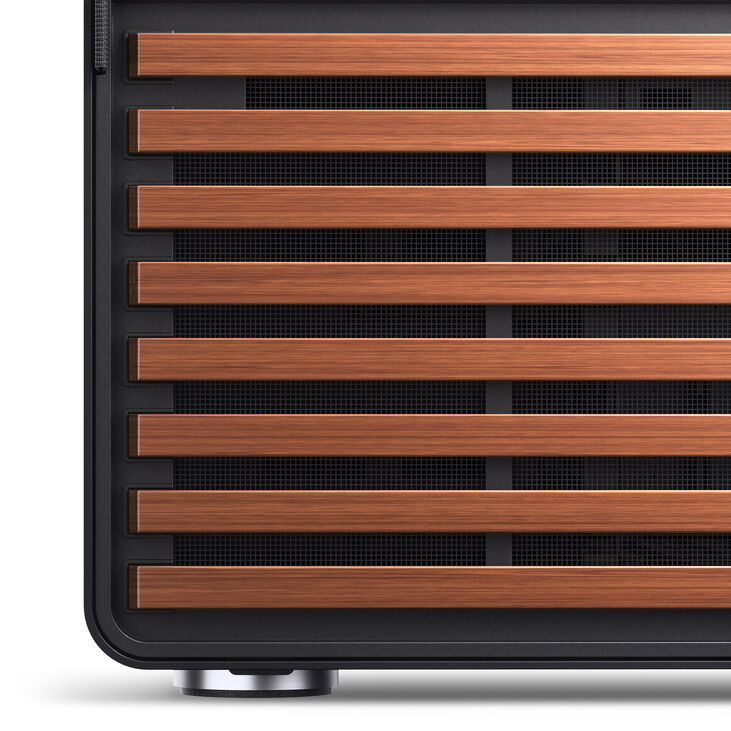

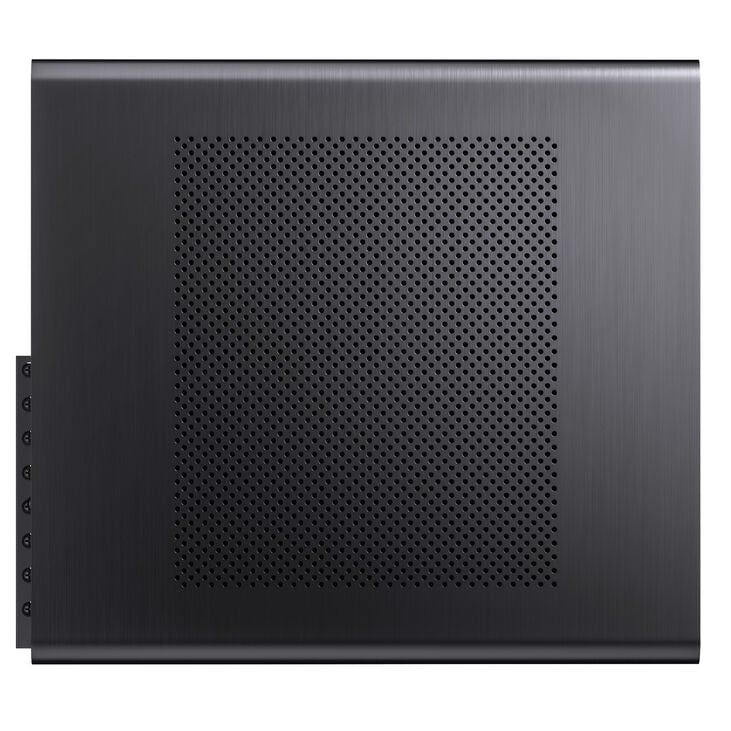

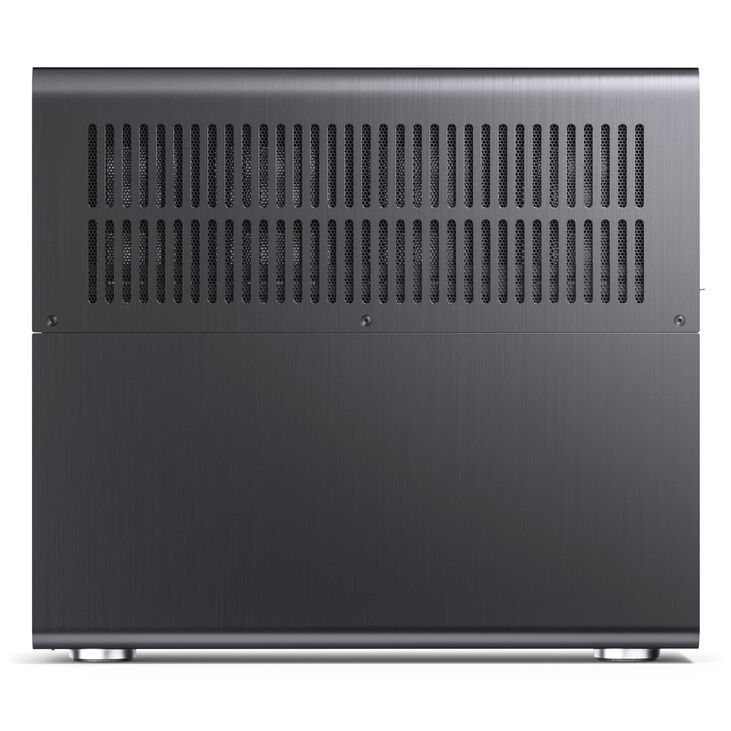

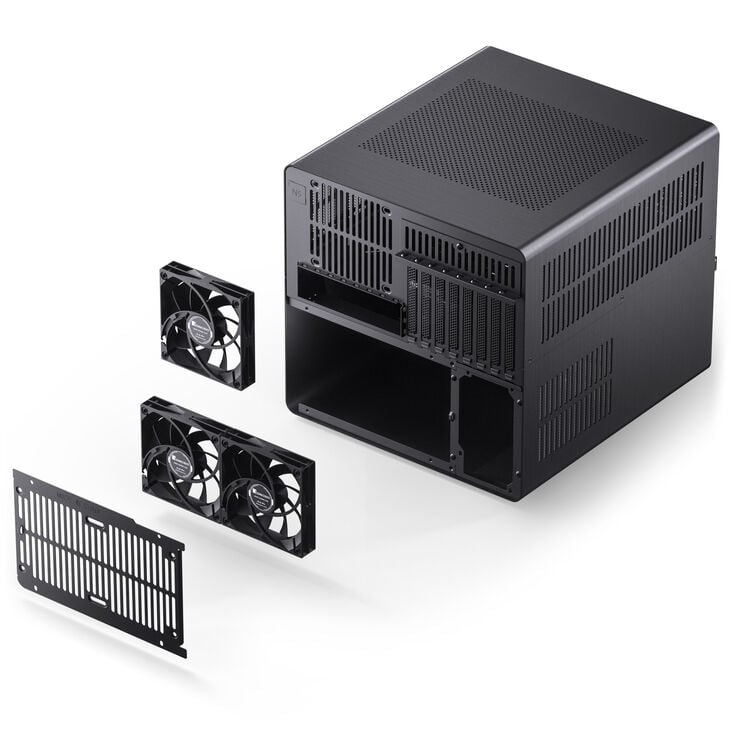

The mesh design around the case ensures a high airflow and thus provides optimal cooling for your components. Even the wooden panelling is not just for aesthetics; behind it lies additional mesh that contributes to your system's cooling. Three installable 120-mm fans and space for a 160 mm high CPU cooler provide sufficient cooling for your NAS system, ensuring long-lasting, reliable operation of your system.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Wood
|
|
Dimensions
|
|
|
Length / Depth
|
403 mm
|
|
Width
|
355 mm
|
|
Height
|
350 mm
|
|
Weight
|
7.5 kg
|
|
Case
|
|
|
Case Type
|
Cube Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX, XL-ATX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
350 mm
|
|
Max. PSU Length / Depth
|
240 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side / bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (3x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
3
|
|
120 mm fans
|
11
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (280 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
12
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
4
|
|
3.5 inch internal drive bay
|
12
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
16
|
|
Hot swap drive bays
|
Yes
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with mesh
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
Yes
|
|
Cable Management
|
No
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium Alloy, Steel, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
