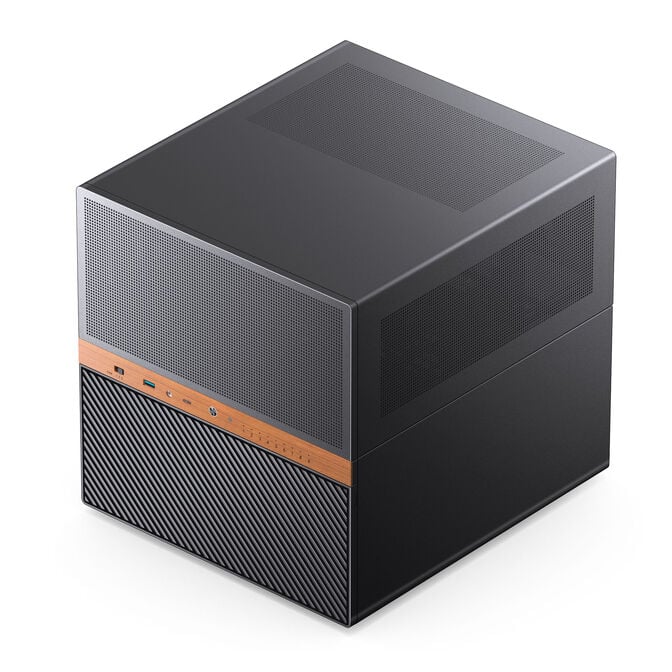

Jonsbo N6 NAS Case, Cube Case, mATX, Steel/Mesh - Black

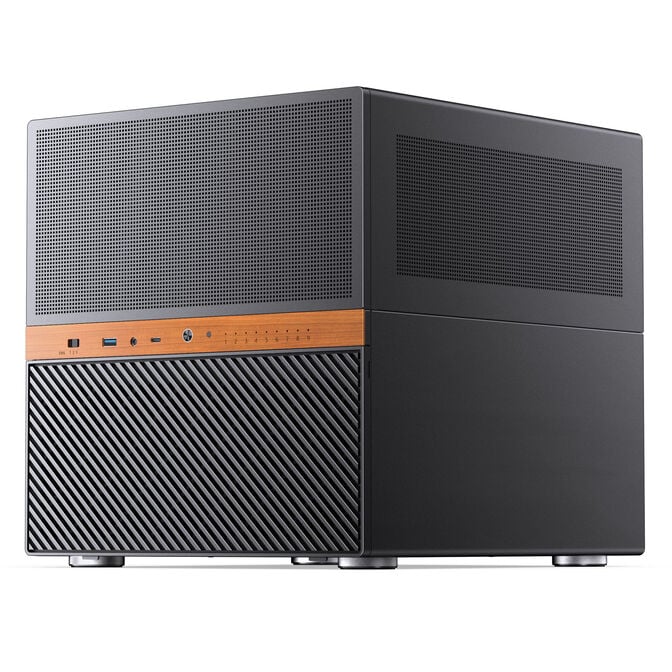

The Jonsbo N6 is a compact yet highly functional NAS case designed for power users, data enthusiasts, and home server fans. It combines a thoughtful layout, strong drive support, and effective cooling options in a minimalist steel chassis.
- Supports up to 9 × 2.5" or 3.5" drives – ideal for NAS or data storage
- ITX & M-ATX compatible – for flexible system configurations
- Dual PSU mode – supports ATX and SFX power supplies up to 220 mm
- Up to 10 fans and 240 mm AIO possible – efficient cooling guaranteed
- Integrated 3-stage fan controller – easy noise level management
Perfect for data-intensive setups

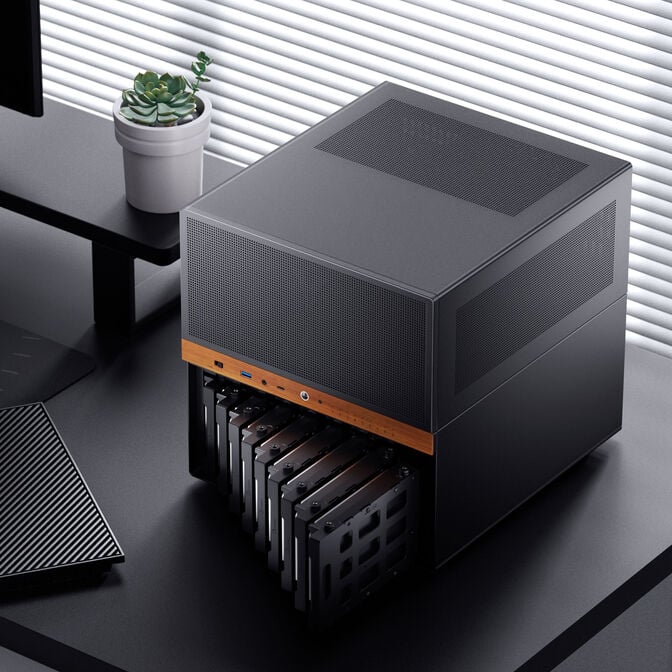

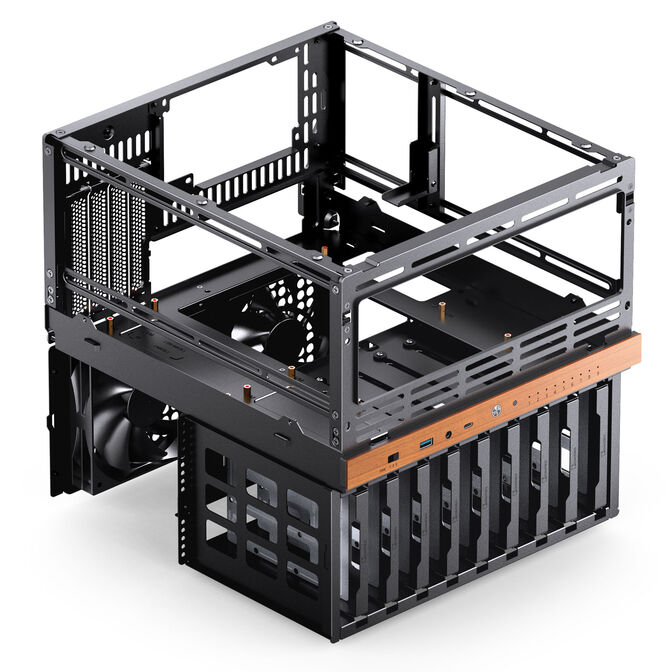

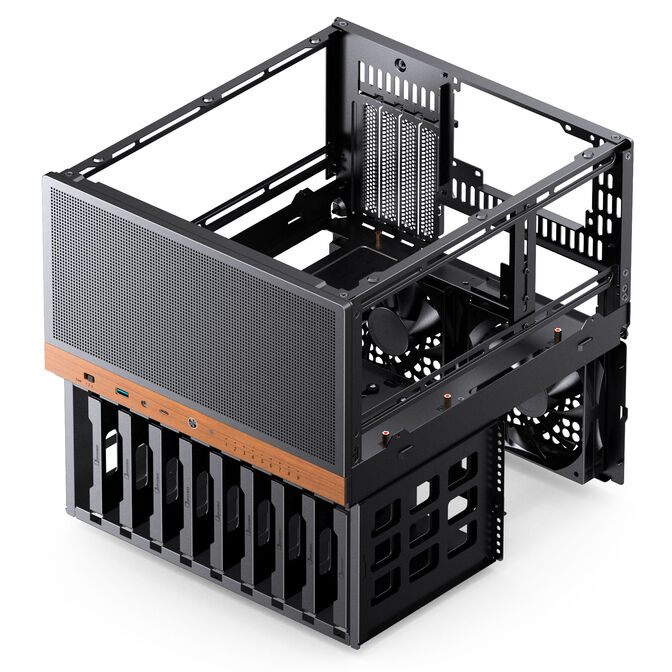

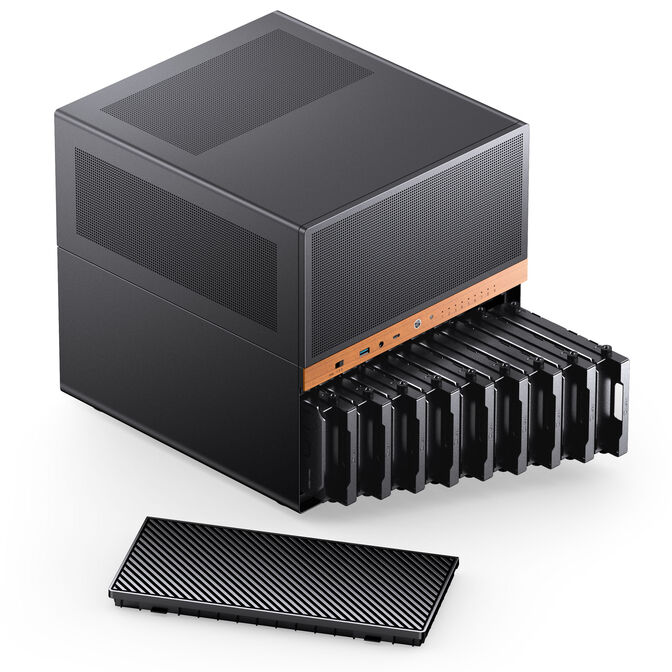

With space for up to nine drives, the N6 is ideal for NAS, media servers, or local backup storage. The well-thought-out drive placement ensures quick accessibility and efficient use of internal space.
Compact, powerful and versatile

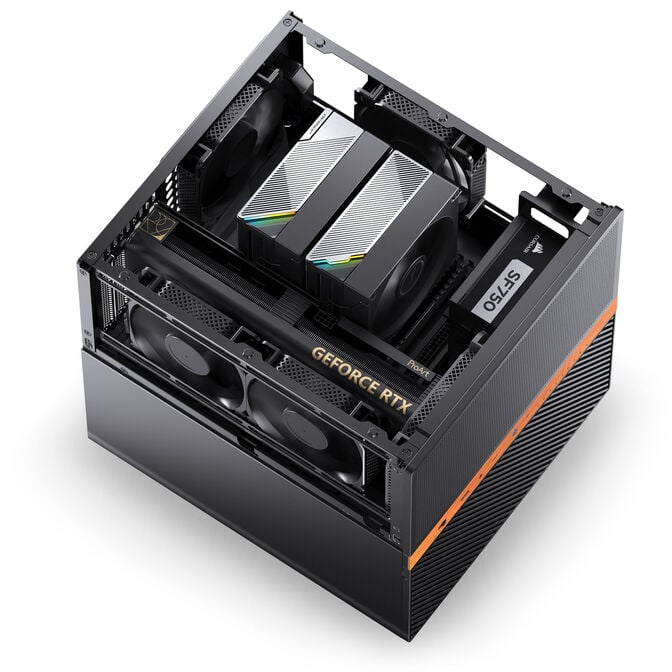

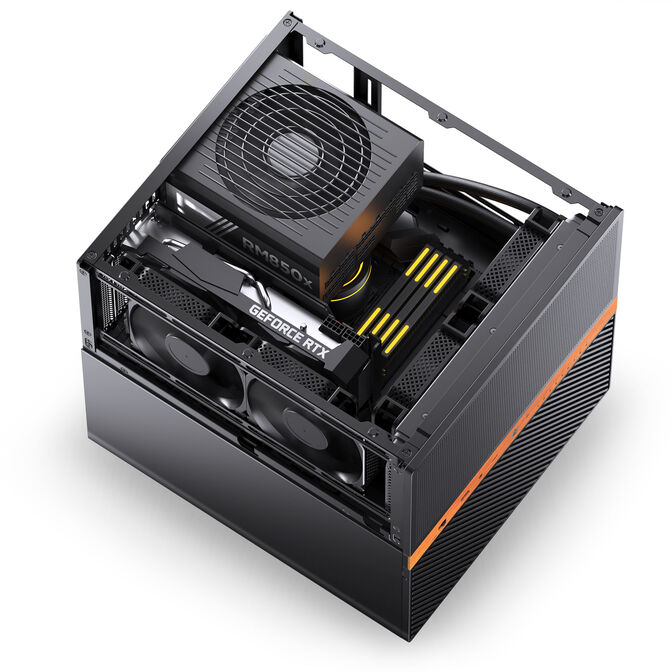

Whether Mini-ITX or Micro-ATX – the N6 accommodates modern systems including GPUs up to 320 mm and CPU coolers up to 160 mm. Support for two power supply sizes increases flexibility in power options.
Efficient ventilation & clever extras
Up to eight 120 or 140 mm fans fit inside the case. The integrated 3-port/3-stage fan controller allows you to run the cooling system quietly or powerfully depending on your needs – ideal for continuous operation.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
353 mm
|
|
Width
|
305 mm
|
|
Height
|
318 mm
|
|
Weight
|
7.5 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
320 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
Rear Bottom or Top, top
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
9
|
|
120 mm fans
|
9
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm)
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
9
|
|
Max. 3.5 Inch Drives
|
9
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
Yes
|
|

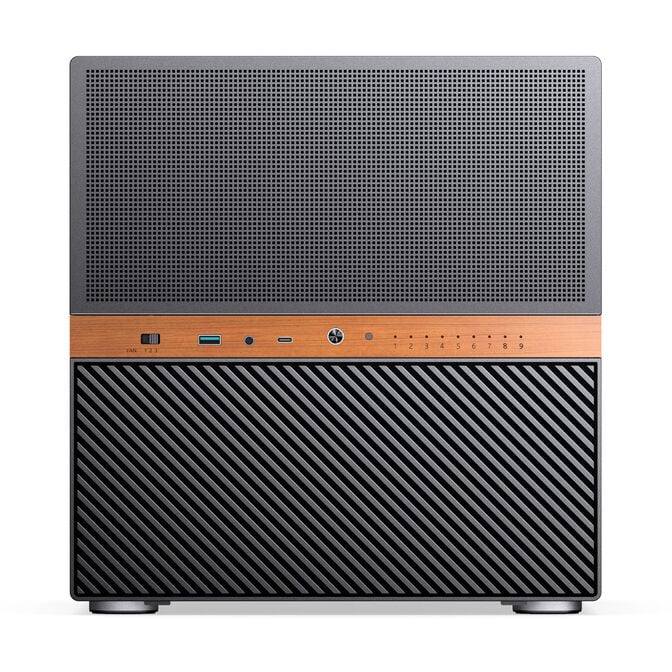

External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with mesh
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
Yes
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|

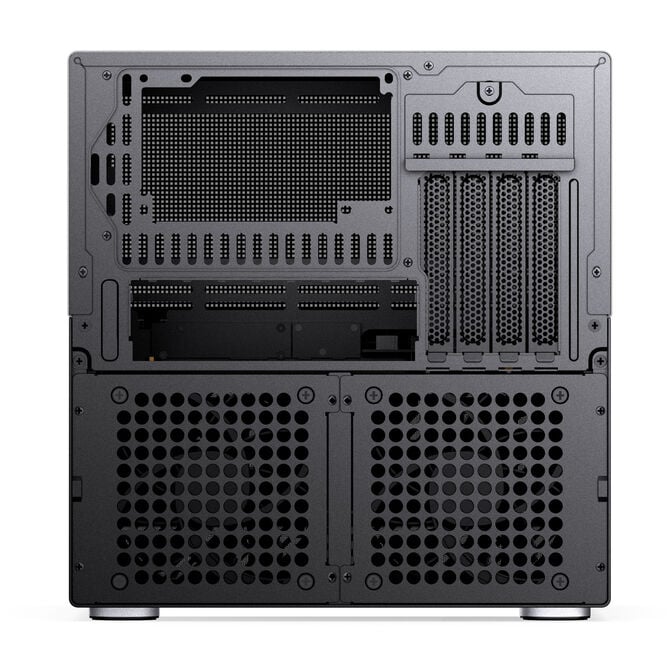

Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm
|
