Jonsbo V12 PC Case, Mini Tower, Micro-ATX - White
White mini tower, motherboard up to Micro-ATX, 3x 2.5- or 3.5-inch drives, CPU cooler up to 145 mm height, GPU up to 260 mm, 2x 120 mm fans installed at the front
119,90 €
Incl. VAT, incl. delivery costs
- Stylish mini case with three sides made of tempered glass
- Two 120 mm fans installed at the front, with an additional fan up to 92 mm possible at the rear
- Supports Micro-ATX motherboards and CPU cooler height up to 145 mm
- GPUs up to 260 mm in length
- Up to three 2.5- or 3.5-inch drives
The Jonsbo V12 in Detail

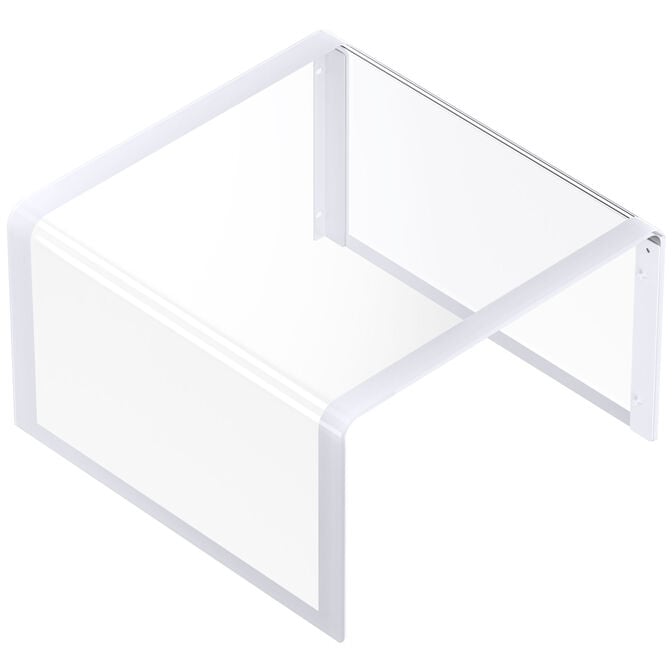

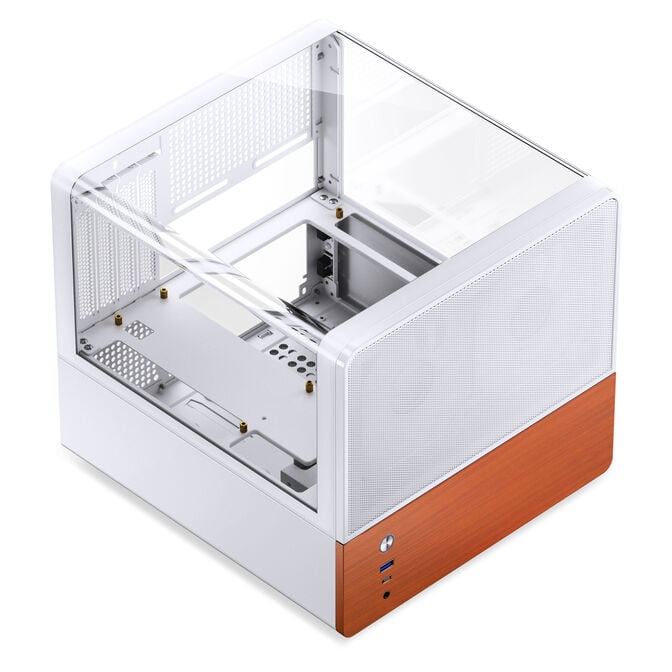

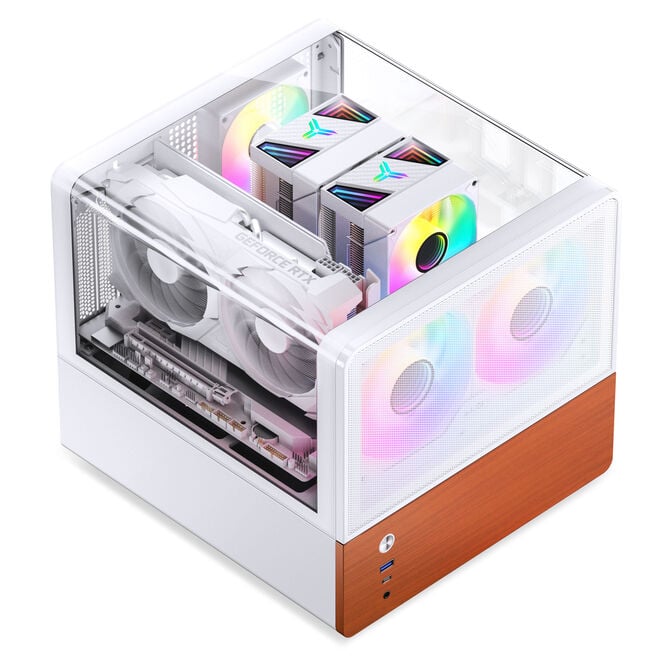

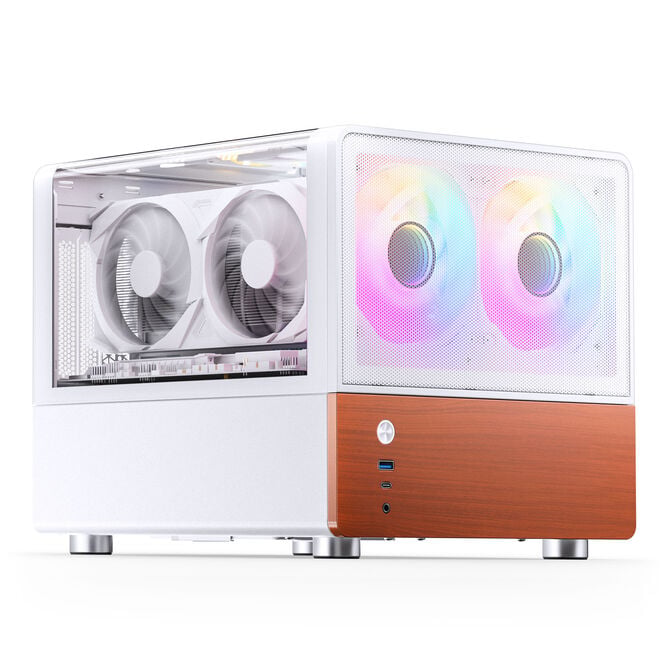

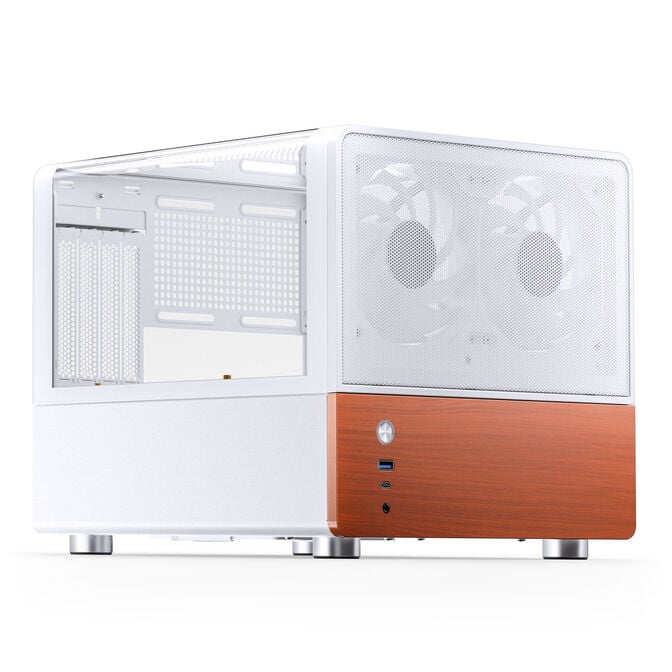

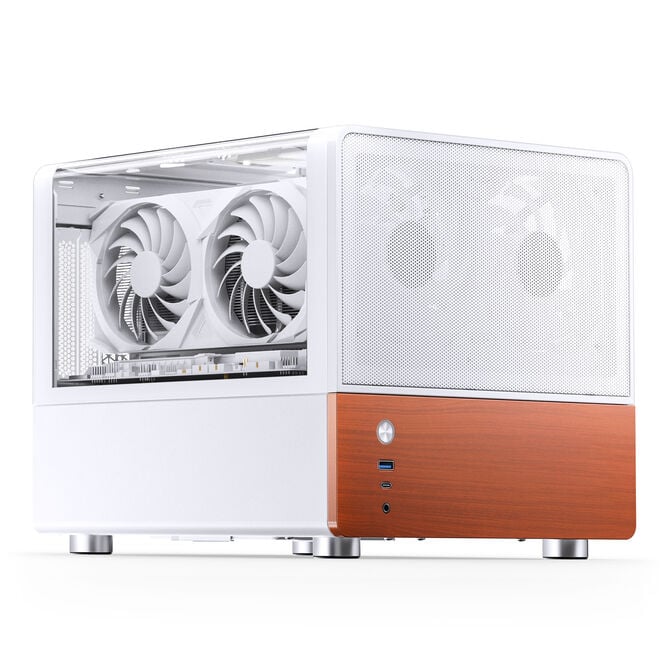

The Jonsbo V12 is a mini case that, despite its compact size, offers enough space for powerful hardware. Tempered glass on three sides allows you a perfect view of your installed components, and a stylish wooden front completes the overall look.
Cooling

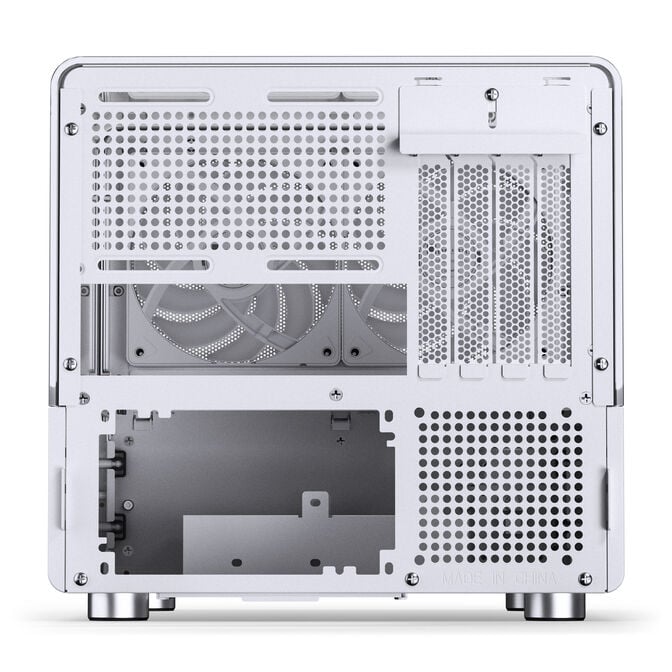

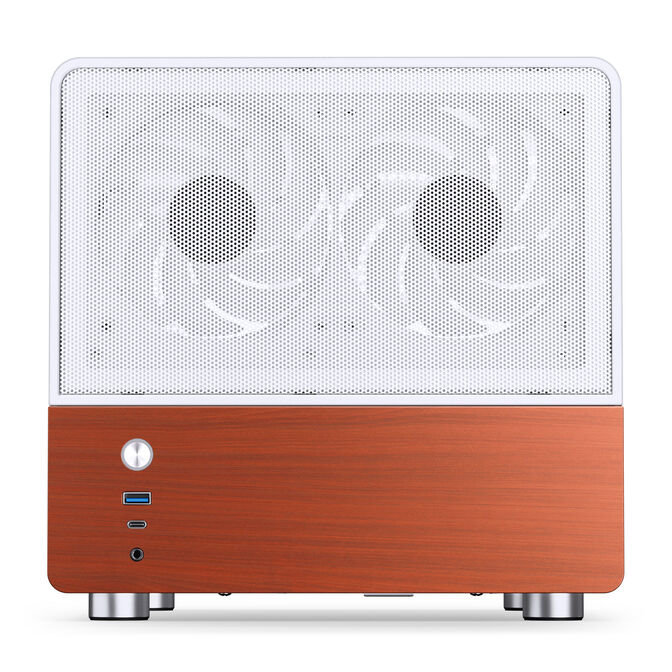

The mini tower already comes with two 120 mm fans installed, providing sufficient cooling. If you need an additional fan, another fan up to 92 mm can be mounted at the rear.
Hardware Options

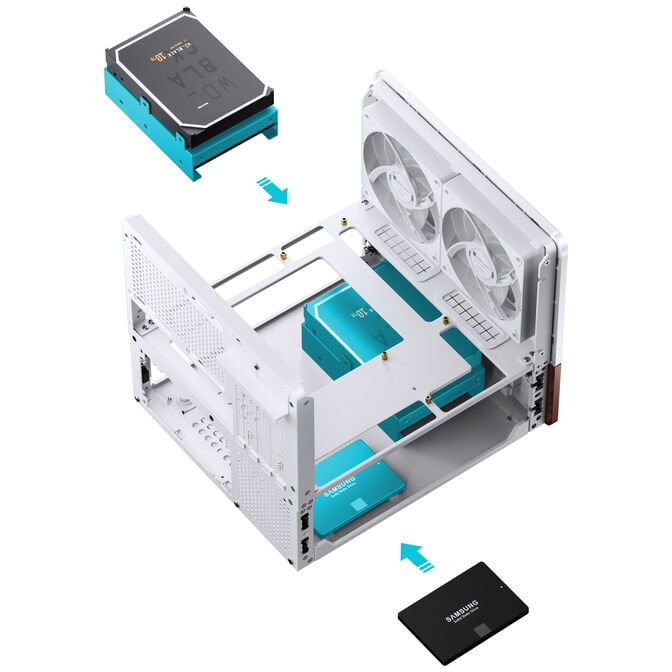

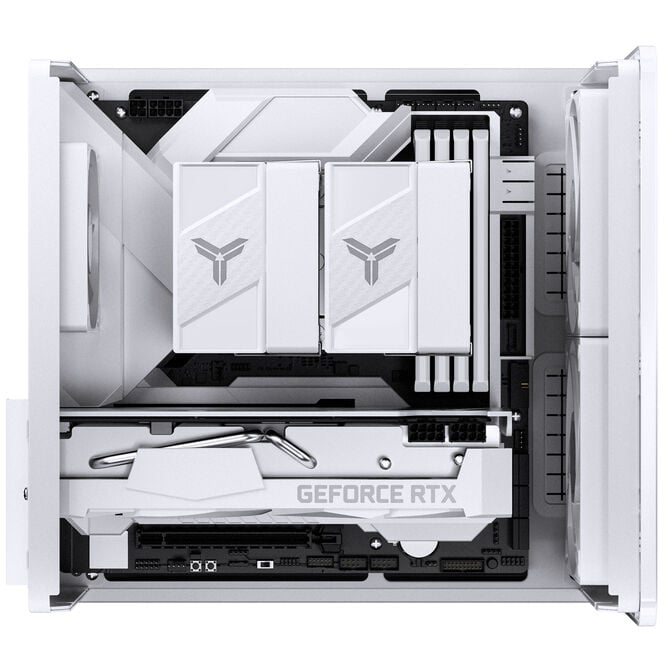

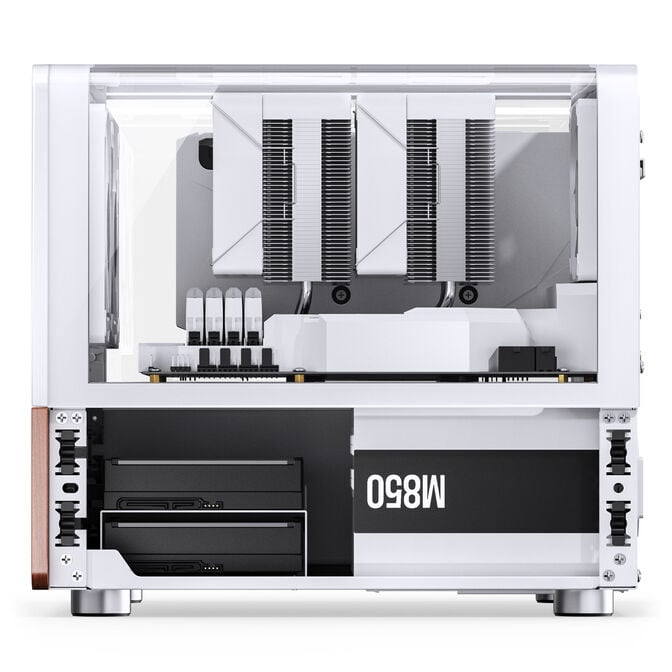

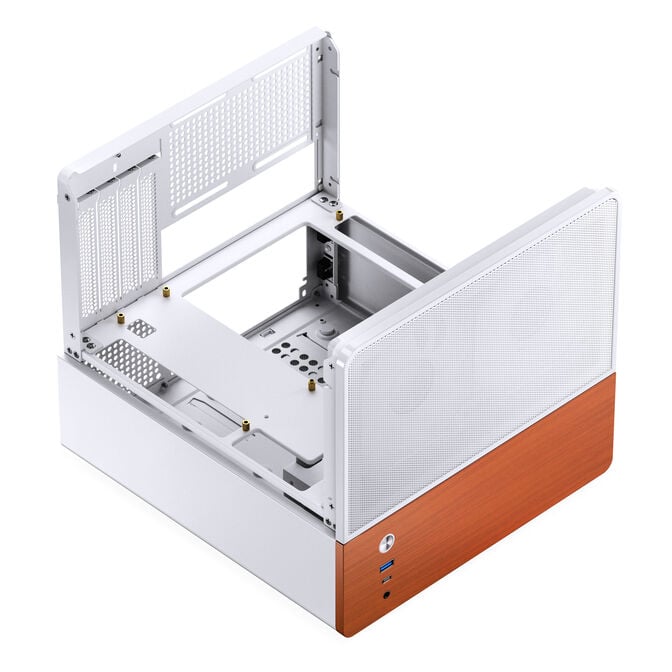

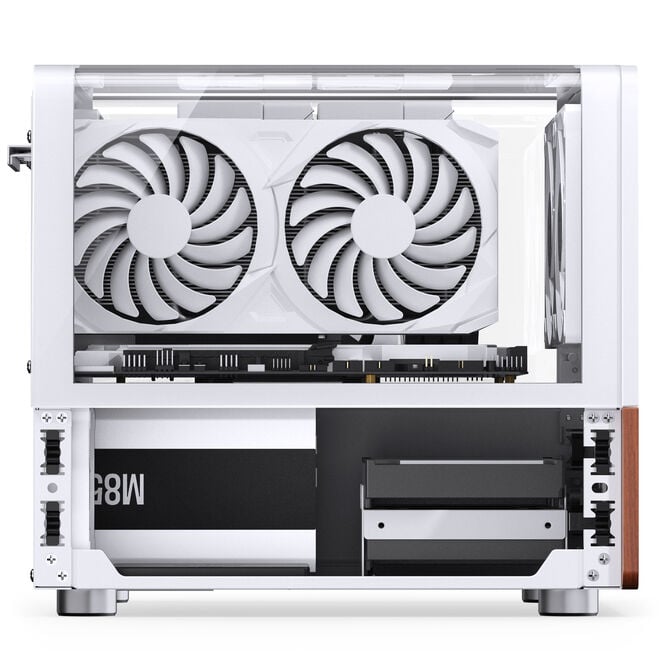

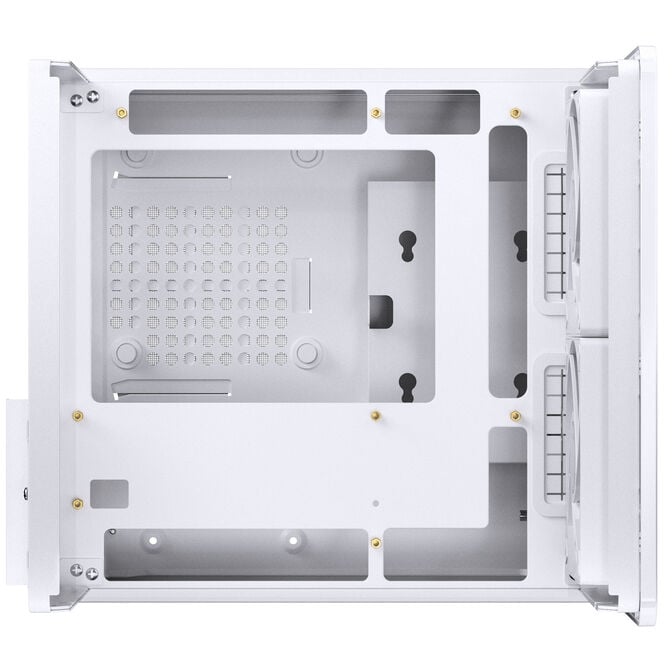

The mini tower supports the installation of Micro-ATX sized motherboards. The CPU cooler should not exceed a height of 145 mm. The graphics card can be up to 260 mm long. To store programs and games, up to three drives can be installed.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
301 mm
|
|
Width
|
280 mm
|
|
Height
|
275.5 mm
|
|
Weight
|
5.52 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
140 mm
|
|
Max. GPU Length
|
260 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (2x)
|
|
Case Fan Support (Rear)
|
80mm Fan (1x), 92mm Fan (1x)
|
|
Max. Number of Fans
|
4
|
|
80 mm fans
|
1
|
|
92 mm fans
|
1
|
|
120 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
no
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
3
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|

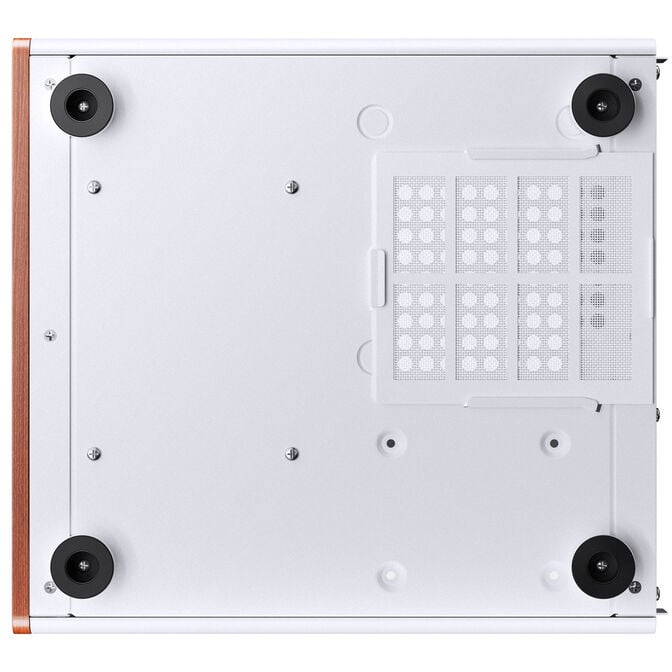

Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
SGCC (Steel), Tempered Glass, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
2x 120 mm
|
