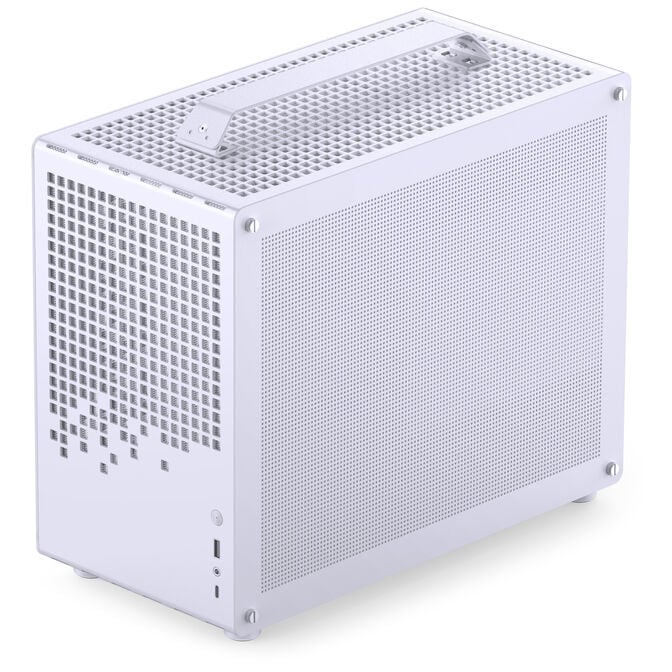

Jonsplus Z20 Mesh PC case, Mini Tower, Micro-ATX, with carrying handle - white

Jonsplus Z20 Mesh PC case, Mini Tower, Micro-ATX, with carrying handle - white

(4 Ratings)
Compact gaming case made of high-quality steel, for SFX/ATX PSUs, for Mini-ITX/Micro-ATX motherboards, GPU up to 363 mm and 3x 2.5-inch drives
84,90 €
In Stock
Incl. VAT, incl. delivery costs
In Stock
SKU GEJP-023 |
EAN 6970620554723 |
MPN Z20 MESH WHITE |

The Jonsbo Z20 Mesh is a stylish and functional Micro-ATX case designed specifically for PC enthusiasts who value a compact design and optimal cooling. With its mesh front and side panel, it offers excellent airflow.

  • Mesh front and side panel allows for optimal cooling
  • Compact dimensions, including a carry handle - perfect for transport
  • Supports graphics cards up to 363 mm in length for high-end GPUs
  • USB 3.2 Gen 2 Type-C port on the front for fast data transfer
  • Compact size saves space without compromising performance

Efficient Cooling and Modern Design

The Z20 Mesh has been specifically designed for top-notch airflow, ensuring efficient cooling of your components. Thanks to the thoughtfully designed mesh panels and optimised airflow, your PC system remains cool and powerful even under heavy load.

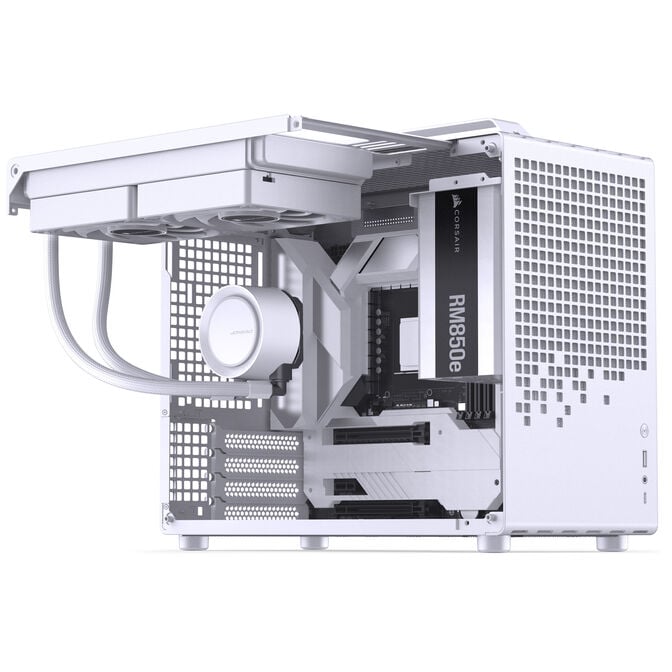

Additionally, benefit from high compatibility in a compact build. The case accommodates large GPUs, powerful cooling systems, and cable management – without appearing bulky.

Versatile Compatibility and Easy Installation

This case supports both Mini-ITX and Micro-ATX motherboards and offers flexible mounting options for various hardware configurations. The well-thought-out interior design facilitates installation and cable management.

User-Friendly Front Connectors

With a USB 3.1 Type-C port, a USB 3.1 Type-A port, and audio and microphone jacks on the front, the Z20 Mesh provides quick and convenient access to essential interfaces for your peripherals.

The integrated carry handle makes the Z20 Mesh perfect for easy transport – ideal for LAN parties, events, or flexible setups.

Colour
Primary Colour
White
Dimensions
Length / Depth
382 mm
Width
198 mm
Height
335 mm
Weight
6.5 kg
Case
Case Type
Mini Case
Motherboard Support
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Max. Motherboard Format
Micro-ATX
Internal Dimensions
Max. CPU Cooler Height
164 mm
Max. GPU Length
363 mm
Max. PSU Length / Depth
180 mm
Display
Display Included
No
Power Supply
PSU included
No
PSU Format
ATX, SFX, SFX-L
Power Supply Position
front
Cable Specifications
Riser Cable Included
No
Fan Support
Case Fan Support (Bottom)
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support (Rear)
120mm Fan (1x), 92mm Fan (1x)
Case Fan Support (Top)
120mm Fan (2x), 140mm Fan (2x)
Max. Number of Fans
5
92 mm fans
1
120 mm fans
5
140 mm fans
4
Radiator Support
Max. Radiator Compatibility
1x Dual (240 mm)
Radiator/AIO Support (Top)
240mm Radiator
Drive Bays
Max. 2.5 Inch Drives
3
Max. 3.5 Inch Drives
1
Max. 5.25 Inch Drives
0
2.5 inch internal drive bay
3
3.5 inch internal drive bay
1
Hot swap drive bays
No
External Ports
Front I/O – USB Type C Ports Total
1
Front I/O – USB Type A Ports Total
1
USB 3.2 (external) Type C
1
USB 3.0 (external) Type A
1
Audio outputs & inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position
Front
Side panel
with mesh
Vertical GPU Mount
No
Adjustable Vertical GPU Bracket
No
Front door
No
Cable Management
Yes
Filters Included
No
Noise dampening
No
Mainboard slide / tray
No
Transport System
Yes
Back Connect
Back Connect
No
Expansion Slots
Expansion slots / PCI slots
4
Features
Housing Feedthrough
No
Connectivity
Card reader
No
Fan Header
Fan Controller / Fan Hub
No
Mounting
Case VESA Mountable
No
Internal Monitor Mount
No
Materials
Materials
SPCC (steel)
Lighting
Lighting / RGB
No
Additional Contents
Fans Included
No
Included fans
None
