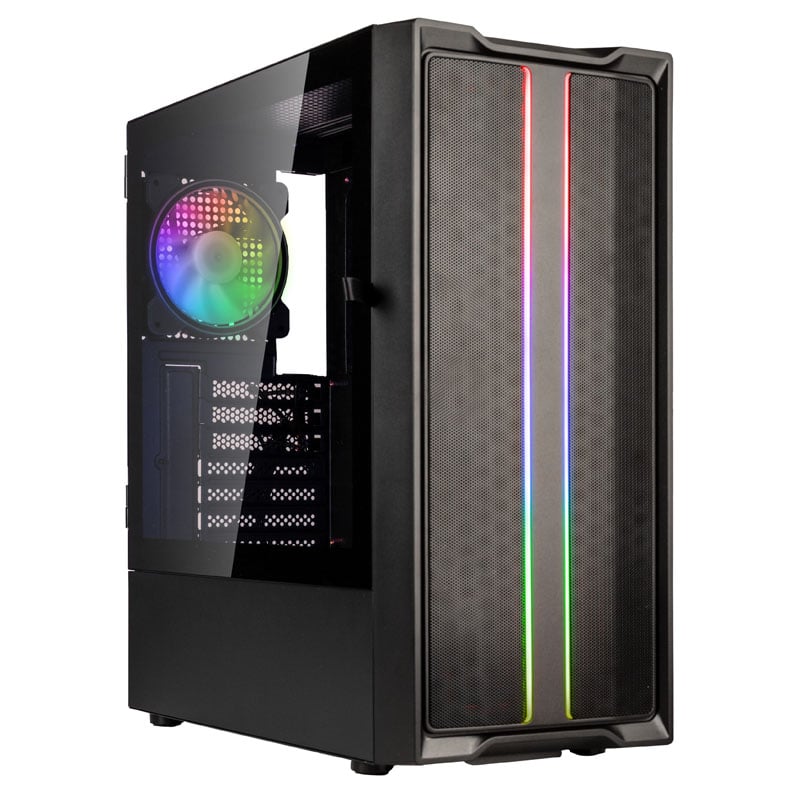

Kolink Inspire K12 ARGB Mid Tower - Black
- Mid-tower PC case with mesh front panel and ARGB LED strips
- Support for up to ATX motherboards and 330 mm long GPUs
- One pre-installed Kolink Umbra S ARGB/PWM 120 mm fan
- Accommodates up to four storage drives
- Magnetic, hinged tempered glass half panel for easy access
- Fully featured I/O panel including USB 3.1
The Kolink Inspire K12 for Stylish Gaming Setups
With the Kolink Inspire K12 Mid-Tower PC Case, you no longer have to choose between aesthetics and airflow. This chassis is the first from the Kolink Inspire Series to integrate both ARGB lighting and airflow features into one model.
Enjoy vibrant lighting from the pre-installed Kolink Umbra S ARGB/PWM 120 mm fan and the two LED strips illuminating the front mesh panel. Plus, with support for up to ATX motherboards, 330 mm long GPUs, and water-cooling systems, this PC case is perfect for housing powerful gaming hardware.
Inspirational Aesthetics

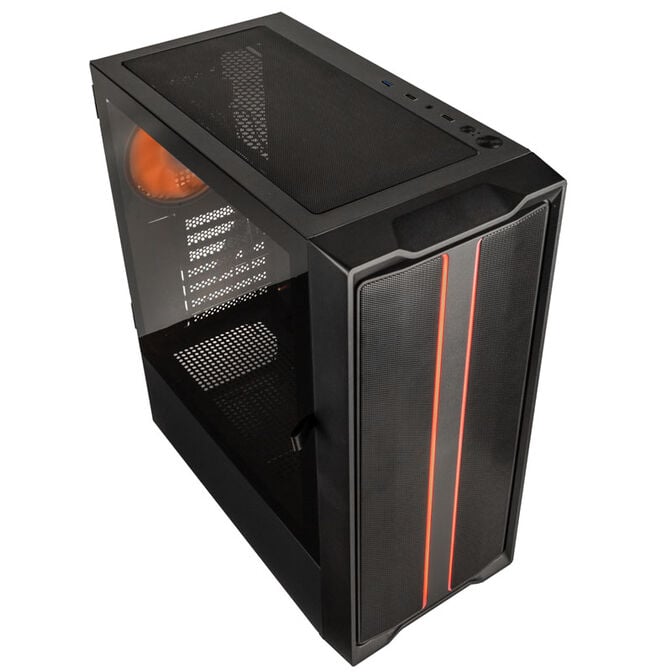

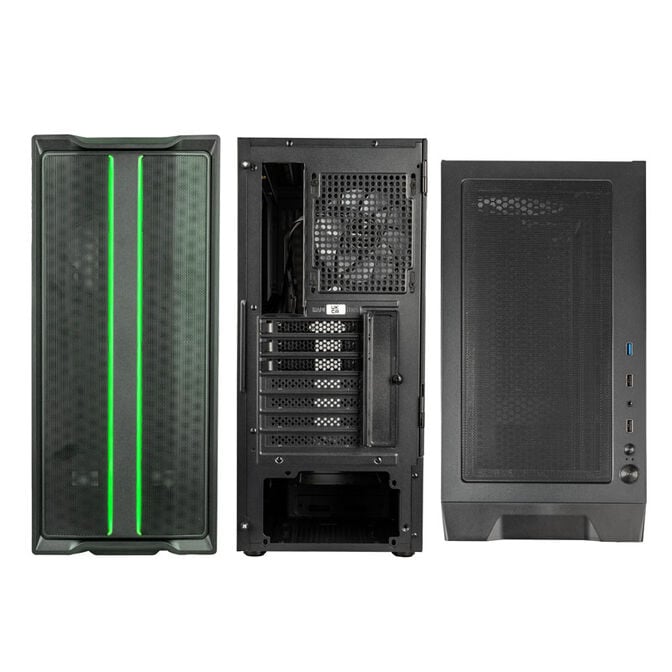

The Kolink Inspire Series is known for its bold aesthetics, bright RGB lighting, and all-around stylish good looks. The Kolink Inspire K12 Mid-Tower PC Case fits the trend, but is the first of the series to focus on airflow in equal measure. The front panel features mesh panelling, accented by two ARGB LED strips. This lighting is paired with a pre-installed Kolink Umbra S ARGB/PWM 120 mm fan, mounted upon the back panel. Both these devices can be synced and controlled utilising the reset button or compatible motherboard software.

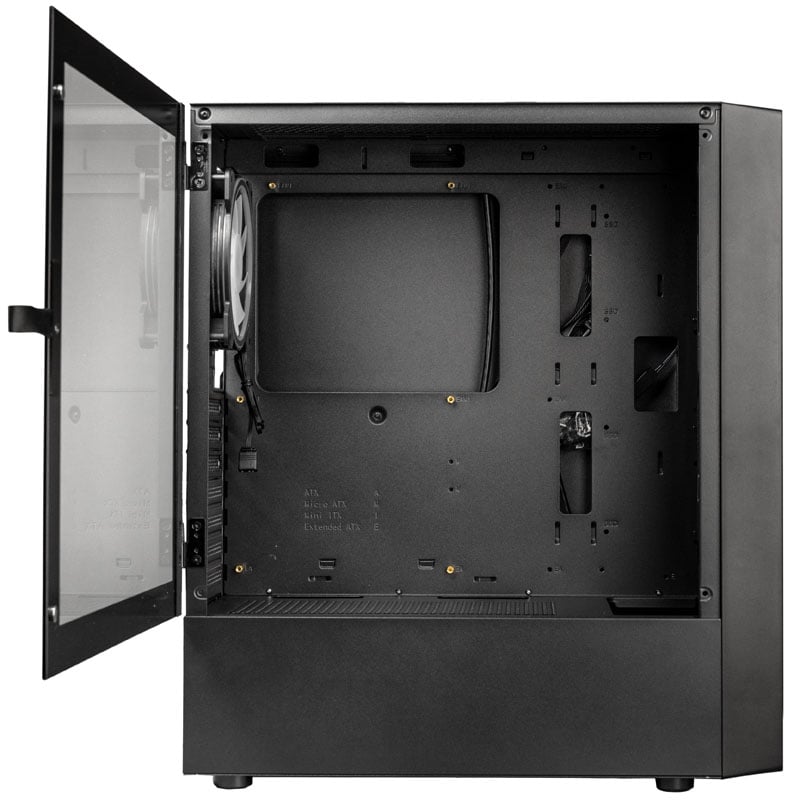

Forming the perfect backdrop to this lighting is the classic matte black finish on the metal frame. To showcase your high-end hardware, the Kolink Inspire K12 has a half-panel tempered glass door, hinged for easy access and held in place with magnets instead of screws. This panel is also tinted, for a sophisticated finish.
Inspired Airflow

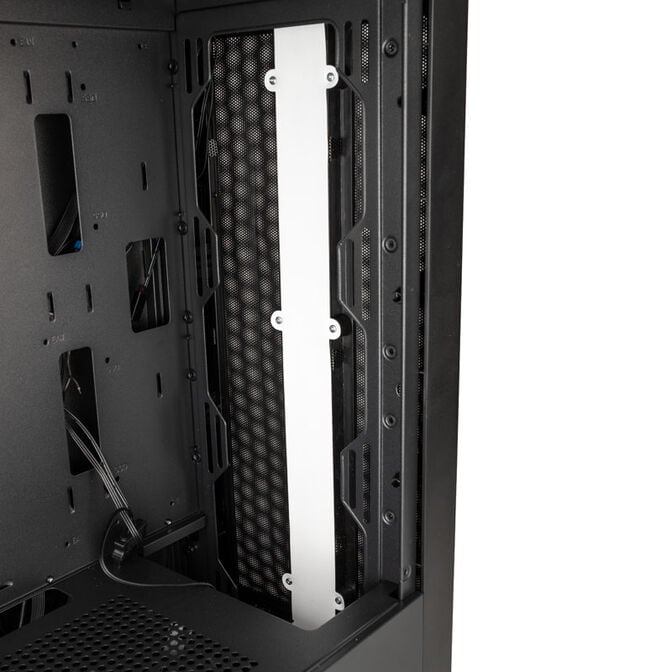

In addition to the mesh panelling, the Kolink Inspire K12 has extensive support for both air and water-cooling, as well as a fully ventilated PSU shroud. The front panel can support either three 120mm or 140mm fans. Alternatively, radiators up to 360mm long can be mounted here instead.

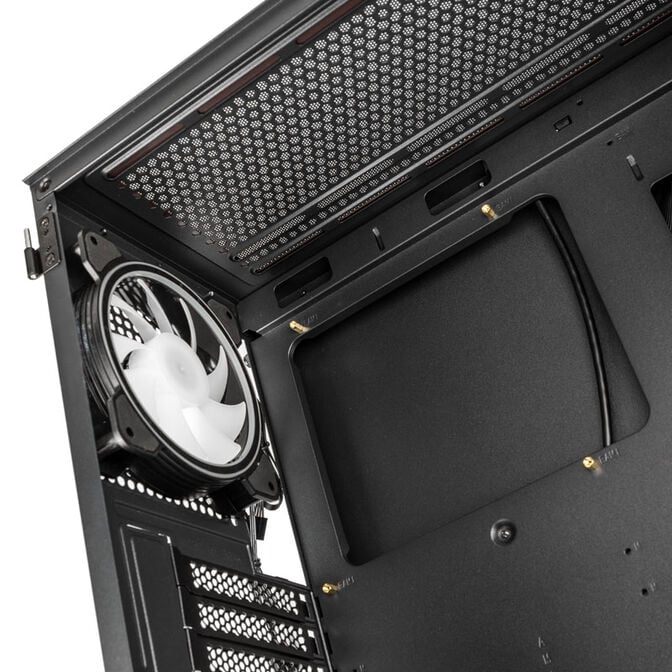

Upon the ceiling there is space for two fans of either size or a slim 240 mm radiator, and smaller. The pre-installed 120 mm fan rests on the rear panel and can be replaced with a radiator of the same size. What’s more, there are two 120 mm fan mounts on the PSU shroud, to further enhance the cooling in that secondary chamber. Finally, there is clearance for CPU coolers up to 160mm tall.
Hardware Inspo

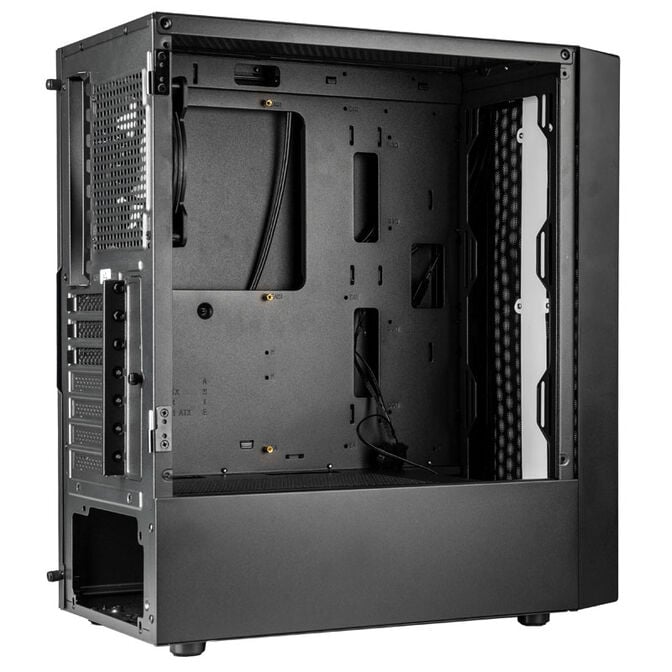

The Kolink Inspire K12 is more than just a beautiful PC case. This chassis is intelligently designed to support an astounding range of gaming hardware. The backplate can accommodate motherboards in ATX, Micro-ATX, and Mini-ITX form factors, with seven PCIe expansion slots on the rear panel. There is clearance for GPUs up to 330 mm in length, ensuring the chassis compatible with a wide selection of graphics cards that are currently available. The ventilated PSU shroud has space for power supplies up to 180 mm long.

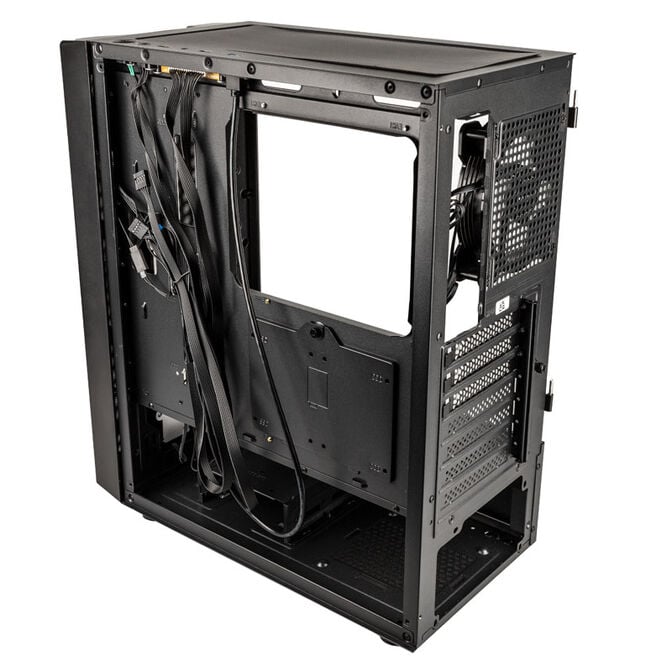

For storage, up to four drives can be installed within the Kolink Inspire K12. There are two brackets that can support either 2.5" SSDs or 3.5" HDDs, as well as two removeable SSD trays on the back of the motherboard plate. This allows for a flexible storage solution that is both fast and has ample capacity.
Inspire Functionality

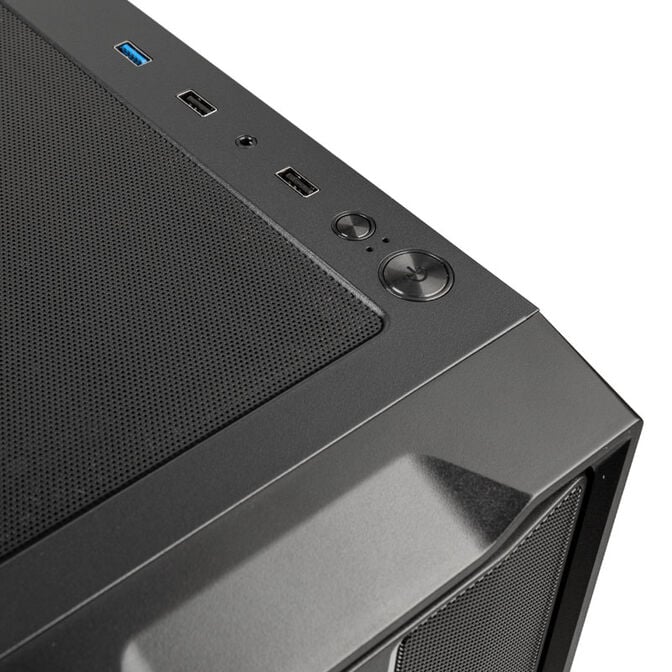

To make cable management easier, the Kolink Inspire K12's I/O panel is mounted on the side. This allows for better cable routing to the motherboard. This I/O panel includes two USB 2.0 and one USB 3.1 port, along with an HD audio jack.
Helping to prevent dirt build up, the Kolink Inspire K12 Mid-Tower PC Case is equipped with two dust filters. The first is located on the top panel and is magnetic, to enable you to easily remove and clean the filter. The second dust filter is found at the bottom of the chassis.
Technical Details:
- Dimensions: 200 x 440 x 350 mm (W x H x D)
- Material: Steel, Tempered Glass, PVC, ABS
- Weight: 4.58 kg
- Colour: Black
- Formfactor: ATX, Micro-ATX, Mini-ITX
- Fan Support:
Front: 3x 120 / 140 mm
Top: 2x 120 / 140 mm
Rear: 1x 120 mm
PSU Shroud: 2x 120 mm - Pre-installed:
Rear: 1x 120 mm - Radiator Mountings:
Top: 1x max. 280 mm
Front: 1x max. 360 mm - Drive Bays:
2x 3,5" / 2,5"
2x 2,5" (Motherboard backplate) - PCI slots: 7
- I/O Panel:
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 2.0 (Type A, max. 480 Mbit/s)
1x 3,5 mm HD-Audio
1x Power Button
1x Reset / LED Button - GPU Clearance: 330 mm
- CPU Cooler: Up to 160 mm
- PSU: max. 180 mm clearance
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Transparent
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
350 mm
|
|
Width
|
200 mm
|
|
Height
|
440 mm
|
|
Weight
|
4.58 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
330 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
8
|
|
120 mm fans
|
8
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (280 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type A Ports Total
|
3
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 2.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, Metal, PVC, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 120 mm
|
