- Mid-tower PC case with mesh front for excellent airflow
- Six pre-installed Kolink Umbra ARGB 120mm and 140mm fans
- Extensive hardware support with ATX motherboards and 330mm GPUs

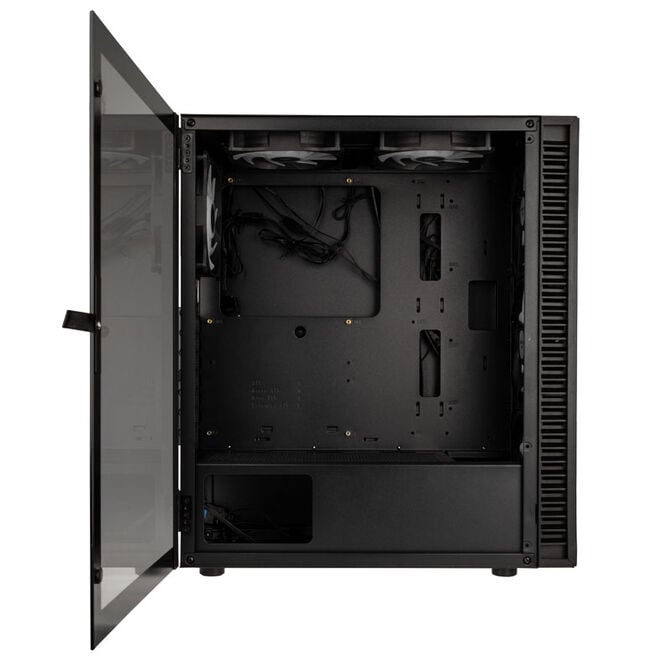

- Tempered glass side panel, hinged and with magnetic closure
- Integrated cable management for clean builds
- Available in black or white

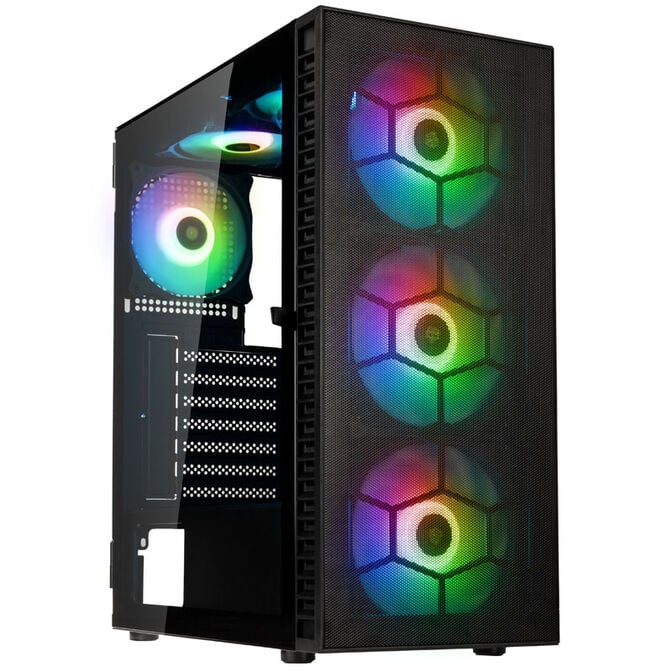

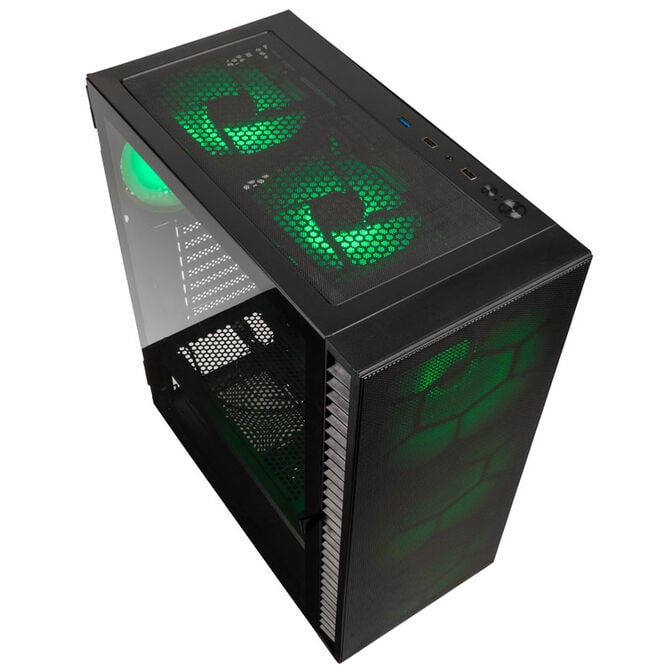

The stylish Observatory HF Mesh ARGB Mid-Tower
Enhance your gaming aesthetic with the Kolink Observatory HF Mesh ARGB PC case. This mid-tower features six Kolink Umbra ARGB fans and offers plenty of space for your high-end hardware. Colourful and functional! Thanks to integrated ventilation and dust filters, this PC case provides natural airflow that keeps your hardware components cool.

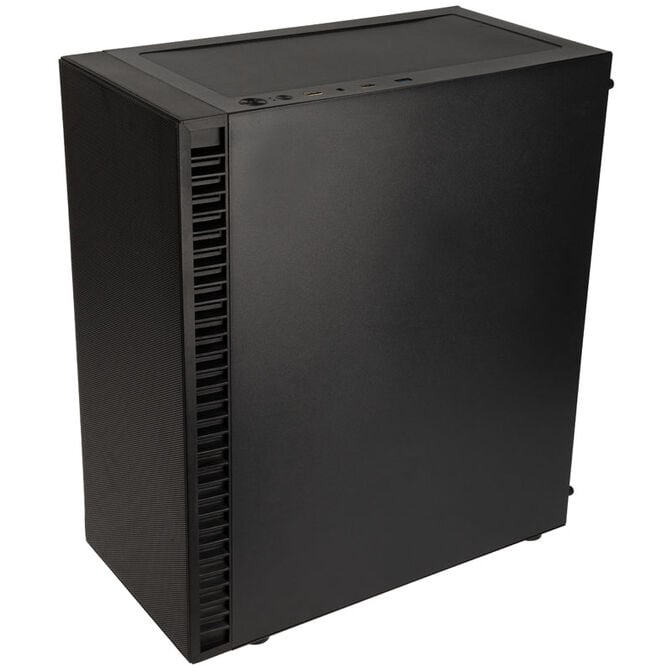

The Kolink Observatory HF Mesh ARGB PC case is made from a combination of high-quality materials. The chassis is constructed from 0.5 mm SPCC steel, while the paneling consists of either glass or flat metal. There are two Observatory HF models, both available in black or white. This is the glass edition with a mesh front surrounded by a black panel, providing enhanced airflow.
Additionally, the Kolink Observatory HF Mesh ARGB adds colourful accents with six pre-installed ARGB fans inside the case. These fans can be controlled via the reset button.
Extensive hardware support

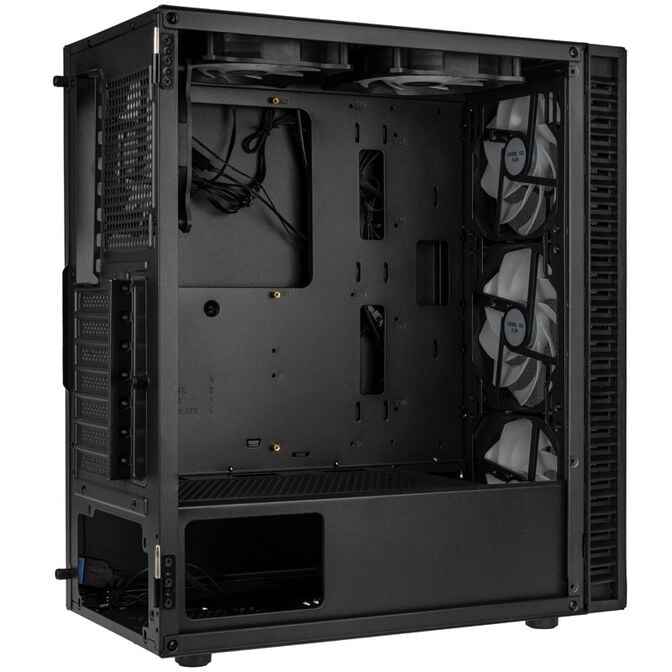

The Kolink Observatory HF Mesh ARGB PC case is intelligently designed to support a wide range of gaming hardware. This case can accommodate Mini-ITX, Micro-ATX, and ATX motherboards and features seven expansion slots at the rear to support PCIe cards. There is 330 mm of space for GPUs, making this case compatible with a large selection of currently available graphics cards.
Furthermore, there is a dedicated PSU cover that fits ATX power supplies up to 180 mm in length. Next to it is a drive cage for 2.5-inch or 3.5-inch drives. On the rear of the motherboard tray, there are also four drive bays. Two of these can be used for either 2.5-inch or 3.5-inch drives, while the other two are exclusively for 2.5-inch SSD drives.
Elite-class cooling

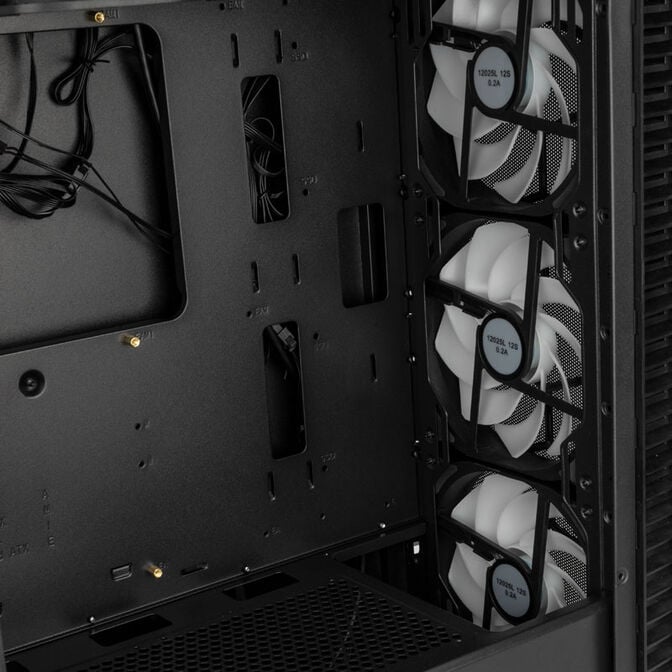

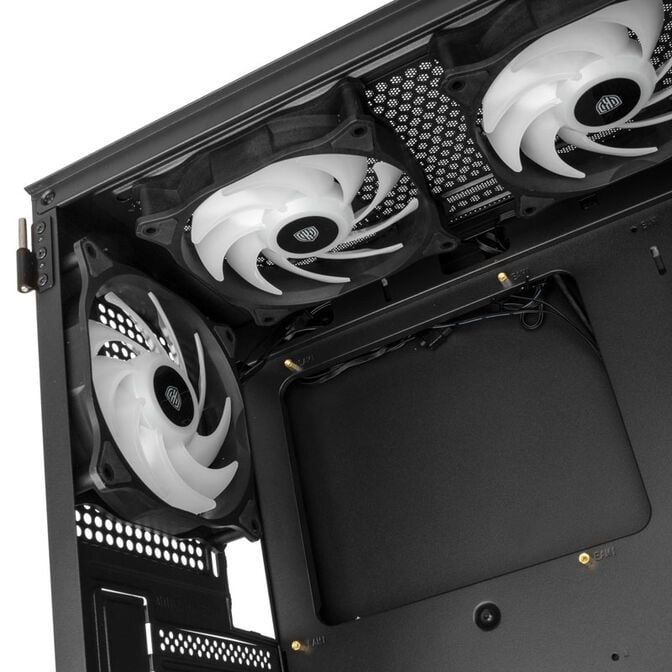

The Kolink Observatory HF Mesh ARGB mid-tower comes equipped with six pre-installed Kolink Umbra ARGB fans, both 120 mm and 140 mm models. Three 140 mm fans are mounted at the front, while two 120 mm fans are installed at the top and a single fan at the rear. The fan lighting can be controlled either via the integrated RGB button on the I/O panel or through one of the 140 mm fans connected to the motherboard via a 5V 3-pin adapter.
Alternatively, up to three 120 mm fans can be installed at the front, while two 140 mm fans can be fitted to the top panel. Additionally, there are slots for two 120 mm fans on the PSU cover, allowing direct cooling of the PSU chamber and the graphics card.
For those who prefer water cooling, radiators can be installed instead of fans at the front or rear. The front supports a 360 mm radiator, while the rear fits a 120 mm model. Finally, there is space for CPU coolers up to 160 mm in height.
For clean builds

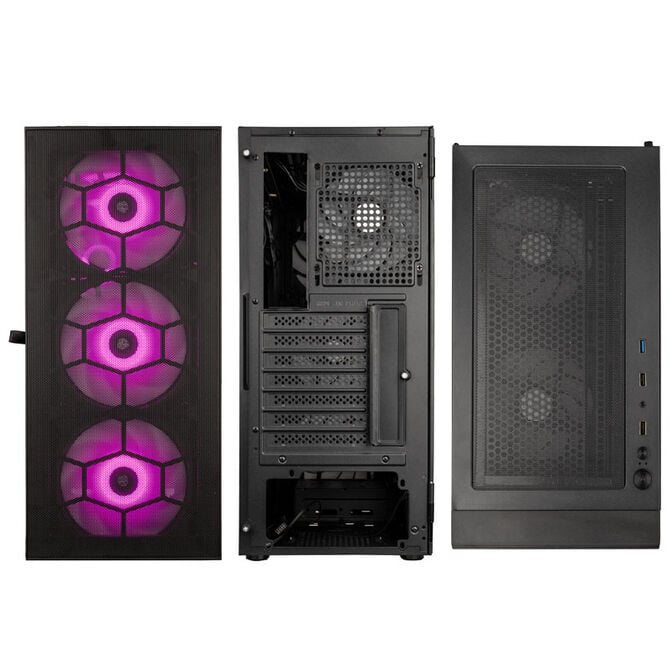

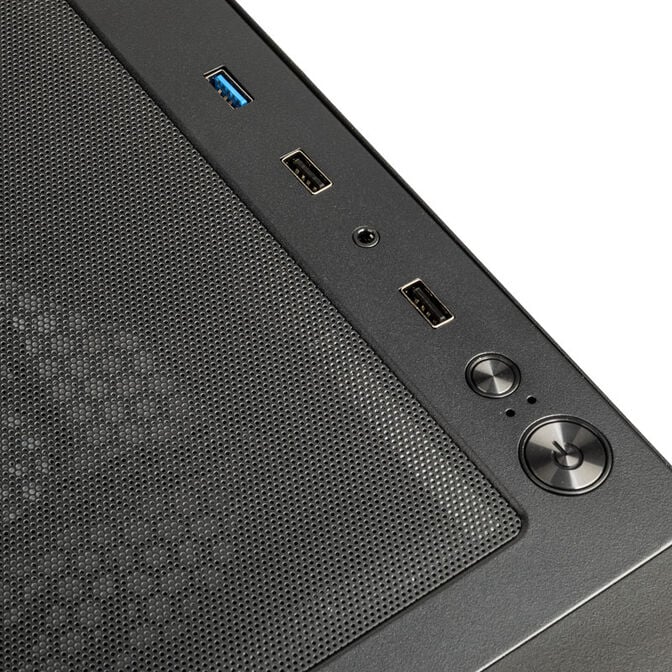

To offer you a variety of connectivity options, the Kolink Observatory HF Mesh ARGB mid-tower features an extensive I/O panel. It provides one USB 3.0, two USB 2.0, and one HD audio port, as well as fan control and a reset button.

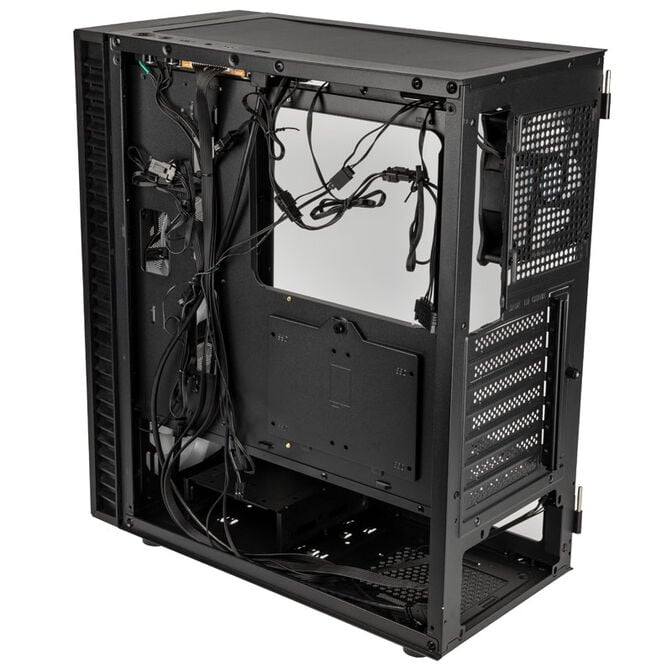

Inside, the Kolink Observatory HF Mesh ARGB includes integrated cable management. The motherboard backplate has intelligently placed cutouts that make cable routing a breeze and keep your gaming PC looking neat and tidy.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Transparent
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
390 mm
|
|
Width
|
200 mm
|
|
Height
|
449 mm
|
|
Weight
|
6.2 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
330 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
8
|
|
120 mm fans
|
8
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
4
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type A Ports Total
|
3
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm, 3x 140 mm
|
