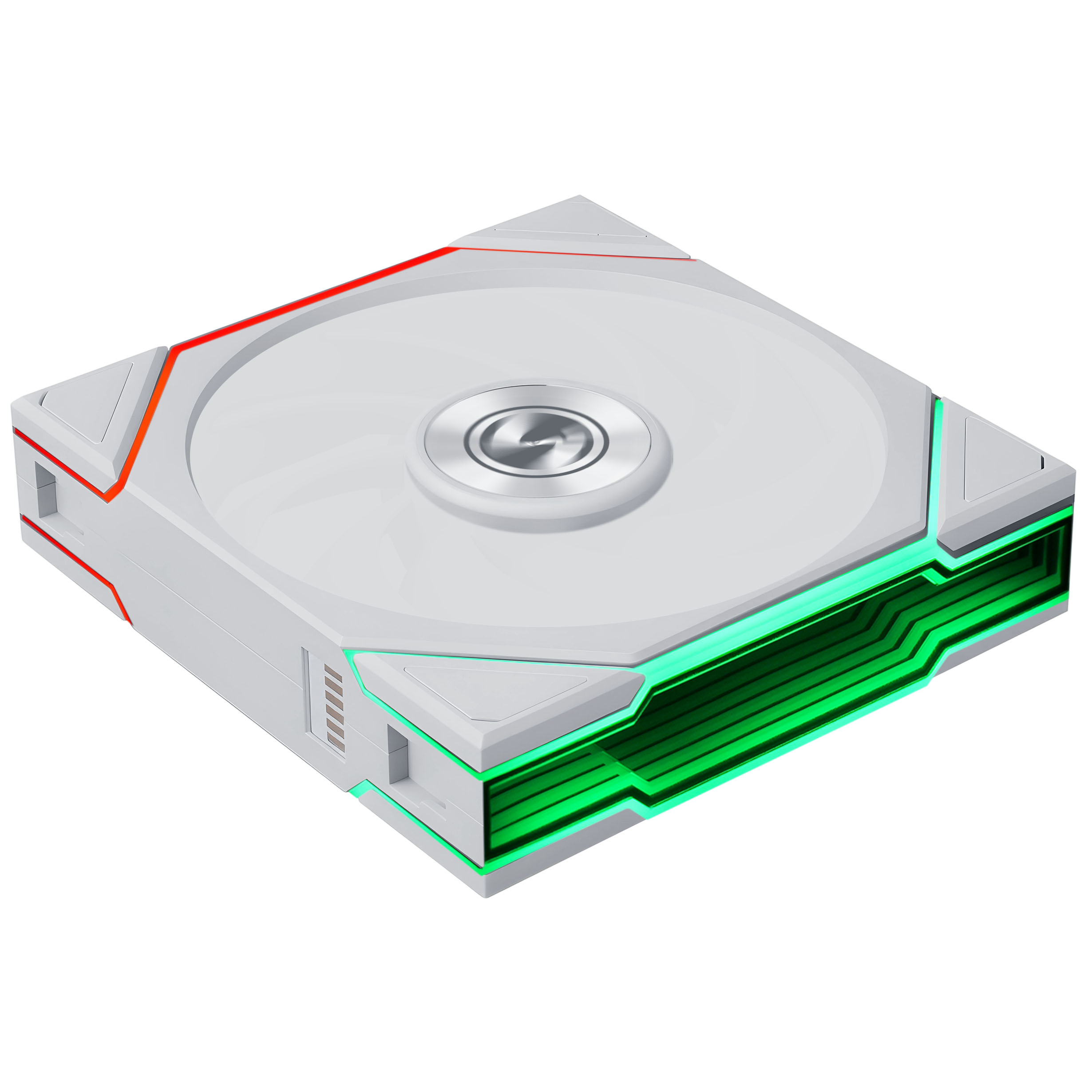

The Lian Li UNI FAN TL FLEX Wireless Reverse Blade 120 mm combines high cooling performance with easy installation and striking lighting. Thanks to the reverse blade design, it is especially suitable for builds where the illuminated fan side should remain visible. Various control and lighting options are available via the FLEX Receiver.
- 120 mm PWM fan: Up to 141.7 m³/h airflow and 2.66 mmH₂O static pressure
- Reverse Blade: Optimised for visible fan side with unchanged airflow
- Daisy-chain system: Multiple fans can be connected directly to each other
- FLEX Receiver: Supports PWM, ARGB, USB and 2.4 GHz wireless
- ARGB lighting: With infinity mirror for depth effects
- L-Connect 3: Control fan speed and lighting via software
Lian Li UNI FAN TL FLEX Reverse Blade: Perfect for cases, CPU coolers and radiators
With an airflow of up to 141.7 m³/h and a static pressure of 2.66 mmH₂O, the Lian Li UNI FAN TL FLEX Wireless Reverse Blade is suitable for various applications. It supports airflow inside the case as well as cooling for CPU coolers or water cooling radiators. The PWM control automatically adjusts the speed according to the current load.

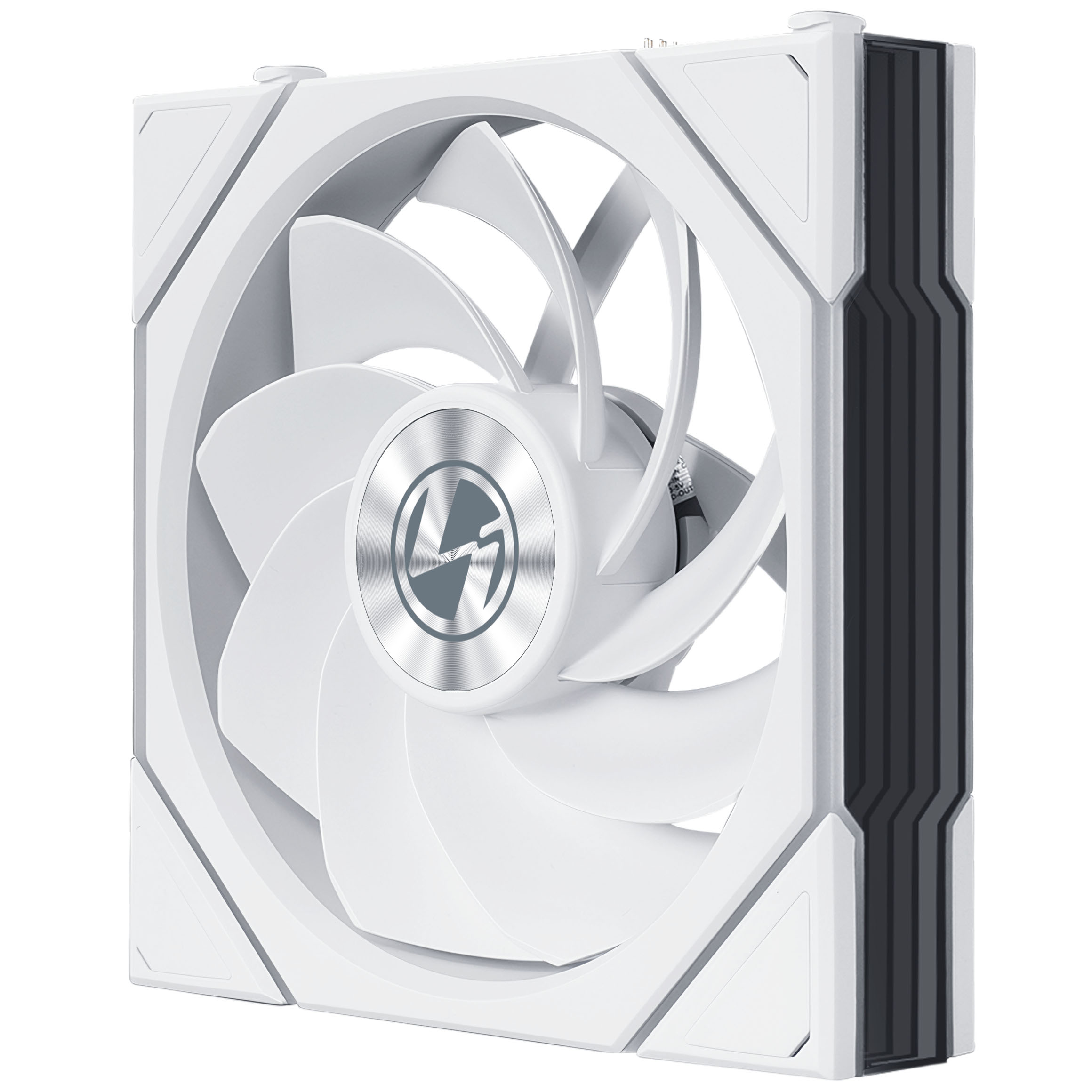

Fewer cables, more space in your system
The daisy-chain system allows multiple fans to be connected directly to each other. This reduces the number of individual cables needed and makes installation significantly easier. It saves time during assembly and ensures better cable management inside the case.
Each fan comes with a FLEX Receiver. It supports various connection options such as PWM, 3-pin ARGB, USB and a 2.4 GHz wireless connection. This lets you decide which control method best suits your system.
Control with L-Connect 3
In combination with L-Connect 3, fan speed and lighting can be conveniently managed. Multiple connected UNI FAN TL FLEX fans can also be configured together and tailored to your requirements.

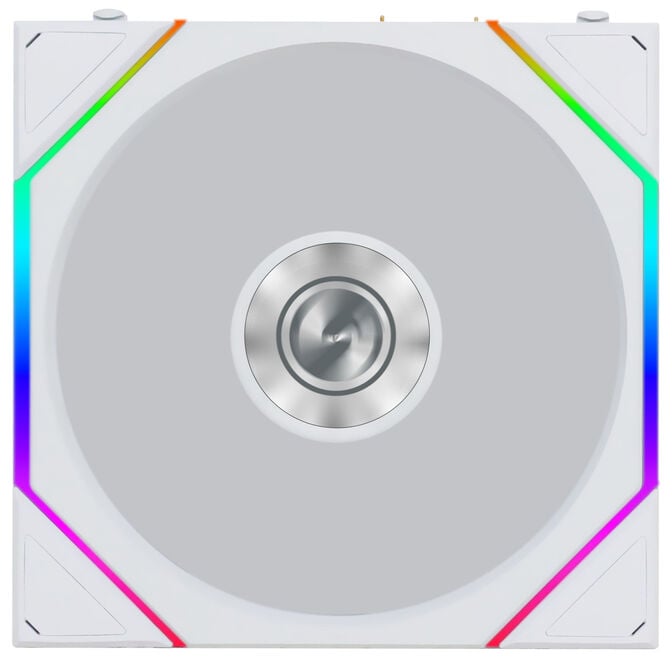

ARGB lighting with infinity mirror
- Addressable ARGB LEDs
- Infinity mirror for depth effect
- Light strips along the frame
- Compatible with common ARGB control systems
The ARGB lighting runs along the outer edge of the fan and also highlights the infinity mirror elements. This makes the fan appear different from various angles and is especially well suited for systems with a windowed side panel.
For gaming PCs and custom builds
The Lian Li UNI FAN TL FLEX Wireless Reverse Blade 120 mm combines high cooling performance with flexible control and a striking look. The reverse blade design is especially suitable for systems where the illuminated fan side should remain visible. Thanks to the combination of PWM control, daisy-chain system and ARGB lighting, it is ideal for gaming PCs as well as custom builds focusing on cooling and design.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
124 mm
|
|
Width
|
120 mm
|
|
Fan height
|
28 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Fan Specifications
|
|
|
Fan Design
|
Individual Fan
|
|
Fan Size
|
120 mm
|
|
Fan mounting size
|
120 mm
|
|
Fan Blade Direction
|
Reverse
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
200 rpm
|
|
Max. Fan RPM
|
2300 rpm
|
|
Max. Single Fan Airflow
|
83.4 cfm
|
|
Max. Static Pressure
|
2.66 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
13.2 V
|
|
Starting voltage
|
6 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
34 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Materials
|
|
|
Materials
|
LCP (Liquid Crystal Polymer), PA66
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
UNI FAN TL FLEX
|
