The Lian Li UNI FAN TL LCD FLEX Wireless 120 mm combines high cooling performance with easy installation and striking lighting effects. Additionally, the fan features a 1.8-inch LCD display in the hub, which can show system information, images, or animations. The FLEX Receiver offers various options for control and lighting.
- 120 mm PWM fan: Up to 112.1 m³/h airflow and 2.7 mmH₂O static pressure
- 1.8-inch LCD: For system information, images and animations
- Daisy-chain system: Multiple fans connected directly to each other
- FLEX Receiver: Supports PWM, ARGB, USB, and 2.4 GHz wireless
- ARGB lighting: With infinity mirror on both sides of the frame
- L-Connect 3: Software control of fan speed, lighting, and LCD
Lian Li UNI FAN TL LCD FLEX Fans: Perfect for Cases, CPU Coolers and Radiators
With an airflow of up to 112.1 m³/h and a static pressure of 2.7 mmH₂O, the Lian Li UNI FAN TL LCD FLEX Wireless is suitable for various applications. It supports airflow inside the case as well as cooling for CPU coolers or water cooling radiators. The PWM control automatically adjusts the fan speed according to the current load.
Fewer Cables, More Space in Your System
The daisy-chain system allows multiple fans to be connected directly to each other. This reduces the number of individual cables needed and makes installation much easier. It saves time during assembly and ensures a tidier case interior.
Each fan comes with a FLEX Receiver. It supports various connection options such as PWM, 3-pin ARGB, USB, and a 2.4 GHz wireless connection. This lets you choose the control method that best suits your system.
Control with L-Connect 3
Using L-Connect 3, you can conveniently manage fan speed, lighting, and the 1.8-inch LCD. Multiple connected UNI FAN TL LCD FLEX fans can also be configured and customised together.
ARGB Lighting with Infinity Mirror and LCD
- Addressable ARGB LEDs
- Infinity mirror for depth effect

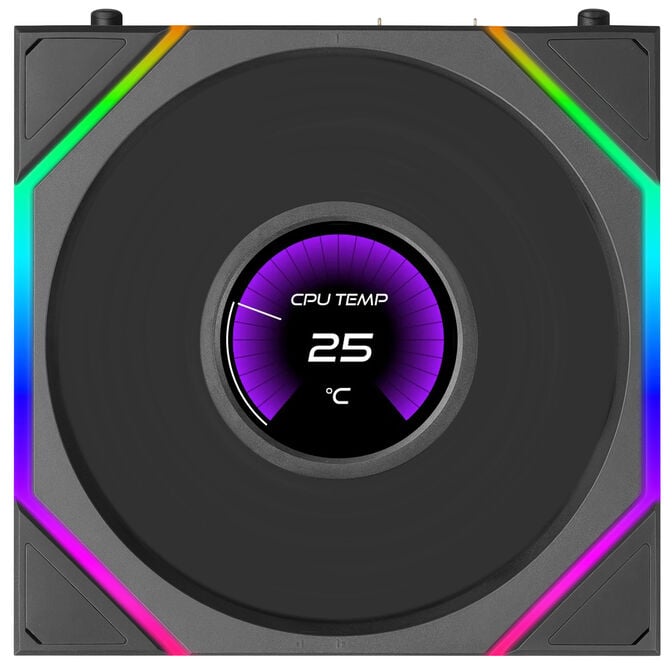

- 1.8-inch LCD in the fan hub
- Compatible with common ARGB control systems
The ARGB lighting runs along the outer edge of the fan and highlights the infinity mirror elements. The integrated LCD in the fan hub can be personalised via L-Connect 3 with system information, images, or animations.
Note on the Scope of Delivery
The package includes only the Lian Li FLEX Receiver. A separate controller is not included and is available separately if needed.
For Gaming PCs and Custom Builds
The Lian Li UNI FAN TL LCD FLEX Wireless 120 mm combines high cooling performance with flexible control, an integrated LCD, and eye-catching aesthetics. Thanks to the combination of PWM control, daisy-chain system, ARGB lighting, and LCD, it is suitable for gaming PCs as well as custom systems focused on cooling and design.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
124 mm
|
|
Width
|
120 mm
|
|
Fan height
|
28 mm
|
|
Display
|
|
|
Display Included
|
Yes
|
|
Fan Specifications
|
|
|
Fan Design
|
Individual Fan
|
|
Fan Size
|
120 mm
|
|
Fan mounting size
|
120 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
350 rpm
|
|
Max. Fan RPM
|
1900 rpm
|
|
Max. Single Fan Airflow
|
66 cfm
|
|
Max. Static Pressure
|
2.7 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Starting voltage
|
6 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
26 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), USB
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Materials
|
|
|
Materials
|
PA66, PBT
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
UNI FAN TL FLEX
|
