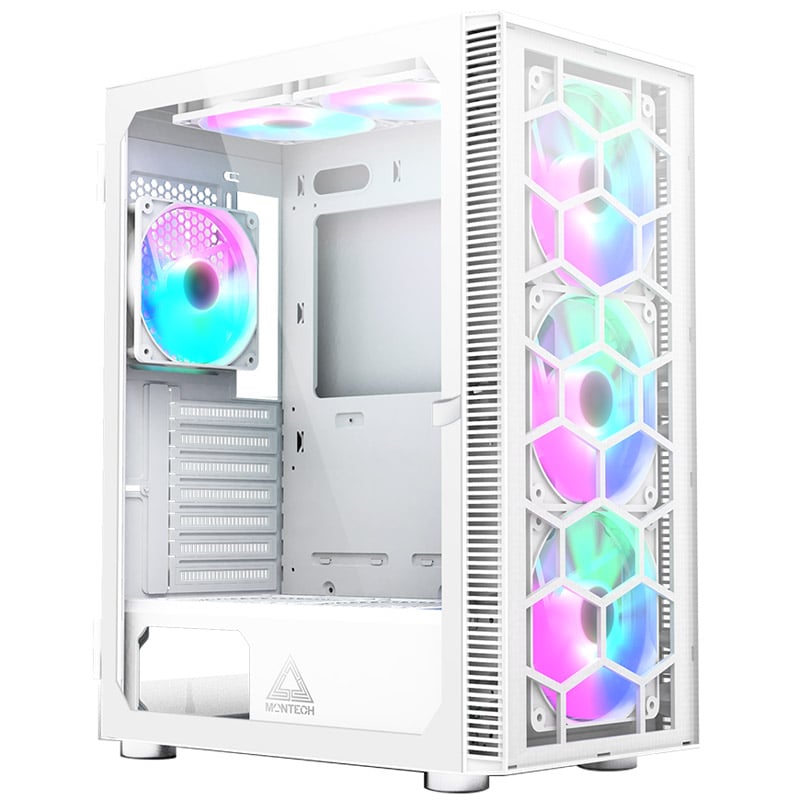

Montech X3 Glass PC Case, Mid Tower, ATX, RGB, Tempered Glass - White
- Midi tower with front panel made of tempered glass
- Supports motherboards up to ATX size and GPUs up to 305 mm in length
- Three 140 mm and three 120 mm fans pre-installed, up to eight possible in total
- Space for up to four drives
- Side panel made of tempered glass with hinges

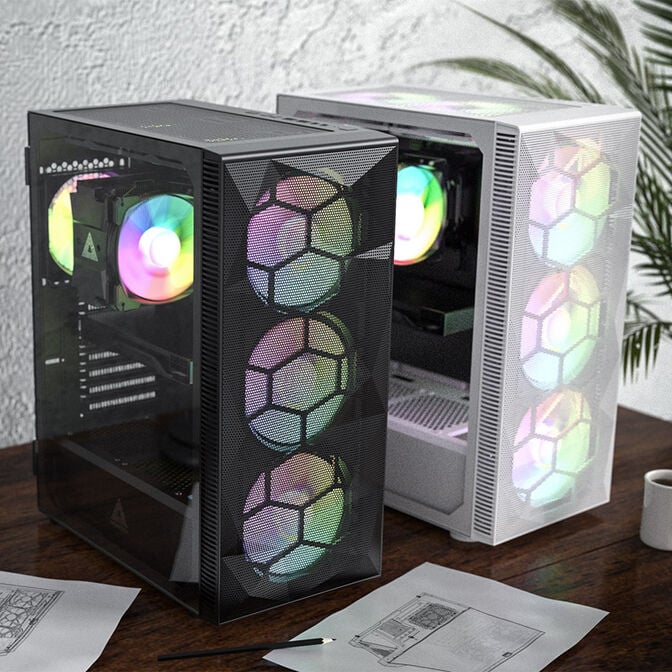

The Montech X3 Mesh Midi Tower: The perfect entry point for your gaming setup
The midi tower Montech X3 Mesh is the ideal foundation for your custom-built gaming PC. The case comes factory-equipped with excellent air cooling, allowing you to focus on installing your preferred gaming hardware. At the same time, it is expandable so you can tailor it to your very own gaming setup. Plus, it looks absolutely great, thanks in part to the hinged tempered glass side panel.
Well cooled straight from the factory
The six pre-installed fans provide plenty of airflow within the case, further supported by the side air intakes on the front panel. Three 140 mm fans are installed there. Under the top panel, there are two additional 120 mm fans and a third one at the rear. Two more 120 mm fans can be installed on the PSU cover, where they can help cool the graphics card. The CPU cooler can be up to 160 mm in height.

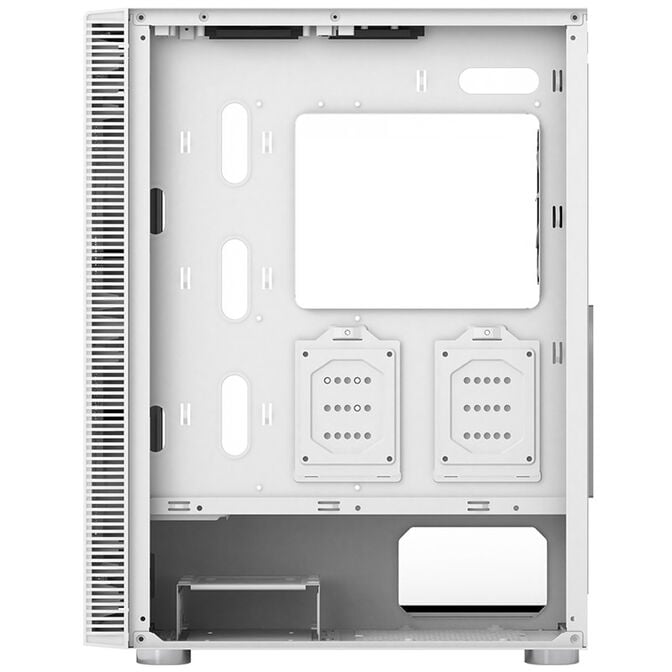

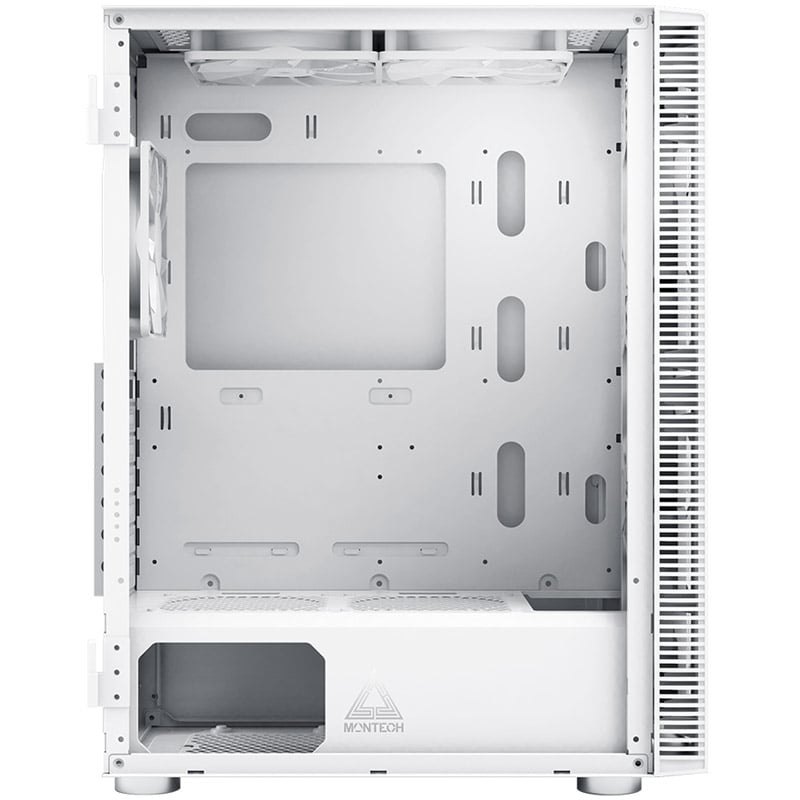

The Montech X3 Mesh offers ample space for advanced gaming hardware. It supports motherboards up to the ATX form factor. Graphics cards mounted on these can be up to 305 mm long. Power supplies up to 160 mm in length fit under the PSU cover. There is also a drive cage there where you can install either two HDDs or SSDs. Additionally, two SSDs can be mounted on the rear of the motherboard tray.

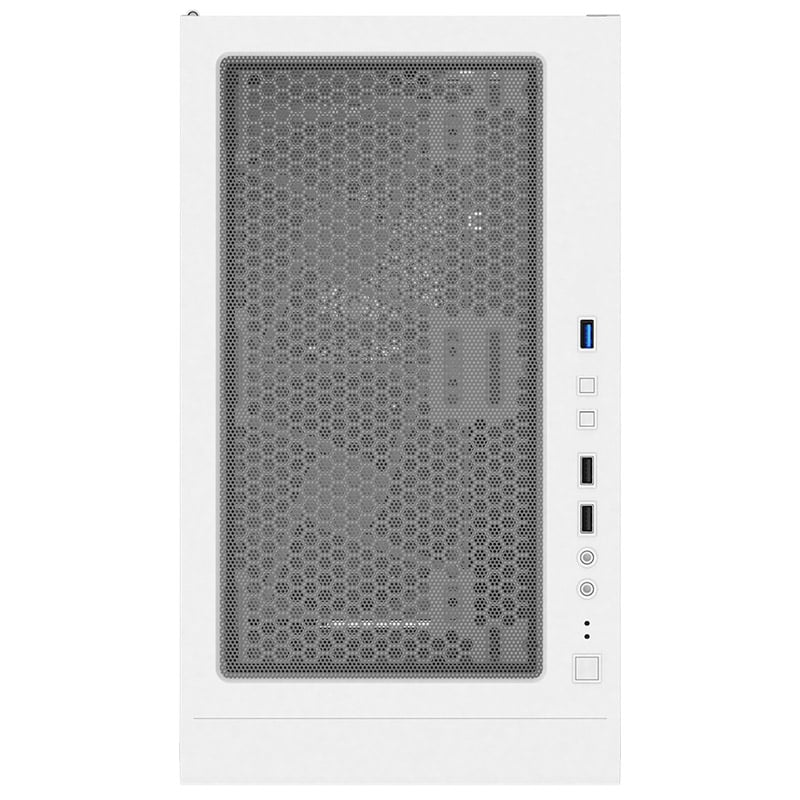

The I/O panel, located on the side of the top panel, includes a USB-A 3.0 port, two USB 2.0 ports, and one 3.5 mm jack each for microphone and headphones, as well as a switch to turn the pre-configured lighting on and off.
Technical details:
- Dimensions: 210 x 480 x 370 mm (W x H x D)
- Material: Steel, tempered glass
- Weight: 6.1 kg
- Colour: White
- Form factor: ATX, Micro-ATX, Mini-ITX
- Fans supported in total:
Front: 3x 120 / 140 mm
Top: 2x 120 mm

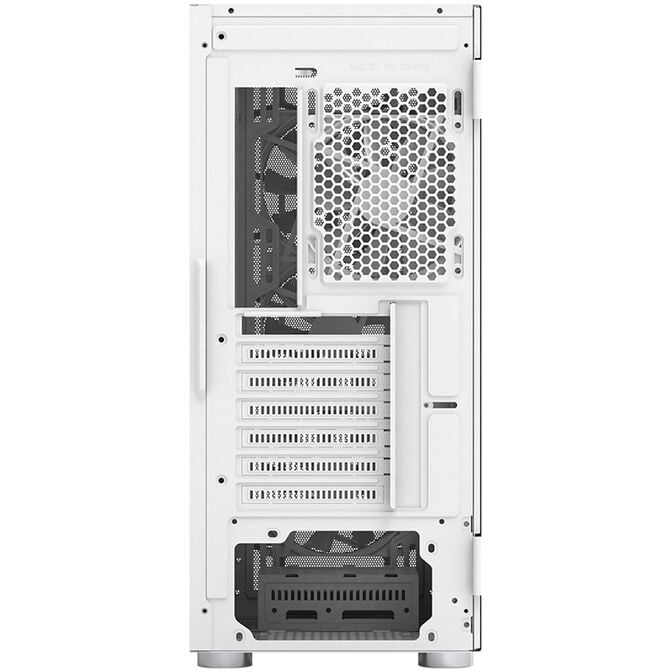

Rear: 1x 120 mm
PSU cover: 2x 120 mm - Pre-installed fans:
Front: 3x 140 mm
Top: 2x 120 mm
Rear: 1x 120 mm - Radiator mountings: n/a

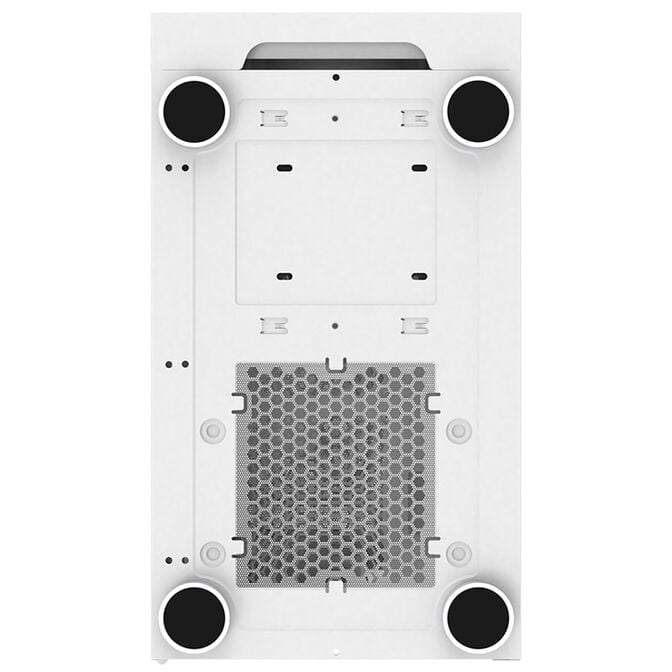

- Filters: Bottom (removable), top (magnetic)
- Drive bays:
2x 3.5-inch / 2.5-inch (tool-less installation)
2x 2.5-inch (rear side of motherboard tray) - Expansion slots: 7
- I/O panel:
1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (Type A, max. 480 Mbit/s)
2x 3.5 mm jacks (3-pole, for microphone/headphones)
1x Power button
1x Reset button
1x LED control (On/Off) - Maximum graphics card length: 305 mm
- Maximum CPU cooler height: 160 mm
- Power supply: ATX, max. 160 mm length
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
370 mm
|
|
Width
|
210 mm
|
|
Height
|
480 mm
|
|
Weight
|
6.97 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
305 mm
|
|
Max. PSU Length / Depth
|
160 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
8
|
|
120 mm fans
|
8
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 240mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
0
|
|
Front I/O – USB Type A Ports Total
|
3
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm, 3x 140 mm
|
