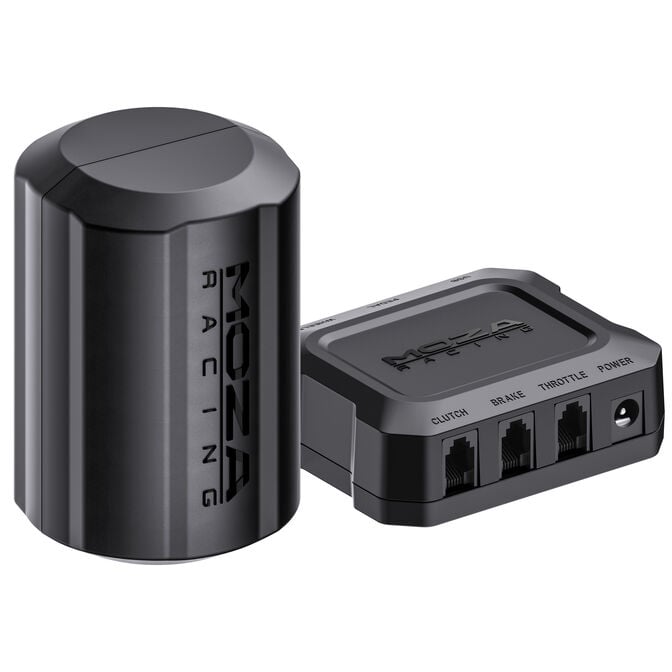

MOZA Pedal Haptic Feedback Kit

The MOZA Pedal Haptic Feedback Kit enhances compatible sim racing pedals with tangible vehicle feedback. The included PHF module operates within the 0 to 100 Hz range and can make ABS, traction control, engine speed, wheel lock-up, wheel slip, and gear changes perceptible.

• 0 to 100 Hz for differentiated feedback
• ABS and wheel slip directly felt at the pedal
• Supports multiple MOZA pedal sets
• PC and wheelbase connection possible
• Pit House allows individual customisation

Haptic feedback directly at the pedal

The PHF module generates adjustable vibrations between 0 and 100 Hz. This allows important driving conditions such as ABS interventions, loss of traction, wheel lock-up, or gear changes to be conveyed directly through the pedal. This makes it easier for you to perceive changes in the vehicle without needing to look at displays.

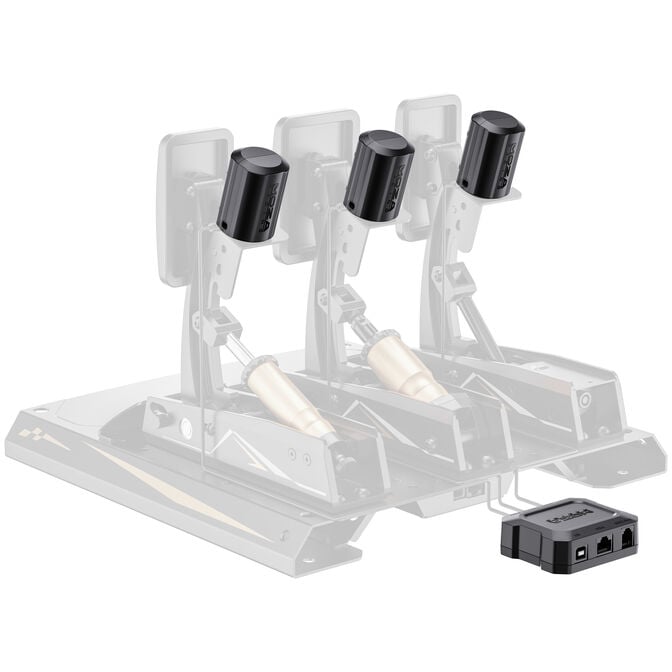

Compatible with multiple MOZA pedal sets

The kit supports MOZA SR-P Lite, SR-P, SR-P2, and CRP2 pedals. Passive pedal sets from other manufacturers can also be used with a direct PC connection, but require a suitable self-developed mount. The PHF module measures 40 x 41 x 61 mm.

Connection via PC or compatible wheelbase

The supplied control box can be connected either directly to the PC via USB or to a compatible MOZA wheelbase via RJ11. Additionally, a 12 V power supply, as well as USB, RJ11, and RJ45 cables, are included. Settings are configured via the MOZA Pit House software.
