The AMD A520 is an entry-level chipset that supports Ryzen 3000 processors based on the Zen 2 architecture (codename: Matisse). Unlike the AMD B550 and X570 chipsets, the A520 does not support PCIe 4.0 or overclocking. Motherboards with the A520 chipset support PCIe 3.0 and provide a reliable foundation for office and home users.
The Features of the MSI A520M-A Pro Motherboard at a Glance:
- DDR4 memory up to 3,200 MHz, with RAM-OC up to 4,600 MHz
- 1x M.2 slot with x4 PCIe 3.0 connection directly to the CPU
- 1x PCIe 3.0 x16 slot for the graphics card
- USB on the I/O Panel: 2x USB 2.0 / 4x USB 3.0 Type-A
- Internal USB connections: 4x USB 2.0 / 2x USB 3.0
- A total of 2x 4-Pin PWM headers for fans
The MSI A520M-A Pro in Detail:

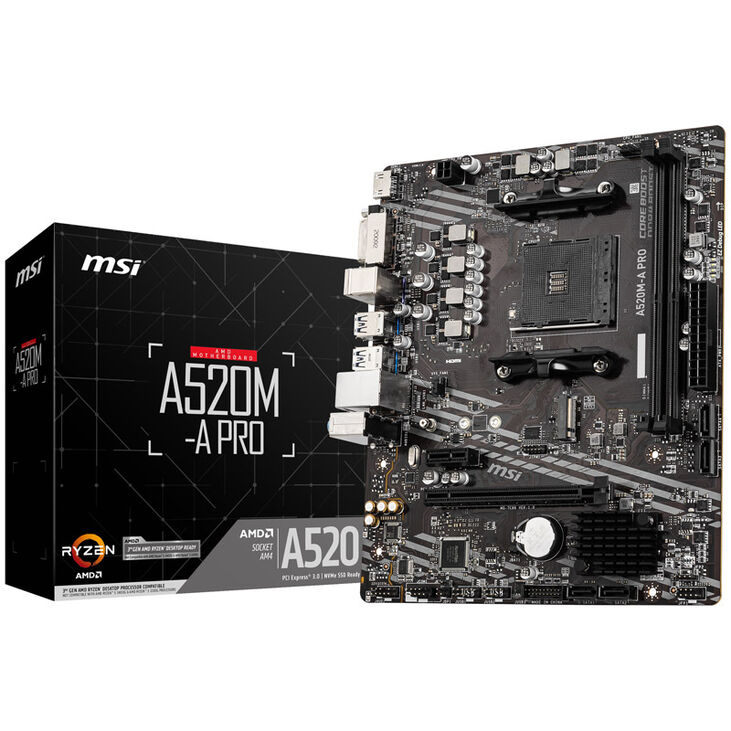

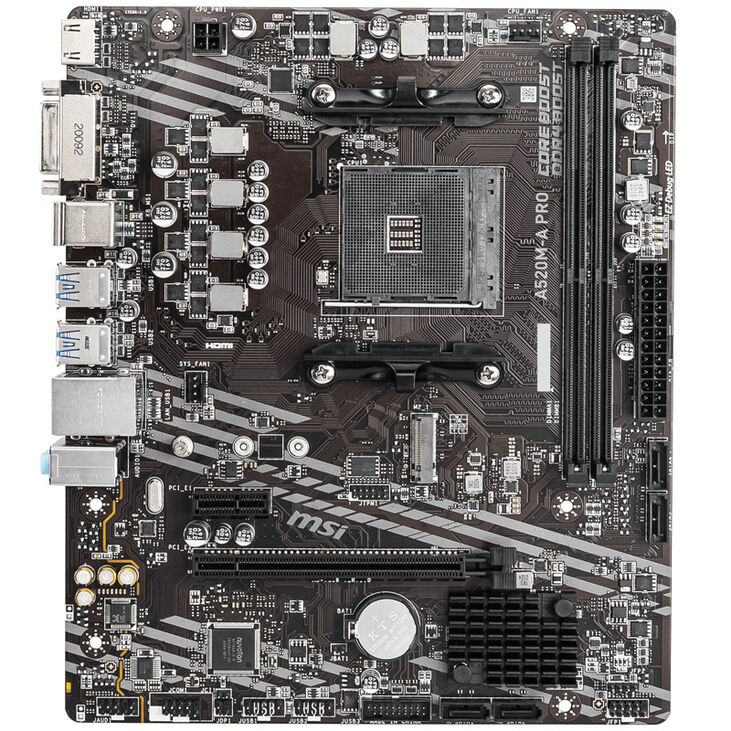

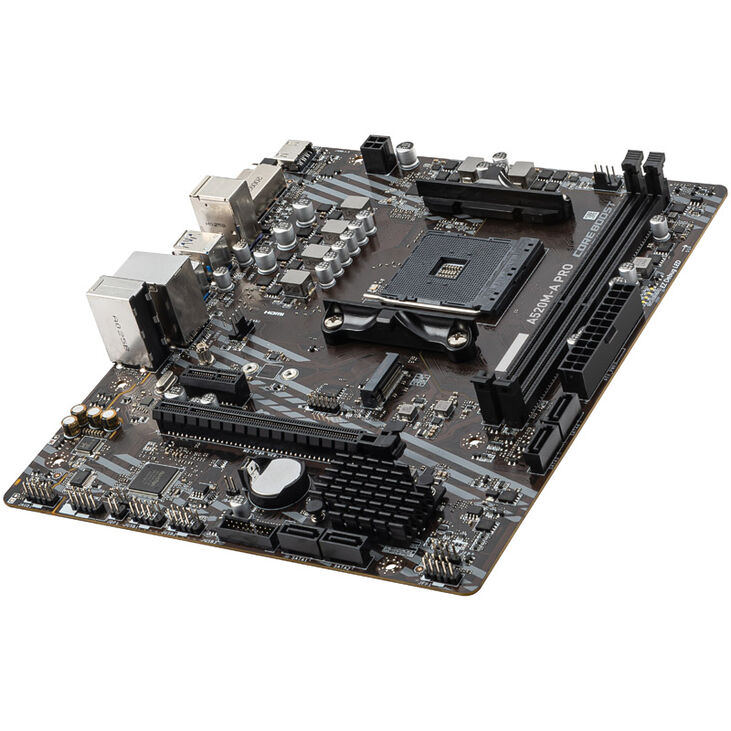

The MSI A520M-A Pro is an A520 motherboard in a Micro-ATX form factor. For the graphics card, there is a PCIe 3.0 x16 slot available, which is directly connected to the Ryzen 3000 processor via 16 PCIe 3.0 lanes. Additionally, the motherboard offers a PCIe x1 slot for an extra expansion card.
Connections for Drives and Peripherals:
The Ryzen 3000 CPUs provide four PCIe lanes for direct NVMe SSD connectivity. This A520 motherboard uses these four lanes for a single M.2 slot to connect NVMe SSDs. Additionally, the A520 chipset provides four SATA 6G ports.

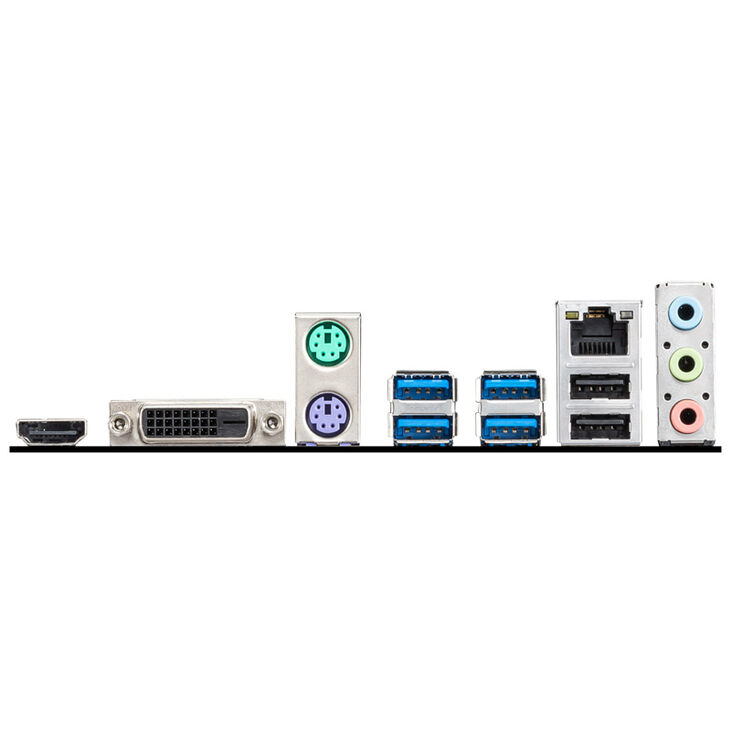

On the I/O panel, the MSI A520M-A Pro offers four USB 3.0 ports with Type-A connectors. USB 3.0 (or USB 3.2 Gen 1) achieves maximum speeds of 5 Gbps per port. Furthermore, there are two USB 2.0 ports and two PS/2 ports for mouse and keyboard. This A520 motherboard also features Gigabit LAN (Realtek RTL8111H), onboard sound (Realtek ALC892 Audio Codec), two PS/2 ports, and numerous internal headers. For the integrated graphics unit, the MSI A520M-A Pro provides HDMI and DVI outputs. Additionally, it supports RAM kits up to 4,600 MHz.
Colour
|
|
Primary Colour
|
Black
|
Form Factor
|
|
Motherboard formfactor
|
Micro-ATX
|
CPU
|
|
CPU Manufacturer
|
AMD
|
CPU Socket
|
AM4
|
Motherboard
|
|
Motherboard Chipset
|
AMD A520
|
Built-In I/O Shield
|
Yes
|
Memory
|
|
Max. Memory
|
64 GB
|
Memory Type
|
DDR4
|
Memory Form Factor
|
DIMM
|
Max. Memory Speed (Standard)
|
3200 MT/s
|
Max. Memory Speed (OC)
|
4600 MT/s
|
EEC Support
|
Yes
|
Memory slots
|
2x
|
Wi-Fi & LAN
|
|
LAN
|
Yes
|
Wi-Fi / Bluetooth
|
No
|
Cooling
|
|
M.2 Heatsinks
|
No
|
VRM Heatsinks
|
Yes
|
Internal Ports
|
|
CPU Power Supply
|
1x 8-Pin
|
USB 3.0 (internal) Header
|
1
|
USB 3.0 (internal) Possible Ports
|
2
|
USB 2.0 (internal) Header
|
2
|
USB 2.0 (internal) Possible Ports
|
4
|
Front Panel Audio Header
|
Yes
|
SPI TPM Header
|
Yes
|
External Ports
|
|
USB 3.0 (external) Type A
|
4
|
USB 2.0 (external) Type A
|
2
|
Storage Ports
|
|
M.2 PCIe 3.0 x2 & SATA 6G
|
1
|
SATA 6G (internal)
|
4
|
Back Connect
|
|
Back Connect
|
No
|
Expansion Slots
|
|
PCIe x16 slots (total)
|
2
|
Fan Header
|
|
4 Pin Fan Connectors
|
2
|
Audio
|
|
Soundchip
|
Realtek ALC897
|
Lighting
|
|
Lighting / RGB
|
No
|
