MSI B760 Gaming Plus WiFi, Intel B760 motherboard - Socket 1700, DDR4
ATX motherboard with B760 chipset, 2x PCIe 4.0 x16 / 3x PCIe 3.0 x1, 1x USB-C 3.1 / 2x USB 3.1 / 4x USB 2.0, 2x M.2 (2x PCIe 4.0) / 4x SATA 6G, 7x 4-pin PWM connectors, for DDR4 RAM
159,09 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 3x PCIe 3.0 x16 (x1)
- DDR4 memory up to 3,200 MHz, overclockable to 5,333 MHz
- 2x M.2 slots, both PCIe 4.0
- USB on the I/O panel: 1x USB-C 3.1, 2x USB 3.1, and 4x USB 2.0
- A total of 7 headers for fans and pumps

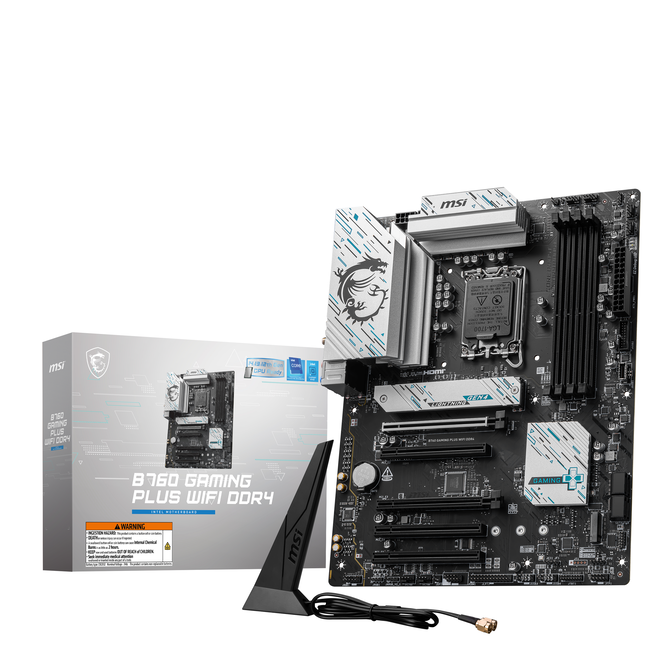

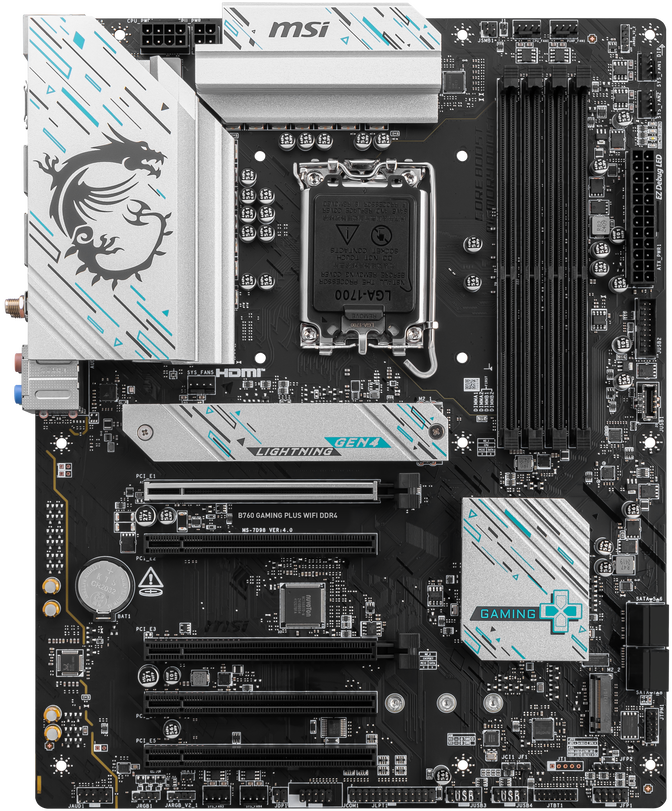

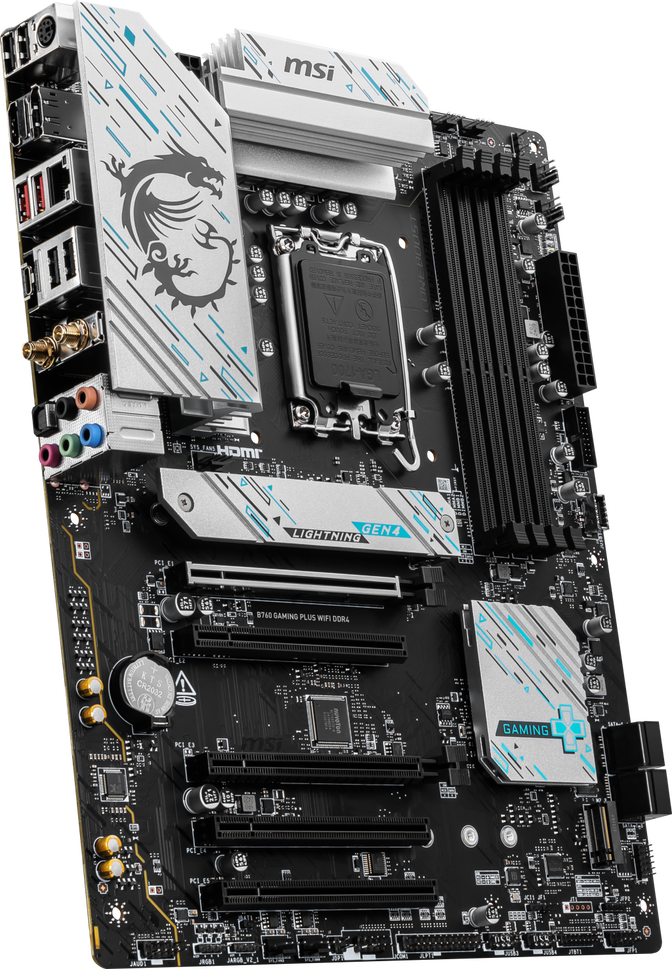

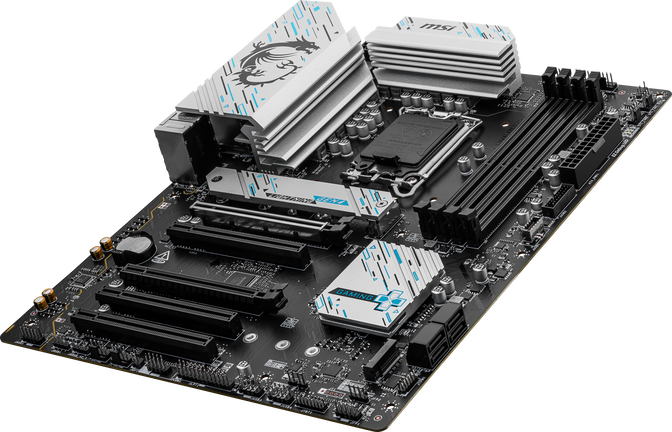

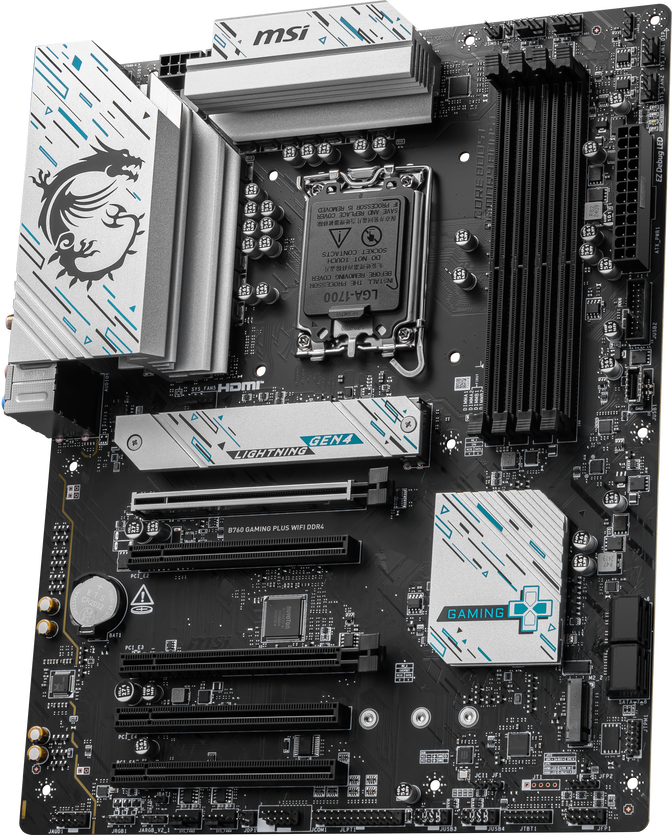

MSI B760 Gaming Plus WiFi ATX Motherboard with Intel B760 Chipset
The MSI B760 Gaming Plus WiFi is an ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. This mainboard is compatible with desktop processors from Intel's 12th, 13th, and 14th generation CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR4 memory with speeds up to 5,333 MHz, making it an excellent choice for RAM overclocking due to its robust power delivery.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
3200 MT/s
|
|
Max. Memory Speed (OC)
|
5333 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin + 1x 4+4-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

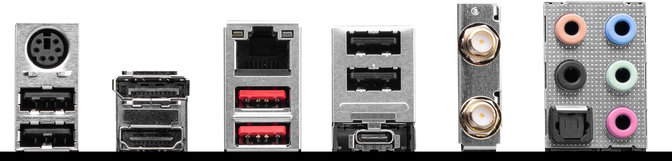

External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
3
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
2
|
|
PCIe 3.0 x16 mechanical slot
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
