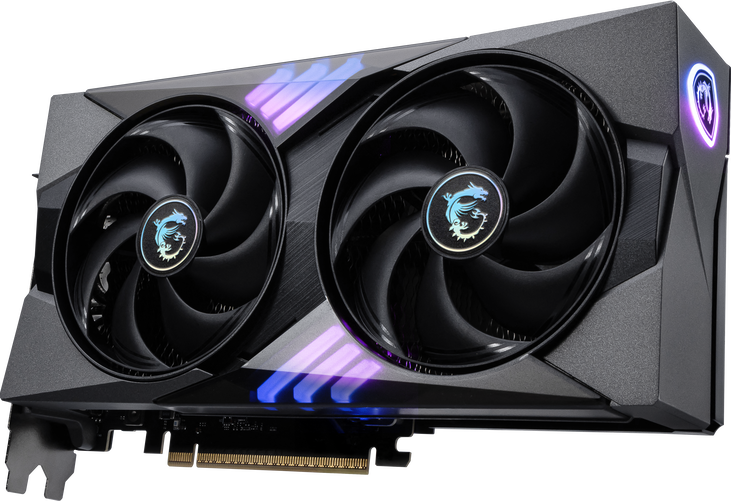

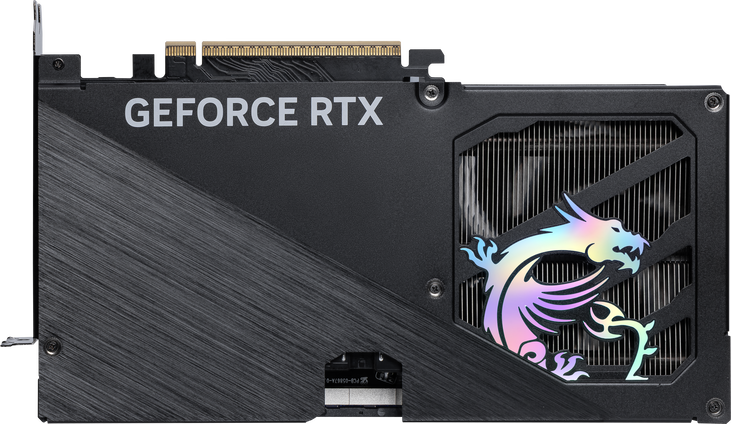

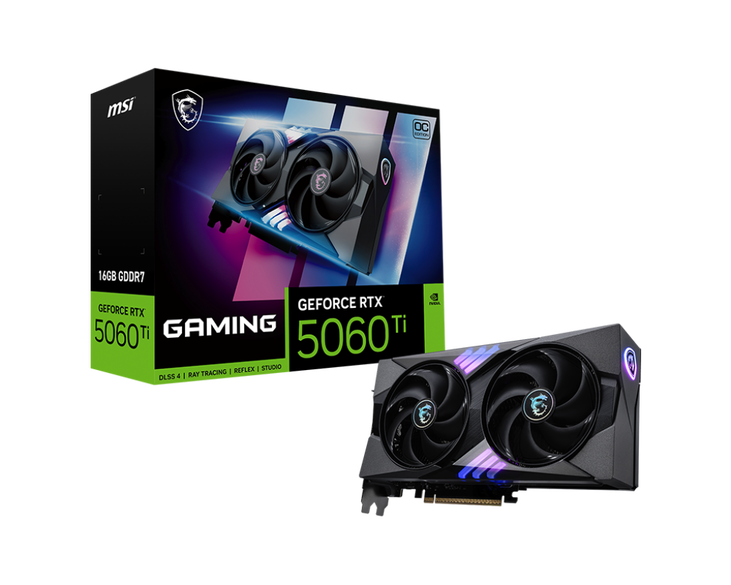

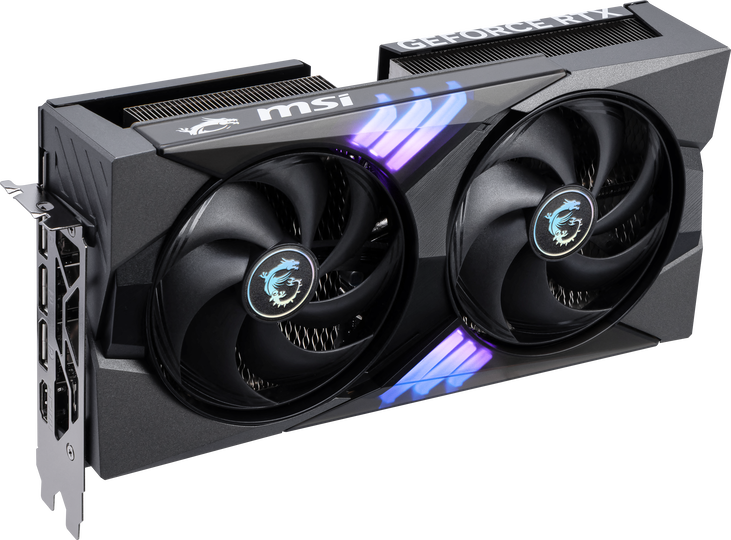

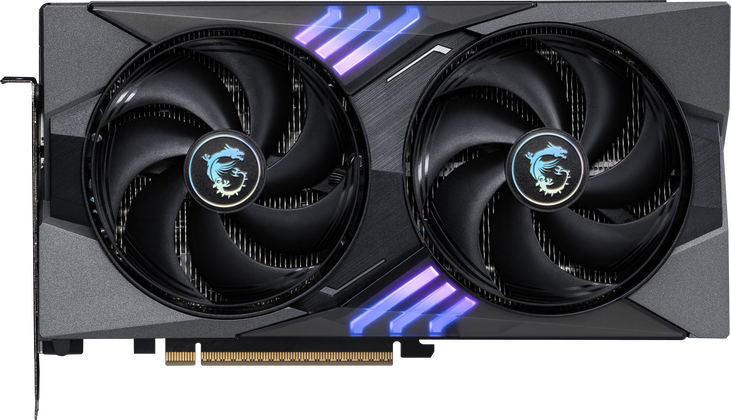

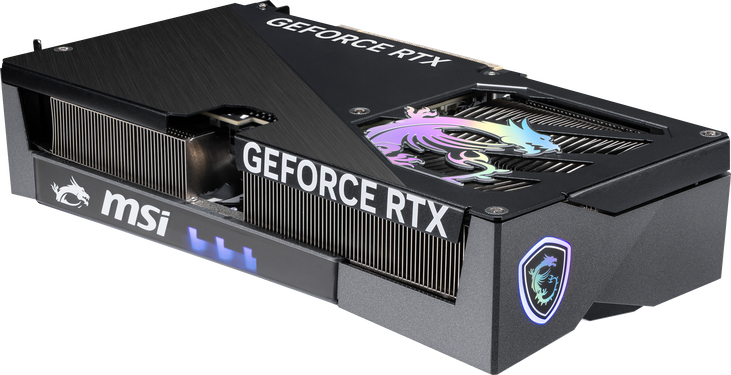

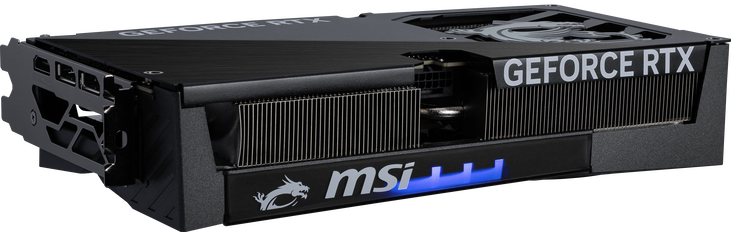

MSI GeForce RTX 5060 Ti 16G Gaming OC, 16384 MB GDDR7
- Efficient dual-fan cooler design with semi-passive cooling
- High base clock of the GPU: 2,407 MHz
- Strong boost clock of the GPU: 2,662 MHz
- Next-generation graphics memory: 16 GB GDDR7
- Memory clock: 1,750 MHz (effective 28 GHz)
- Solid memory interface of 128 bits
- Memory bandwidth of 448 GB/s
- For Full HD gaming: 4,608 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 8-pin
- Video outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Supports DLSS 4 and NVIDIA Reflex 2
The GeForce RTX 5060 Ti in Detail
The GeForce RTX 5060 Ti is the perfect choice for anyone looking to experience smooth gaming in Full HD and WQHD. With GDDR7 graphics memory and a powerful graphics processor based on NVIDIA's Blackwell architecture, it delivers high frame rates and detailed visuals - ideal for medium to high graphic settings.
Compared to the previous generation, the RTX 5060 Ti offers improved performance in traditional rendering and ray tracing. Thanks to the new Blackwell architecture and support for PCI Express 5.0, you are also prepared for upcoming games.
Whether it's a fast-paced multiplayer match or an immersive open world, the RTX 5060 Ti provides stable frame rates and a consistently smooth gaming experience at 1080p. With DLSS 4 and Multi Frame Generation, you additionally leverage AI-supported technologies that enhance frame rates and make visuals even smoother - even in graphically intensive scenes.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
247 mm
|
|
Width
|
135 mm
|
|
Height
|
51 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5060 Ti 16GB
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5060 Ti 16GB
|
|
Graphics Chip
|
GB206-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
4608
|
|
Tensor Cores
|
144
|
|
Raytracing Cores / Ray Acceleratorss
|
36
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
448
|
|
GPU Effective Memory Clock (MHz)
|
1750
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2407 MHz
|
|
Max. GPU Clock (Boost)
|
2662 MHz
|
|
Max. Memory Clock
|
28000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
2
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|

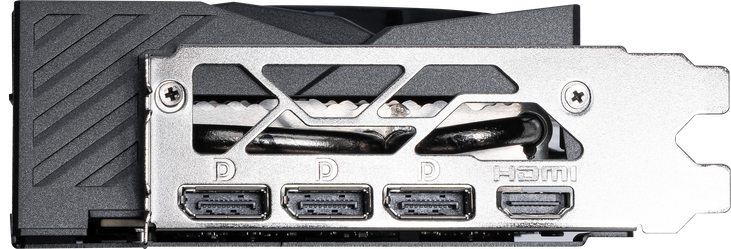

Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2.5 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
