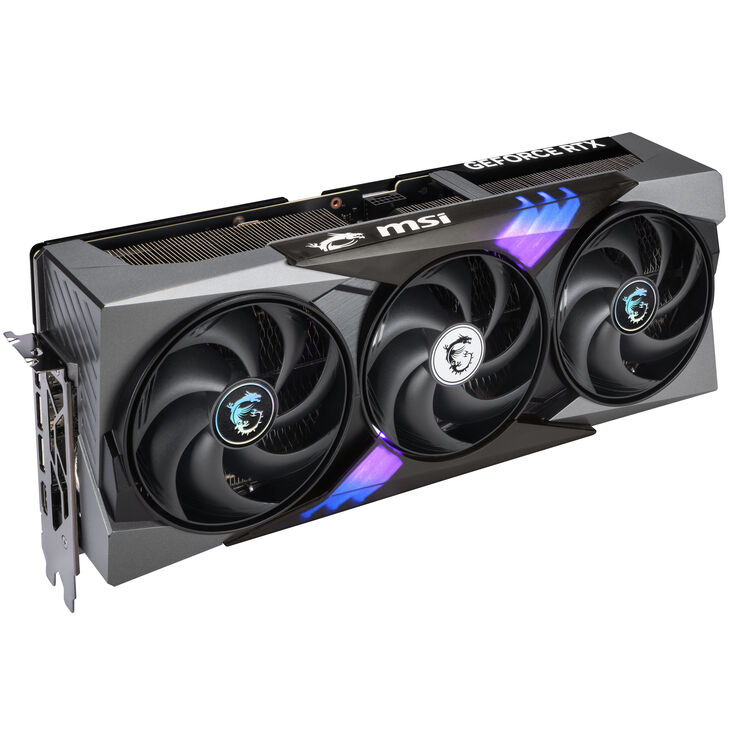

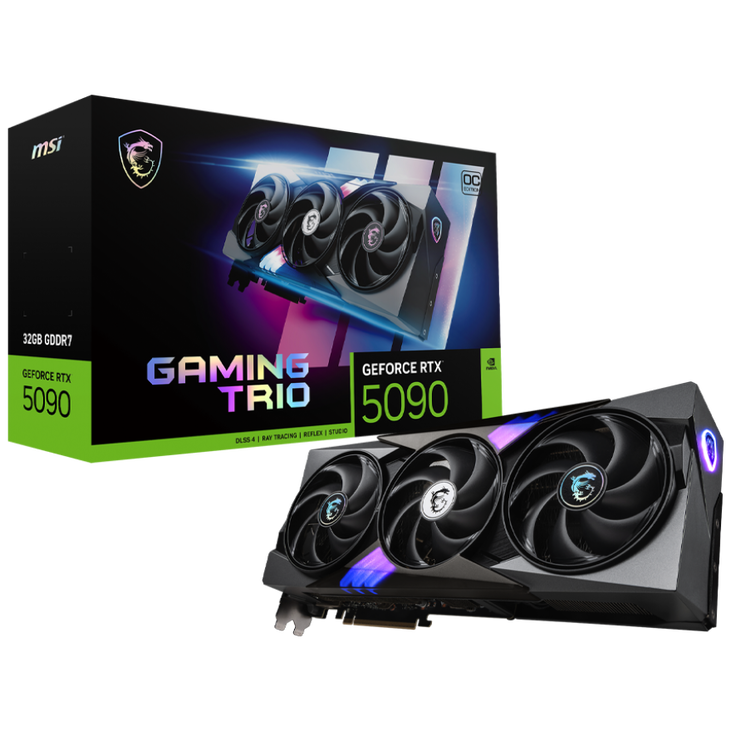

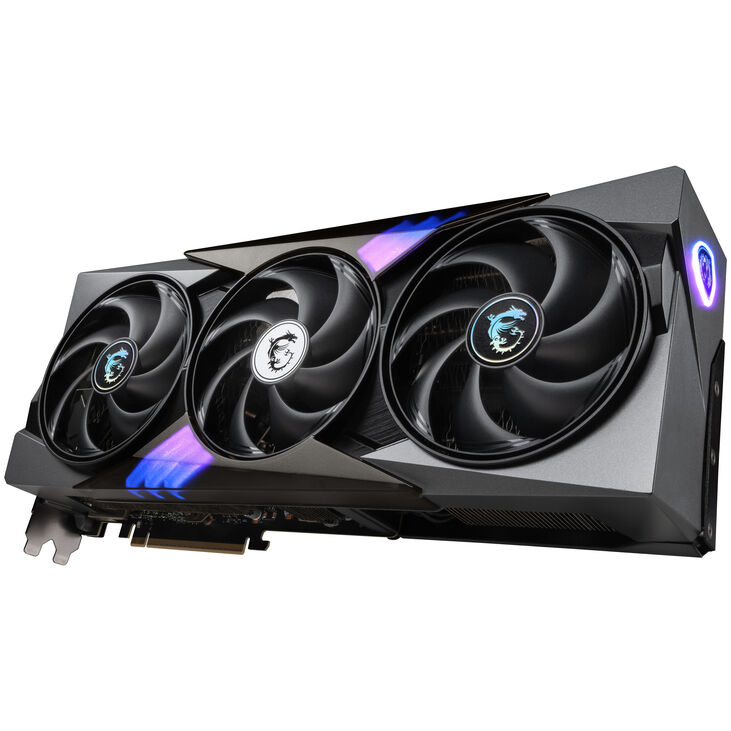

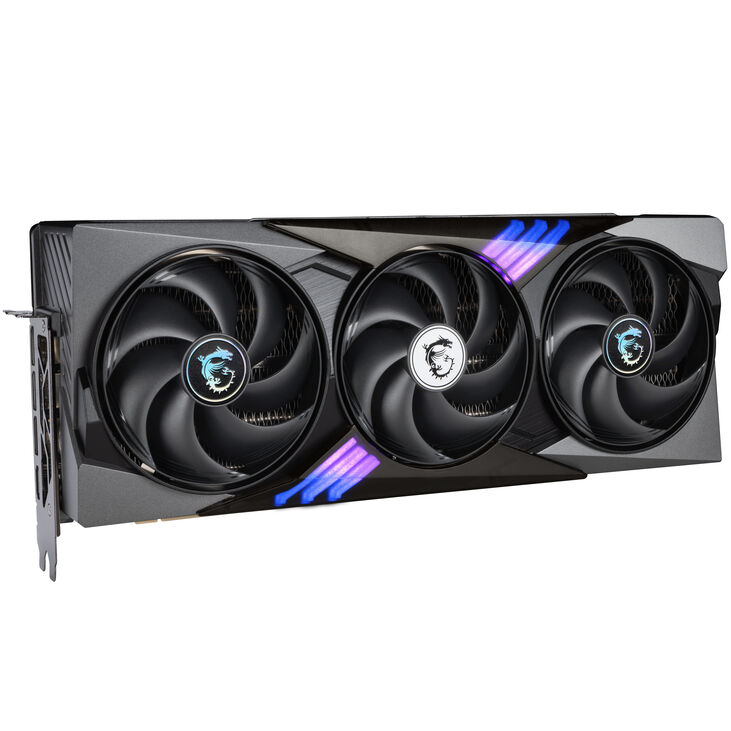

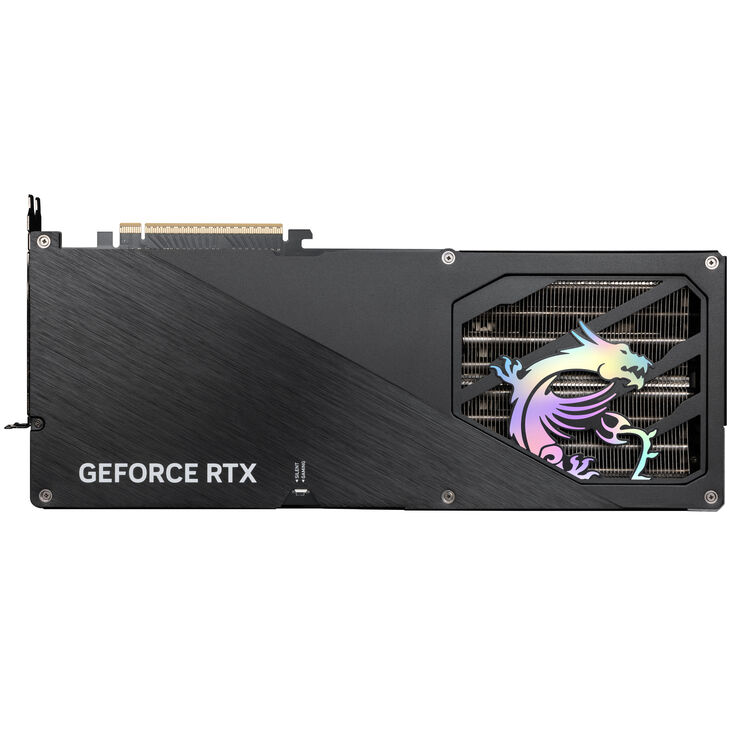

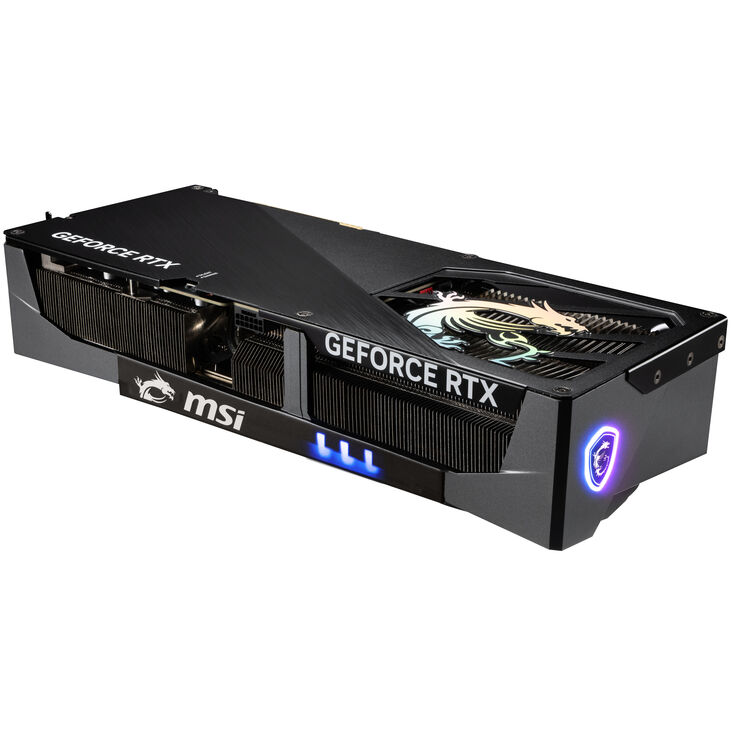

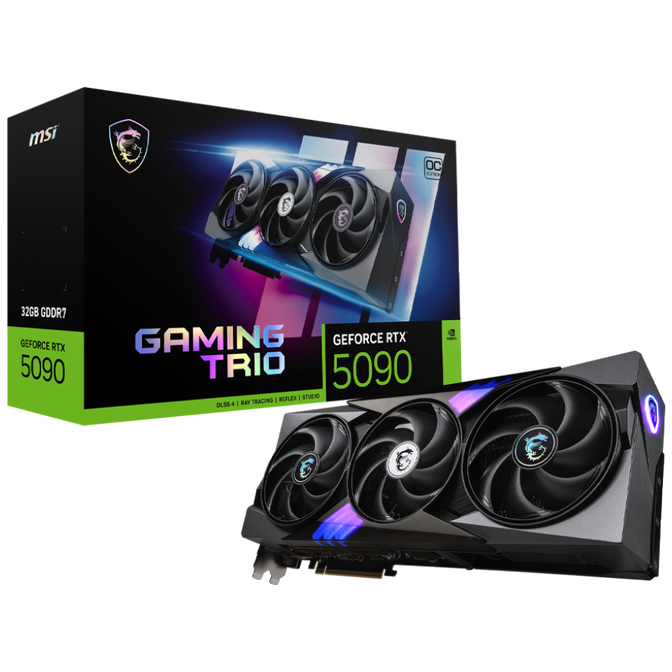

MSI GeForce RTX 5090 32G Gaming Trio OC, 32768 MB GDDR7
007 First Light GeForce RTX 50 Series Bundle
View Details
Get a free download code for the standard edition of 007 First Light.
With the purchase of select GeForce RTX 5090, 5080, 5070 Ti, 5070 and 5060 Ti graphics cards or desktop PCs, and laptops with GeForce RTX 5090, 5080, 5070 Ti, 5070 or 5060 Laptop GPU.

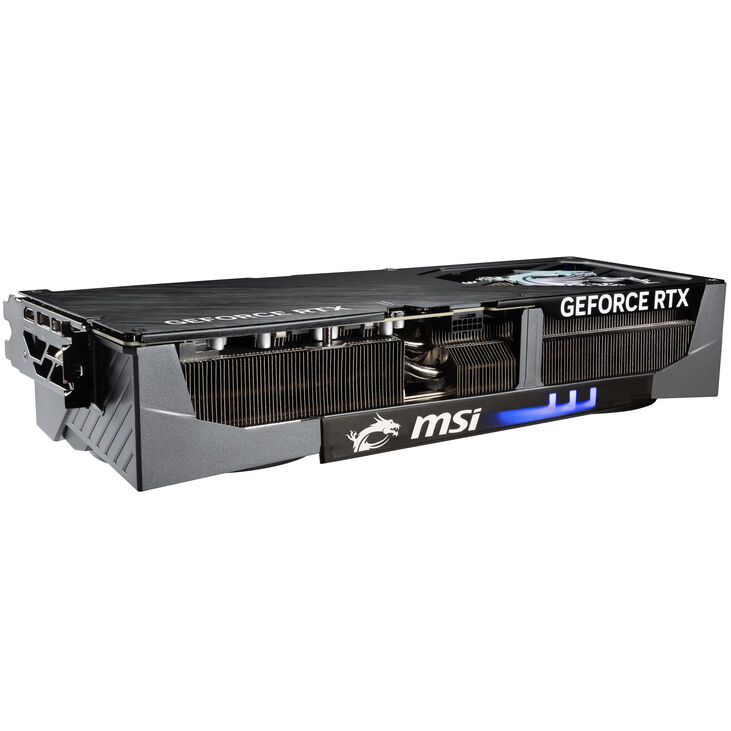

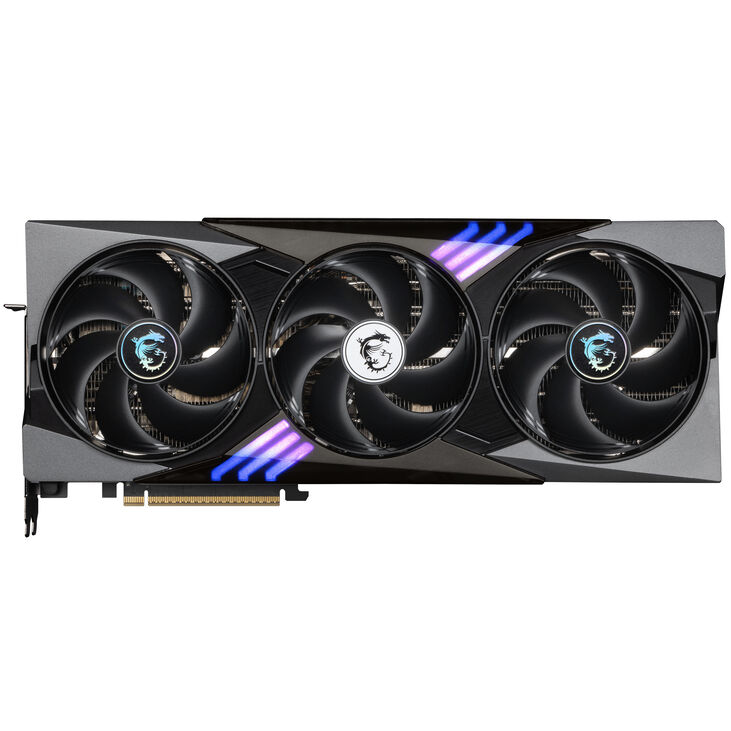

- Efficient triple-fan cooler design with semi-passive cooling
- Extensive RGB LED lighting
- Extremely high base clock of the GPU: 2,017 MHz
- Enormous boost clock of the GPU: 2,497 MHz
- Next-generation graphics memory: 32 GB GDDR7
- Extremely high memory clock: 2,209 MHz (effective 28,000 MHz)
- Wide memory interface of 512 bits
- Very large memory bandwidth of 1,792 GB/s
- Raw computing power: 21,760 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR
- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
The MSI GeForce RTX 5090 32G Gaming Trio OC in Detail
The GeForce RTX 5090 is the ultimate choice for enthusiasts and high-end gamers who do not want to compromise. Equipped with an extremely powerful graphics processor and new GDDR7 graphics memory, it sets new standards in gaming performance. With its unparalleled computing power, the RTX 5090 delivers top performance even in the most demanding applications and games.
Compared to the RTX 4090 series, the rasterization and ray tracing performance have been significantly improved once again, allowing realistic light, shadow, and reflection effects to be displayed in unprecedented quality. The new Blackwell generation also supports PCI Express 5.0, making the card optimally equipped for the next generation of motherboards and systems.
The RTX 5090 enables extremely high frame rates in 4K, offers impressively smooth gaming even in 8K, making it the perfect choice if you don't want to worry about graphics settings. Just set maximum graphics presets and start playing!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Anthracite
|
|
Dimensions
|
|
|
Length / Depth
|
359 mm
|
|
Width
|
149 mm
|
|
Height
|
70 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5090
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5090
|
|
Graphics Chip
|
GB202-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
21760
|
|
Tensor Cores
|
680
|
|
Raytracing Cores / Ray Acceleratorss
|
170
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
32
|
|
GPU Memory Interface (bit)
|
512
|
|
GPU Memory Bandwidth (GB/s)
|
1792
|
|
GPU Memory Clock (MHz)
|
1750
|
|
GPU Memory Clock Effective (Gbps)
|
28
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2017 MHz
|
|
Max. GPU Clock (Boost)
|
2497 MHz
|
|
Max. Memory Clock
|
28000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|

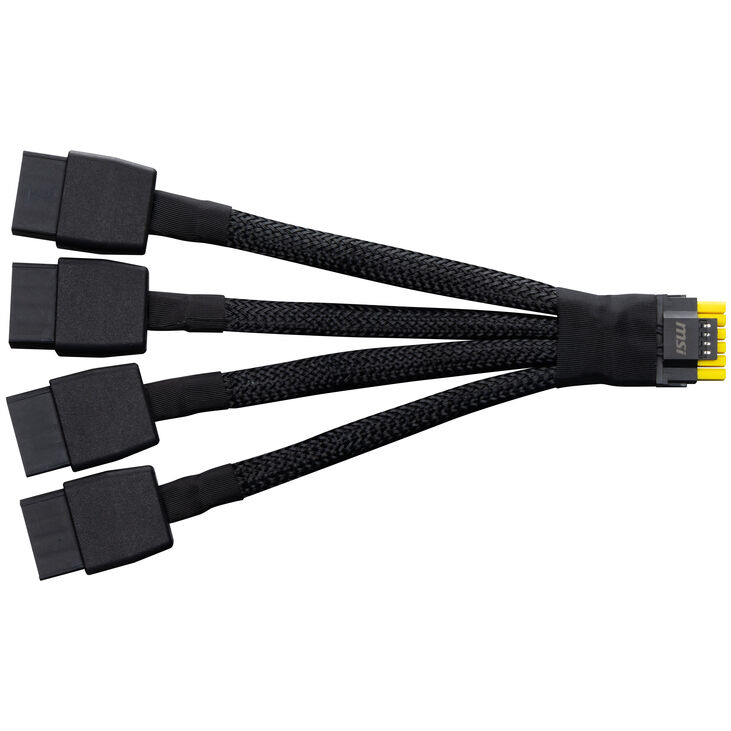

16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|
Display Connectors
|

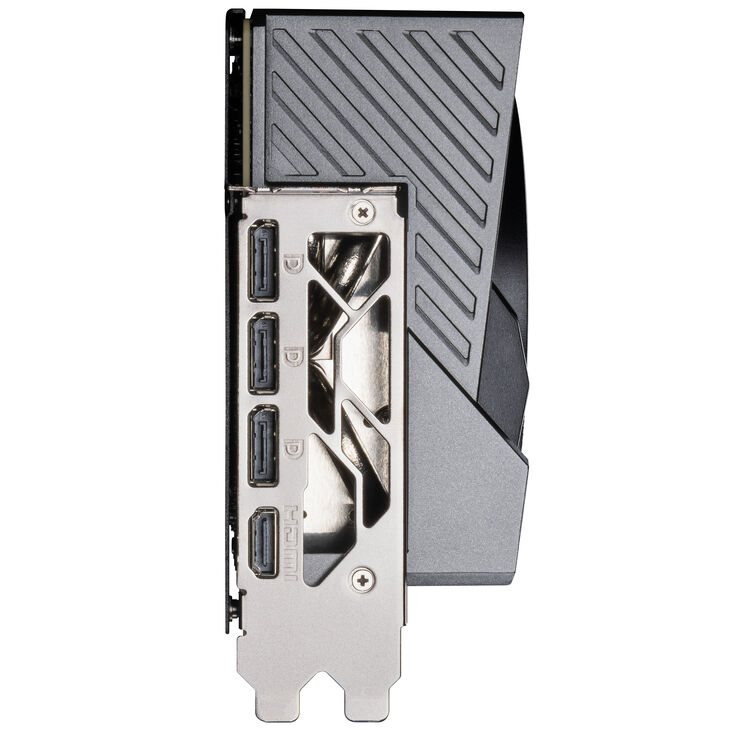

Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3.5 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Features
|
|
|
Virtual Reality Ready
|
Yes
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
