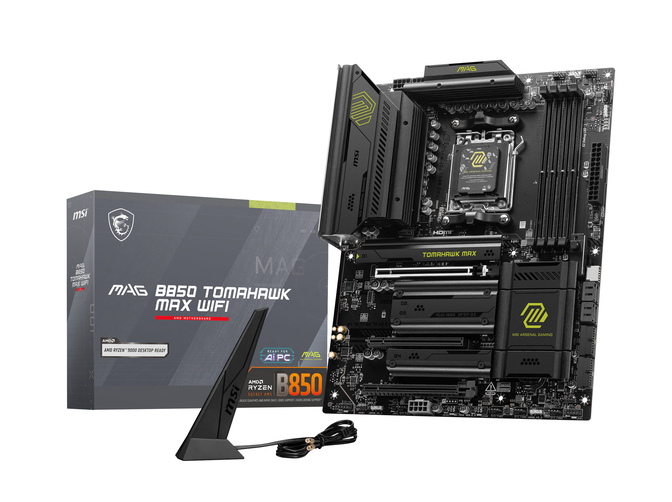

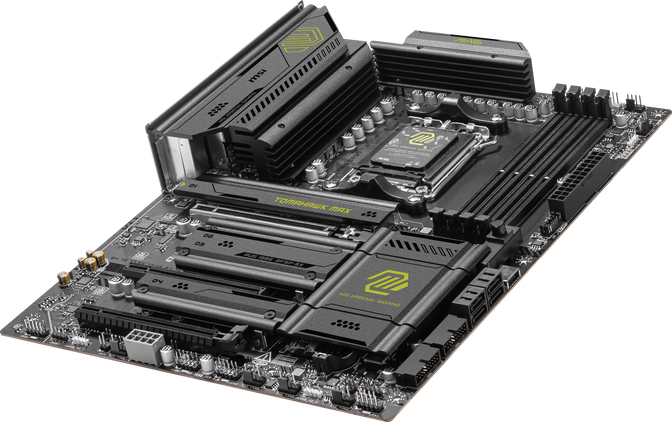

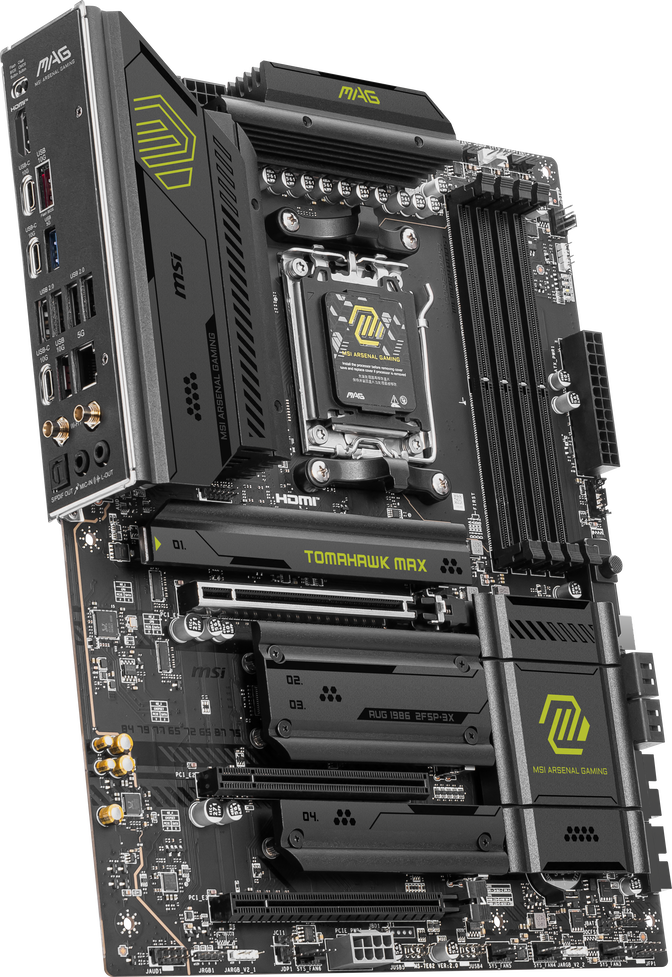

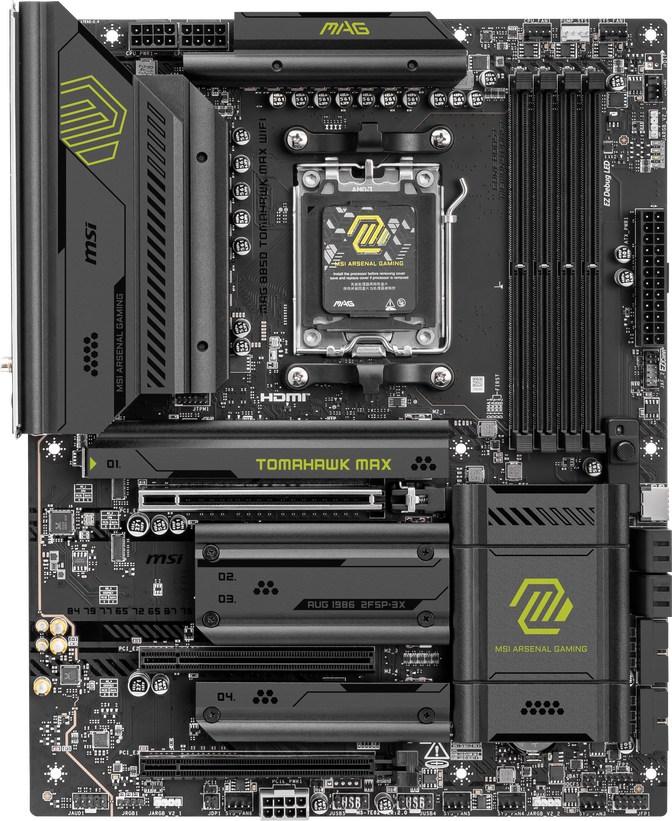

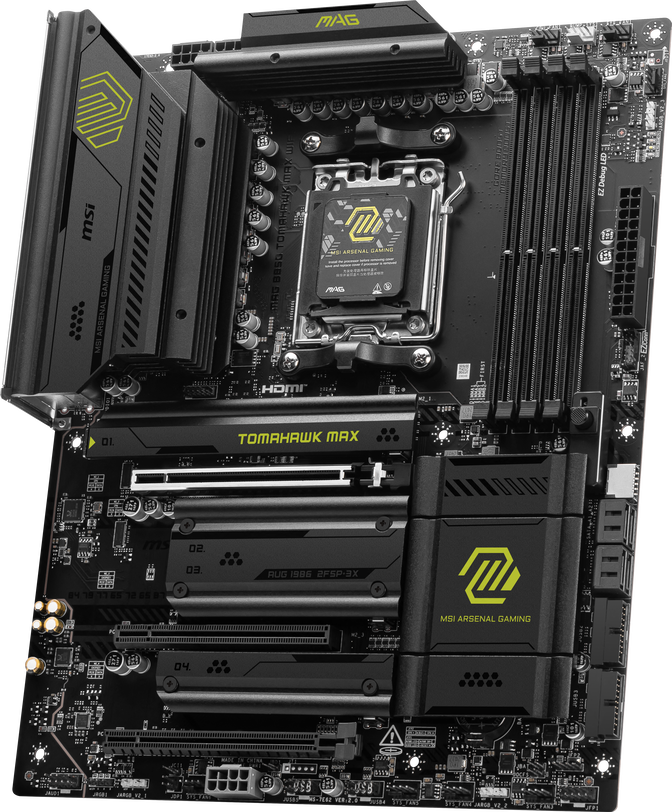

MSI MAG B850 Tomahawk Max WiFi Motherboard, socket AM5, AMD B850, ATX, DDR5
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 x16 (x1)
- RAM: 4x DIMM slots supporting up to 256 GB DDR5 RAM at up to 8,400 MT/s
- Storage: 4x M.2 (2x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 3x USB-C 3.1, 2x USB 3.1, 1x USB 3.0, and 4x USB 2.0
- Cooling: 8x 4-pin PWM headers for fans and radiators
- Connectivity: Wi-Fi 7 and Bluetooth 5.4
MSI MAG B850 Tomahawk Max WiFi: ATX Motherboard with AMD AM5 Socket and B850 Chipset
The MSI MAG B850 Tomahawk Max WiFi is an ATX motherboard equipped with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000-, 8000-, and 7000-series CPUs.
The motherboard provides PCIe 5.0 connectivity for graphics cards and NVMe SSDs, delivering exceptional performance. USB 3.2 ensures data transfer rates of up to 20 Gbit/s, enabling rapid file handling and device connectivity.
Overclocking for Gamers
Take your gaming PC to the next level with CPU overclocking support, available on the MSI MAG B850 Tomahawk Max WiFi. A reliable power delivery system ensures stability for high-end CPUs, even during extended periods of peak performance. Additionally, DDR5 RAM can be overclocked to unleash maximum potential. For added convenience, the motherboard includes BIOS-Flashback and Clear CMOS features to simplify troubleshooting and recovery.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
CUDIMM, UDIMM
|
|
Max. Memory Speed (Standard)
|
5600 MT/s
|
|
Max. Memory Speed (OC)
|
8400 MT/s
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
LAN Chip
|
Realtek 8126VB
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

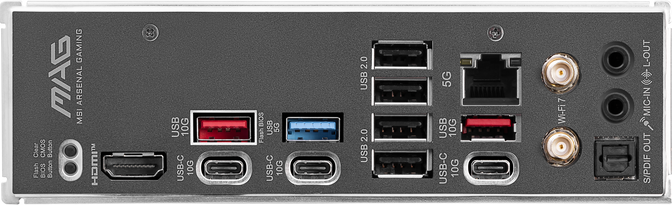

External Ports
|
|
|
USB 3.1 (external) Type C
|
3
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
