ATX motherboard with X870 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x16 / 1x PCIe 3.0 x16, 2x USB 4 / 1x USB 3.2 Type-C / 1x USB 3.1 Type-C / 2x USB 3.1 / 7x USB 3.0 / 8x USB 2.0, 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 8x 4-Pin PWM connectors
291,04 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is excellent for high-end builds for gamers.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 3.0 x16 (x1)
- 4x DIMM slots for max. 256 GB DDR5 RAM up to 8400 MHz (OC)
- 4x M.2 (of which 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

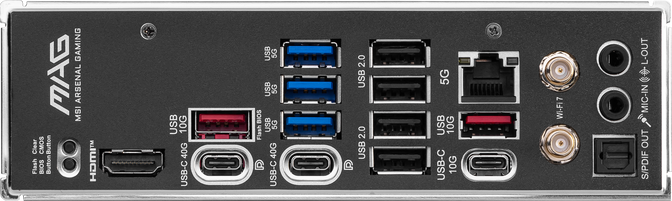

- 2x USB4, 1x USB 3.1 Type-C, 2x USB 3.1, 3x USB 3.0, 4x USB 2.0 on the I/O panel
- OC features: 17-phase VRMs, CMOS reset, BIOS flashback
- A total of 8x 4-pin PWM fan connections possible

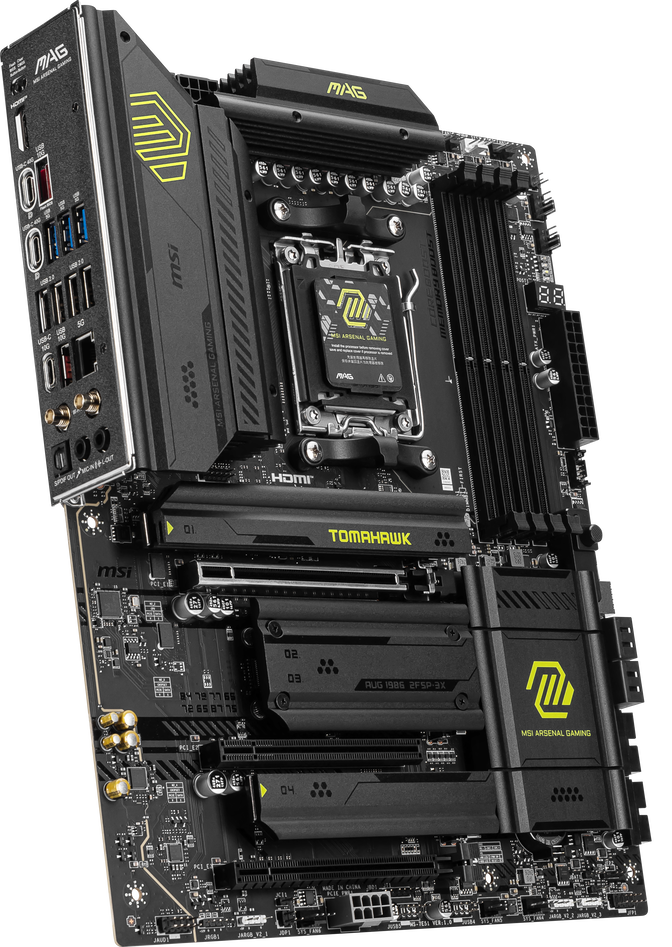

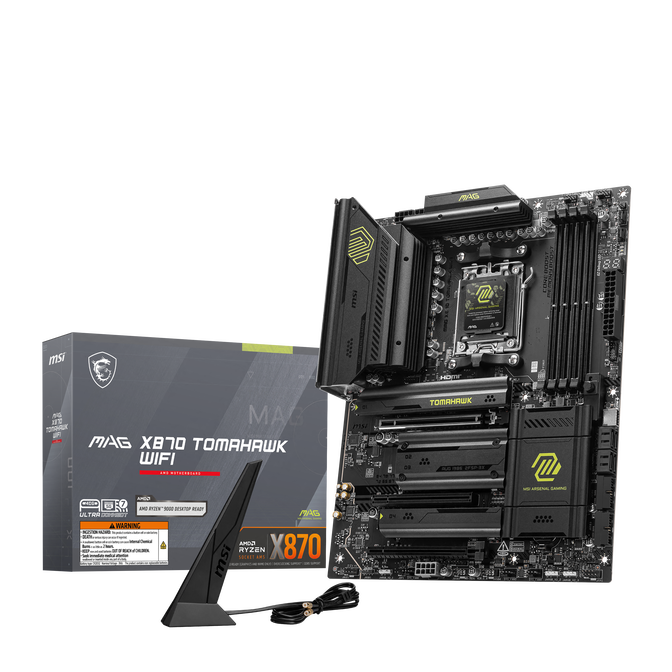

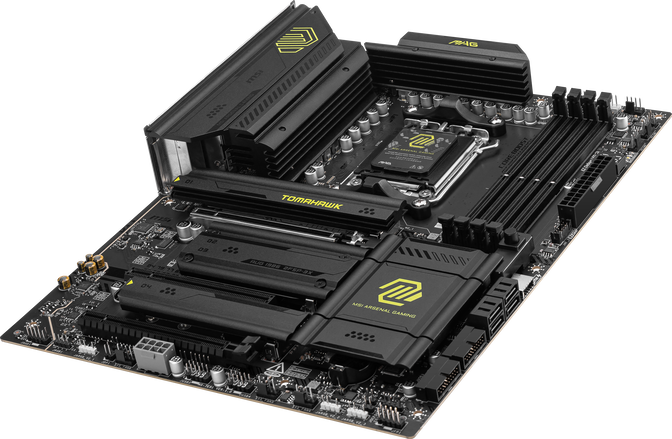

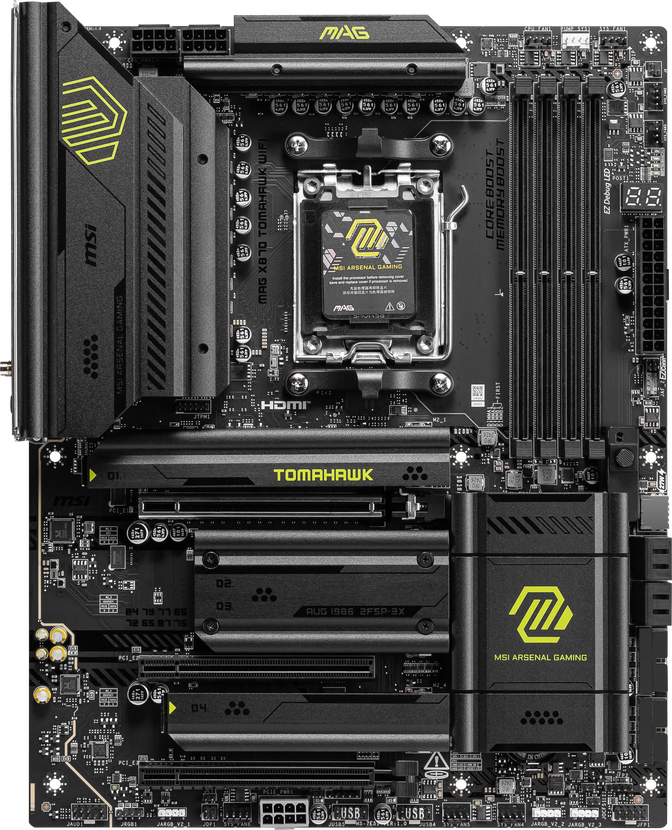

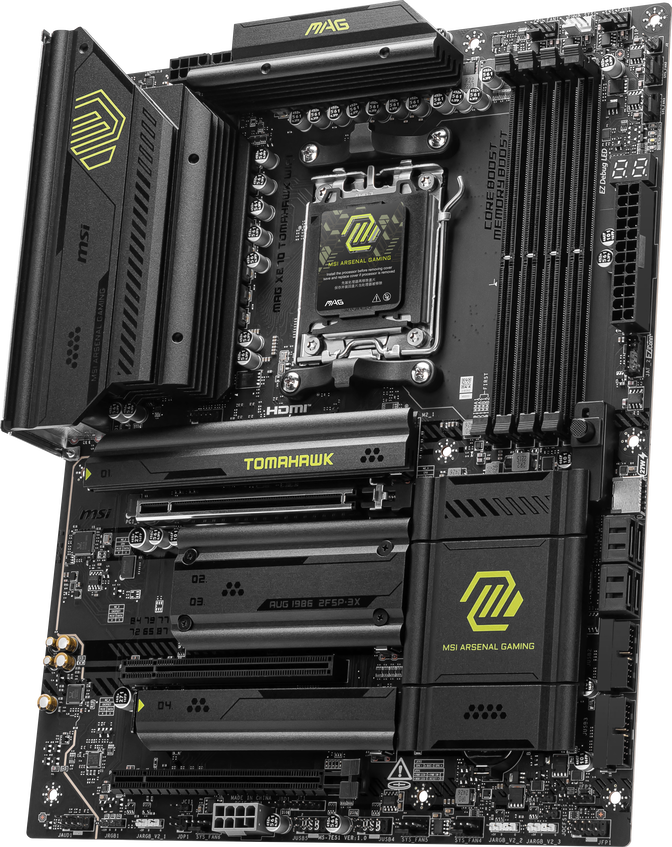

MSI MAG X870 TOMAHAWK WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The *MSI MAG X870 TOMAHAWK WIFI* is equipped with the mid-tier X870 chipset for AMD's Ryzen processors of the 9000 series and comes with numerous features for gamers. The proven AM5 socket (LGA 1718) is also used for the Ryzen 9000 processors.
Additionally, the AMD X870 motherboard offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbit/s. Furthermore, the *MSI MAG X870 TOMAHAWK WIFI* supports PCIe 5.0, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Well-equipped for gaming
The *MSI MAG X870 TOMAHAWK WIFI* is designed for high-end gaming, allowing you to enjoy demanding games without interruptions. The high-quality voltage regulators provide stable power to the CPU, ensuring its high clock rates can be maintained over extended periods. Additional features such as BIOS flashback and Clear CMOS allow you to use the PC again if something goes wrong. As usual, the DDR5 RAM can also be pushed to higher clock rates.
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
305 mm
|
Width
|
244 mm
|
Form Factor
|
|
Motherboard formfactor
|
ATX
|
CPU
|
|
CPU Manufacturer
|
AMD
|
CPU Socket
|
AM5
|
Motherboard
|
|
Motherboard Chipset
|
AMD X870
|
Dual BIOS
|
No
|
Built-In I/O Shield
|
Yes
|
Memory
|
|
Max. Memory
|
256 GB
|
Memory Type
|
DDR5
|
Memory Form Factor
|
DIMM
|
Max. Memory Speed (OC)
|
8400 MT/s
|
EEC Support
|
No
|
Memory slots
|
4x
|
Performance Profile
|
AMD EXPO
|
Wi-Fi & LAN
|
|
LAN
|
Yes
|
LAN Ports
|
1x 5 Gbit/s
|
Wi-Fi / Bluetooth
|
Yes
|
Wi-Fi Standard
|
Wi-Fi 7
|
Bluetooth Standard
|
5.4
|
Cooling
|
|
M.2 Heatsinks
|
Yes
|
Water Cooling
|
|
Watercooling
|
No
|
Internal Ports
|
|
CPU Power Supply
|
2x 8-Pin
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
USB 3.0 (internal) Header
|
2
|
USB 3.0 (internal) Possible Ports
|
4
|
USB 2.0 (internal) Header
|
2
|
USB 2.0 (internal) Possible Ports
|
4
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
Front Panel Audio Header
|
Yes
|
SPI TPM Header
|
Yes
|
External Ports
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
USB 3.1 (external) Type C
|
1
|
USB 3.1 (external) Type A
|
2
|
USB 3.0 (external) Type A
|
3
|
USB 2.0 (external) Type A
|
4
|
Display Connectors
|
HDMI (1x), USB Type C (Display Port shared) (2x)
|
Storage Ports
|
|
M.2 PCIe 4.0 x2
|
1
|
M.2 PCIe 4.0 x4
|
1
|
M.2 PCIe 5.0 x4
|
2
|
SATA 6G (internal)
|
4
|
Back Connect
|
|
Back Connect
|
No
|
Expansion Slots
|
|
PCIe x16 slots (total)
|
3
|
PCIe 5.0 x16 mechanical slot
|
1
|
PCIe 4.0 x4 mechanical slot
|
1
|
PCIe 3.0 x1 mechanical slot
|
1
|
Fan Header
|
|
4 Pin Fan Connectors
|
8
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Product Series
|
|
Product Series/Family
|
MAG
|
