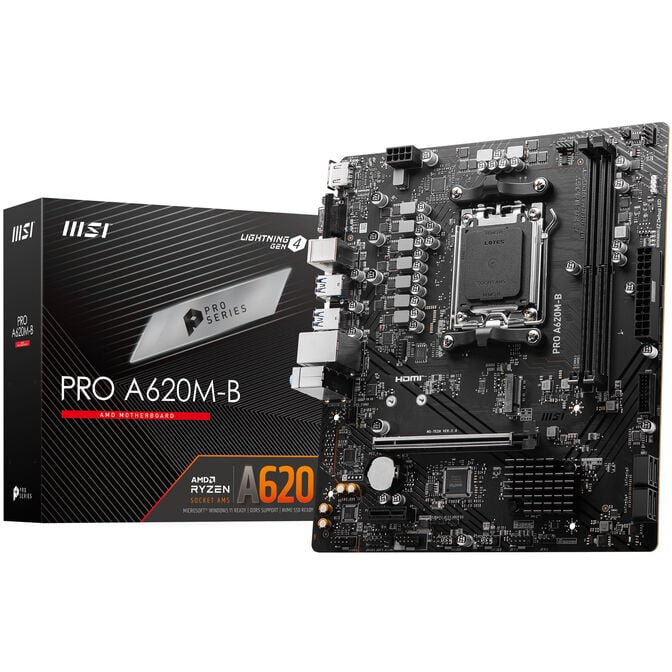

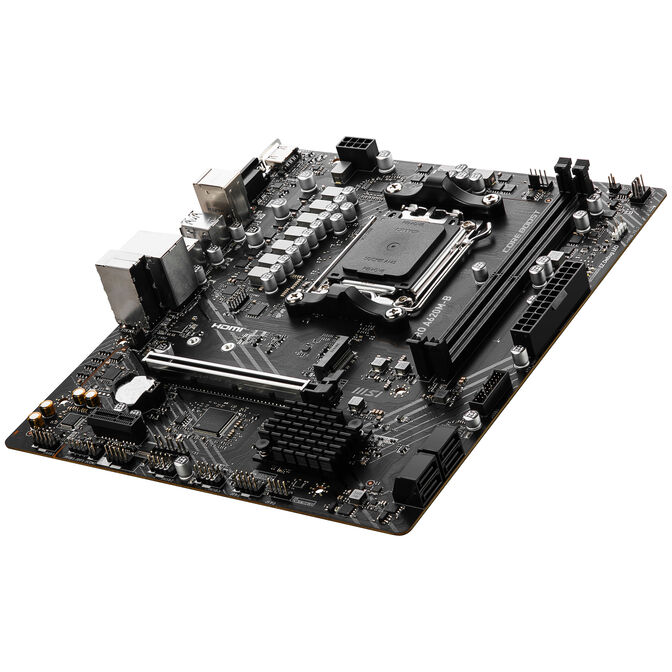

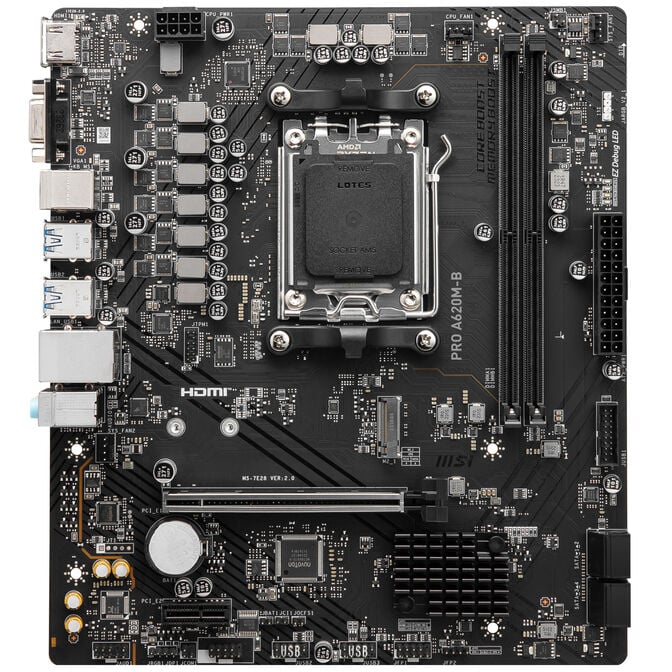

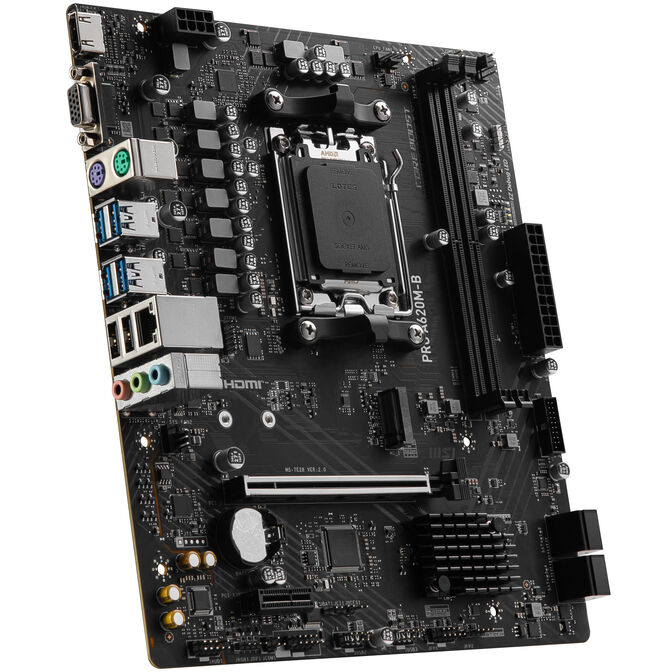

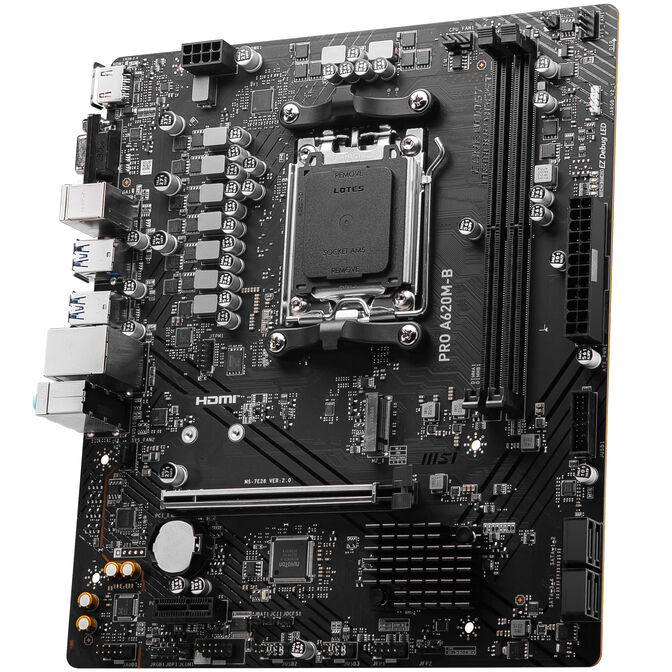

MSI PRO A620M-B motherboard AMD A620 Socket AM5 micro ATX

MSI PRO A620M-B motherboard AMD A620 Socket AM5 micro ATX

MSI PRO A620M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
88,83 €
incl. VAT , add. delivery costs starting from 4.99€
SKU MBMC-599 |
EAN 4711377276597 |
MPN 7E28-017R |
Manufacturer MSI
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Colour
Primary Colour
Black
Dimensions
Length / Depth
243.84 mm
Width
215 mm
Form Factor
Motherboard formfactor
Micro-ATX
CPU
CPU Manufacturer
AMD
CPU Socket
AM5
Motherboard
Motherboard Chipset
AMD A620
Built-In I/O Shield
Yes
Memory
Max. Memory
128 GB
Memory Type
DDR5
Memory Form Factor
DIMM
Max. Memory Speed (Standard)
4800 MT/s
Max. Memory Speed (OC)
6800 MT/s
Memory slots
2x
Wi-Fi & LAN
LAN
Yes
LAN Ports
1x 2.5 Gbit/s
Wi-Fi / Bluetooth
No
Cooling
Backplate
Yes
M.2 Heatsinks
No
VRM Heatsinks
No
Internal Ports
CPU Power Supply
1x 8-Pin
USB 3.0 (internal) Header
1
USB 3.0 (internal) Possible Ports
2
USB 2.0 (internal) Header
2
USB 2.0 (internal) Possible Ports
4
Front Panel Audio Header
Yes
SPI TPM Header
Yes

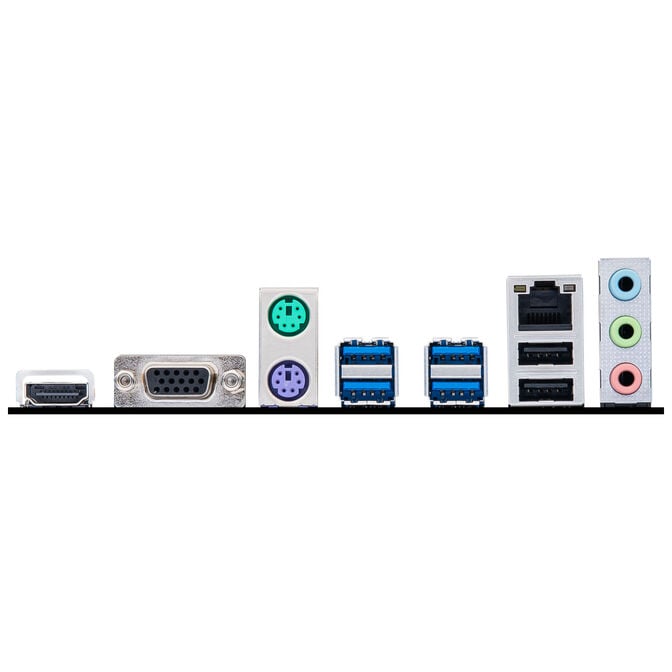

External Ports
USB 3.0 (external) Type A
4
USB 2.0 (external) Type A
2
Display Connectors
HDMI (1x), VGA (D-Sub) (1x)
Storage Ports
M.2 PCIe 4.0 x4
1
SATA 6G (internal)
4
Expansion Slots
PCIe x16 slots (total)
1
PCIe 4.0 x16 mechanical slot
1
PCIe 4.0 x1 mechanical slot
1
Fan Header
4 Pin Fan Connectors
3
Audio
Soundchip
Realtek ALC897
Lighting
Lighting / RGB
Yes
