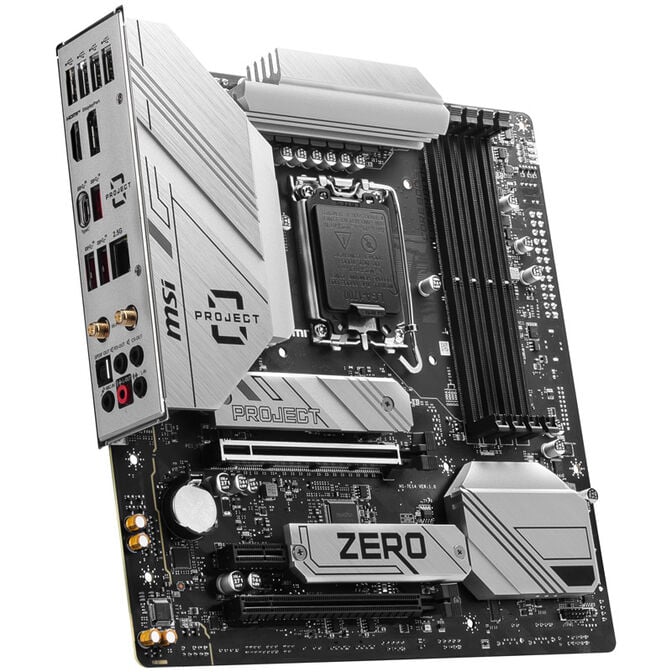

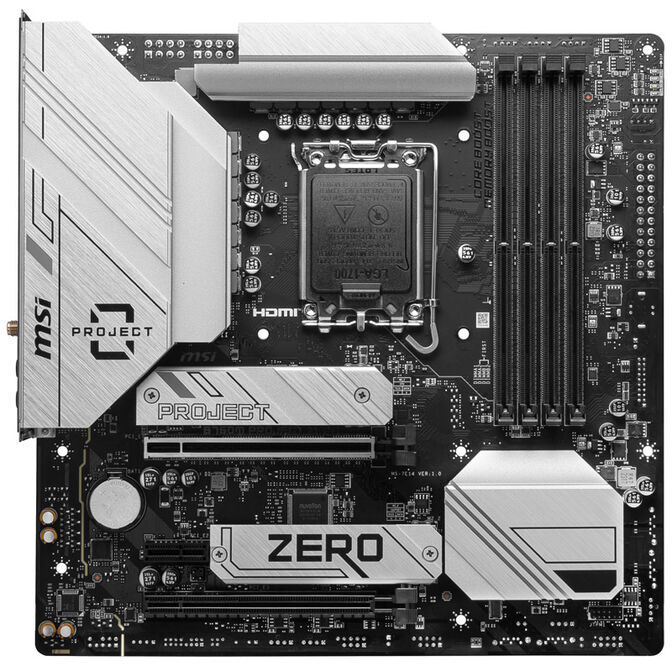

MSI Pro B760M Project Zero, Socket LGA 1700, Intel B760M, MIcro-ATX- DDR5, Back-Connect-Design
Micro-ATX motherboard with B760 chipset, with Intel Socket 1700, PCIe 5.0 for graphics cards, suitable for DDR5 RAM, 2x M.2 PCIe 4.0 slots, 2.5 Gbit LAN and WLAN 6E
241,47 €
incl. VAT
, add. delivery costs starting from 4.99€
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Audio Boost: Reward your ears with studio grade sound
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

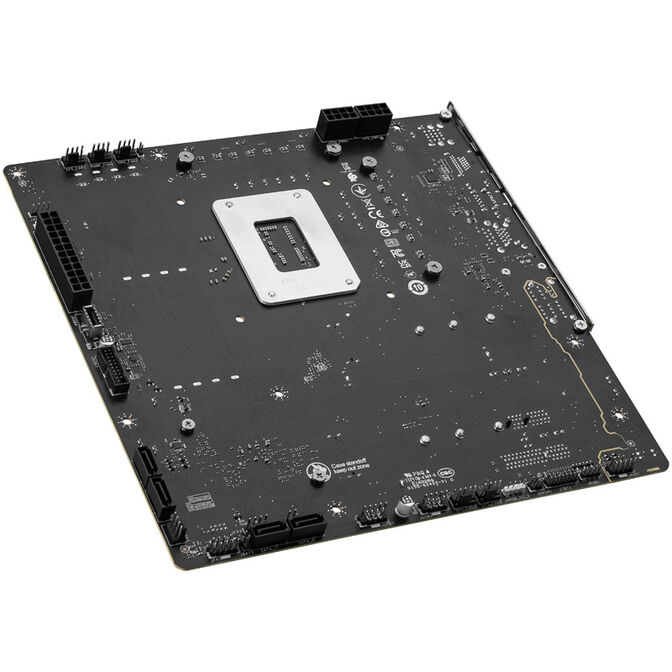

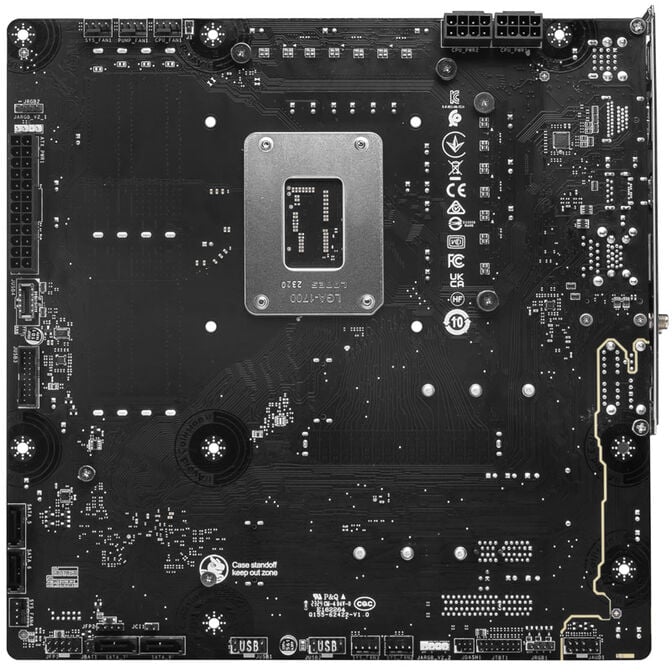

B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

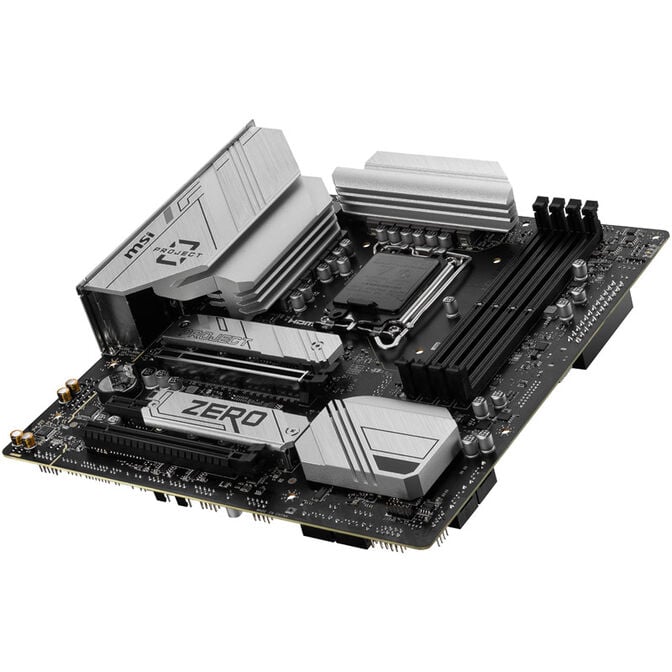

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

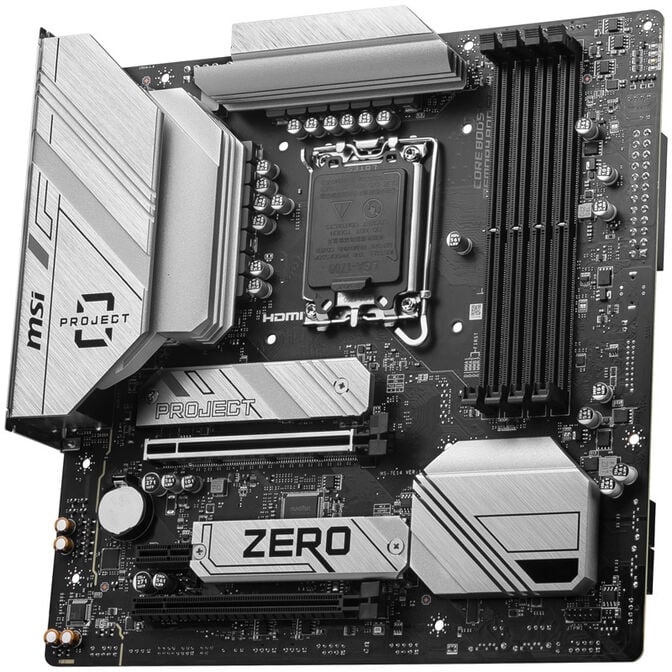

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional
Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
UDIMM
|
|
Max. Memory Speed (Standard)
|
5200 MT/s
|
|
Max. Memory Speed (OC)
|
7600 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO, Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN Ports
|
1x 2.5 Gbit/s, 1x (in total)
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG), 2x RGB (4-Pin 5050 12VGRB)
|
|

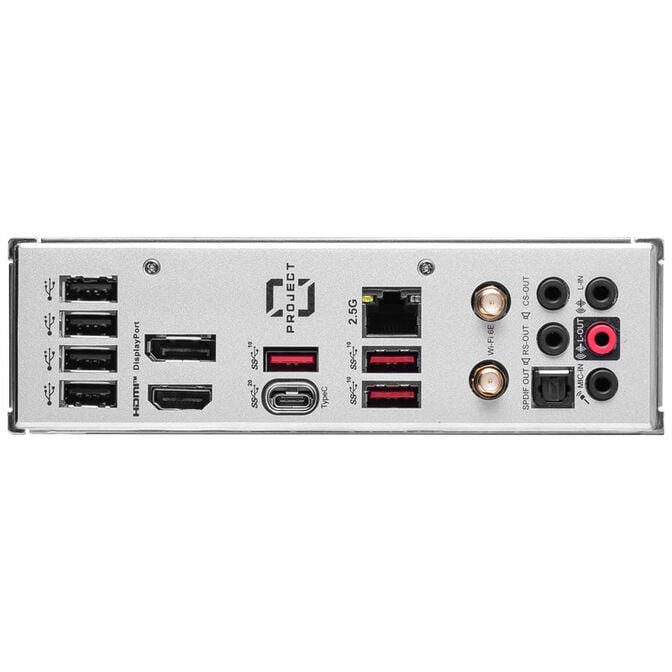

External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type C
|
0
|
|
USB 3.1 (external) Type A
|
3
|
|
USB 3.0 (external) Type C
|
0
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Thunderbolt 3 (external) Type C
|
0
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 2.0 x2
|
0
|
|
M.2 PCIe 2.0 x2 & SATA 6G
|
0
|
|
M.2 PCIe 2.0 x4
|
0
|
|
M.2 PCIe 3.0 x2
|
0
|
|
M.2 PCIe 3.0 x2 & SATA 6G
|
0
|
|
M.2 PCIe 3.0 x4
|
0
|
|
M.2 PCIe 3.0 x4 & SATA 6G
|
0
|
|
M.2 PCIe 4.0 x2
|
0
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
0
|
|
M.2 SATA 6G
|
1
|
|
SAS (internal)
|
0
|
|
SATA 6G (internal)
|
4
|
|
SATA Express (internal)
|
0
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x4 slots (total)
|
0
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
0
|
|
PCIe 5.0 x4 mechanical slot
|
0
|
|
PCIe 4.0 x16 mechanical slot
|
0
|
|
PCIe 4.0 x4 mechanical slot
|
0
|
|
PCIe 4.0 x1 mechanical slot
|
0
|
|
PCIe 3.0 x16 mechanical slot
|
0
|
|
PCIe 3.0 x4 mechanical slot
|
0
|
|
PCIe 3.0 x1 mechanical slot
|
0
|
|
PCIe 2.0 x16 mechanical slot
|
0
|
|
PCIe 2.0 x4 mechanical slot
|
0
|
|
PCIe 2.0 x1 mechanical slot
|
0
|
|
PCI slot
|
0
|
|
Fan Header
|
|
|
3 Pin Fan Connectors
|
0
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
