MSI PRO B850-P WiFi Motherboard, socket AM5, AMD B850, ATX, DDR5
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe 3.0 x16 (x1)
- RAM: 4x DIMM slots supporting up to 256 GB DDR5 RAM at up to 8,200 MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 2x USB-C 3.1, 1x USB 3.1, 1x USB 3.0, and 4x USB 2.0
- Cooling: 6x 4-pin PWM headers for fans and radiators
- Connectivity: Wi-Fi 7 and Bluetooth 5.4
MSI PRO B850-P WiFi: ATX Motherboard with AMD AM5 Socket and B850 Chipset
The MSI PRO B850-P WiFi is an ATX motherboard equipped with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000-, 8000-, and 7000-series CPUs.
The motherboard provides PCIe 5.0 connectivity for graphics cards and NVMe SSDs, ensuring top-tier performance. Additionally, USB 3.1 enables data transfer speeds of up to 10 Gbit/s for fast and efficient data handling.
Overclocking for Gamers
Maximize your gaming PC’s potential with CPU overclocking supported by the MSI PRO B850-P WiFi. A robust power supply ensures high-end CPUs operate at peak performance over extended periods. DDR5 RAM can also be overclocked to achieve optimal performance. In case of any issues, the motherboard includes BIOS-Flashback and Clear CMOS features for convenient recovery and troubleshooting.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
243.8 mm
|
|
Width
|
304.8 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
CUDIMM, UDIMM
|
|
Max. Memory Speed (Standard)
|
5600 MT/s
|
|
Max. Memory Speed (OC)
|
8200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
LAN Chip
|
Realtek 8126VB
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

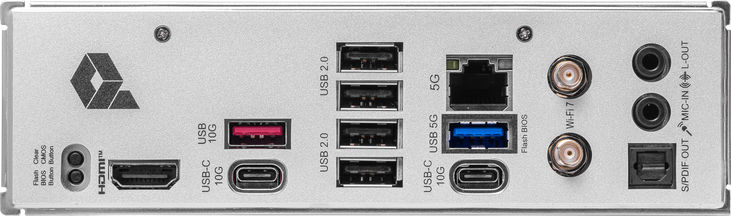

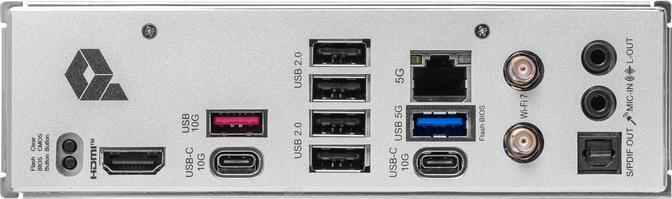

External Ports
|
|
|
USB 3.1 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
