MSI PRO Z890-S WIFI motherboard, socket 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x16 / 1x PCIe 3.0 x16, 1x Thunderbolt 4 (USB-C) / 1x USB-C 3.2 / 6x USB 3.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors
247,12 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is perfect for gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 x16 (x1)
- 4x DIMM slots supporting up to 256 GB DDR5 RAM at up to 8,600 MHz
- 3x M.2 slots (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

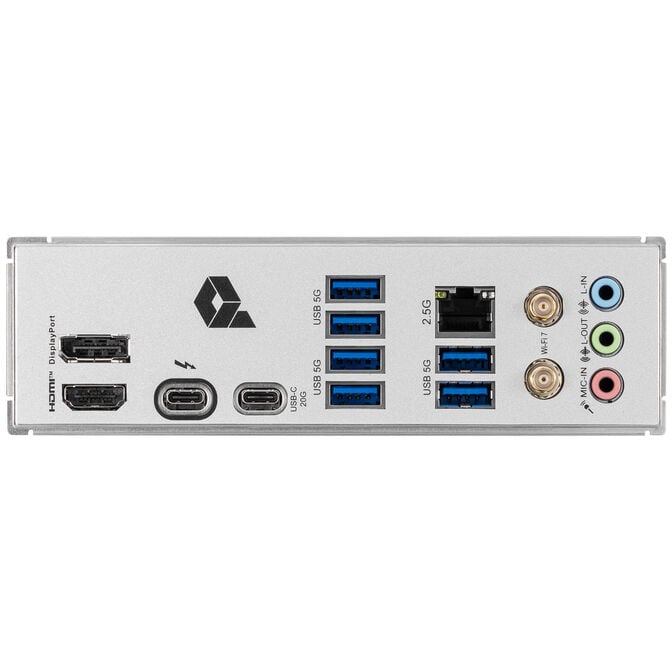

- USB on the I/O panel: 1x Thunderbolt 4, 1x USB-C 3.2, and 6x USB 3.0
- A total of 6x 4-pin headers for fans and pumps
- Supports WiFi 7 and Bluetooth 5.4

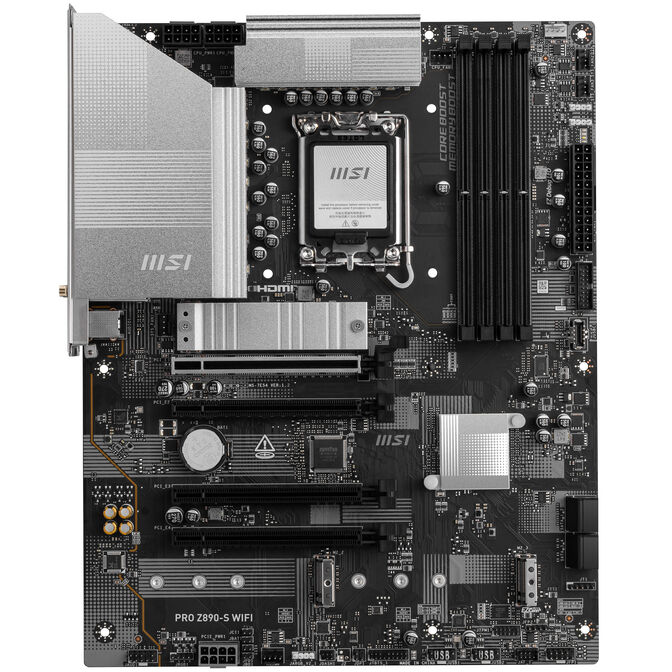

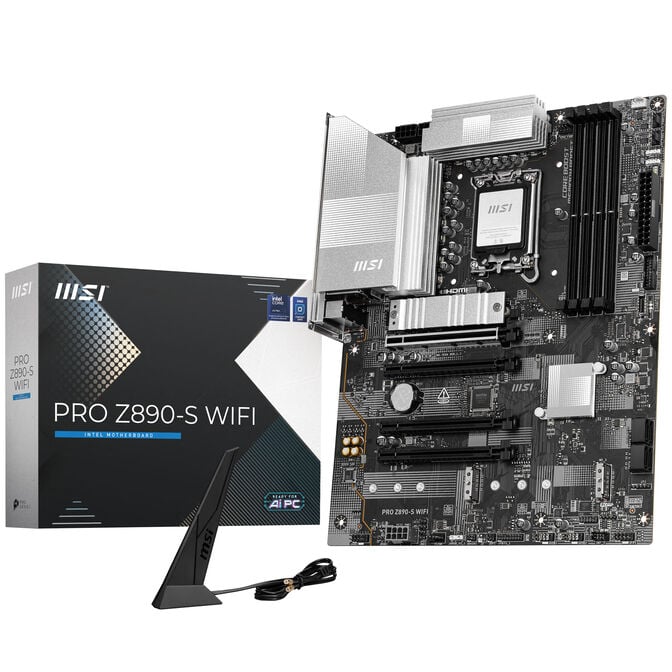

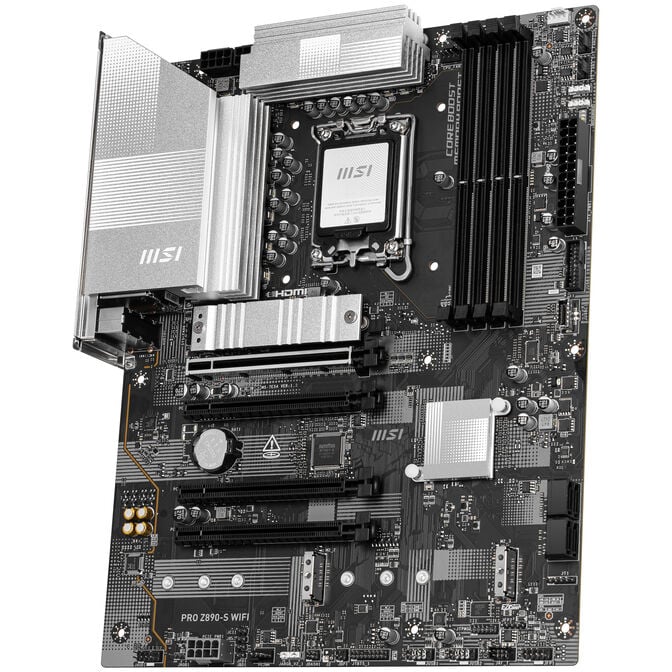

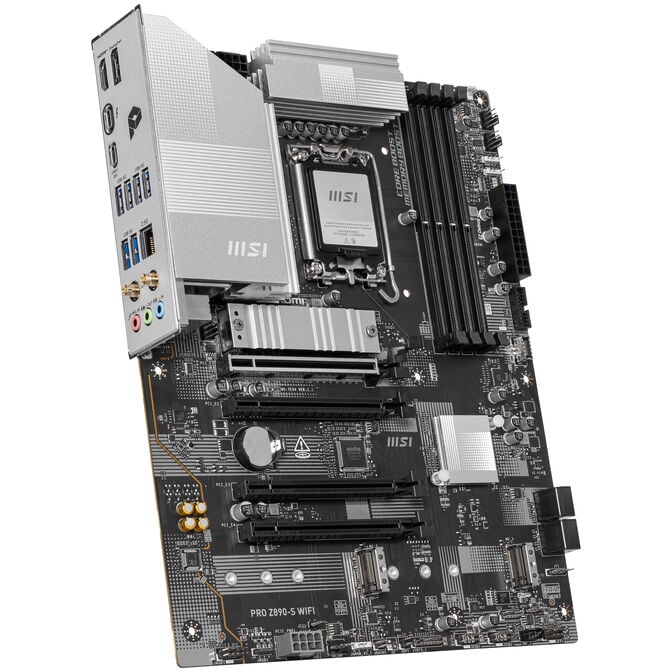

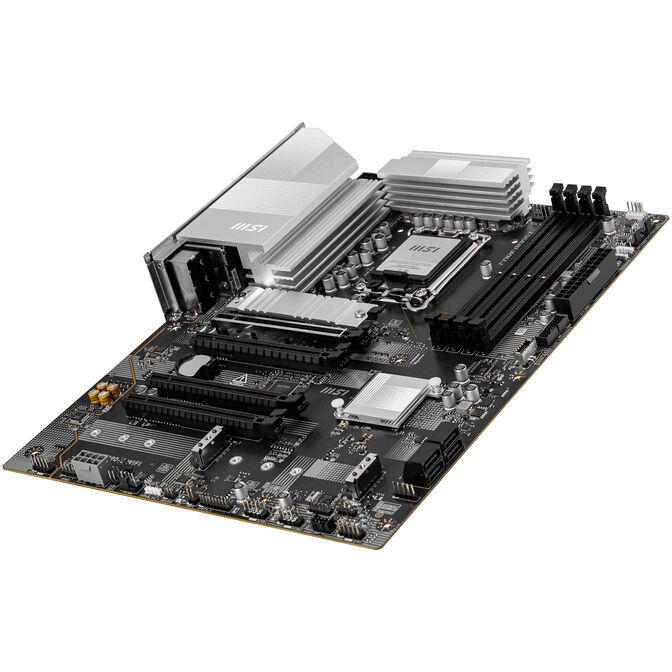

MSI PRO Z890-S WIFI: ATX Motherboard with Intel LGA 1851 Socket and Z890 Chipset
The MSI PRO Z890-S WIFI is an ATX motherboard featuring the high-end Intel Z890 chipset and LGA 1851 socket. It supports Intel Core Ultra processors of the second generation, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40 Gbps. Additionally, the MSI PRO Z890-S WIFI features full PCIe 5.0 connectivity, delivering double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
243.8 mm
|
|
Width
|
304.8 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
Max. Memory Speed (OC)
|
8600 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
6
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
4
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
2
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
