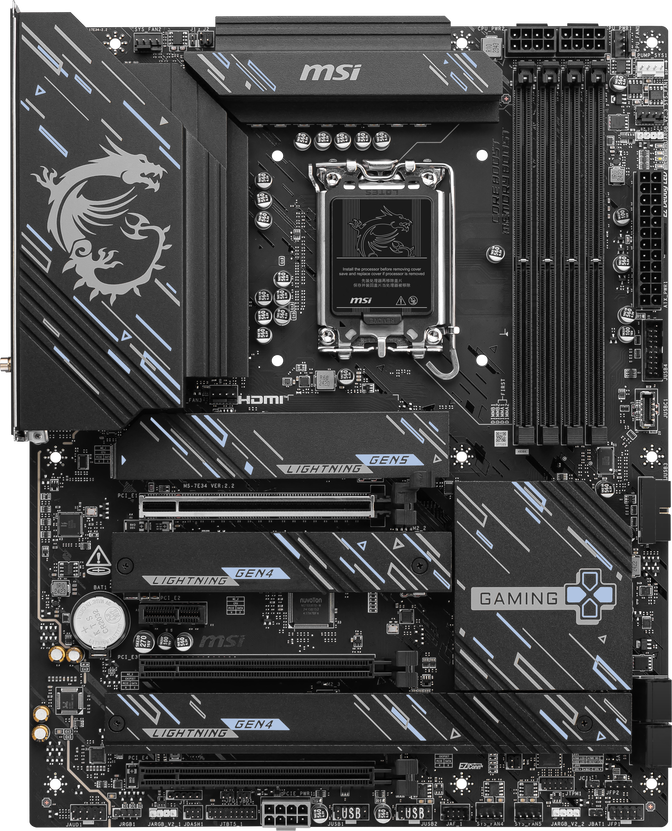

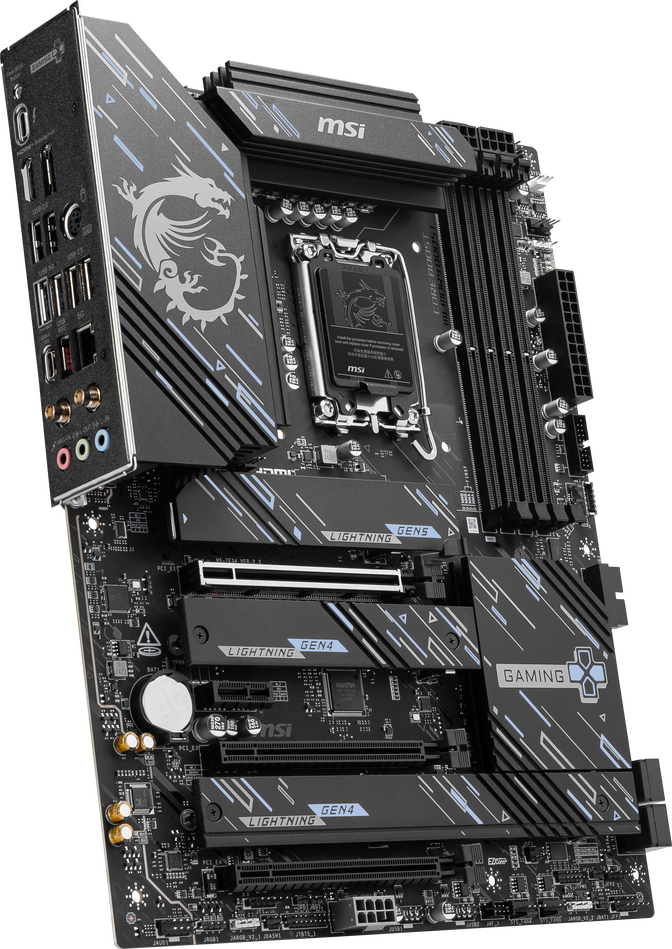

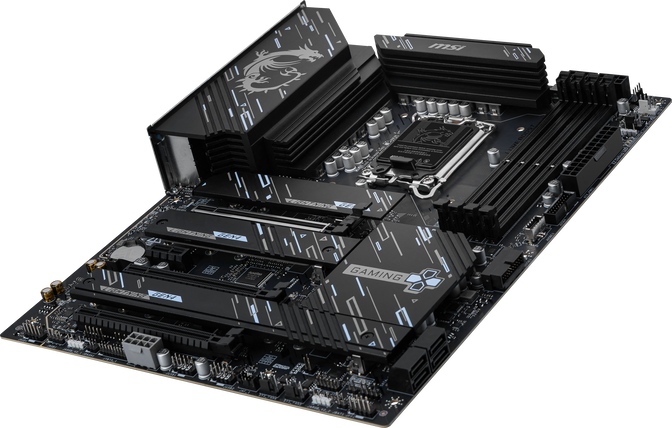

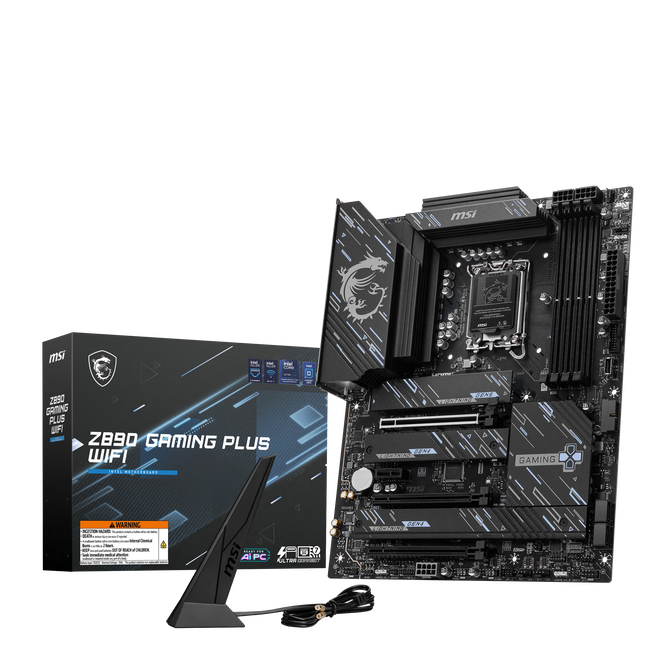

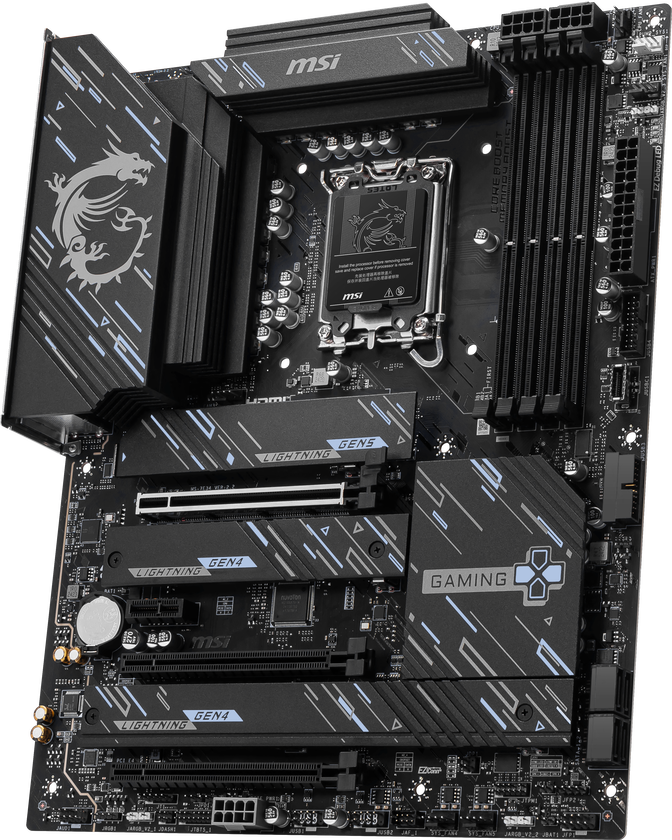

MSI Z890 Gaming Plus WIFI Motherboard, Socket 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x4 / 1x PCIe 4.0 x1, 1x USB4 / 1x USB-C 3.2 / 2x USB 3.1 / 6x USB 3.0, 4x M.2 slots (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, and 7x 4-pin PWM connectors.
261,23 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is an excellent choice for budget builds and light overclocking.
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x4, and 1x PCIe 4.0 x1
- 4x UDIMM slots supporting up to 256 GB DDR5 RAM at speeds up to 9200 MHz (XMP 3.0 & CUDIMM support)
- 4x M.2 slots (1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

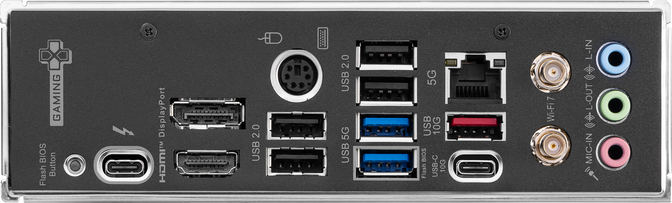

- USB on the I/O panel: 1x USB4, 1x USB 3.1 Type-C, 3x USB 3.0 / USB 3.1, and 4x USB 2.0
- 7x 4-pin connectors for fans and pumps
- Supports WiFi 7 and Bluetooth 5.4
MSI Z890 Gaming Plus WIFI: ATX Motherboard with Intel LGA 1851 Socket and Z890 Chipset
The MSI Z890 Gaming Plus WIFI is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB4, providing data transfer rates of up to 40 Gbps. Additionally, the MSI Z890 Gaming Plus WIFI impresses with full PCIe 5.0 connectivity, offering double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
4800 MT/s
|
|
Max. Memory Speed (OC)
|
9200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
LAN Chip
|
Intel Killer E5000
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Wi-Fi Chip
|
Intel Killer BE1750x
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB4 (internal) Header
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
1
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
2
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
MSI Mystic Light Sync
|
