Phanteks AMP GH 750W 80 PLUS Gold Power Supply, PCIe 5.1, ATX 3.1 - 750 Watt, white
- Powerful ATX-3.1 750 watt power supply for high-end PCs
- 80 PLUS Gold certification thanks to high efficiency of up to 92%
- Quiet 120mm fan with hydrodynamic bearing for efficient cooling
- Less cable clutter and better airflow thanks to modular cable management
- Cables with individually textured strands for a tidy build
- Silent operation at the push of a button thanks to semi-passive hybrid mode
- Includes 12V-2x6 power cable for high-performance graphics cards
The Phanteks AMP GH 750W: Powerful and Reliable
The Phanteks AMP GH 750W is a powerful ATX-3.1 power supply that powers your gaming hardware safely. Phanteks has developed a compact power supply with a depth of only 140 mm, fitting the standard ATX form factor and accommodating most cases. By using high-quality electrical components, the 80 PLUS Gold-certified power supply operates very efficiently. Its fully modular design with individually shielded and specially textured cables makes installation easier and ensures a clean look.
ATX-3.1 PSU with PCIe-5.1 Connector for Graphics Cards
The AMP-GH series fully complies with the ATX 3.0 and 3.1 standards, making it compatible with the latest components. Phanteks has also equipped this power supply with a 12V-2x6 connector based on the PCIe-5.1 standard, preparing your PC for current and upcoming high-end GPUs.
Maximum Flexibility: Various Connectivity Options and Modular Design
The gold-plated connectors reduce electrical resistance and increase efficiency, to save energy and operate reliably. All the necessary cables for motherboard, CPU, PCIe cards, SATA, and Molex for drives and accessories are included. The fully modular design allows for easy installation and reduces cable clutter. Thanks to the versatile connectivity options, you can adapt your desktop PC to your requirements.
Silent Semi-Passive Hybrid Mode

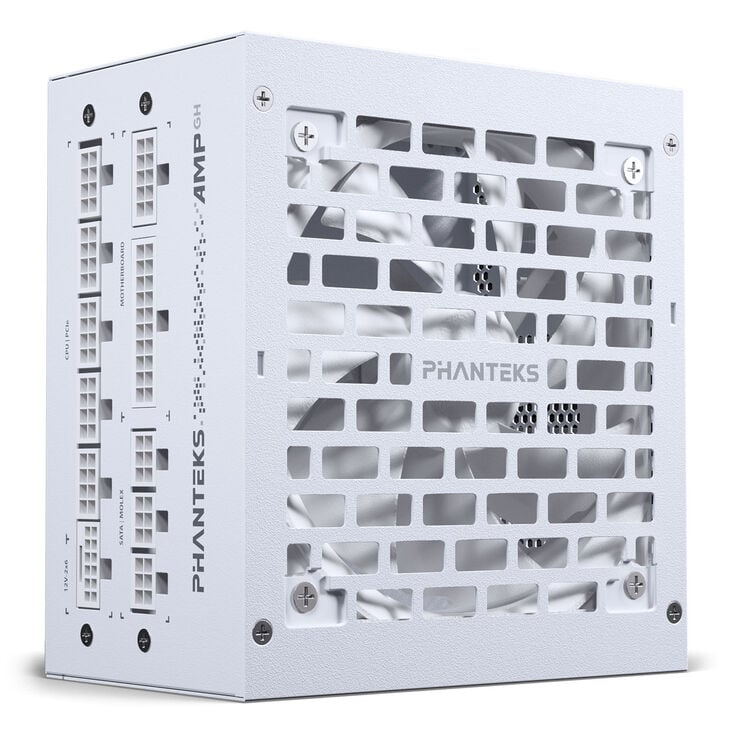

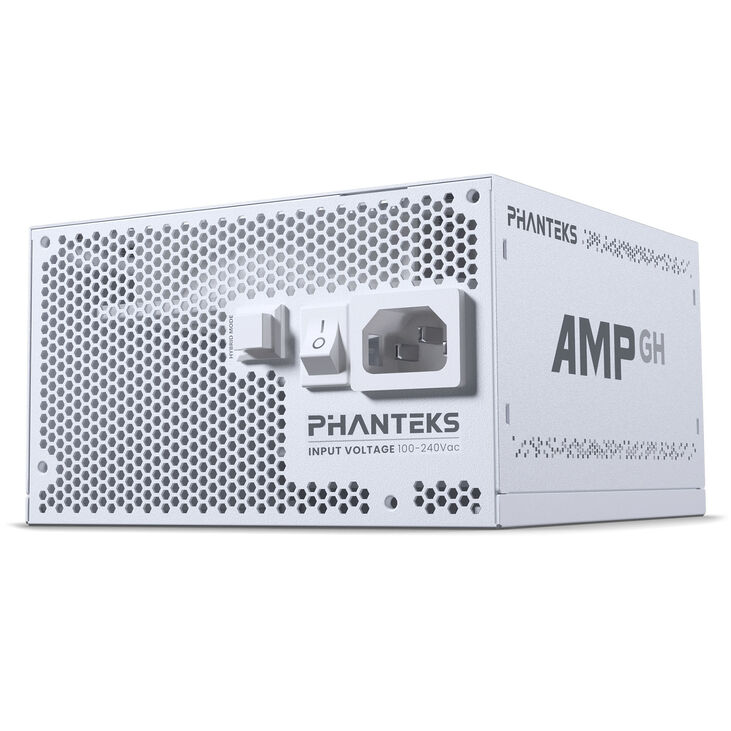

The 120mm fan with hydrodynamic bearing ensures optimal cooling with minimal noise. In this mode, the power supply fan automatically turns off at a load of under 40%, enabling nearly silent operation. A switch on the back allows you to turn the semi-passive hybrid mode on and off easily.
Silent operation offers several benefits: it creates a quieter working and gaming environment, reduces distractions, and enhances your overall experience. Additionally, it preserves the fan, resulting in a longer lifespan for your power supply.
- Dimensions: 150 x 86 x 140 mm (W x H x D)
- Colour: White
- Fan: 120 mm PWM (FDB / semi-passive hybrid mode at under 40% load)
- Standard: ATX 3.0 / 3.1
- Efficiency: 90 / 92 / 89% at 20 / 50 / 100% and 230 volts input voltage (80 PLUS Gold)
- Form Factor: ATX
- Power: 750 W
+3.3V: 20 A / 66 W
+5V: 20 A / 100 W
+3.3V & +5V: 100 W (combined)
+12V: 62 A / 744 W (combined)
-12V: 0.3 A / 3.6 W
+5Vsb: 2.5 A / 12.5 W - Power Supply Sockets (modular):

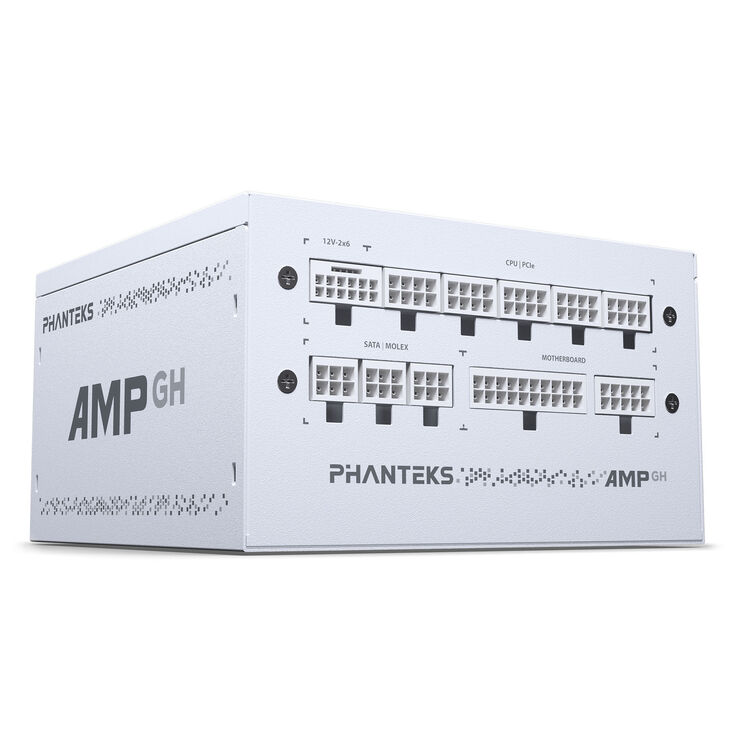

1x 18+10-pin (motherboard)
5x 8-pin (CPU / PCIe)
3x 6-pin (SATA / Molex)
1x 12V-2x6 (GPU) - Protection Circuits:
OVP (over-voltage protection)
UVP (under-voltage protection)
SCP (short circuit protection)
OPP (over-power protection)
OTP (over-temperature protection)
OCP (over-current protection)
No-Load Protection
Reset Protection - Package Contents:
1x Phanteks AMP GH 750W 80 PLUS Gold Power Supply, PCIe 5.1, ATX 3.1 - 750 Watt, white
1x C13 power cable (1.5 m)
Cables:
1x 18+10-pin to 24-pin (610 mm)
2x 8-pin to 4+4-pin (650 mm)
3x 8-pin to 6+2-pin (750 mm)
1x 12V-2x6 to 12V-2x6 (720 mm)
2x 6-pin to 4x SATA, including 3x 90-degree connectors (450 - 150 - 150 - 150 mm)
1x 6-pin to 2x SATA, 90-degree + 2x Molex (450 - 150 - 150 - 150 mm)
Accessories:
1x Manual
1x Installation Guide
1x PSU Bag
1x PSU Jumper
1x Cable Tie
1x Screws
1x Velcro Strap
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Width
|
150 mm
|
|
Depth
|
140 mm
|
|
Height
|
86 mm
|
|
Installation depth
|
140 cm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Power Supply
|
|
|
PSU Format
|
ATX
|
|
ATX Standard
|
ATX 3.1
|
|
12V Distribution
|
single rail
|
|
Modular Power Supply
|
Yes
|
|
Modular Type
|
fully modular
|
|
Power Specifications
|
|
|
Total Power Output
|
750 W
|
|
Power Output +12V rails
|
744 W
|
|
Cable Specifications
|
|
|
Max. CPU Power Cable Length
|
650 mm
|
|
Max. 24-Pin Motherboard Power Cable Length
|
610 mm
|
|
Max. PCIe Power Cable Length
|
720 mm
|
|
Cooling
|
|
|
Semi Passive Power Supply
|
Yes
|
|
Switchable Semi Passive Mode
|
Yes
|
|
Semi Passive Type
|
passive
|
|
Internal Ports
|
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
|
CPU Power Supply
|
2x 4+4-Pin
|
|
12V-2x6 Power Connectors
|
1
|
|
6+2 Pin PCIe Power Connectors
|
3
|
|
SATA Power Connectors
|
10
|
|
4 Pin Molex Power Connectors
|
2
|
|
Efficiency Class
|
|
|
80PLUS Efficiency
|
80 PLUS Gold
|
|
Lighting
|
|
|
Lighting
|
No
|
