Phanteks D30 PWM Reverse Airflow, D-RGB Fan - 140mm, black
- Versatile high-end fan in black with eye-catching RGB lighting
- Powerful PWM for use in cases or on radiators
- 30mm depth and aerodynamic fan blades for additional cooling
- Connect up to four fans with clips for easy daisy-chaining
- Available in Regular or Reversed Mode to hide spokes and stickers
- Includes screw covers for clean builds
The Features of the Phanteks D30-140 Fan in Detail
The Phanteks D30-140 PWM D-RGB fans are designed to deliver high airflow and static pressure. Thanks to their 30mm depth, powerful hydrodynamic PWM motor, and aerodynamic fan blades, they can be used for cooling your case with restrictive mesh and dust filters or on radiators. Furthermore, they offer extensive daisy-chaining capabilities without cable clutter. You can daisy-chain up to four of them together and connect them to your motherboard for PWM and ARGB signals with just one cable.

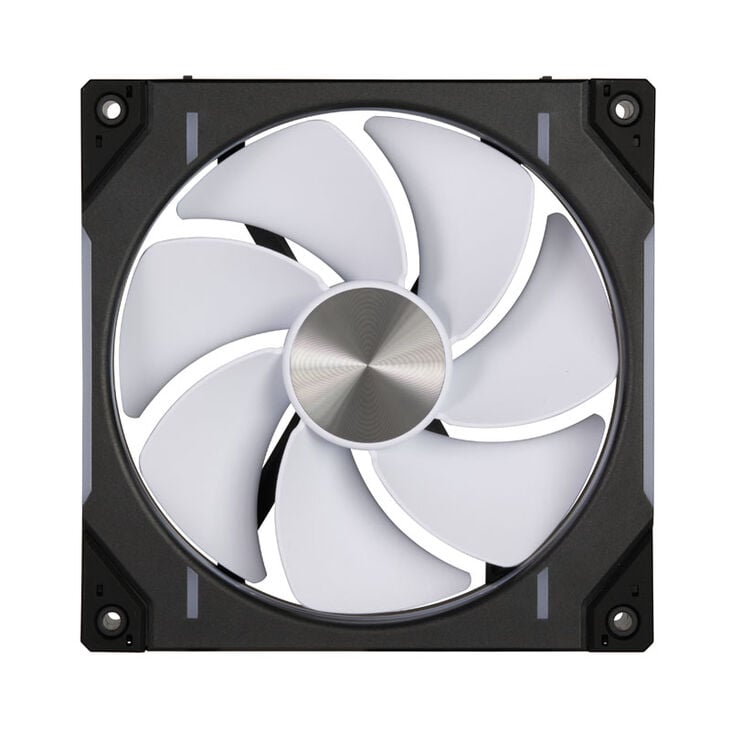

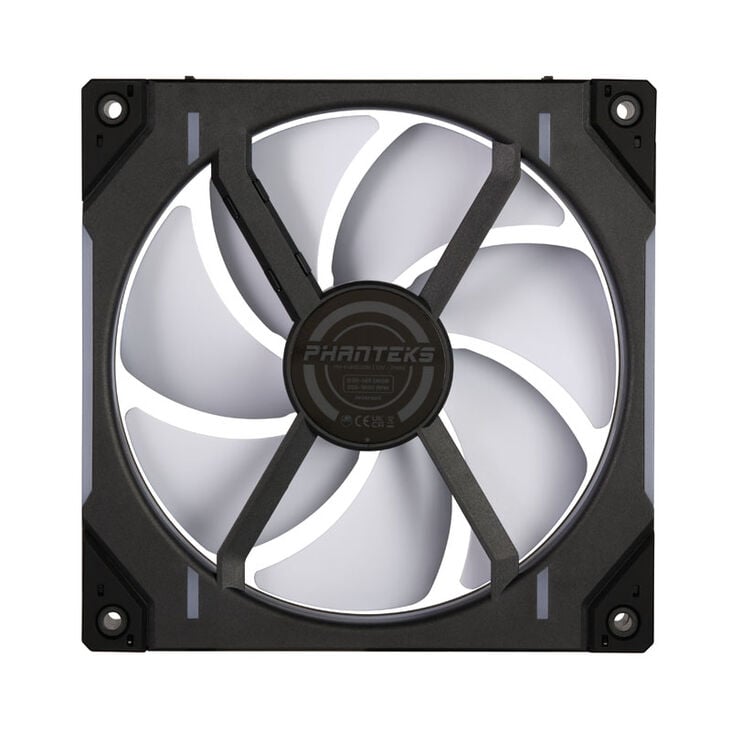

Available in Regular and Reversed Airflow variants, you can choose the model you need to hide unsightly hub stickers and spokes. This version supports reversed airflow and directs air from the back to the front and into the case.

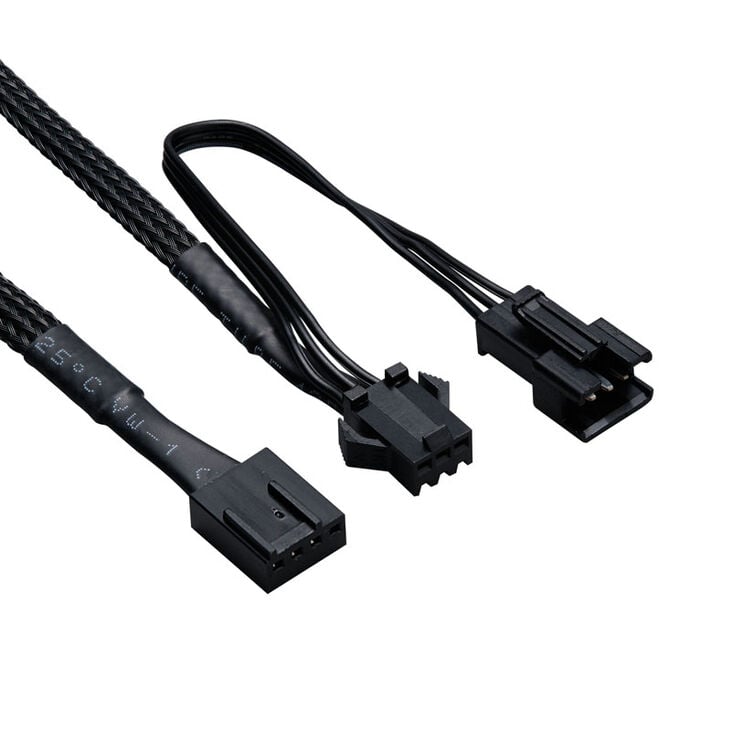

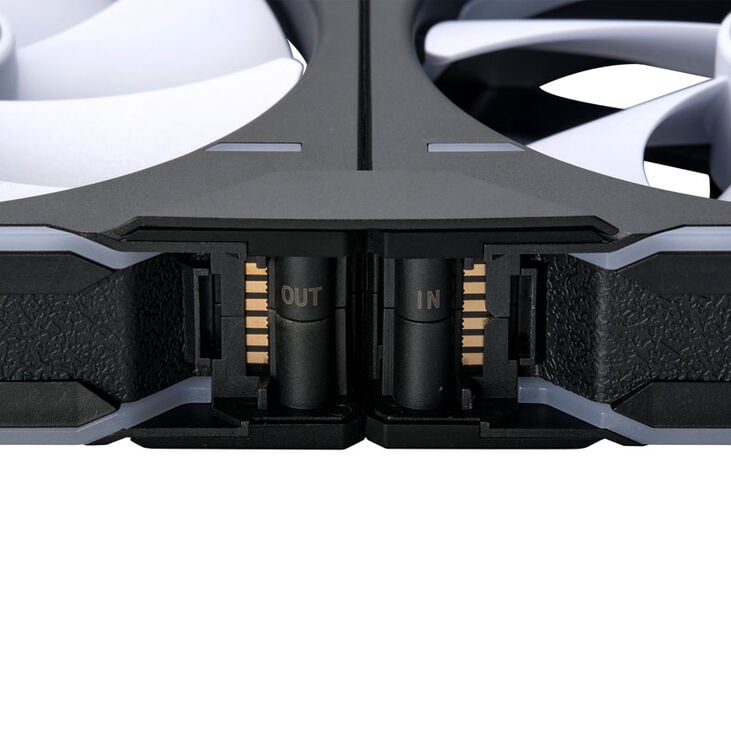

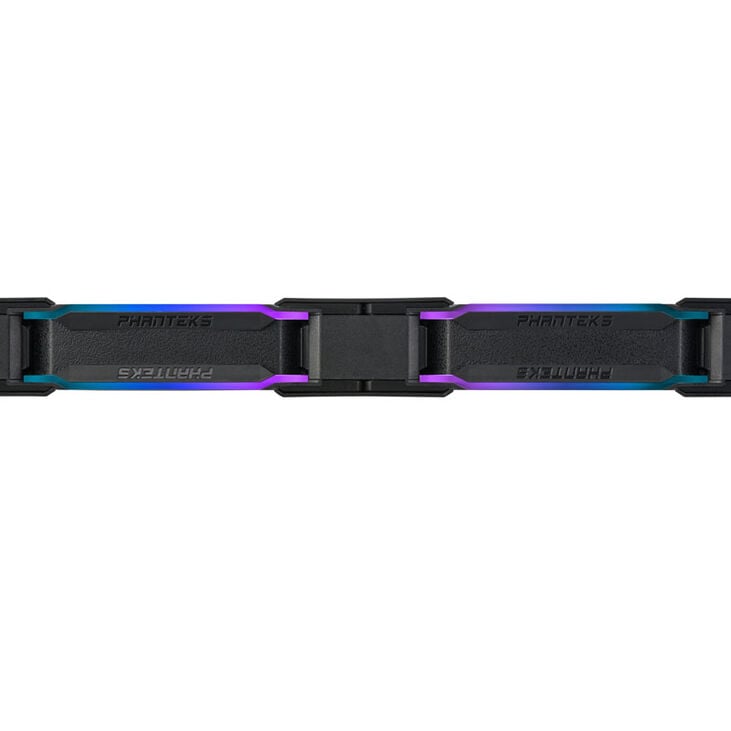

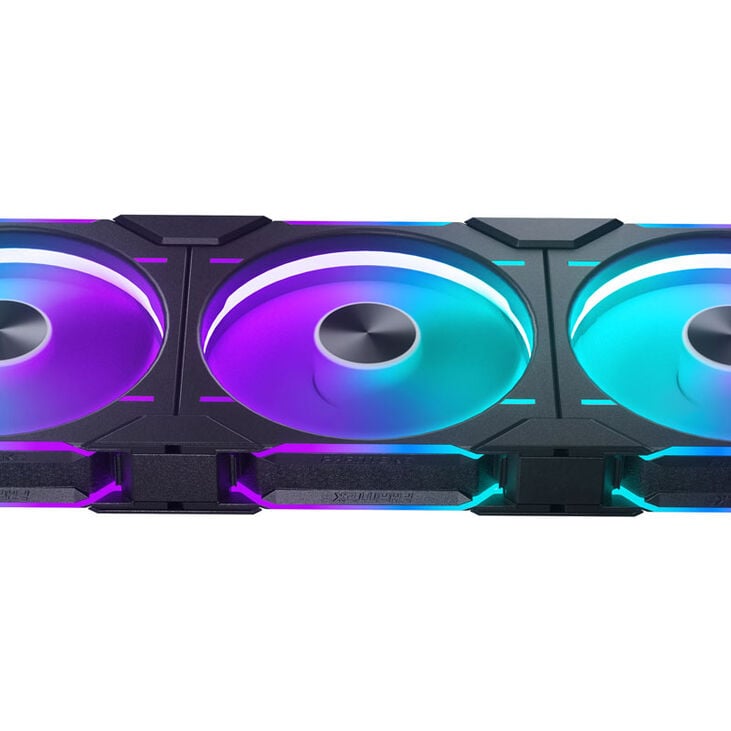

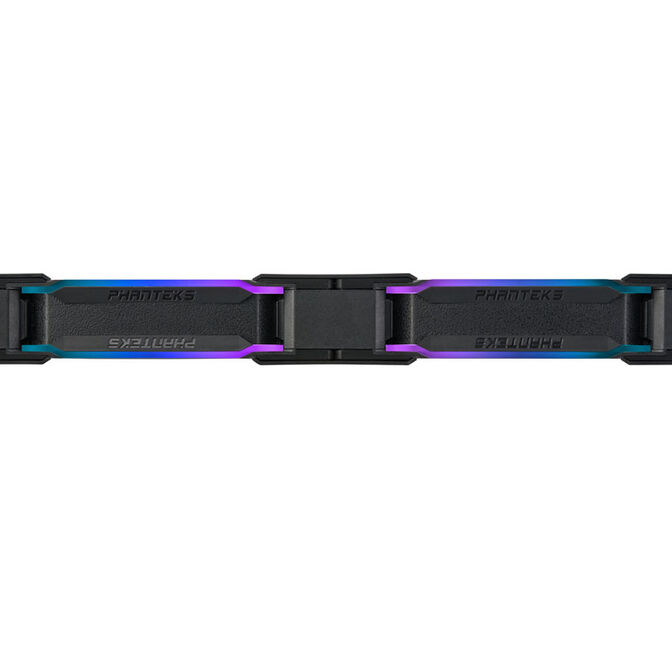

The fans can be connected using two clips on the sides, one of which passes the power from the first fan through a total of four fans. This reduces cable clutter since only the first fan needs to be connected to your Phanteks controller using a 4-pin PWM and 3-pin D-RGB JST cable. A D-RGB-to-3-pin ARGB adapter cable for direct connection to your motherboard is included.
Technical Details:
- Dimensions: 140 x 140 x 30mm (L x W x D)
- Weight: 266g
- Color: Black (Frame), White (Fan Blades)
- Material: Plastic
- Bearing: Hydrodynamic
- Mode: Reversed (Airflow from back to front)
- Specifications:
Speed: max. 1,800 RPM
Airflow: max. 121.9 m³/h
Pressure: max. 3.08 mmH2O
Noise Level: max. 32.1 dB(A)
Current: max. 0.15 A
Voltage: 12V - Connections:
4-pin PWM
3-pin JST D-RGB - Cable Length: 100mm + 600mm

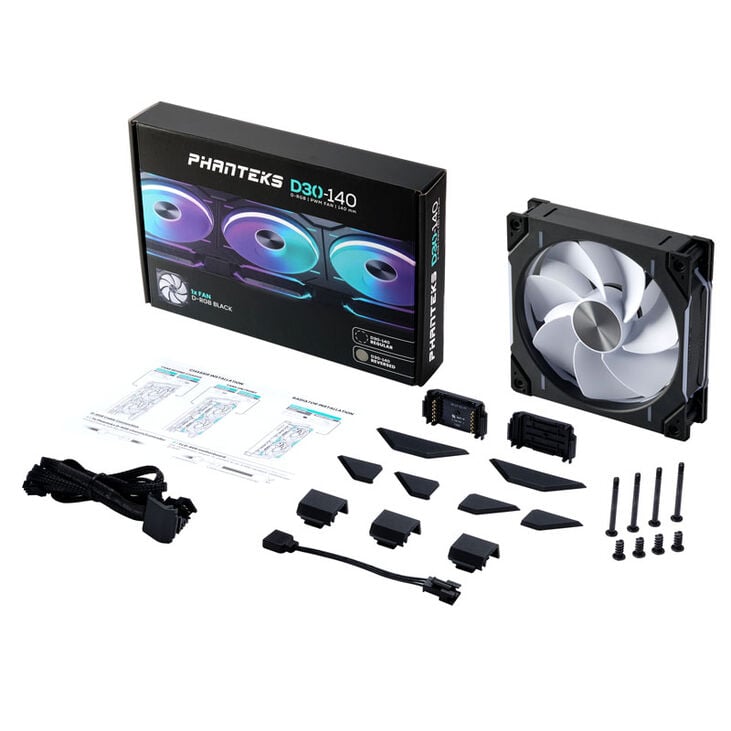

- Package Contents:
1x D30-140 Fan
1x 4-pin and 3-pin Extension Cable
1x Corner Connection Cable
1x Connection Bridge
3x Corner Clip
1x Connection Clip
2x Screw Cover for Connection Bridge
2x Screw Cover for Corners (L)
2x Screw Cover for Corners (R)
4x Fan Screws
4x Radiator Screws
D-RGB Mainboard Adapter
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
White
|
|
Fan Main Colour (Frame)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
140 mm
|
|
Fan height
|
30 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Fan mounting size
|
140 mm
|
|
Min. Fan RPM
|
250 rpm
|
|
Max. Fan RPM
|
2000 rpm
|
|
Max. Single Fan Airflow
|
121.9 m³/h
|
|
Max. Static Pressure
|
3.08 mmH2O
|
|
Noise
|
|
|
Max. Single Fan Noise dB(A)
|
32.1 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
|
|
Set
|
|
|
Set
|
No
|
